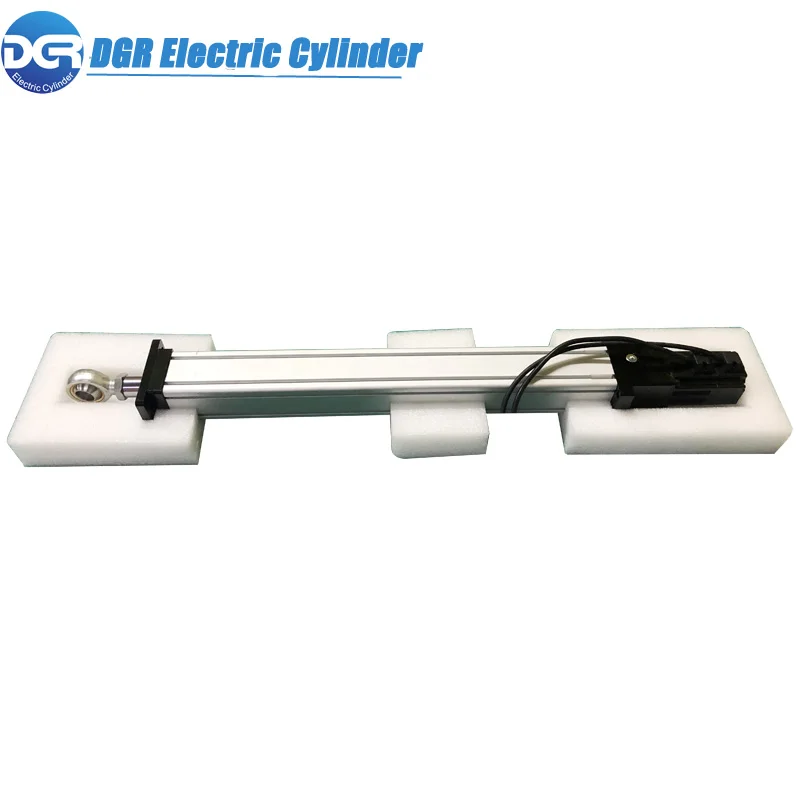

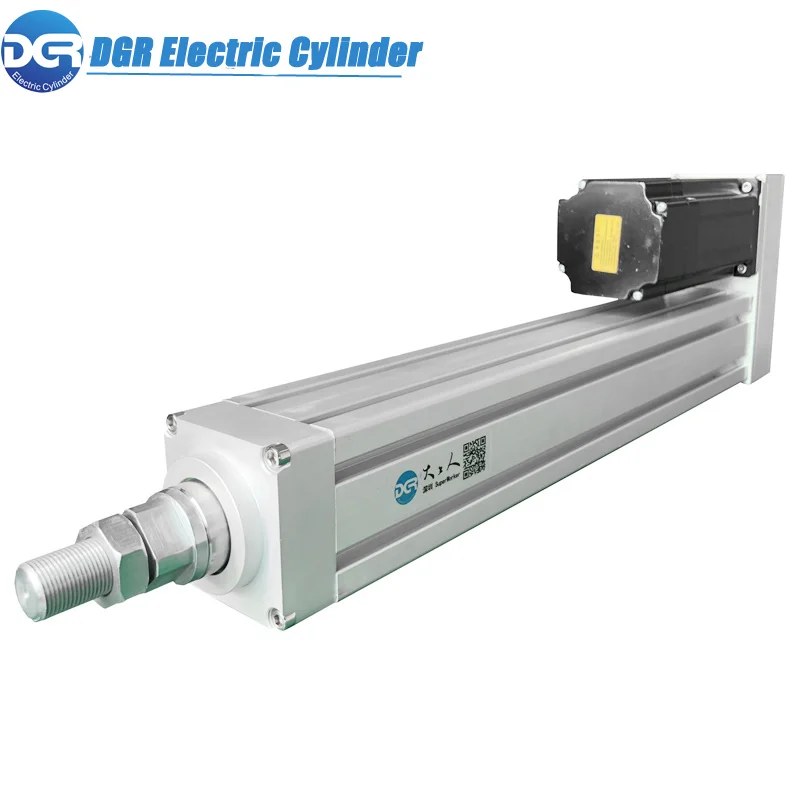

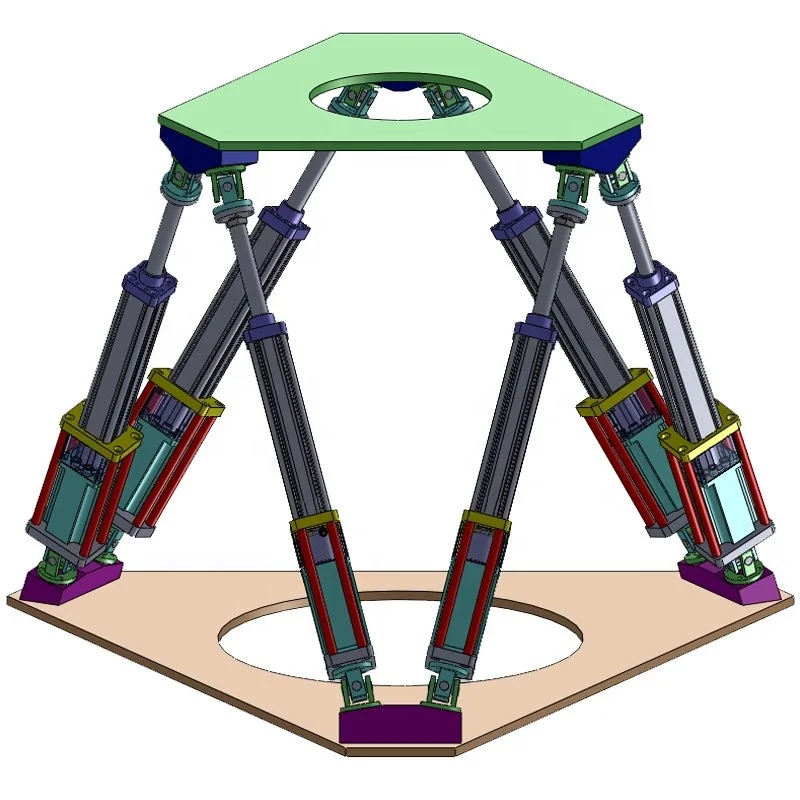

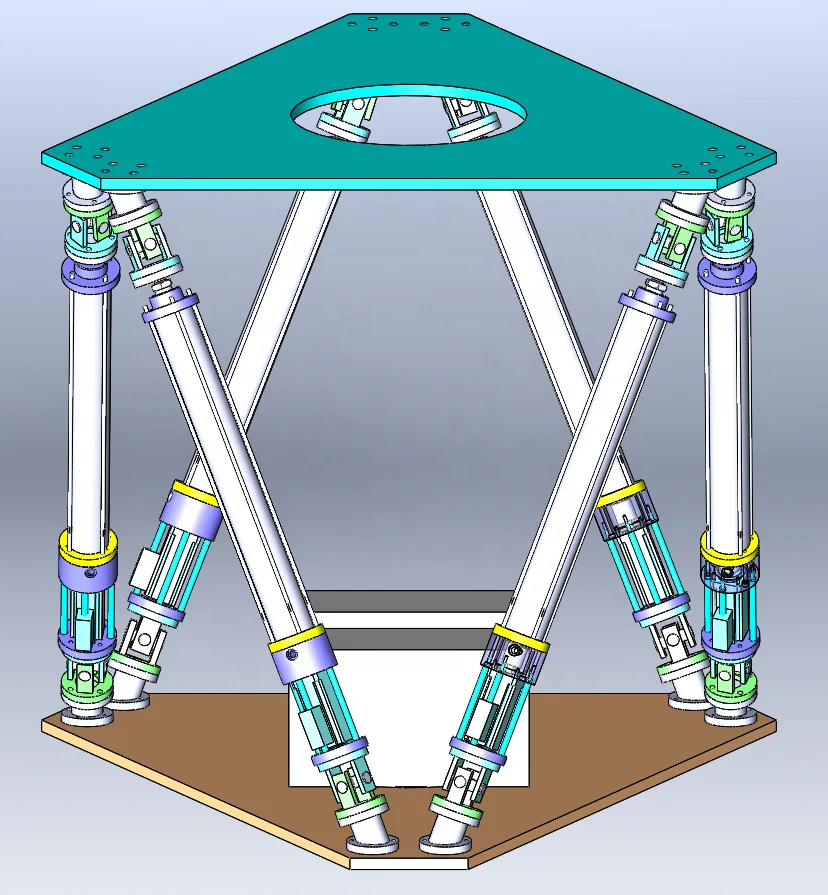

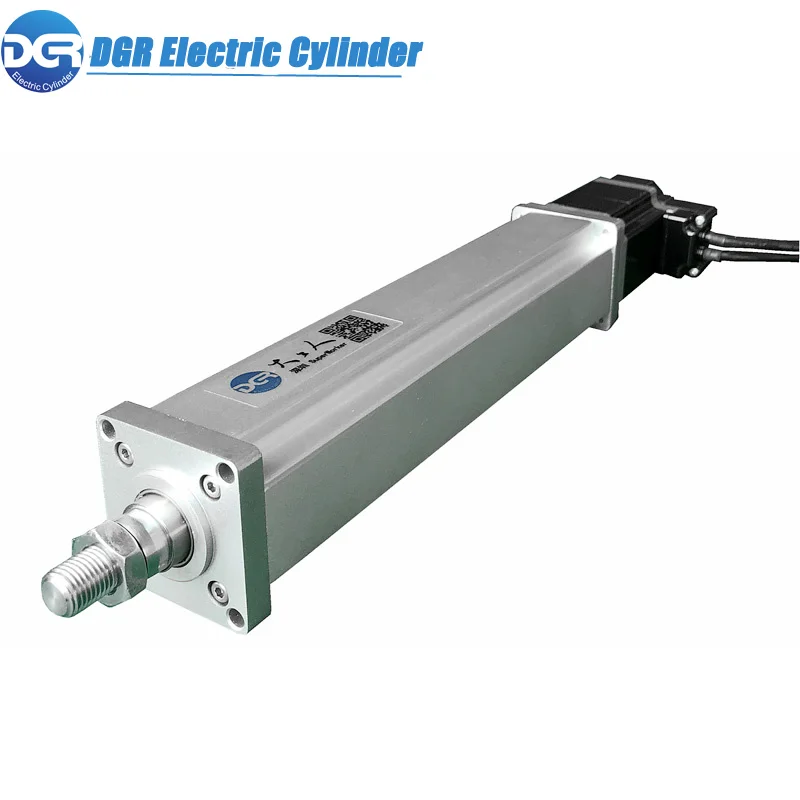

Electric Cylinder Actuators for X Plane Flight Simulator 6 DOF Hexapod Motion Platform
- Category: Cylinders >>>
- Supplier: Shenzhen Superworker Technology Co. Ltd.
Share on (62156453482):
Product Overview
Description
| Standard or Nonstandard | Nonstandard |
| Structure | Piston Cylinder |
| Power | Pneumatic |
| Body Material | Aluminum |
| Place of Origin | Guangdong,China |
| Brand Name | DGR |
| Item Number | DGR-EC-65 Linear actuator for simulators |
| Application | lifting, push and pull, repeatable positioning, etc |
| Drive type | ball screw, lead screw |
| Motor | DC brushless motor, servo motor, stepper motor |
| Material | adonized aluminum alloy |
| Protection | IP 54/65/66/67/68 |
| Max. speed(Can be customize) | 500mm/s |
| Stroke(Can be customize) | 1200mm=47.2 inches |
| Thrust(Can be customize) | 3000N=300KG |
| Mounting Style | Flange,Inline or Parallel,Vertical |
| Certificate | CE/ISO9001 |
Features of DGREC39 Electric cylinder 6 DOF Hexapod motion Platform
High Accuracy
High precision, the processing of key parts is completed by CNC machining, and the machining accuracy is within 0.02mm.
High Reliability
Highly reliable, safety factor>2 ( PS: safety factor for key parts > 4), which is in compliance with metallurgical standard.
Long Life
Run over a distance of 100,000km
Wide Thrust Range
Select famous branded roller ball screws, ball screws and lead screws which are made of high-quality materials for our electric cylinders in order to reach double the theoretical rated push-pull force.
Careful Material Selection
1. Select aluminum alloy as the cylinder material, simple and light, beautiful appearance
2. Select sensor components of internationally famous brands .
3. Key components are made of high quality materials and processed with vacuum heat treatment or surface treatment (including: coating, azotizing, oxidation)
4. Select branded bearings and gears to achieve the best mechanical performance in mechanical structure
5. Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.
Refined Design and Processing
1. The connection between the screw nut and the piston rod is rigid
2. Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.
3. All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.
4. Electric cylinder comes with anti-rotation mechanism by default
5. Professional machining processing equipment minimizes the cost.
6. Adopt domestic ball screw and bearing products, light load output, high cost performance
Duty Cycle
Ball screws are used for frequent operation of electric cylinders, the duty cycle is ensured to be greater than 50% or continuous operation.
Complete Testing
Professional factory inspection: including appearance, mechanical properties, stability, noise decibels, etc.
Excellent Service
1. Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical support)
2. DGR Electric cylinder can be custom engineered for customer's particular application.
3.5 years' experience in electric cylinder production.
4.All customer requirements will be responded within 12 hours
Wide Selection of Motors
1. A variety of AC servo motors or stepper motors for option: such as Delta, Mitsubishi, Panasonic, Yaskawa and other brands
2. Motor comes with brake to ensure secure operation.
