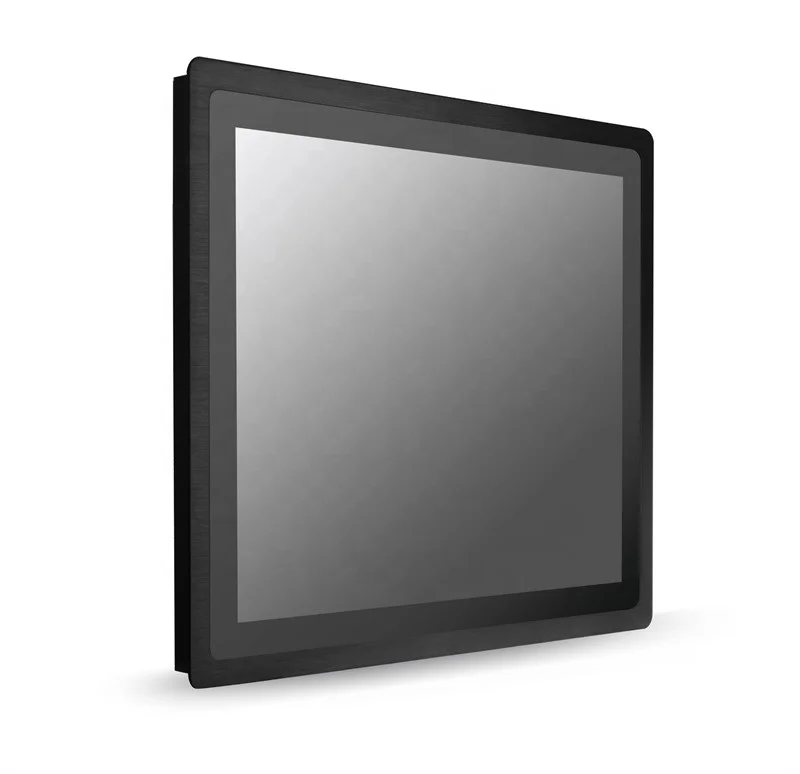

15.6inch panel mounted flat bezel embedded panel PC industrial AIO

Product Overview

Description

15.6 inch PCAP Flat Bezel Touch Panel PC high brightness optional



The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® Core™ Dual/Quad Core Processor i3/i5/i7 with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating high bright TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.



Specifications:



SPECIFICATION





Panel	Cell Type/Glass Surface	TFT
	Size	15.6”
	Aspect Ratio	16:9
	Active Area	344.16(H)x 193.59(V) (H)mm
	Pixel Pitch	0.17925 × 0.17925mm
	Native Resolution	1920 x 1080
	Colors	16.7M
	Brightness	1000cd/m2
	Contrast	800:1
	Response Time	30ms
	Viewing Angle (Typical)	80/80/80/65
	Light Source	LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System	CPU	Intel® Core i3/i5/i7 Processor
	BIOS	UEFI
	Chipset	TBA
	Memory	2 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.16GB
	Graphic Chipset	CPU integrated Intel graphics HD and support 1080p
	Storage	64G SSD
	LAN	1 x 10/100/1000Mbps Ethernet
Input / Output	Serial Ports	1 x COM
	USB Ports	4 X USB
	VGA Port	1 x VGA
	HDM I Port	1x HDM Port
	Audio Card	with Realtek ALC662 Line-Out/MIC IN
Power	Input Voltage	DC 12V
	Operation/Power Saving	60W
Environment Considerations	Operating Temperature	-10~60℃ (-20~70℃ Optional)
	Storage Temperature	-20~70℃
	Relative Humidity	10%~90% (Non-Condensing)
Order Information	15.6” 1000nits Flat Bezel Panel PC with PCAP Touch i3/i5/i7 /ITD156PPCT5HBXXI*
	15.6” 1000nits Flat Bezel Panel PC with Resistive Touch i3/i5/i7 /ITD156PPCT1HBXXI*
	15.6” 1000nits Flat Bezel Panel PC with Tempered Glass i3/i5/i7 /ITD156PPCG1HBXXI*

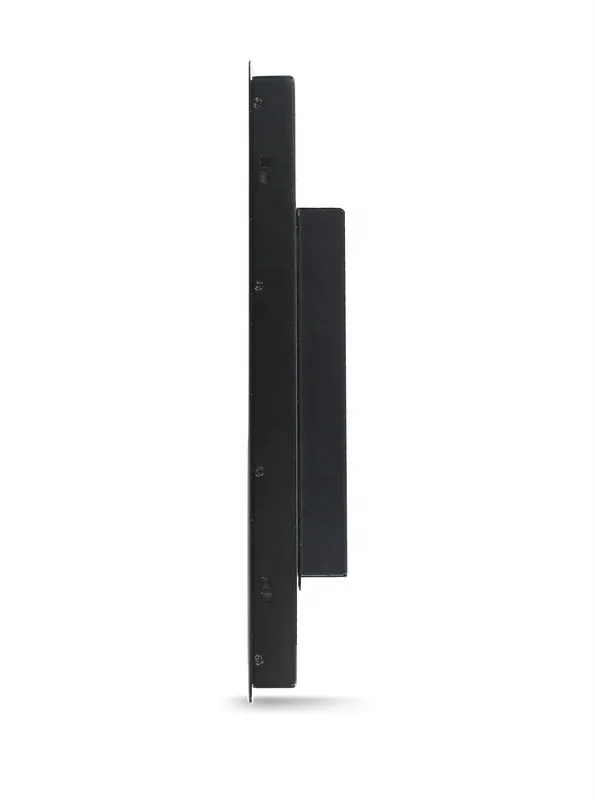

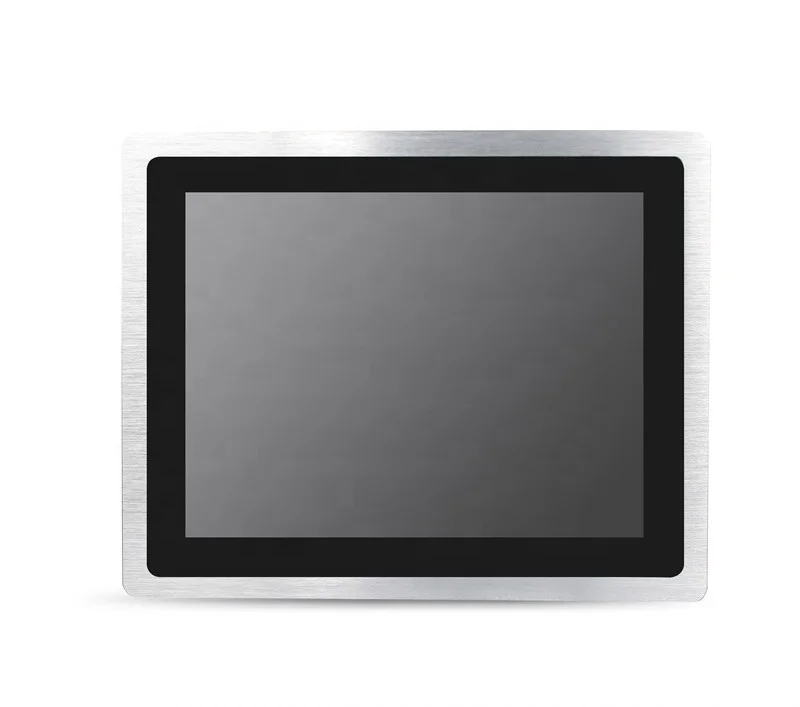

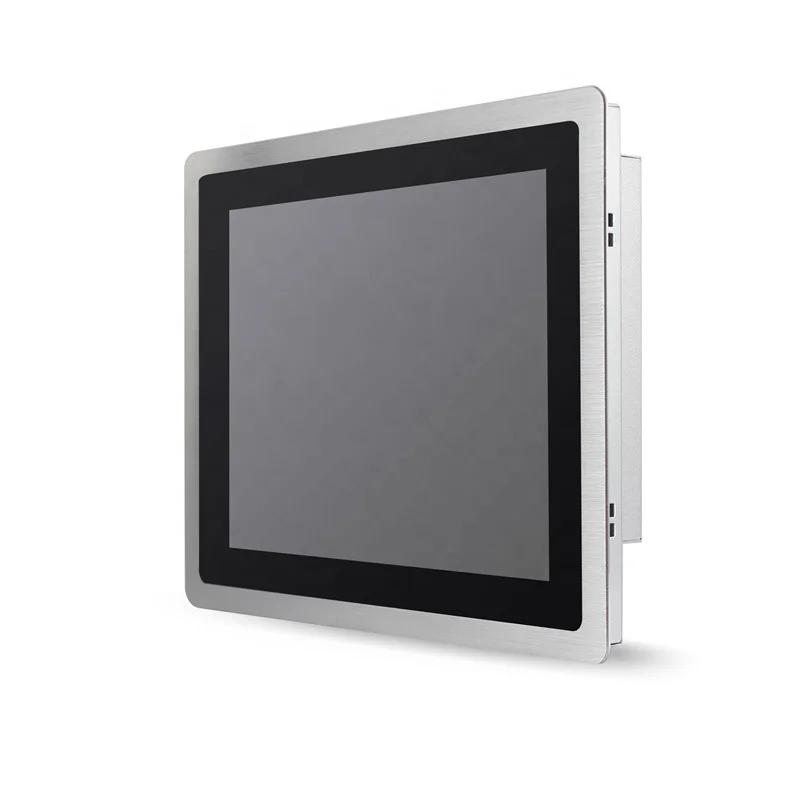

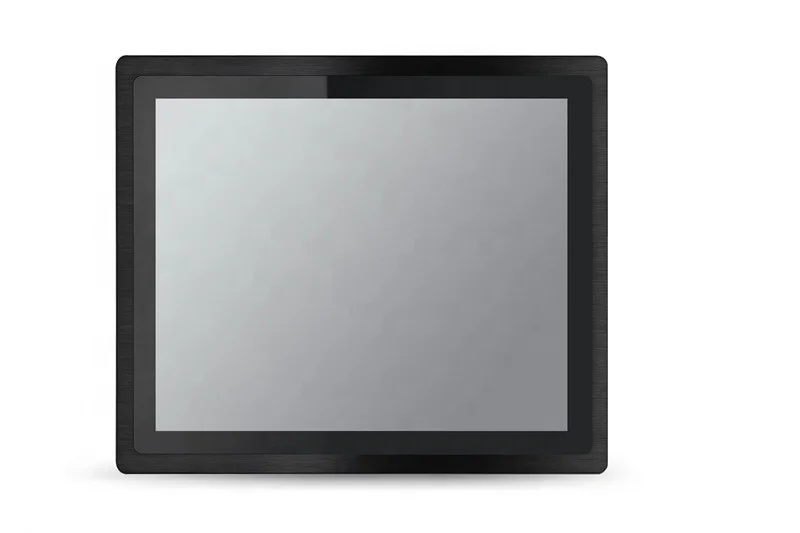

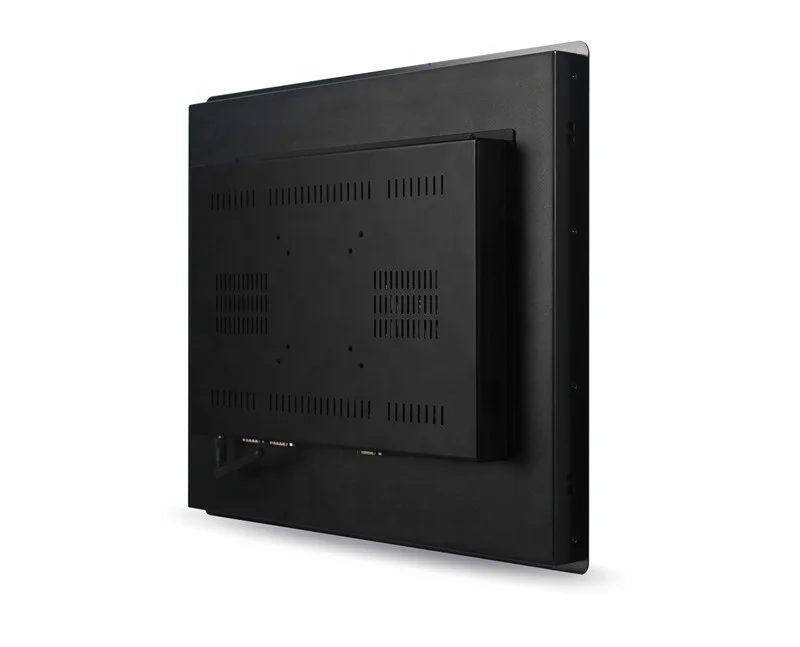

 Product Display:













 Firm, safe, standard cartons with foams

Wooden Shelf or box for big sizes and big quanity



























AFTER-SALES SERVICE



1-3 years’ warranty with DOA, RMA and Paid Service





Warranty



DOA Service (Dead On Arrival):
To run DOA within 30 days after shipment. Goods are guaranteed to exchange when it is returned.
New product operation would be completed within 5-20 working days. Round trip shipping costs are paid by ITD. The following failures are allowed to be serviced by DOA:
A: The image cannot display normally.
B: It cannot be powered on.
C: The internal functions of monitors are out of work.



RMA Service (Return Merchandise Authorization):
To run RMA within 1 year after shipment. Maintenance time lasts from 5 to 20 working days according to the difficulty and specific situation. Returning shipping cost after maintenance is paid by ITD.
