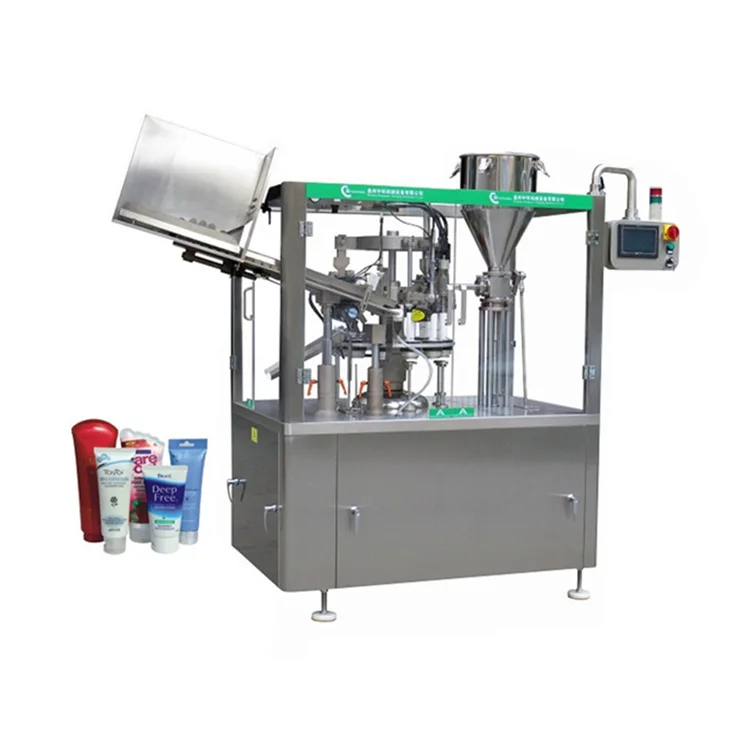

Zhonghuan ZHF 100YC tube filler and sealer manufacturer high speed filling sealing machine
- Category: >>>
- Supplier: Wenzhou Zungwan Intelligent Machine Co. Ltd.
Share on (62156707226):
Product Overview
Description
| Technical parameter | |
| Name |
Automatic plastic tube filling and sealing machine |
| Model | ZHF-100YC |
| Filling volume: | 1-300ml/unit (Adjustable) |
| Filling accuracy: | 0.5% |
| Capacity: | 3600-4800unit/hour, Adjustable |
| Tube diameter: | Φ12-60 mm |
| Tube length: | 50-240 mm |
| Hopper volume: | 40L |
| Power: | 380/220V 50/60HZ, 3Phase |
| Air pressure: | 0.4-0.6 MPa |
| Equipped motor: | 1.1KW |
| Machine power: | 5kw |
| Inner wind motor: | 0.37kw |
| Convulsions motor: | 0.37kw |
| Dimension: | 2270×960×2100(mm) |
| Weight: | About 1350 Kg |
|
Features:
Compact design Automatic tube loader feeding tubes Driving parts fully-closed Intelligent temperature control and cooling system Easy to operate and adjust 316l stainless steel contact parts to meet gmp standard Safety interlock shutdown when door is open Overload protection provided Automated working process from tube loading to finished products output Automatic orientation effected by photoelectric induction Chiller Date coding embossing
Optional Devices:
Automatic tube elevator
|
|
