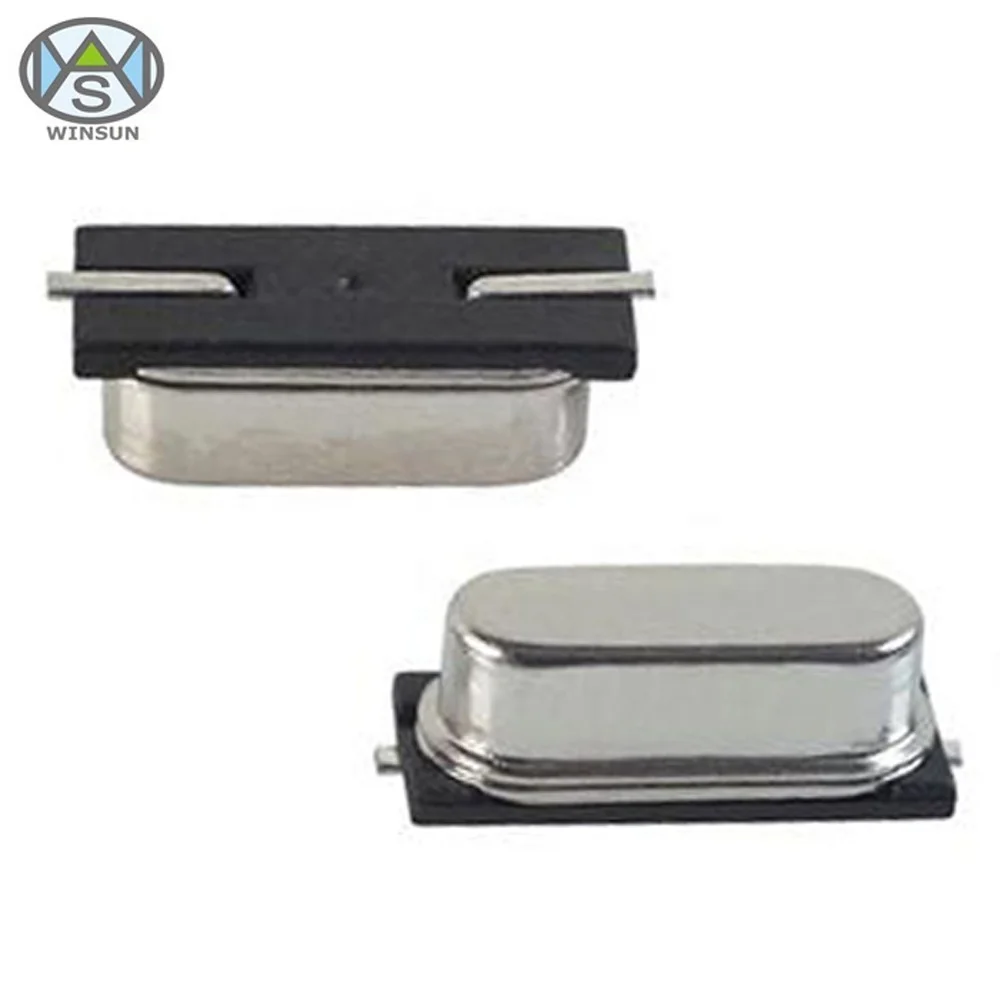

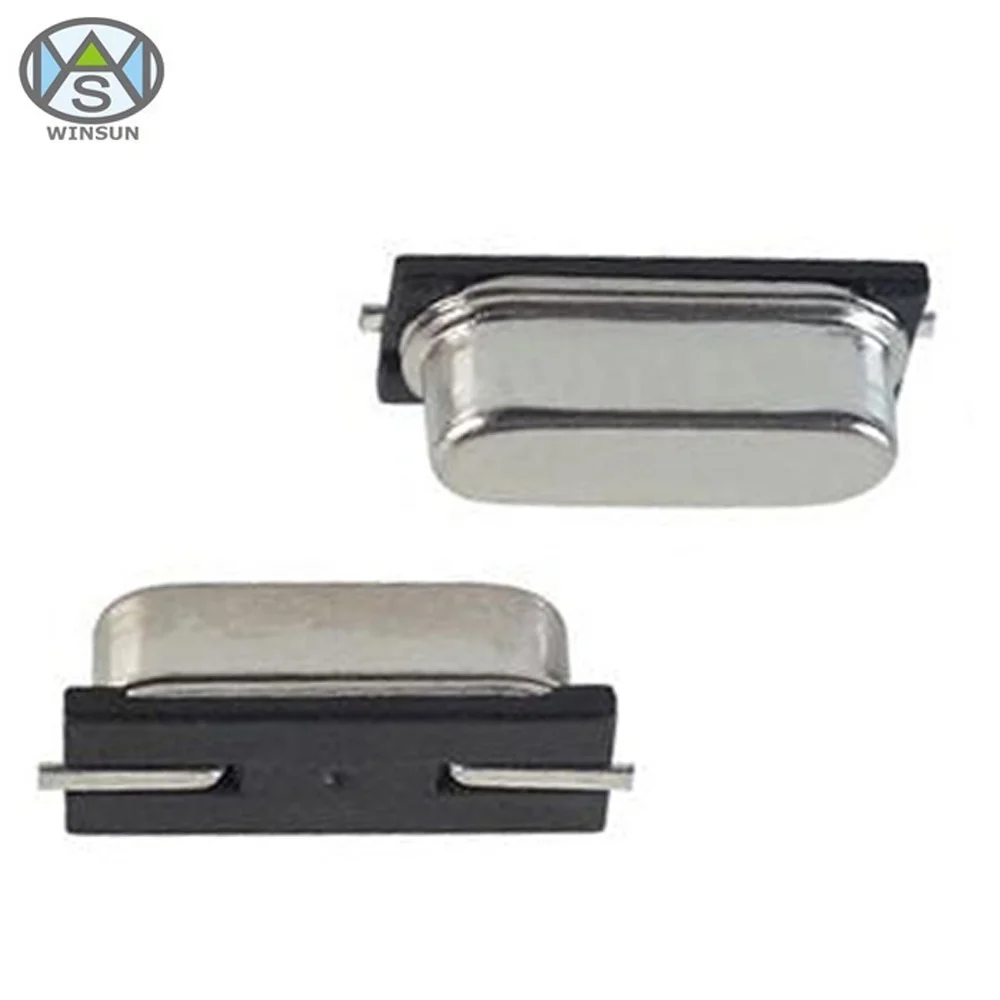

High Frequency HC 49S SMD Quartz Crystal Resonator for Instruments

Product Overview

Description

High Frequency HC-49S SMD Quartz Crystal Resonator for Instruments



Item	Specification
Frequency Range	3.200MHz ~ 110.000MHz
Frequency Tolerance (at 25 °c)	±5ppm, ±10ppm, ±20ppm, ±30ppm,or specify
Frquency Stability Over Operating Temperature Range	±10ppm, ±20ppm, ±30ppm,or specify
Operating Temperature Range	-10 ~ +60°c standard, -40 ~ +85°c extended
Shunt Capacitance	7.0pf Max
Load Capacitance	Series, 8pf ~ 32pf
Drive Level	0.01μW ~ 300μW, 100μW typical
Storage Temperature Range	-40 ~ +85°c
Aging	± 5ppm / year Max



Resistance of Series Resonance(ESR) Frequency (MHZ) Mode ohm Max Frequency (MHZ) Mode ohm Max 3.200~4.000 Fundamental 100 30.000~50.000 3rd overtone 100 4.001~8.000 Fundamental 80 50.001~90.000 3rd overtone 80 8.001~48.000 Fundamental 40 90.001~110.000 3rd overtone 100



Payment and Shipping:

1, Lead time about 3~5 days.

2, Payment: T/T; Western union; Paypal .

3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect
