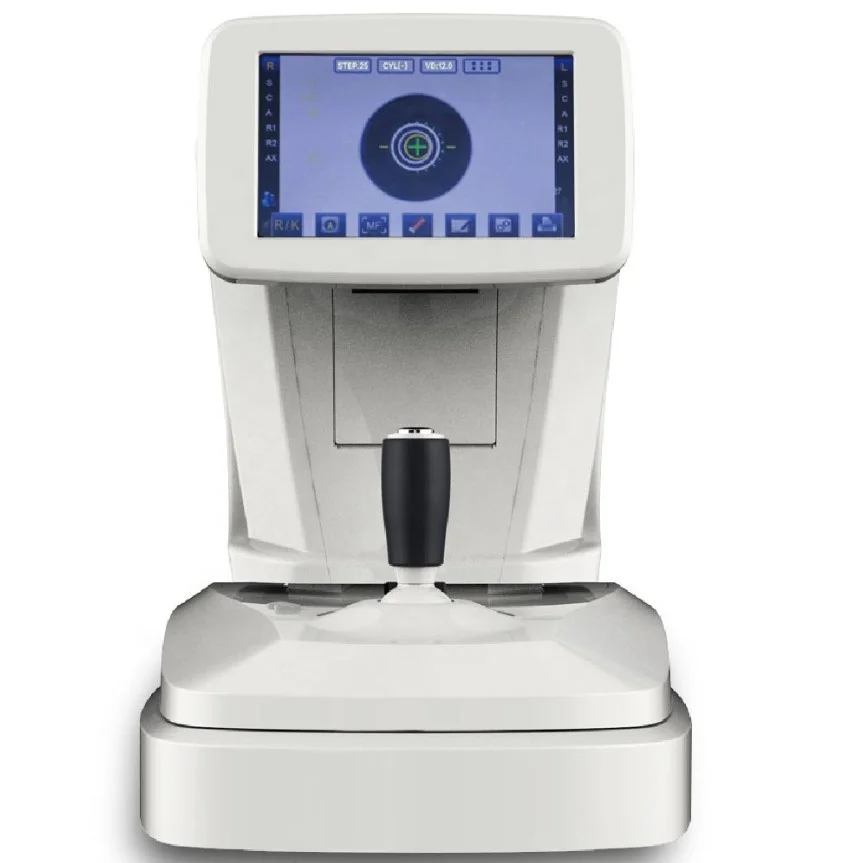

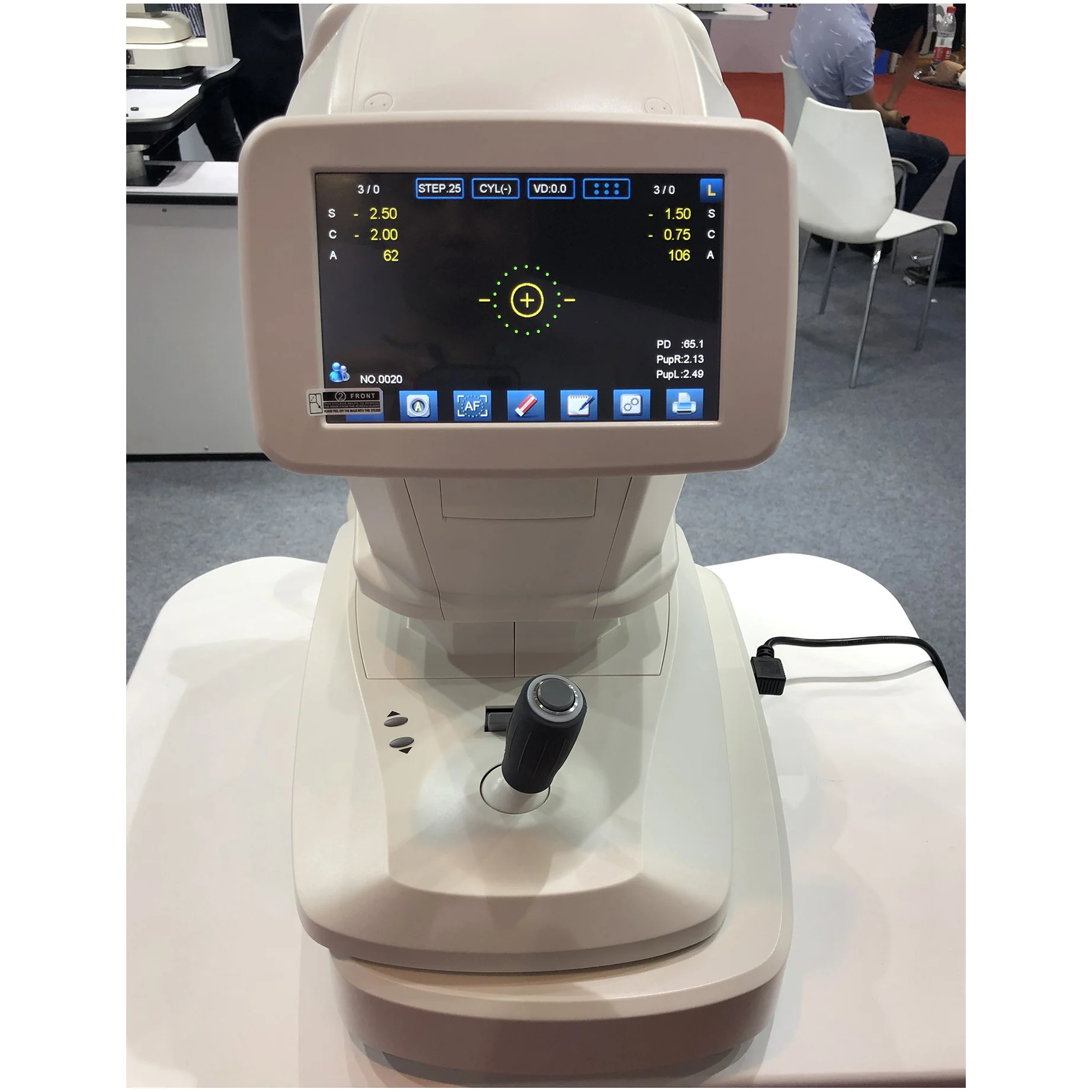

High quality factory ref-keratometer ARK7610 auto refractometer keratometer autorefractor
auto refractometerauto refractometer
Product Description
1.TECHNICAL INDEXES:
New optical system, unique imaging impression Hartman imaging analyzing and processing technology, accurate measurment result touch screen, can move font and back freely Motorized chinrest Vertex Distance(VD): 0.0, 12.0, 13.75, 15.0 SPH: -30.000~+25.000 ( VD= 12mm, 0.01 , 0.06, 0.12, 0.25 Unit) CYL: 0.000~ ± 10.000 (0 06, 0.12, 0.25 Unit ) Axis(AX): 1 . ~ 180 . ( 1 . Unit ) Cylinder Form : , +, ± Puiple Distαnce(PD): 10~86mm Minimum Pupil Diameter: 2.0mm Pupil Diameter: 2.00-8.00mm Measuring Light Ene ( gy: <30L) w ( Insure measuring safety ) Radius of Curvature: 5.0~10.0mm ( 0 01 mm Unit ) Corneal Power: 33.000~67.000 ( In case that the corneal equivalent refractive powe ( is 1.3375 ) Corneal As↑igmatism: 0.000~ 15.000 ( 0.060/0 120/0 250 Unit ) Dαta Storing: Each 10 measured values of left eyes and right eyes Axis: 1 . ~ 180 . Chart: Auto fog Monitor: SHARP 7" TFT LCO touch screen (Angle of view adjustable) Built-in Printer: 57mm thermal printer, auto paper-cutting Electrical Powe : AC 100~250V, 50/6οHz NW: 22kg GW: 26.5kg Dimensions(packing): (L)680mm X (W)400mm×(H)640mm
auto refractometer auto refractometer 2 Other Performance Parameters
auto refractometer 2.1 7″TFT touch screen (angle adjustable) 2.2 Printer: 57mm thermal printer, auto paper cutting 2.3 Measuring Light Energy: 2.4 Measuring Time: <0.5s 2.5 Minimum 2.0mm pupil can be measured.
The application of cloud and mist chart technology allows the patients’ eyes to look at the internal targets in a natural and comfortable situation and make the measurement more accurate 2.6 Auto tracking, auto focusing and auto measuring of end of measurement (partial model) 2.7 Electrical Power: AC100 ~ 250V, 50/60Hz
auto refractometer
auto refractometer auto refractometer
3.FUNCTIONS OFTHE MAJOR COMPONENTS
auto refractometer auto refractometer

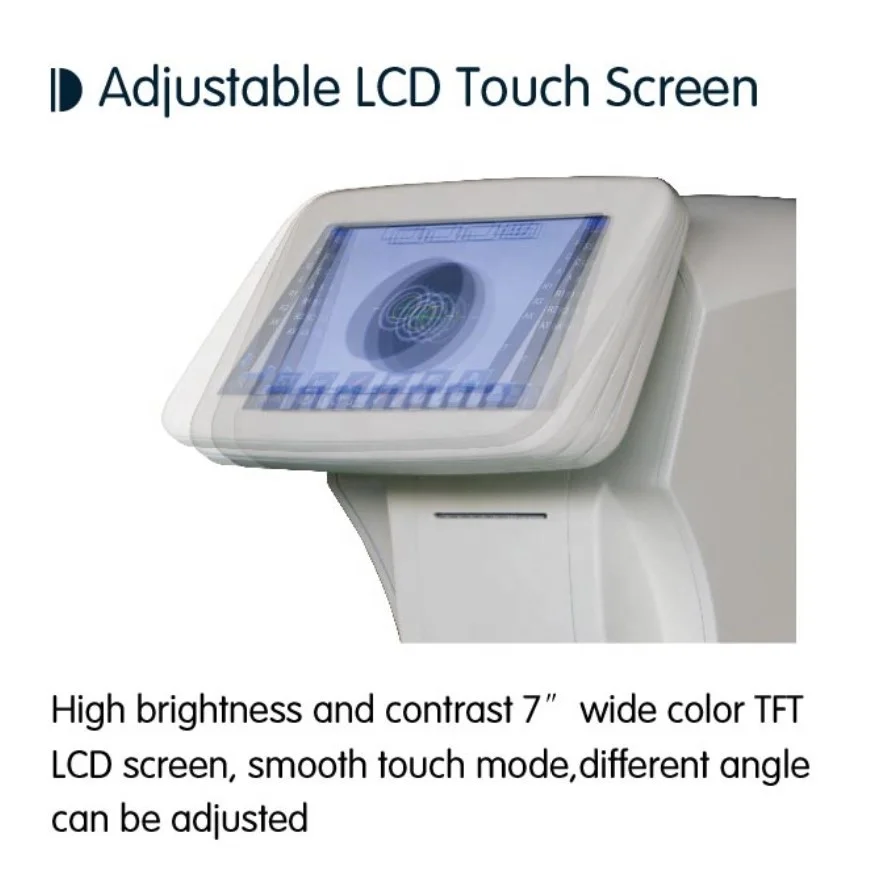

LCD Screen:Monitor for measurementdisplay
HeightAdjustmentMark:The eyes’heightpositionof the patients
Printer Cover:Press the coverto openor close MeasureButton: Performingthe measurement bypressing afterfocusing
Joystick:Adjust the focus bymovingitleft/right,up/down,forward/backward StageFixingLever:Lock thesliding body
Power Switch/Socket: AC power on/off with indicator light / AC power inlet (fuse F5AL 250V inside)
Rubber Feet:Supportand adjust the instrumenthorizontal ChinrestUp/DownButton:Adjust the height ofthe chinrest
Data Interface: USB\RS232 interface to be connected with other equipments (This refractometer and the automatic phoroptor serials connected should comply withthe related electricalrequirements inIEC60601-1-1-2000) auto refractometer
auto refractometerauto refractometer

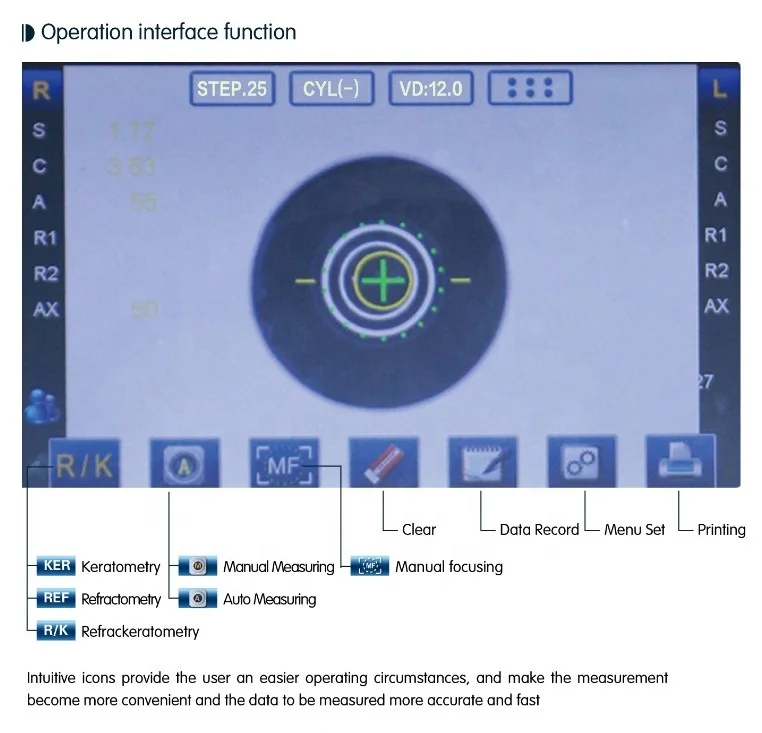

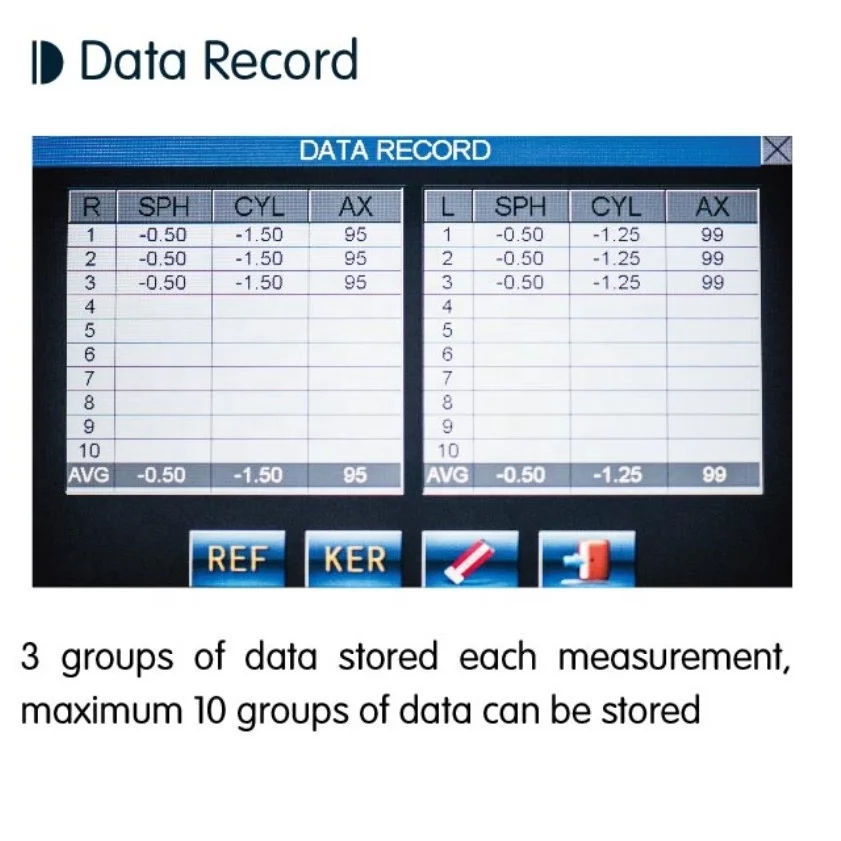

7.1 L/R Sign: Flashing sign indicates the current measured eye 7.2 The number of power/corneal parameters measured 7.3 Step selection (shortcut key) 7.4 Astigmatism symbol selection (shortcut key) 7.5 VD selection (shortcut key) 7.6 PD value display 7.7 Power display 7.8 Corneal value display 7.9 Adult//child mode selection 7.10 Measurement mode selection 7.11 Auto/manual measurement selection (partial model) 7.12 Auto/manual tracking and focusing selection (partial model) 7.13 Data clear key 7.14 Data record check 7.15 Menu set 7.16 Pupil alignment target 7.17 Left/right eye pupil diameter
EYE:WhenONor OFFselected,therefractometrystatediagramwillbeprinted ornot. CONCENTRATION: Set the appropriate print concentration according to different thermal printingpaper.
SE: When ON or OFF selected, SE data (the approximate value of cylinder power converted intospherepower)willbeprintedor not. BC:WhenONorOFFselected,BC(basecurveof cornealcontactlens)willbeprintedor not.
auto refractometerauto refractometer
How to install the printing paper:
1.) Pulloutwardsthe printercover,open thecover
2.) Placethe newprinter paperinthe box,keep the paperheadupwards
was established in 2008 ,headquarters lies in Shanghai,China. We are committed to providing ophthalmologists and optometrists with high quality products, high quality technologies and high quality services. to applicating the technology of machine vision for medical fields, helping doctors improve health conditions and alleviating the pain of patients. we also specialize in glasses and lens equipments as a brand name distributor.
Our equipments have ISO13485 certification and most of products get CE and approved. SHtopview are always keeping innovation on her products and services.
Throughout 11 years in business,we have built ourselves as a value-oriented,service minded,ophthalmic equipment distributor and glasses&lens process equipment with reputation.we become “the Chinese state-of-the-art ophthalmic instrument and your practice” the world 's 180 countrys can see our instruments.
"Details create quality".,SHTOPVIEW is looking for good partners global. for cooperation to exploit new fields, contact us without hesitate!cause there're over 15,000 ophthalmologists and optometrists opticains all over world using our equipments at present.
Warranty
Please kindly tell us which your country’s voltage is and plug type before purchase.
After received instrument please keep the “factory serial number”this is important for after service.so far the chinese instrument is too cheap,can not afford over sea Maintenance Center.
For all of our instrument warranty period is 18 month after it delivery to your door.
During this period, the machine appear problems, you can check our website to find the "fixing" we ‘ll ask our tech section cover the problems including (trouble shooting guide,photo,video)if this method can not make sense,
it can back to CHINA ,declare "no value" "normal items" .after it fixed or replaced.we can send to buyer again.
We promise life long service,if the instruments exceed the warranty period,we will also give advice and good service,but it will charge money for extra spare parts.
auto refractometerauto refractometerauto refractometer
