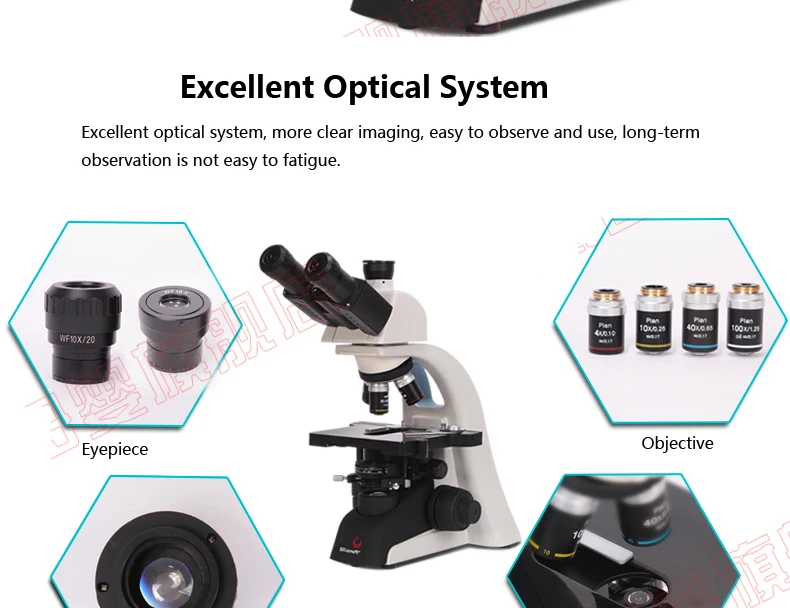

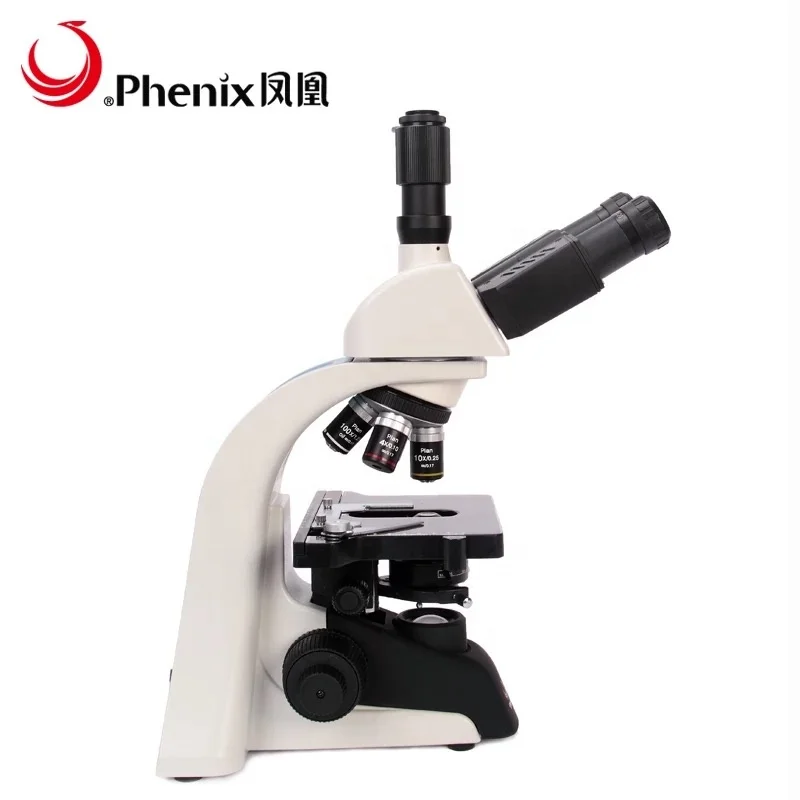

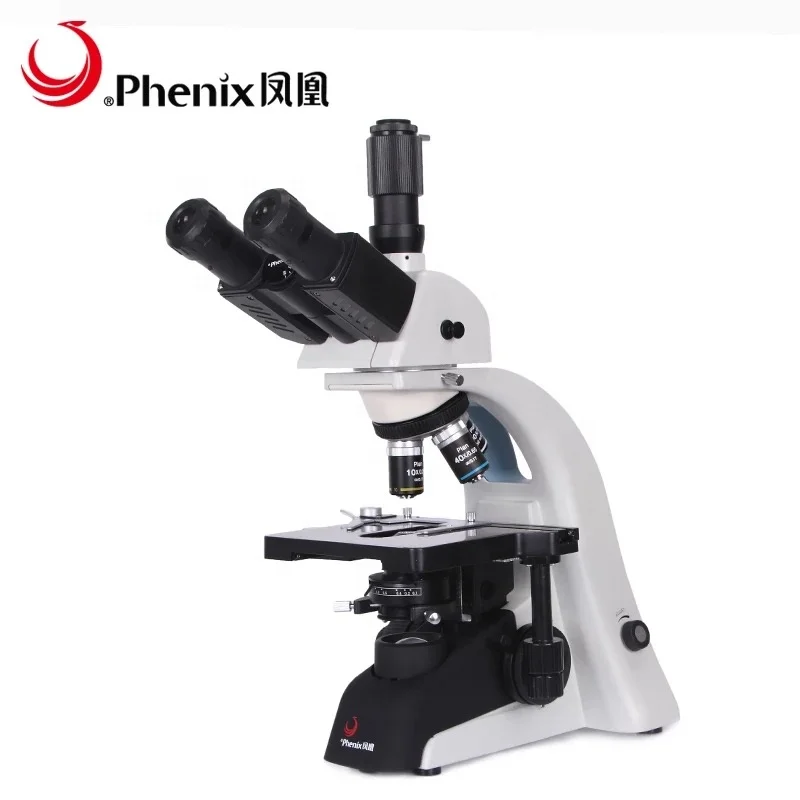

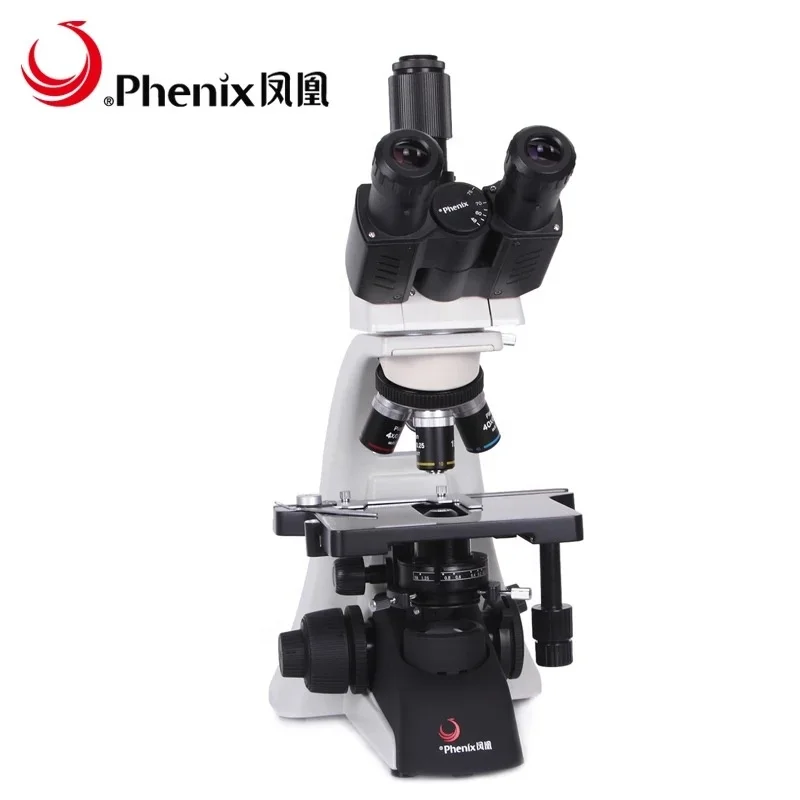

PH100 series laboratory biological microscopes,which adopt the ergonomic design,have smooth line and beautiful appearance.With superior optical system,these series have clearer images,easy to observe and use and not rasy to fatigue during long time's observation.Attached with handles inside which makes it easy to take and move. PH100 series laboratory biological microscopes can be applied in the fields such as institutions of higher learning,medical health,laboratory,scientific research institutions for making teaching research,clinical experiment as well as scientific research analysis of biology,pathology,bacteriology,etc.
PH100 series laboratory biological microscopes which can be equiped with accessories like photography,camera shooting,digitalcamera,professional fluorescent,professional polarized light,phase contrast and dark field,are the ideal instrument for biology observation.

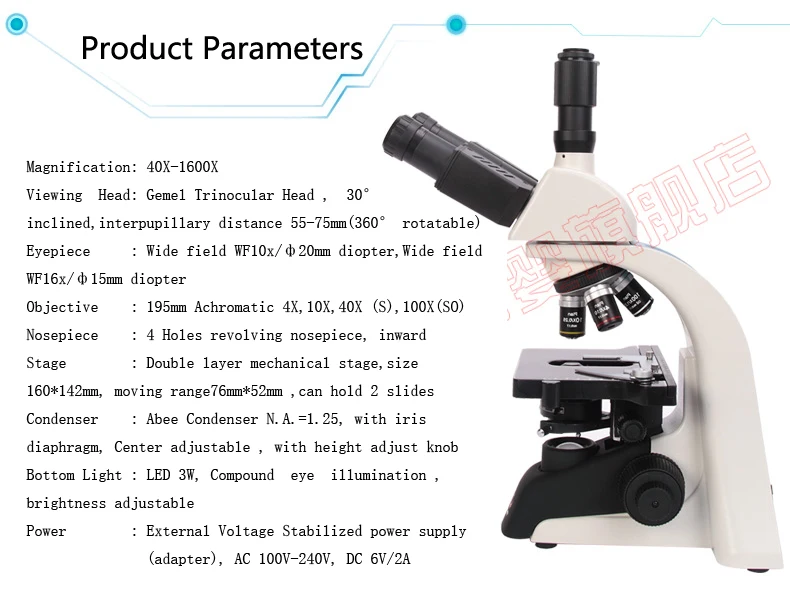

Part Name | Specification | PH100-2B41L-IPL | PH100-3B41L-IPL |
Magnification | 40X-1600X | √ | √ |

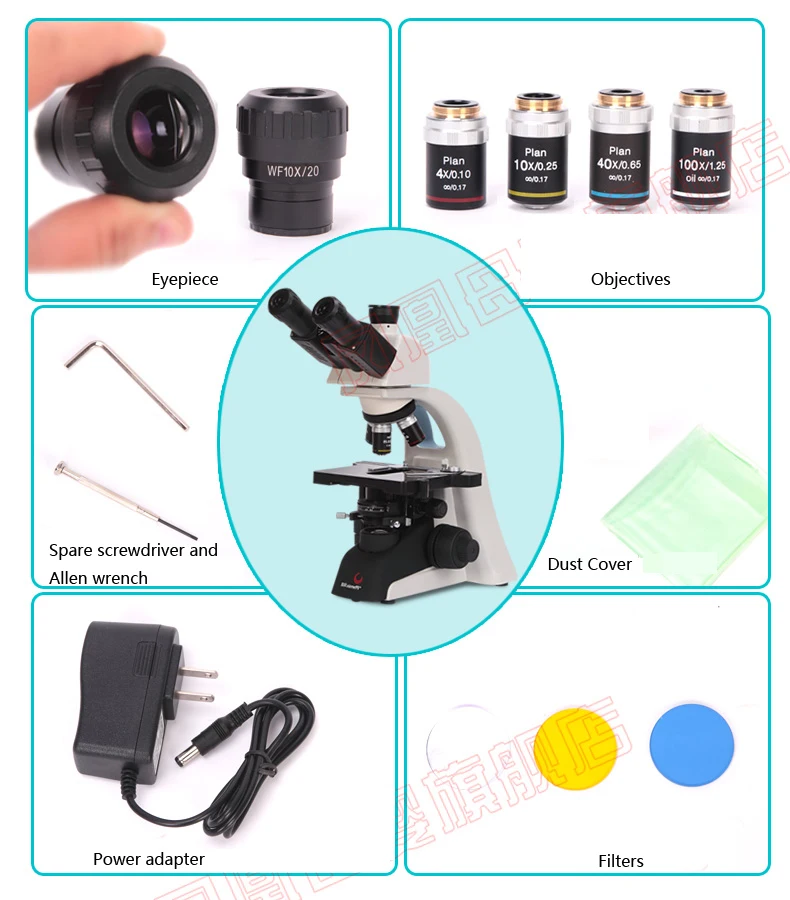

Eyepiece | Wide Field WF10X/20mm,diopter adjustable | √ | √ |
Wide Field WF16X/15mm,diopter adjustable | √ | √ | |

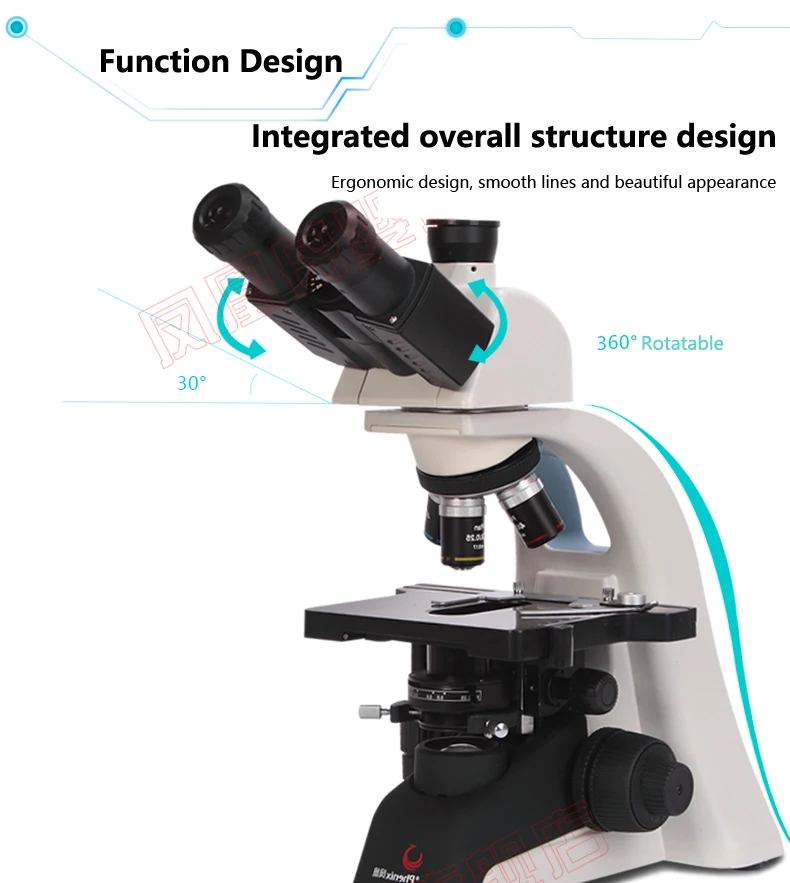

Viewing head | Compensation binocular head,30° inclined,interpupillary distance 48-75mm(360° rotatable) | ||
Infinity compensation binocular head,30° inclined,interpupillary distance 48-75mm.(360° rotatable) | √ | ||
Compensation trinocular head,30° inclined,interpupillary distance 48-75mm(360° rotatable,with push-pull rod) | |||
Infinity compensation trinocular head,30° inclined,interpupillary distance 48-75mm.(360° rotatable,with push-pull rod) | √ | ||
Nosepiece | 4 Holes revolving nosepieces,inward | √ | √ |
195mm Achromatic Objective | E Plan 4X,10X,40X(Spring),100X(Spring,Oil) | ||
195mm Plan Achromatic Objective | PL4X | ||
PL10X | |||
PL40X(Spring) | |||
PL100XSpring,Oil) | |||

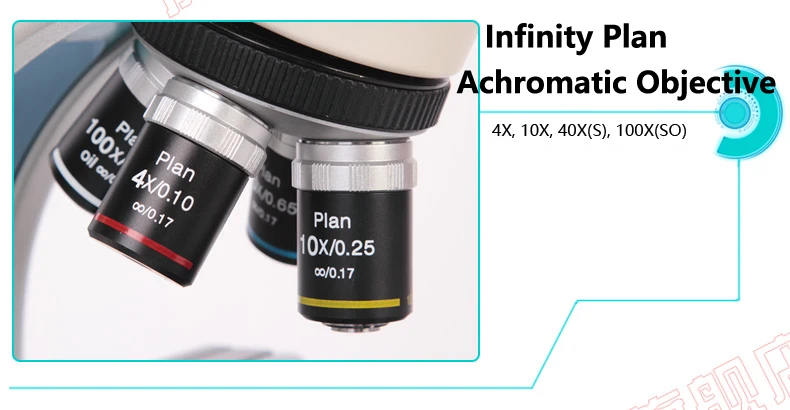

Infinity Plan Achromatic Objective | IPL4X | √ | √ |
IPL10X | √ | √ | |
IPL40X(Spring) | √ | √ | |
IPL100XSpring,Oil) | √ | √ | |

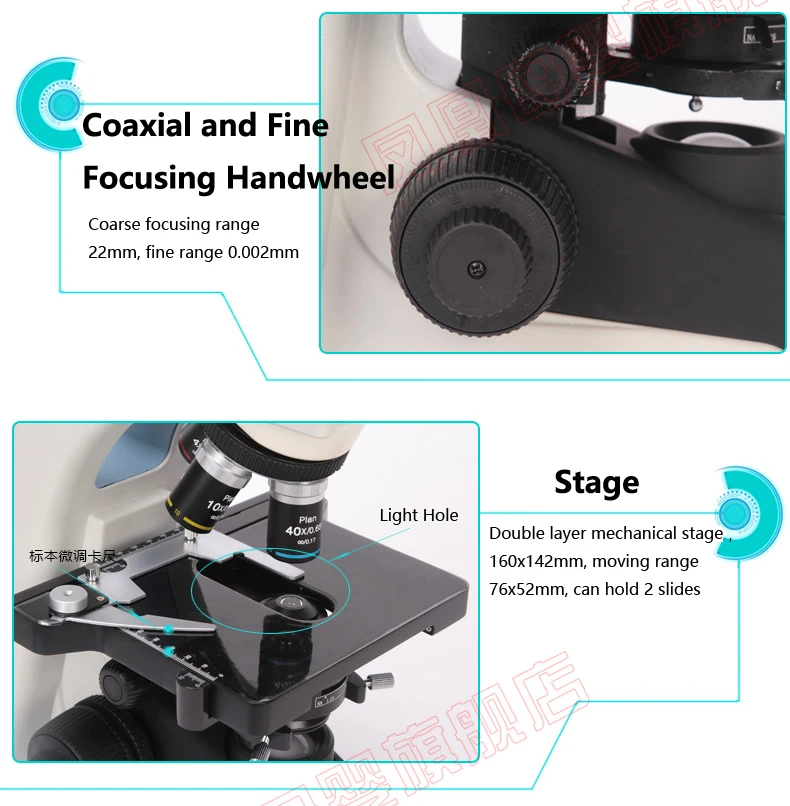

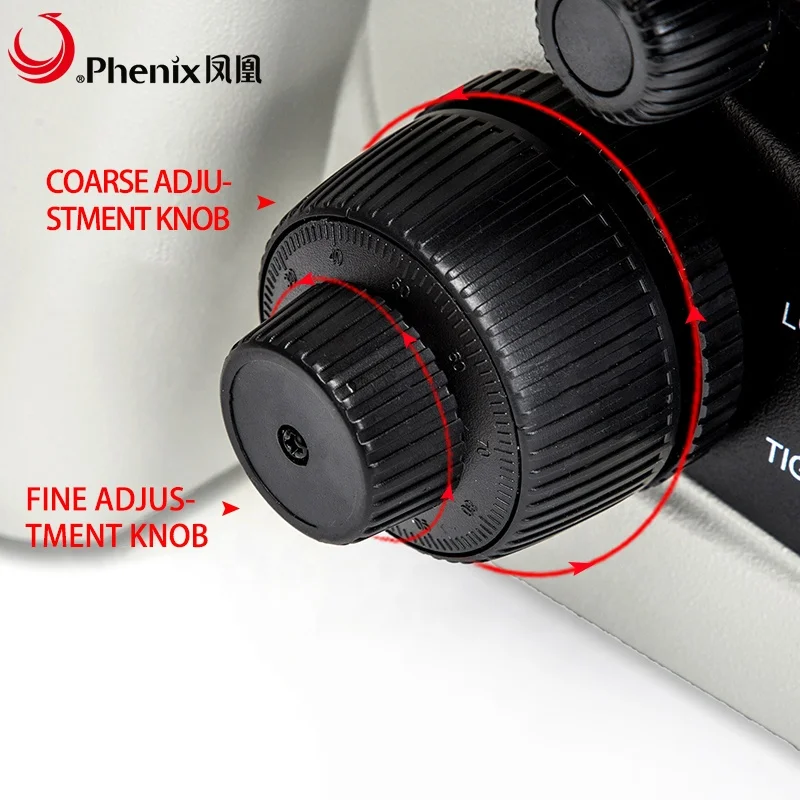

Focusing System | Coarse & fine coaxial focusing knob, with the hand wheel tightness adjustment and random limit locking mechanism.coarse focusing range 22mm,fine focusing graduation 0.002mm | √ | √ |
Stage | Double layer mechanical stage,size 160*142mm,moving range 76*52mm,can hold 2 slides | √ | √ |

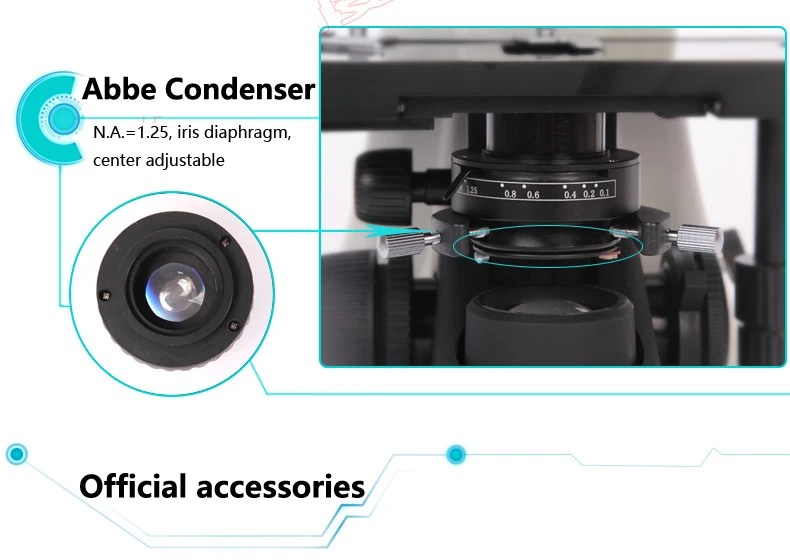

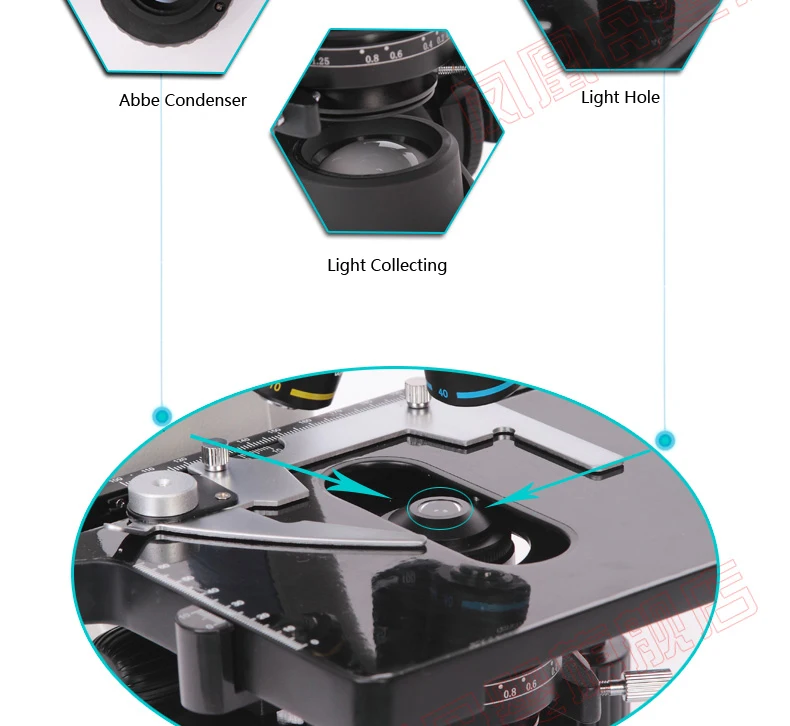

Condenser | Abbe condenser N.A.=1.25,with iris diaphragm,center adjustment,and height adjust knob. | √ | √ |
Upper light | 1W LED cool light source with lens(No standard configuration,optional) | ||
Bottom light | LED,3W,compound eye illumination,brightness adjustable | √ | √ |
halogen lamp 12V/20W,brightness adjustable | |||
Power | External voltage stabilized power supply adapter DC 6V/2A | √ | √ |
Other | All TV heads equiped with CCD adapter | √ | |
Optional | WF10X/18mm with eyepiece micrometer | ||
P10X/20mm P16X/15mm | |||
Objective:25X,63X | |||
CCD adapter:1/3",1/2"mount | |||
Digital camera adapter:digital card camera adapter | |||
Digital camera adapter:digital SLR camera adapter | |||
Dark field attachment | |||
Limited Phase contrast attachment | |||
Infinity phase contrast attachment | |||
Epi-fluorescence attachment | |||
Polarization attachment |

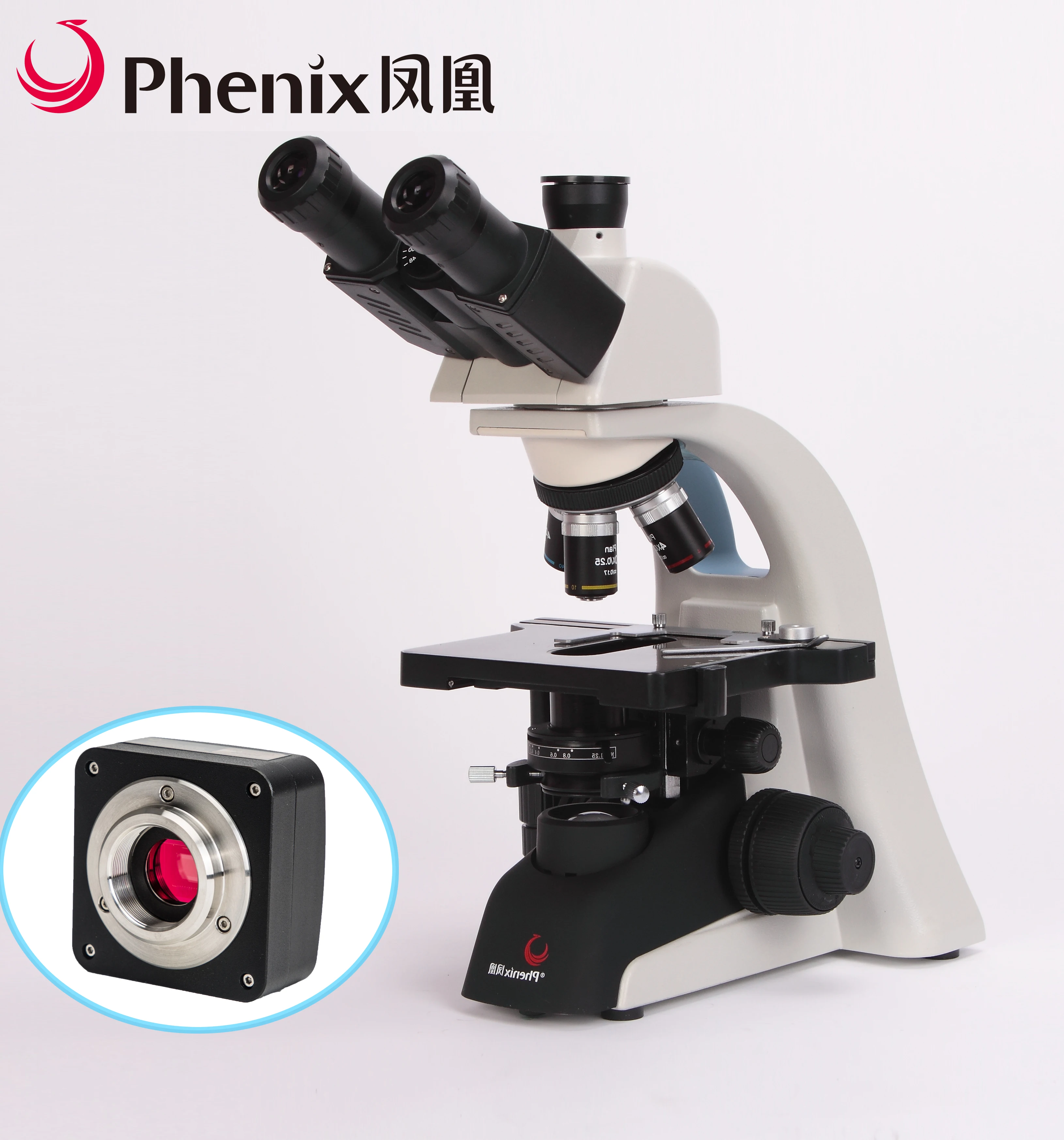

Model Number: | MC-D500(U) |
Connect mode: | C-mount |
Signals Output: | USB2.0 digital signals |
Pixels: | 5.0 mega |
Image sensor: | 1/2.5" |
Image Size: | 2592X1944 |
White Balance: | auto/manual |
S/N Rate: | ≥72dB |
Dynamic range: | ≥40dB |
Phenix Optical Technology Co.,Ltd is well-know as a large state-owned comprehensive enterprise with producing integration optical instruments. which is the base of national pivot exporter and excellent enterprise in china , jiangxi high-tech enterprise. Possessed with integrated research ability, involving light , machine , electricity, and with perfect after sale service system. The stock of "Phenix optics" listed on shanghai Stock Exchange on May 28th, 1997,Which was 'the 1st stock' in optical industries of china. It has successfully obtained the ISO9002 international Quality System Certificate in 1998, Making our product quality management stepped into international orbit. Our main products are grouped into eight categories and around 200 assortments such as cameras, microscopes, medical instrument, mapping instrument, optical cold processing equipment, movie instrument, telescopes, and all kinds of lens and crystals. The products strictly according to the requirements of 'adopt the international standard' and 'Europe CE security certificate'.





1. Q : Is Your Product Pricing has Competive?
A : One of the most important issues is Cost during trading. PHENIX brand since 1965 that we have more experiences than other manufacturers, and we also have a great deal of producing power to insure that our price offered to you is the lowest, Which other Chinese manufacturers cannot compete!
2. Q : How about Your Product Quality ?
A: Our brand "PHENIX"is popular and well regarded China. We strive to provide quality and customer satisfaction. Our products are from the same Lines that make OEM and ODM for Leica, Zeiss, Nikon and Olympus. We make our own designs, software and institute a rigorous quality control to insure that production with different manufacturers are obeying the ISO9901/2000 standards as well as to guarantee our products are all of the high quality you have come to expect from Phenix Microscope! A full 5 year factory warranty is also proof of our commitment to our esteemed clients, as well as the faith we have in our product.
3. Q: How am I Making Choice?
A : There are many models and options available in our company. Which have involved biological microscope, stereo microscope,metallurgical microscope,polarized microscope,fluorescent microscope ,digital microscope and many kinds of accessories.
4. Q : What's your Logistics and Delivery?
A: We will ship your goods from Shanghai Port, recognized as the largest port in China. We also offer a full complement of shipping options worldwide by air/sea through our reliable and tested logistics providers. Due to the quantity and consistent shipping, our shipping costs are some of the cheapest in the States, this savings is passed onto you,our valued customer.
5. Q: How am I Communicate With Your Company?
A: You will receive prompt and professional support by our fully trained Customer Service Reps, and Technical Support staff. Our well trained teams are required to understand and respect your local culture and business style and to make sure your business dealings are professional and prompt; as your continued business and satisfaction is our primary goal.
6. Q: How about Your Company Service ?
A: We offer exclusive services you can't find with other companies. We have developed a unique service system designed to assist you in building your own Microscopes And of course our team members are always standing by to help you, Chat, Phone, or Email.
