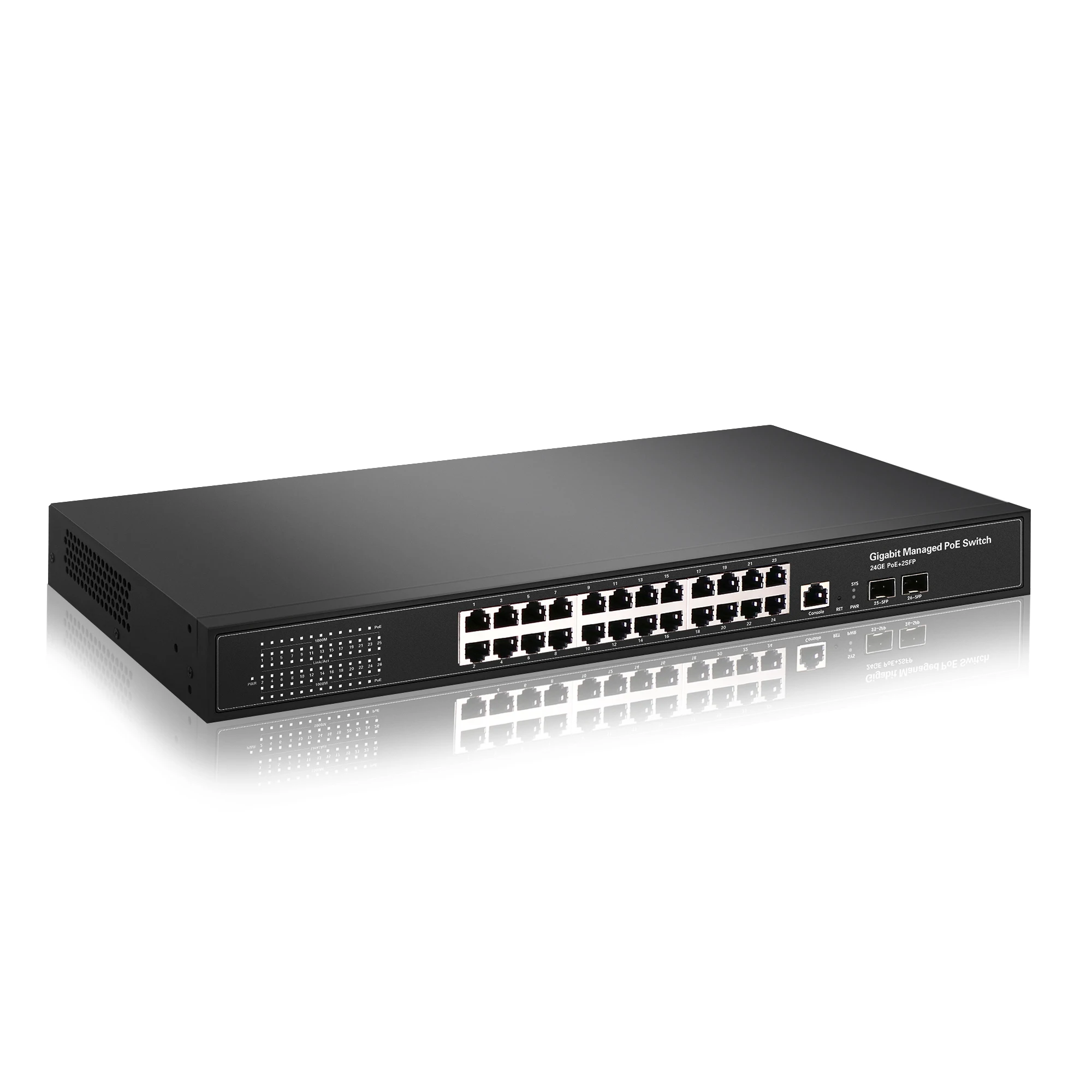

24 Port Gigabit layer 2 Managed Rack mount l2 l3 Ethernet Network Switch with 2 Fiber Optic SFP Slots
- Category: >>>
- Supplier: Guangzhou Gxcom Technology Co. Ltd.
Share on (62156991127):
Product Overview
Description
Product Description
24 Port Gigabit layer 2 Managed Rack-mount l2 l3 Ethernet Network Switch with 2 Fiber Optic SFP Slots
Introduction

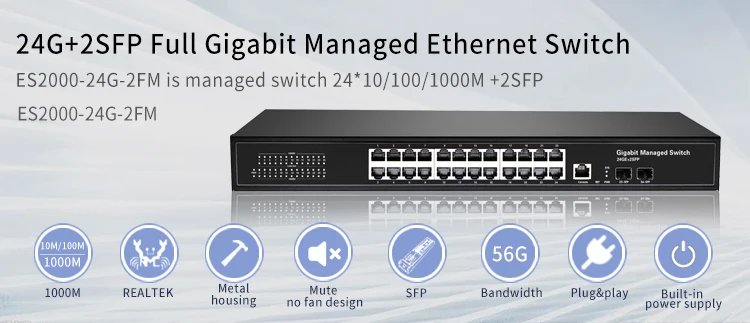

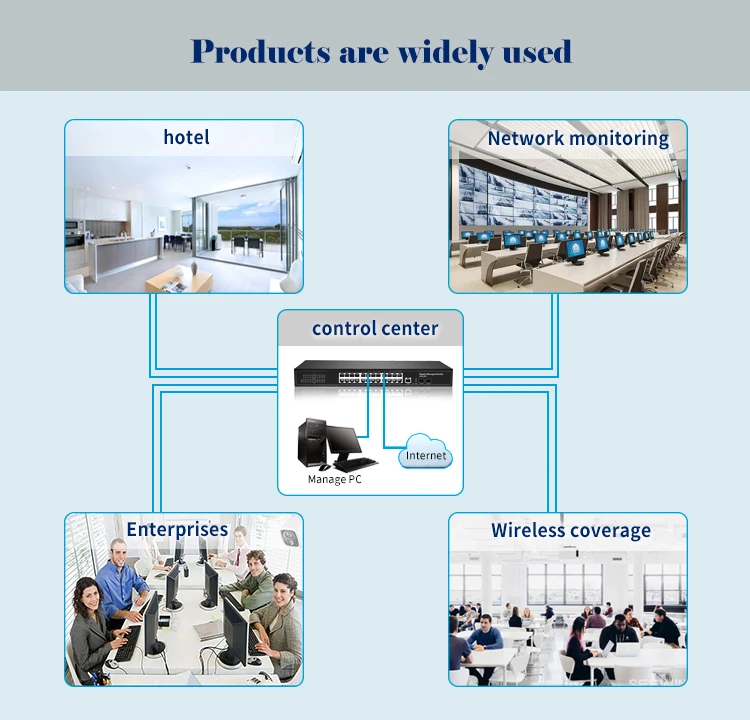

ES2000-24G-2FM is a fully Gigabit two layer network management switch designed and developed solely for the purpose of building high-performance gigabit network requirements.24 full Gigabit RJ45 ports and 2 separate Gigabit SFP (Mini GBIC) ,Provide a comprehensive security protection system,Perfect QoS strategy and rich VLAN function,Management and maintenance are simple and can be applied to small and medium enterprises,Core layer of community and school.

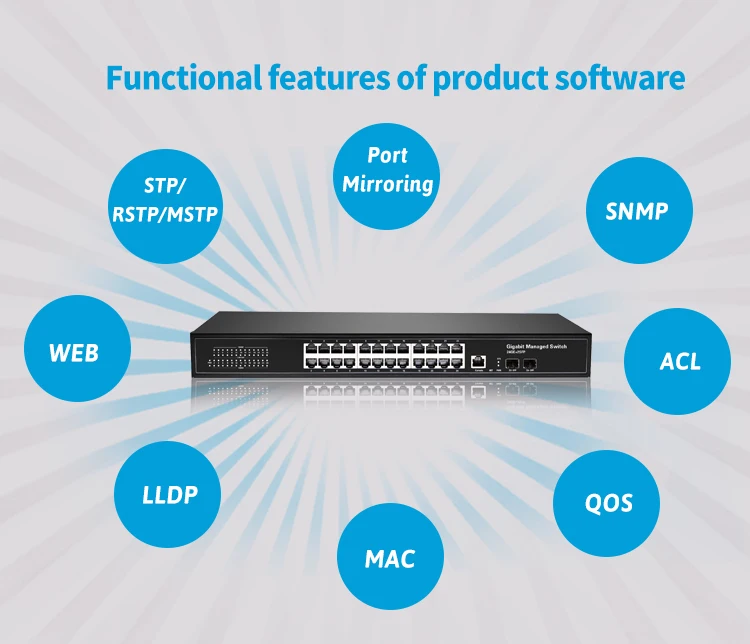

Main Advantage
* Full Gigabit access
* Comprehensive safety protection system
* Powerful VLAN capabilities - IEEE, 802.1Q, VLAN.
* Rich QoS strategy
* Multilevel access control policy
* Reliability design - STP/RSTP/MSTP two layer link protection technology
* Secure network management and maintenance
CLI command line (Console, Telnet), Web network, SNMP (V1/V2c/V3, SSH (V1/V2)
* Advanced watchdog Technology
Specifications
Technical Parameters | |
Model | ES2000-24G-2FM |

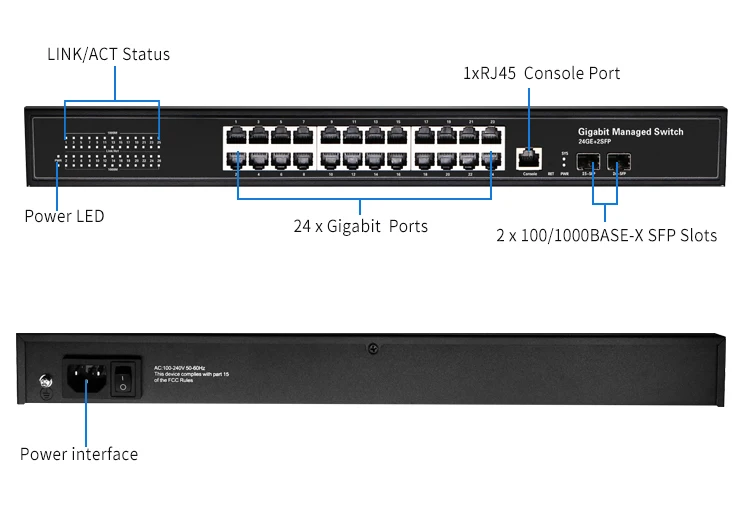

Port | 24*10/100/1000M |
2GE SFP | |
Management port | 1*Console |
Reset KEY | 1 |
bandwidth | 56Gbps |
Packet forwarding | 40.32Mpps |
CPU | 500MHZ |
RAM | 128M |
MAC | 8K |
buffer | 4.1M |
FLASH | 16M |
transmission | Store and forward |
Environmental | Working Temperature: 0℃~50℃ |
Storage temperature: -40℃~70℃ | |
Working Humidity: 10%~90% Non coagulation | |
Storage Humidity: 5%~95% Non coagulation | |

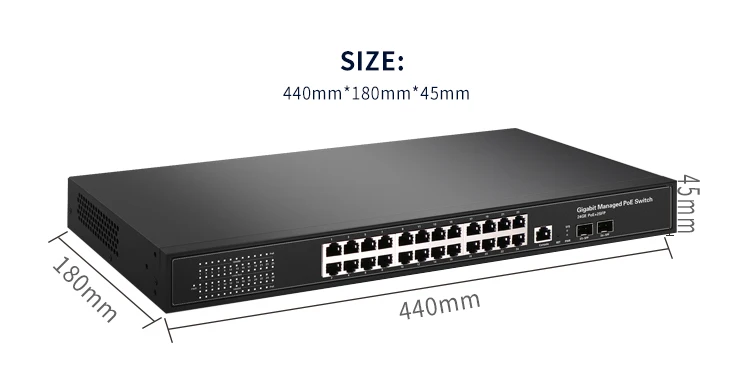

Product size | 440(L)*200(W)*45(H)mm |
Packing size | 497(L)*313(W)*97(H)mm |
Weight | 3.5kg |
Power in | AC 100~240V 50/60HZ |
Power | ≤30W |
Warranty | 1 year |
Certificate | CE,FCC,RoHS |

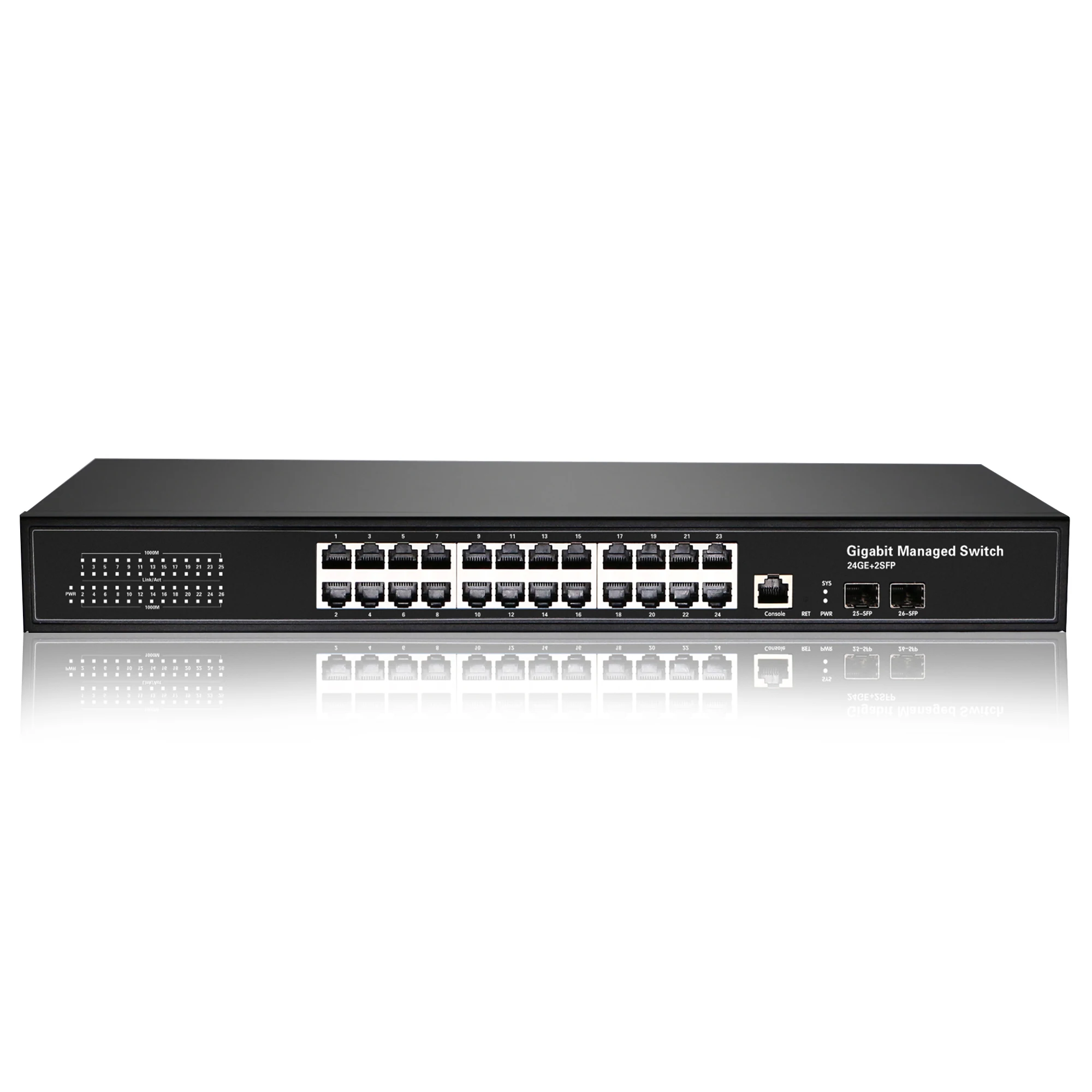

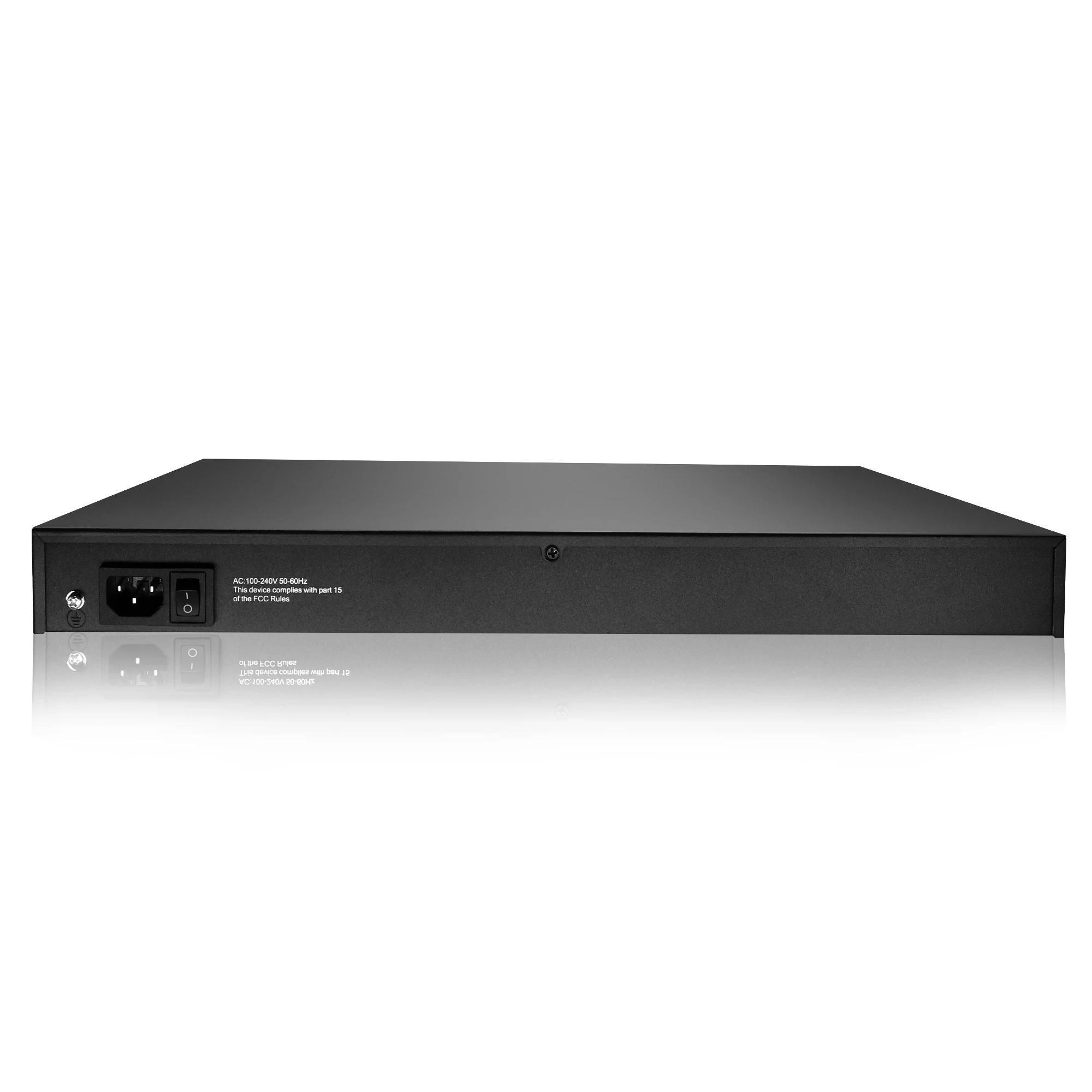

Product Images

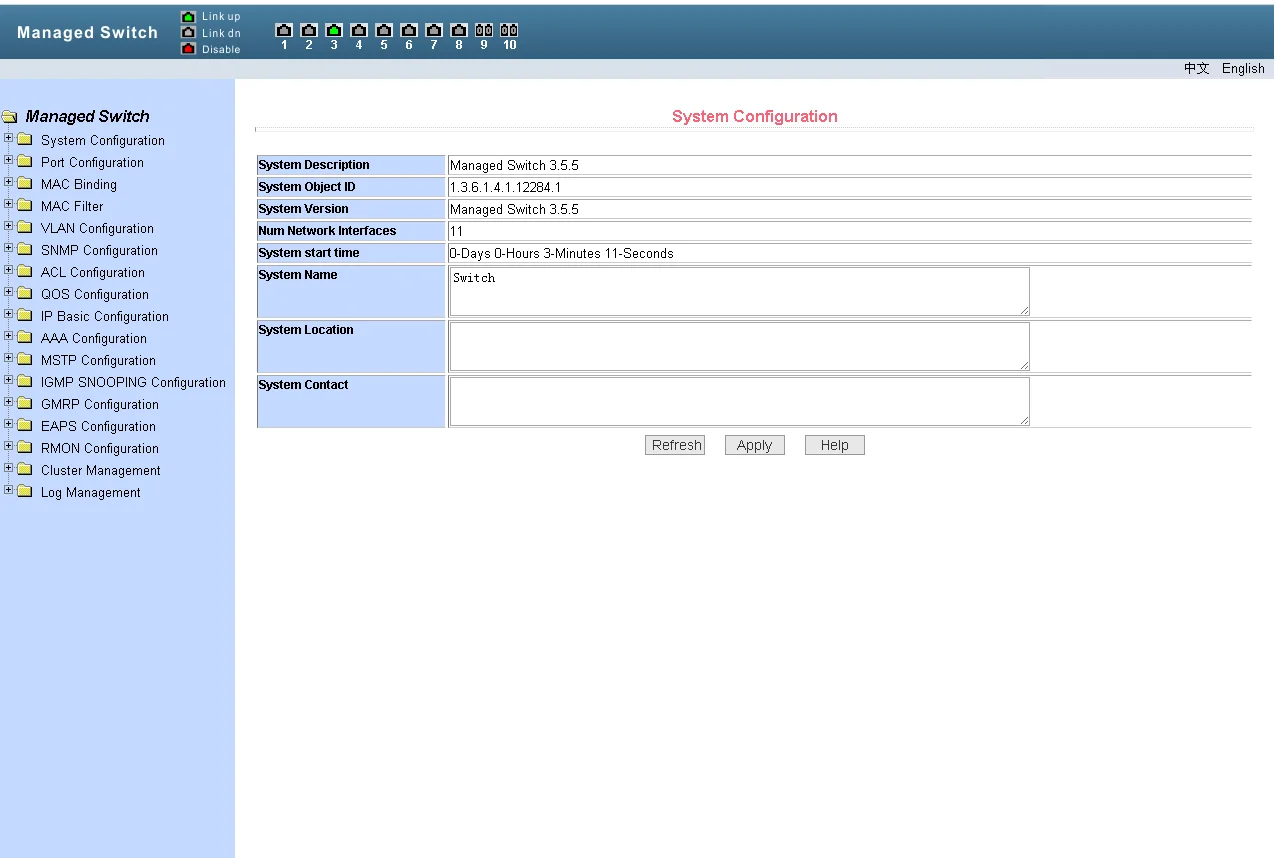

Management Via Web interface or CLI (Telnet,SSH) SNMP
Your private brand logo can be added on the Web interface
Company Information

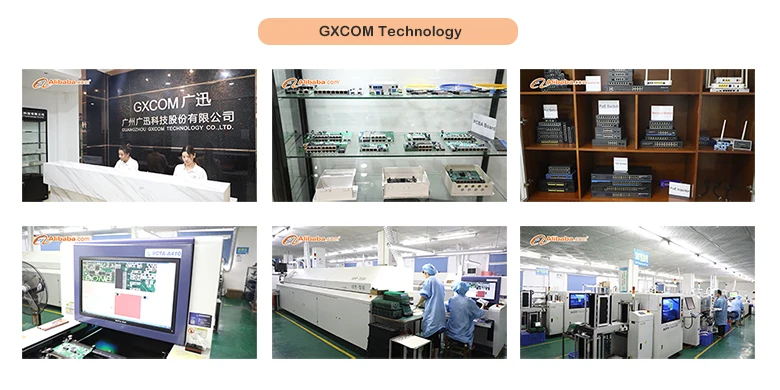

GXCOM is an innovated enterprise which was established on 2011, starting with Ethernet extender and PoE switch. With 10+ years experiences, now we’re not just a source manufacturer of the network products, but also as a global solution supplier for telecommunication, Power Over Ethernet service,CCTV Camera,Video intercom,Access control,FTTH,ISP and WISP.
GXCOM Technology is keeping growing and forward-looking all the time. Recently, we have developed new products to meet the market demands, such as Hipoe 60-90W for building lighting, L2/L3 managed 10G Ethernet PoE switch, GPON and EPON ONU with 48V PoE.
We're providing:
- Managed Ethernet Switch
- PoE Switch
- Reverse PoE Switch
- Industrial Switch
- GPON EPON ONU
- PoE/Ethernet Extender
- PoE Injector/Midspan
- Wi-Fi Router
For any questions about the product and delivery,pls freely contact us! :):)
Our Trade Show
Certifications
FAQ
1.Can we get a sample?
Yes,normally we have to charge for samples,but it’s refundable regarding the confirm batch order.
Q2.Can you offer a better price?Any discount?
Yes,surely. We’re source factory and providing reasonable price.
Q3.Do you have MOQ?
For stock products,we don't have MOQ. Ready to Ship
For custom product,we ask for low MOQ.
Q4.OEM,ODM Severice is available?
Yes,GXCOM provide good OEM/ODM service to our customers.
Q5.How about the payment terms?
Credit card,T/T,L/C at sight,PayPal,western union(Deposit and Balance,full paid before shipment.)
Q6.Can you take care for the shipment?
Yes,surely GXCOM will give you different shipping proposal for selecting.
Express like as DHL,UPS,FedEx
Sea Freight
Air Freight
Q7.Lead time?
Normally,we keep available stock for hot items. Ready to ship.
Sample order, 5-10 working days; Batch order, 10-25 working days regarding to actual order quantity .
Q8.What is your warranty period?
Warranty period is 12 months. This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.
