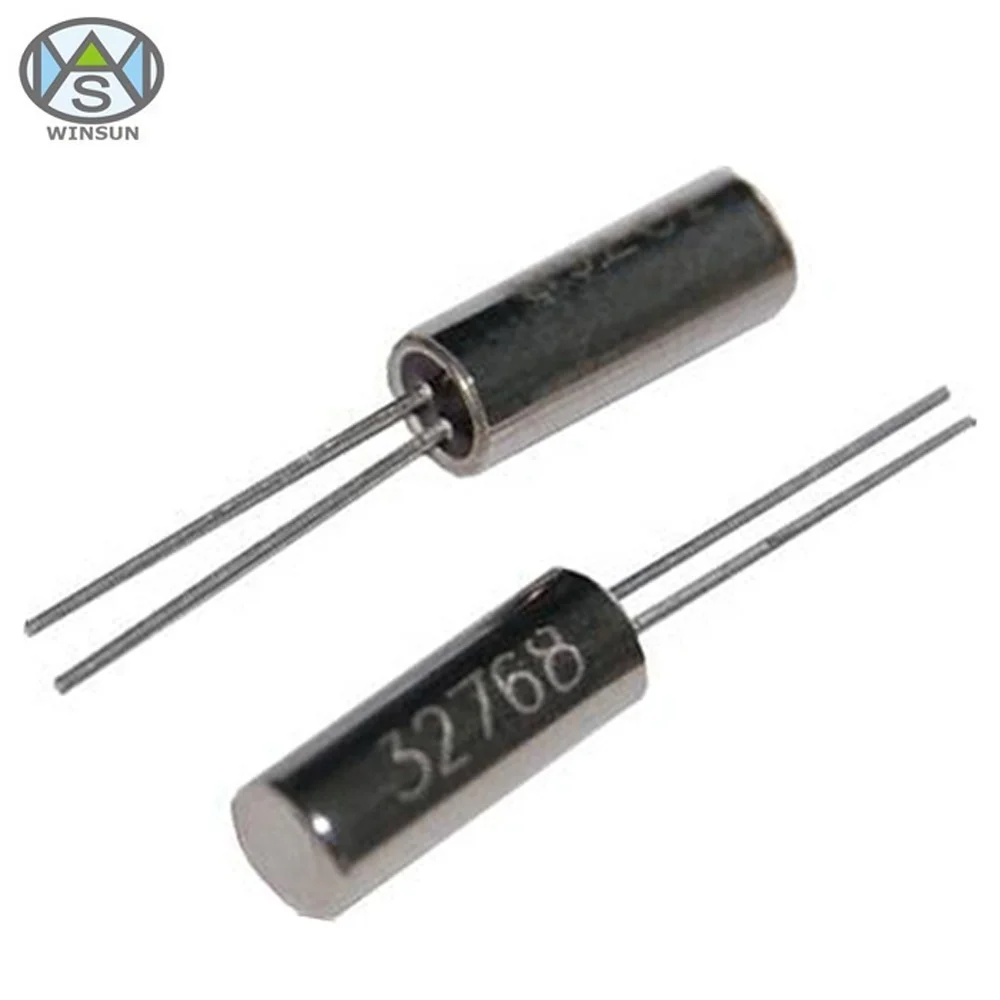

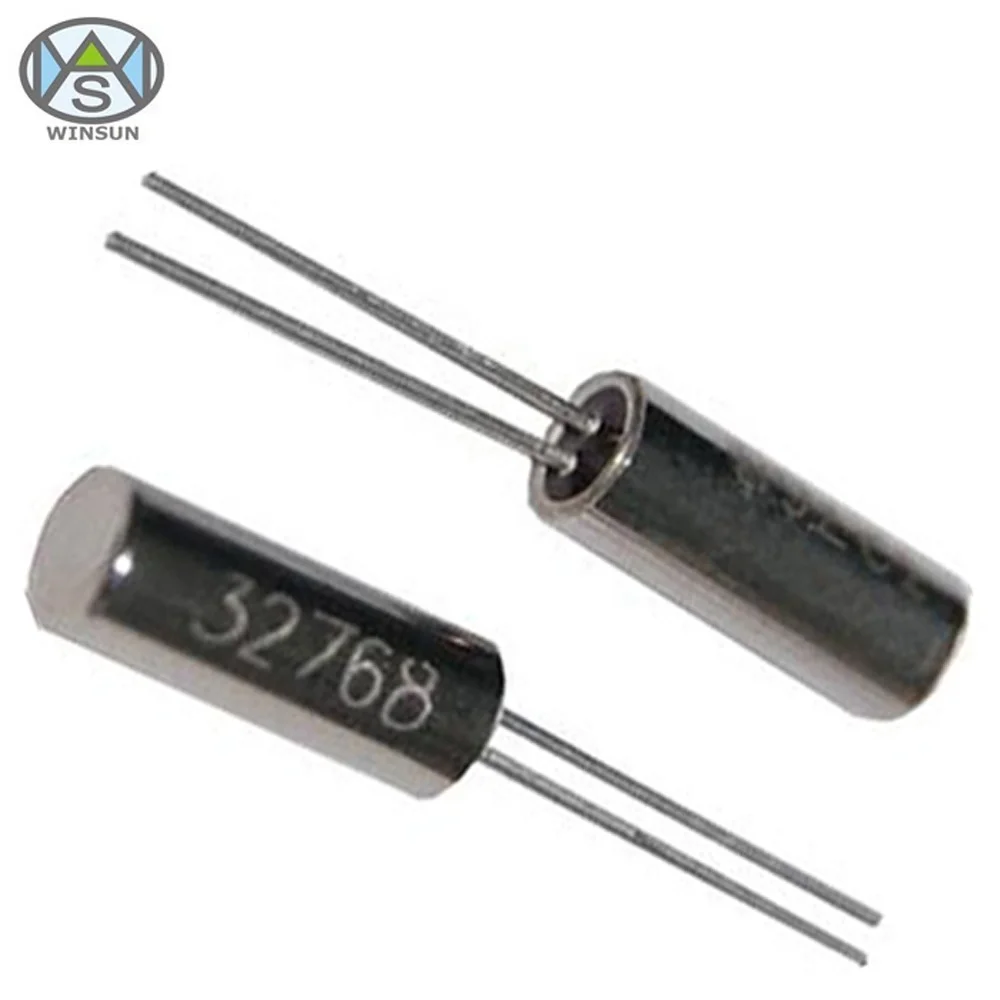

High Quality D3 x H8mm 32.768Khz Cylindrical Quartz Crystal Resonator

Product Overview

Description

High Quality D3xH8mm 32.768Khz Cylindrical Quartz Crystal Resonator



Feature:

*2pin Resonator, small size.
*Lead-free production and RoHS compliance



Applications:

*Digital products

*Communication equipments

*Automobile

*Instrument ect.



Typical Specificatons:

Item	Specification
Frequency Range	30KHz ~ 100KHz
Frequency Tolerance (at 25 °c)	±10ppm,±20ppm, ±30ppm,or specify
Frquency Stability Over Operating Temperature Range	±50ppm Max
Operating Temperature Range	-10 ~ +60°c standard, -40 ~ +85°c extended
Shunt Capacitance	2.0pf Max
Load Capacitance	Series, 6pf ~12.5pf
Drive Level	3μW Max
Storage Temperature Range	-20 ~ +70°c
Aging	± 5ppm / year Max



ESR

Resistance of Series Resonance(ESR) Frequency (MHZ) Mode ohm Max Frequency (MHZ) Mode ohm Max 30.000 Fundamental 65K 33.000~60.000 Fundamental 55K 32.768 Fundamental 65K 60.001~100.000 Fundamental 50K



Payment and Shipping:

1, Lead time about 3~5 days.

2, Payment: T/T; Western union; Paypal .

3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect

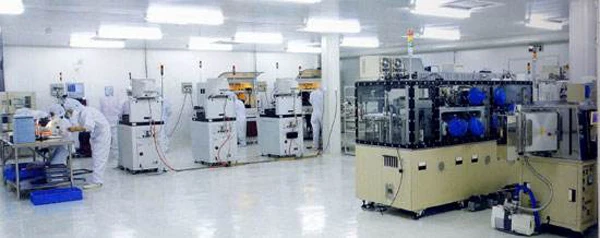

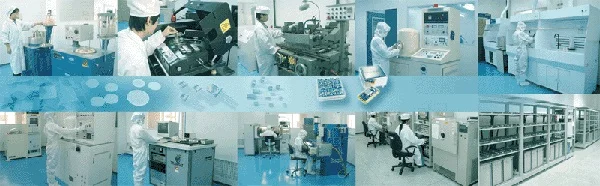

Production process:
