Price:$80.50 - $85.50

Quantity:


Product Overview

Description












UY900_01





Product Features


l900W


lAluminum case


lCircuit topology: Current Half-bridge type


lOptional function: MCU, CAN Communicate etc

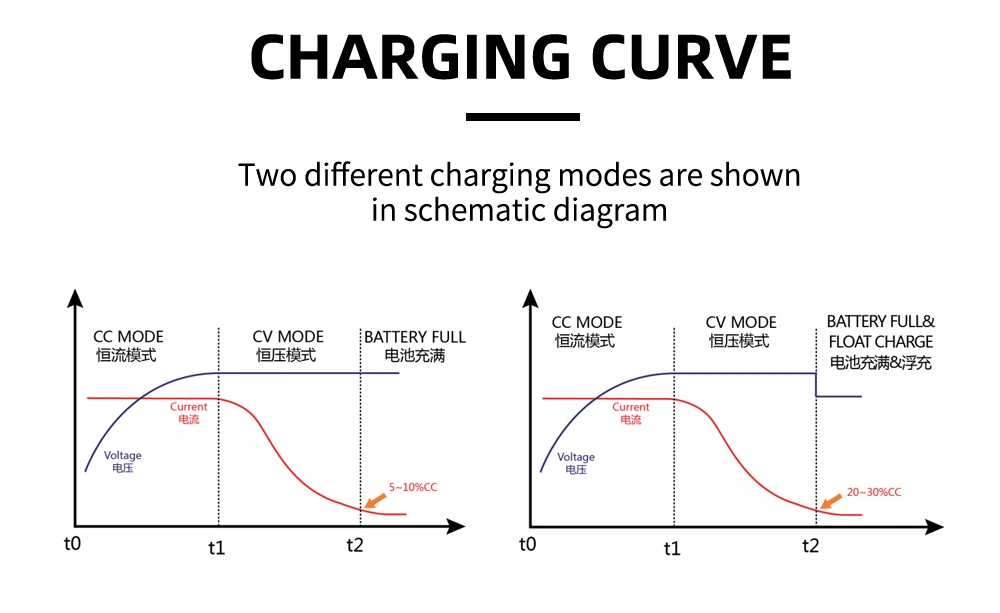

lMCU and intelligent PWM IC control ,full automatic transition of CC,CV and Float/Cut-off, meet the


   demands for different Curve


lProtections: Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off


   or trickle and anti-reverse charge


lVoltage & Current LED meter display (optional)

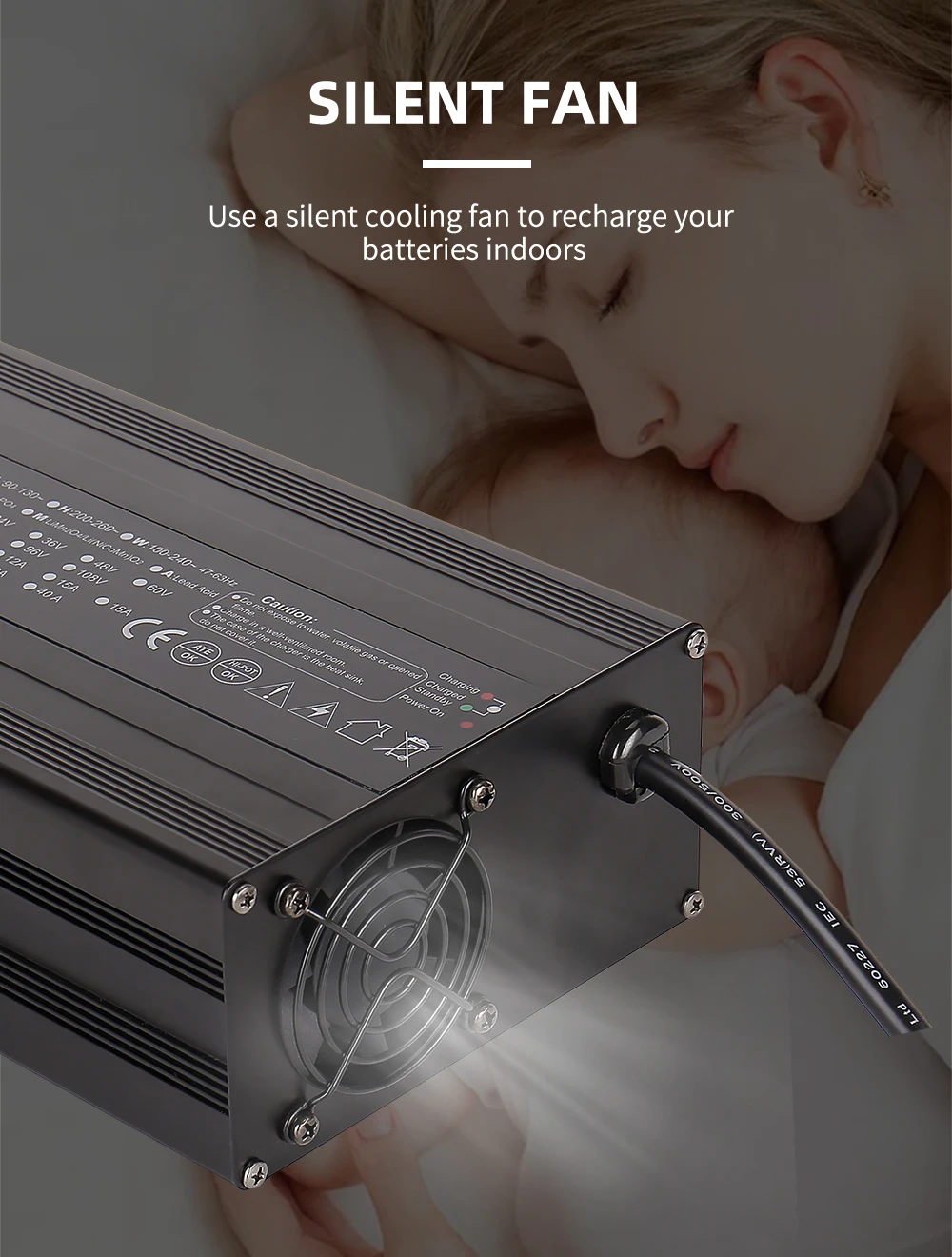

lIntelligent cooling fan, controlled by temperature



Output Reference



















TypeSpecificationDC Voltage(Max)(CC:A)
Charging current		Light Turning(A)
Li-ionLifepo4Lead acidLithium Lead acid
























































UY90012V 40A12.6V/16.8V14.6V14.7V40A8%CC25%CC
24V 25A25.2V/29.4V/33.6V29.2V29.4V25A
36V 20A 42V/46.2V43.8V44.1V20A
48V 15A50.4V/54.6V/58.8V54.75V/58.4V58.8V15A
60V 12A63V/67.2V/71.4V73V73.5V12A
72V 10A79.8V/84V87.6V88.2V10A
84V 8A88.2V102.2V107.8V8A

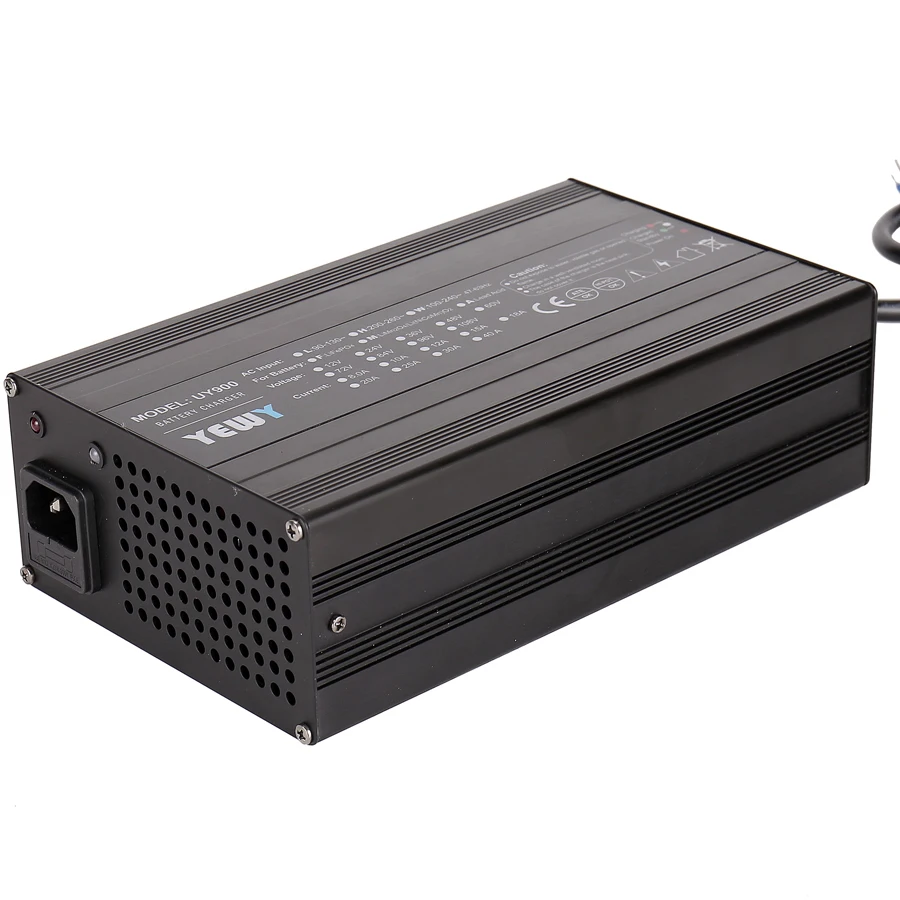

Product Namegadgets 48v lead acid battery charger for golf cart,15a 58.8v 4s 48volt forklifts agv battery charger
Brand Name YEWYModel Number

UY900


Input Voltage

110/220Vac


Frequency50~60HZ
Input fuse

20A

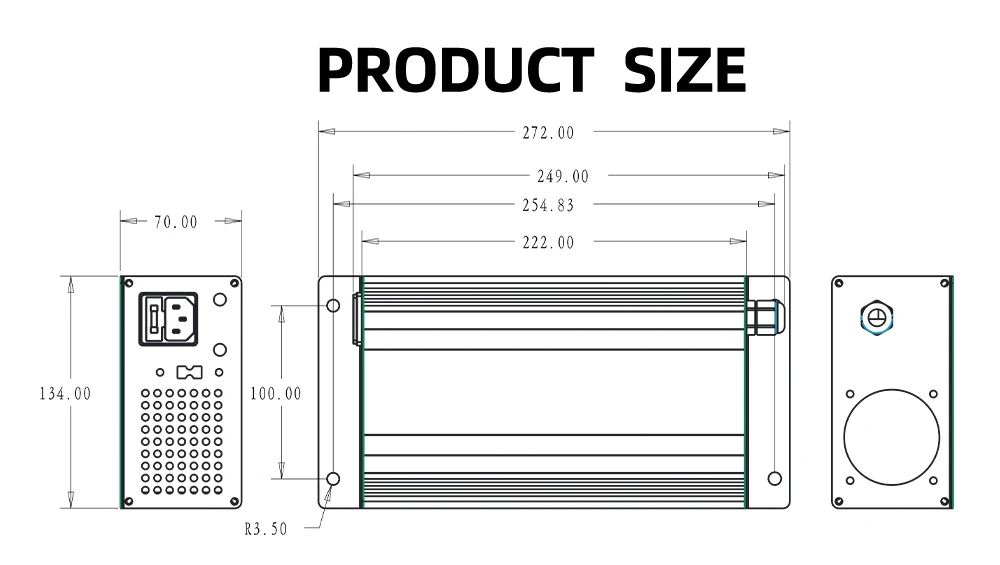

Dimension222×134×70mm
Efficiency >=88%Leakage Current<=0.75mA
Operating humidity 5%-95% RH Non-condensingAltitude2000m
Operating  Temperature -20℃—+40℃Storage   Temperature -40℃-+70℃
Safety certificationsCE,  RoHS Directive-compliant
Suitable battery TypeLead Acid/LiFePo4/Li-ion
Charging TimeCut-off point for Li battery is 8% of CC and it can be set between 3-10%.(charging time:3-4 hours)
Transition for Lead acid charger is 25% of CC.(charging time:6-8 hours)
Protection  Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge
AdvantageMCU and intelligent PWM IC control ,full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve.

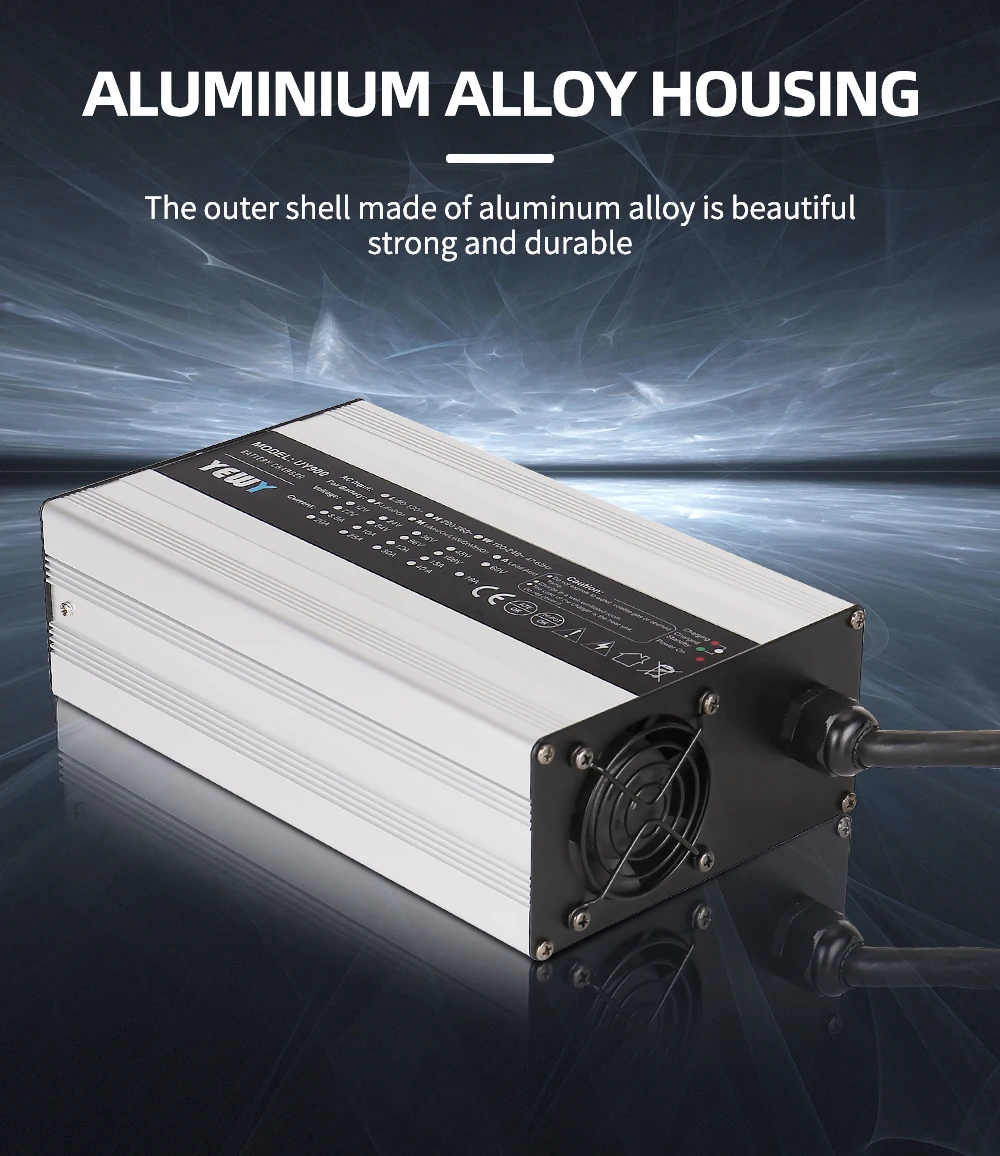

Aluminum case, Robust, Elegant and Reliable
Package Contents

1*battery charger


1*Input Wire


1*User Manual


This battery charger is your affordable necessity without sacrificing performance.


It features an integrated MCU and PWM for power control.







UY900_02UY900_03UY900_04UY900_05UY900_06UY900_07UY900_08UY900_09UY900_10UY900_11
