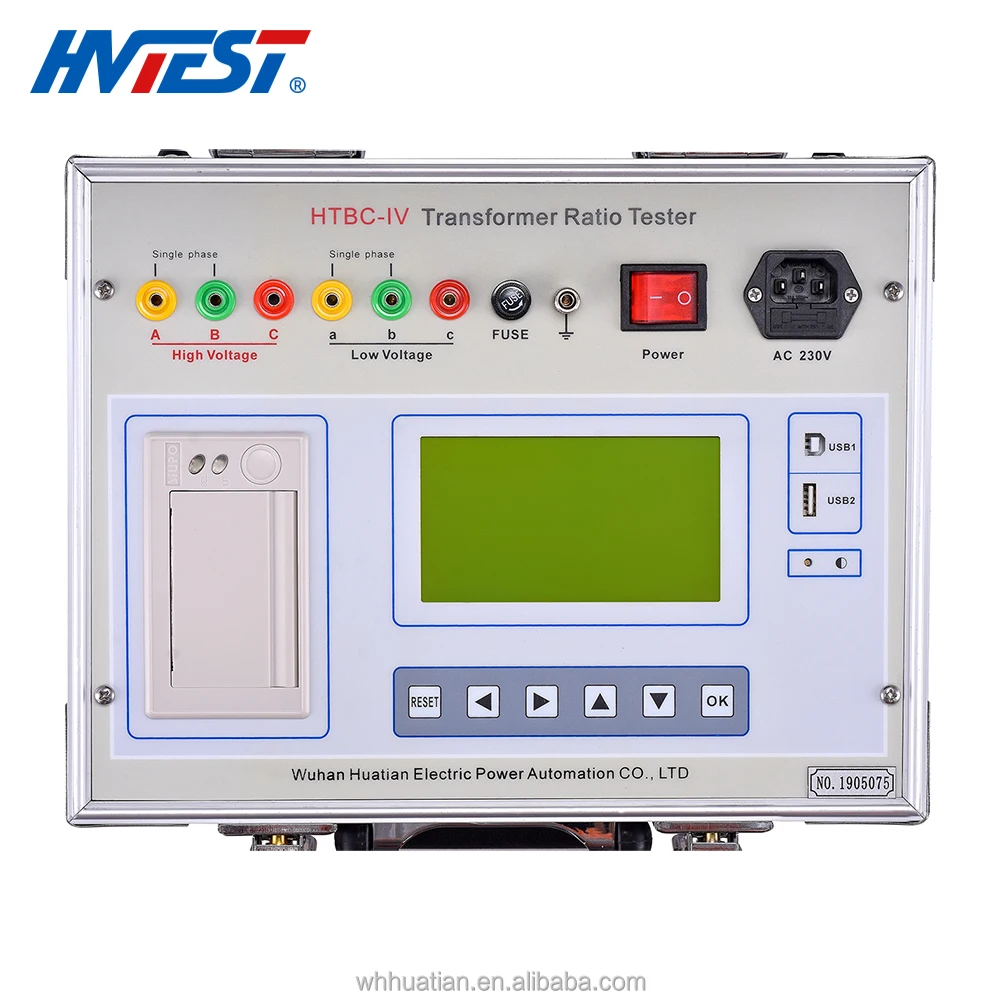

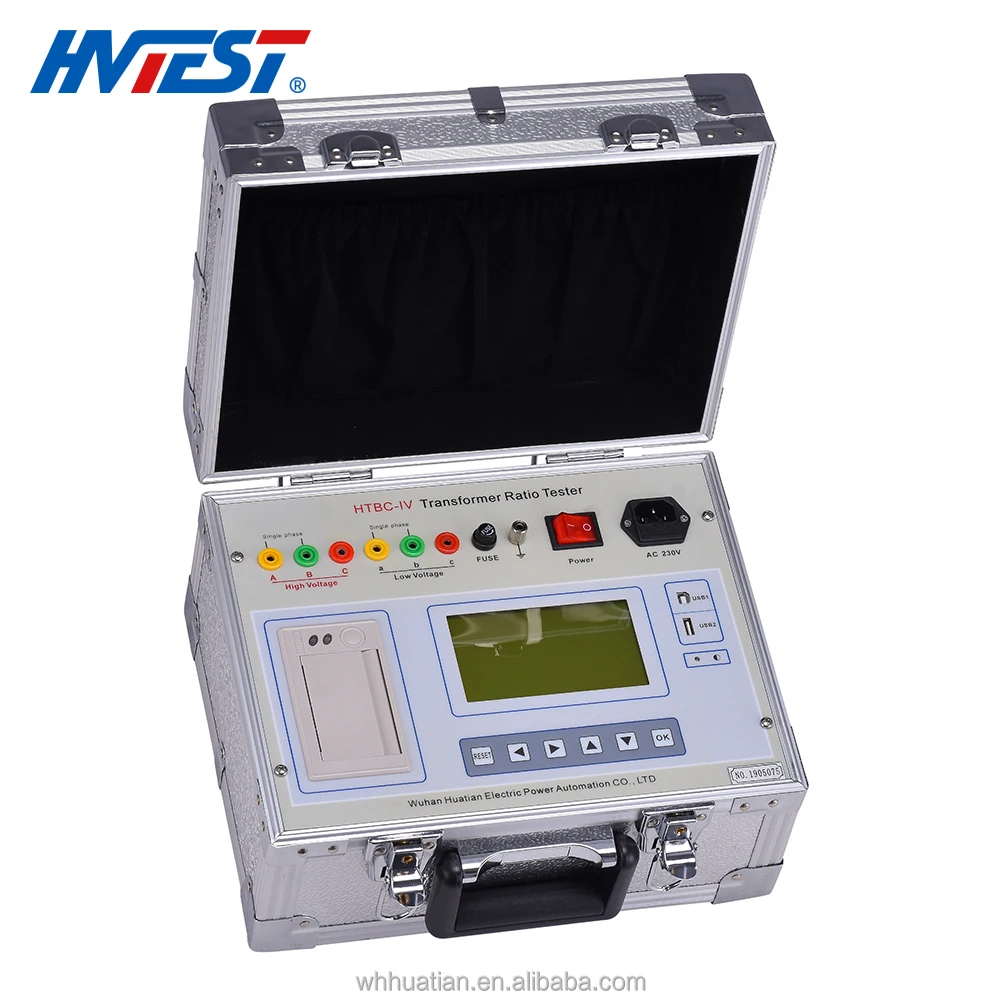

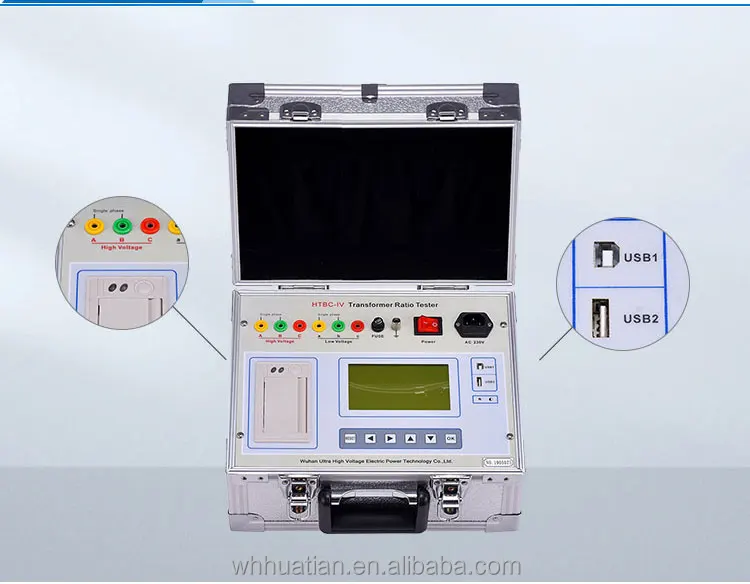

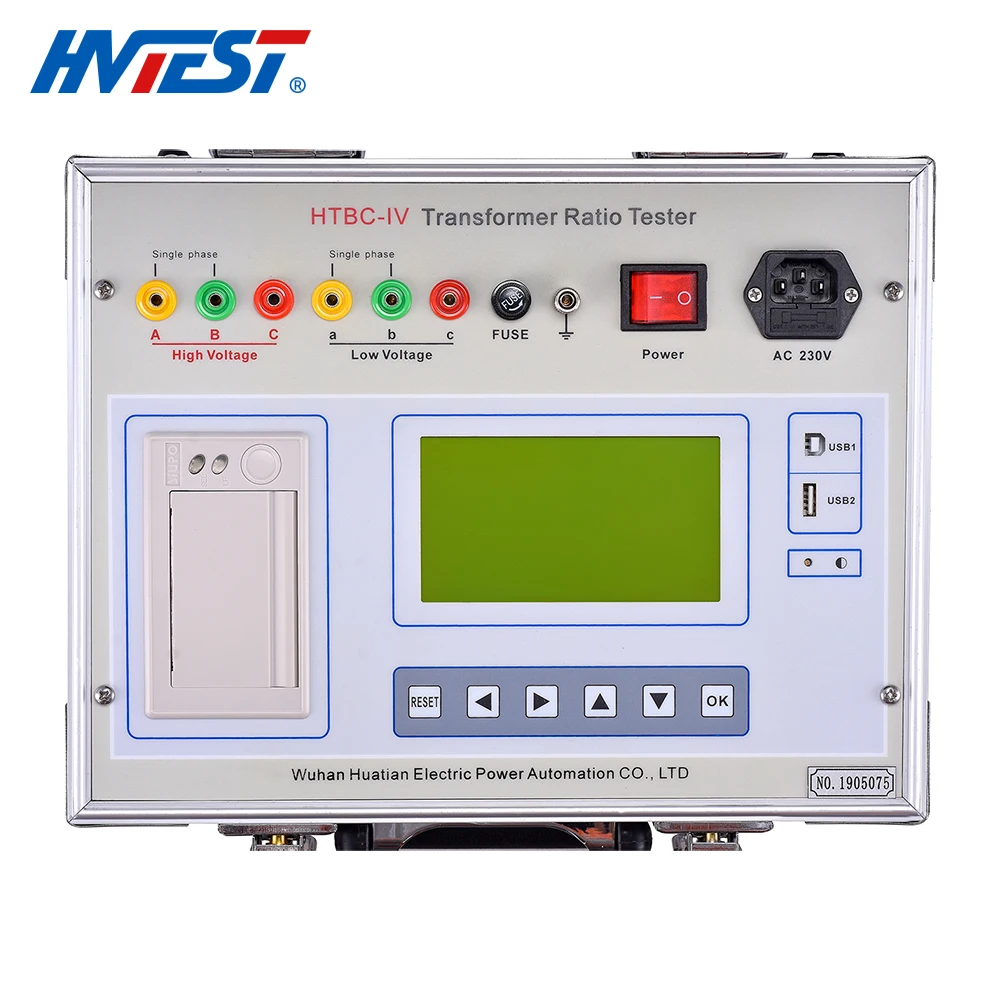

B HTBC IV Automatic Transformer TTR Analyzer Digital Transformer Turns Ratio Group Tester
- Category: >>>
- Supplier: Wuhan Huatian Electric Power Automation Co. Ltd.
Share on (62157151341):
Product Overview
Description
Product Paramenters
Transformation ratio testing range | 0.8～10000 |
Group testing range | 1～12 |
Ransformation ratio testing accuracy | class 0.2 (180V: 0.8～1000) |
class 0.5 (180V: 1000～10000) | |
class 0.2 (10V: 0.8～200) | |
Transformation ratio resolution | 0.0001 |
Power input | 220V±10%, 50HZ±1Hz |
Service temperature | -20℃~40℃ |
Relative humidity | ≤85%, no condensation |

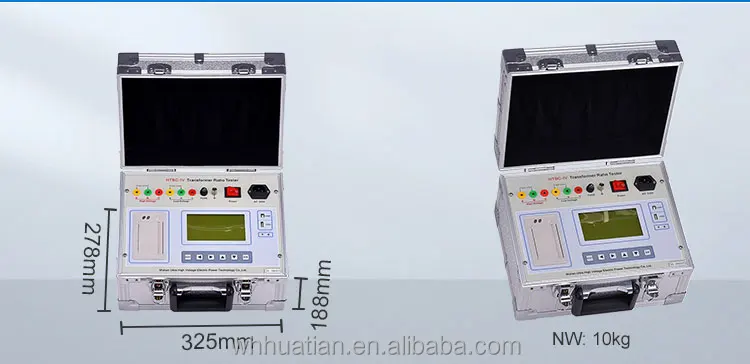

Overall size of host machine | 325mm×278mm×188mm |
Weight of host machine | 6.9kg |
Function&Characteristics

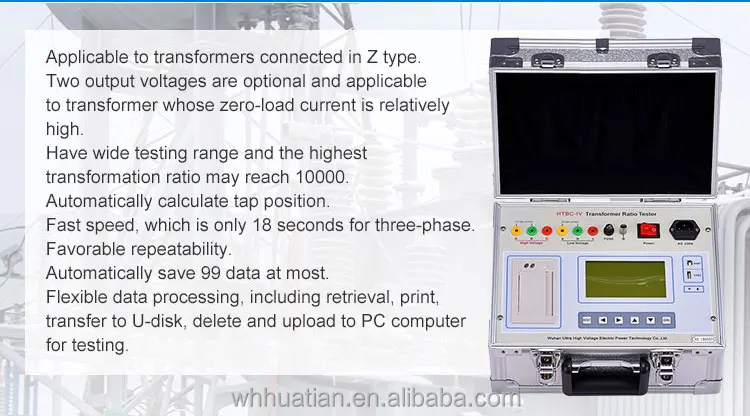

1. Applicable to transformers connected in Z type.
2. Two output voltages are optional and applicable to transformer whose zero-load current is relatively high.
3. Have wide testing range and the highest transformation ratio may reach 10000.
4. Automatically calculate tap position.
5. Fast speed, which is only 18 seconds for three-phase.
6. Favorable repeatability.
7. Automatically save 99 data at most.
8. Flexible data processing, including retrieval, print, transfer to U-disk, delete and upload to PC computer for testing.

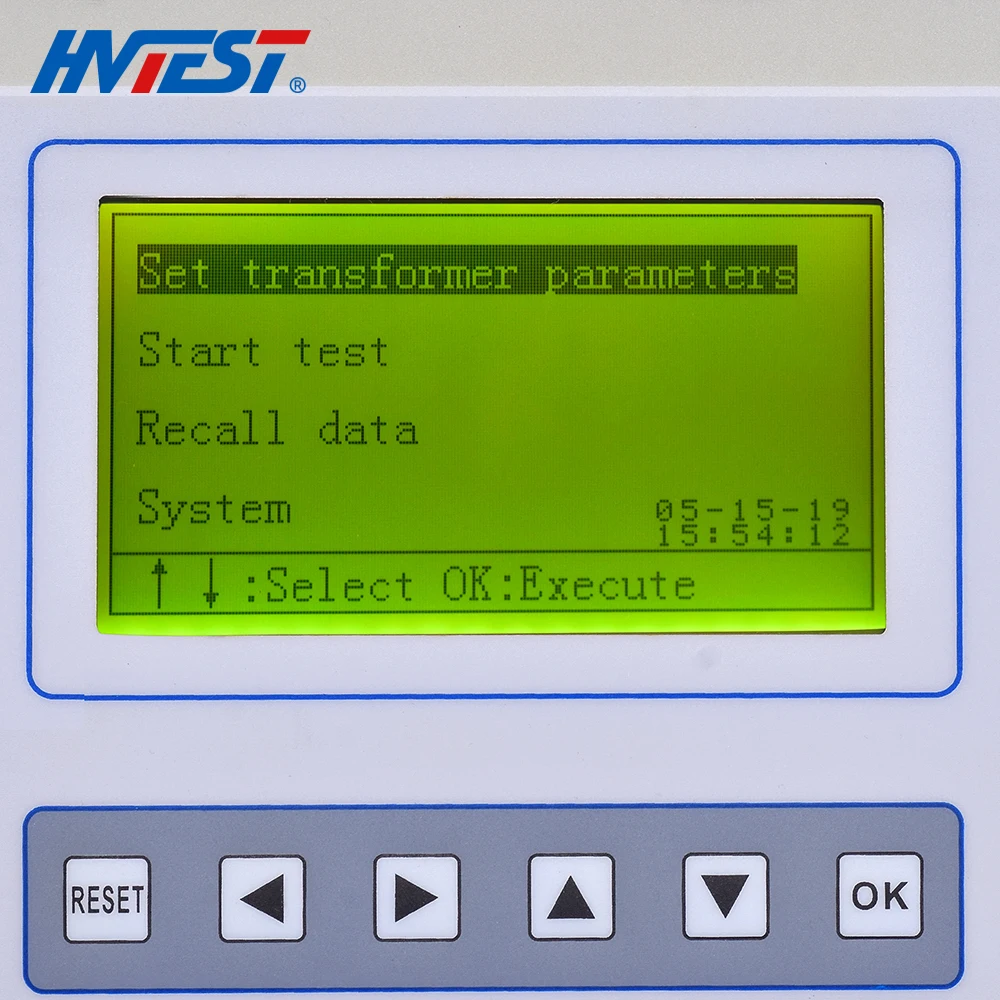

9. Have transformer short-circuit protection and interturn short-circuit protection functions. In case of short circuit, relevant information will be displayed on the LCD screen in characters.
10. The upper computer could control the whole testing process, save data .
11. Struction manual is attached to the tester, providing convenience for users.
12. The tester is small and is a little bigger than a piece of A4 paper.
13. The tester is light and its weight is only 6.9kg.
2. Two output voltages are optional and applicable to transformer whose zero-load current is relatively high.
3. Have wide testing range and the highest transformation ratio may reach 10000.
4. Automatically calculate tap position.
5. Fast speed, which is only 18 seconds for three-phase.
6. Favorable repeatability.
7. Automatically save 99 data at most.
8. Flexible data processing, including retrieval, print, transfer to U-disk, delete and upload to PC computer for testing.
9. Have transformer short-circuit protection and interturn short-circuit protection functions. In case of short circuit, relevant information will be displayed on the LCD screen in characters.
10. The upper computer could control the whole testing process, save data .
11. Struction manual is attached to the tester, providing convenience for users.
12. The tester is small and is a little bigger than a piece of A4 paper.
13. The tester is light and its weight is only 6.9kg.
