10liter 20liter 30liter 50liter intelligent digital factory price rotary evaporator for solvent recovery
- Category: >>>
- Supplier: Nantong Sanjing Chemglass Co. Ltd.
Share on (62157168686):
Product Overview
Description
Product Description
Product Application
Rotary evaporator is an evaporating instrument widely used in laboratory.It is suitable for reflux operation, rapid evaporation of solvent, concentration of trace components and reaction processes requiring stirring.
Rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in pharmaceutical, chemical and biological pharmaceutical industries.The principle is that under the vacuum condition, the constant temperature heating ,making the rotating bottle rotate at a constant speed, the material forms a large area of film on the bottle wall, and then solvent evaporates efficiently. The solvent vapor is cooled by the high efficiency glass condenser and recycled in the collection bottle, which greatly improves the evaporation efficiency.
Rotary evapotator is especially suitable for the concentration and purification of biological products which are easy to decompose and denature at high temperature.
Explosion-proof rotary evaporator uses a explosion-proof motor, that will keep reaction to be safe in the whole process.
Product Model | PR-2 | PR-5 | PR-10 | PR-20 | PR-50 |
Evaporation Flask | 2L/29# | 5L/50# | 10L | 20L | 50L |
Receiving Flask | 1L | 2L/3L | 5L | 10L+5L | 10L+10L |
Motor Power(W) | 40 | 90 | 120 | 120 | 180 |
Bath Power(KW) | 1.5 | 2 | 3 | 5 | 5 |
Vocuume Degree(Mpa) | 0.096 | 0.096 | 0.096 | 0.096 | 0.096 |
Ratation Speed(rpm) | 10-180 | 10-90 | 5-110 | 5-110 | 5-110 |
Evaporation Speed(H2O)(L/h) | 1.2 | 2 | 3.5 | 5 | 8 |
Power(W) | 220 | 220 | 220 | 220 | 220 |
Dimension(Cm) | 55x35x75 | 55x35x110 | 100x50x180 | 110x70x200 | 120x80x220 |
Main Features
①Rotary evaporator uses PTFE and rubber mechnical seal,that can maintain high vacuum.
②Explosion-proof rotary evaporator adopts high efficiency condenser to ensure high recovery rate.
③Continuous feeding can be provided in the process of rotary evaporation.
④The bath pot adopts digital thermostat control to keep temperature as process need.
⑤The structure of rotary evaporator is reasonable and the materials are exquisite.The mechanical structure is made of stainless steel 304, and all the glass parts are made of high-temperature resistant 3.3 borosilicate glass.
②Explosion-proof rotary evaporator adopts high efficiency condenser to ensure high recovery rate.
③Continuous feeding can be provided in the process of rotary evaporation.
④The bath pot adopts digital thermostat control to keep temperature as process need.
⑤The structure of rotary evaporator is reasonable and the materials are exquisite.The mechanical structure is made of stainless steel 304, and all the glass parts are made of high-temperature resistant 3.3 borosilicate glass.
Certifications
Detailed Images

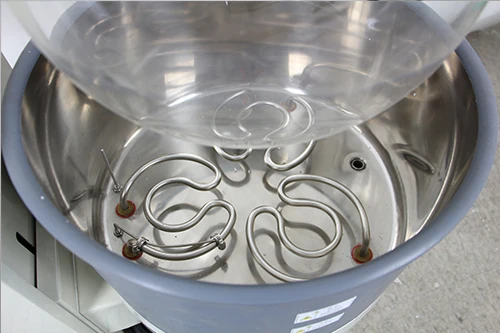

BATH POT
Brand:NTSJ
Original: China
Bath pot can be easily lifted by electricity,and under the intelligent temperature control, both oil and water can be used in bath pot.

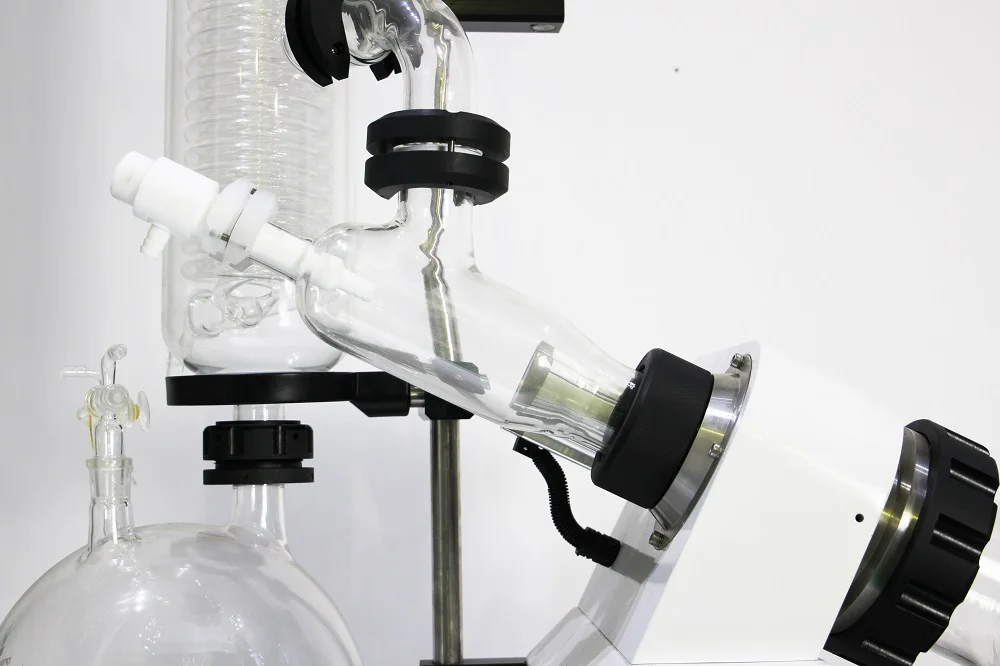

ROTARY BOTTLE
Brand: NTSJ
Original: China
The rotating bottle rotates at a constant speed, and then material inside will forms a large area of film on the bottle wall.

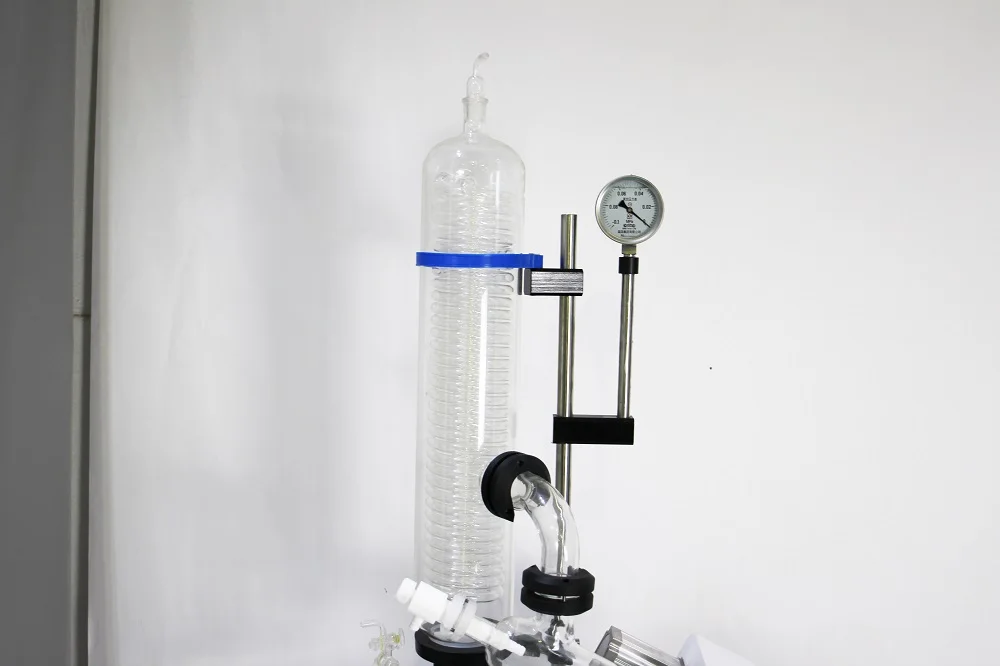

CONDENSER
Brand: NTSJ
Original: China
Double or three layer condenser is more effective during distillation or reflux.

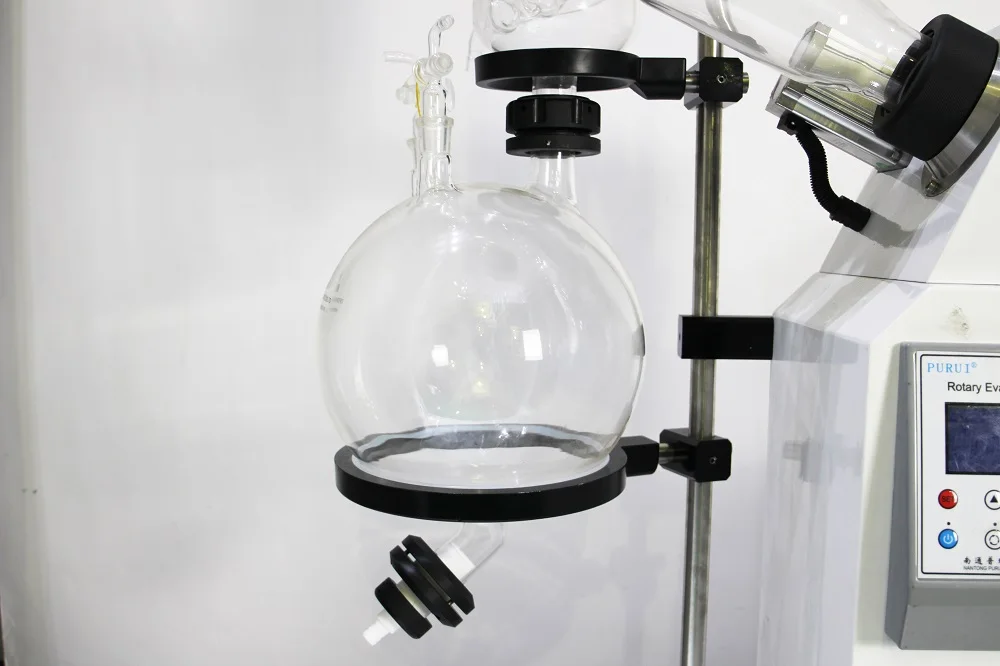

RECEIVING FLASK
Brand: NTSJ
Original: China
Receiving flask connected to spherical neck can be easily assembled and perfectly sealed and immersed in an ice bath to reduce the seconf evaporation under the low boiling point.
Our Service
Before-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* instruction manual
* instruction vedeo
* available engineers service overseas
Packing & Delivery
Packaging | ||
Size | ||
Weight | ||
Packaging Details | The normal package is wooden box If export to by air , heavy-duty card board box will be used or pack it according to customers special request. | |
Packaging | ||
Size | ||
Weight | ||
Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
