Jindex CCD Intelligent Oscillating Knife Engraving Artwork Cutting Machine For Acrylic Positioning Cutter
Technical information/model | JD-CCD-CNC1325S/H |
Cutting Areaa | 1300*2500mm |
Spindle Power | Highly Accuracy Spindle, 6KW, Water cooling/Rotating speed is 24000 |
Remotion Accuracy | +/0.02mm(+/0.04mm) |
Max.Working Speed | 18m/min(15m/min) |
Max. Rapid Travel Speed | 25m/min(18m/min) |
Drive System X, Y and Z axis | XY precision grinding helical rack and gears drive, Z axis screw drive. |
Motors & Drivers | Water based pen, oil based pen, ball point pen, silver pen/8 goups of pen and knife arrangement |
Positioning device | CCD camera and Red Ultra light |
Material Fixed Method | Vacuum Suction |
Vacuum pump power | 8.5kw air pump |
Transmission interface | Ethernet port |
Command Language | Compatible format of G Code, NC HP-GL, GP,GL and IPP-G1 |
Engraving Tools | 3.175mm, 4mm, 6mm, 8mm, 10mm / 3.175mm, 4mm, 6mm High precision module |
Oscillating tool | Oscillating toolmotor at 25000rpm/min. |
Collet | Er20 or ER16(ER11 or ER16) |
Operating System | Jindex digital CCD control system inluding Carving&Oscillating codes |
Used surrounding | the temperature 5℃—40℃, and humidity<60% |
Machine structure | steel structure welding heat effect processing (guarantee frame no deformation) |
Working Voltage | 3Phases 380V±10% 50-60Hz |
Our Advantages
Oscillating tool
Highly Accuracy Spindle
Servo-motor
Rack and pinion drive
Germany Data wire
American Table Mat
1. CCD Visual system, Oscillating, V cutter etc.other tools can be choised one or two more together.
2. X、Y、Z repeatability of positioning accuracy:+/-0.02mm.
3. Moving Way of table: Gantry movement type (to ensure the precision of machine tools work for a long time)
4. Used tools: Collet diameter is less than Φ12.7mm.
5. Can connect any CAD software and engraving software, widely used in advertising, woodworking and other industries positioning cutting

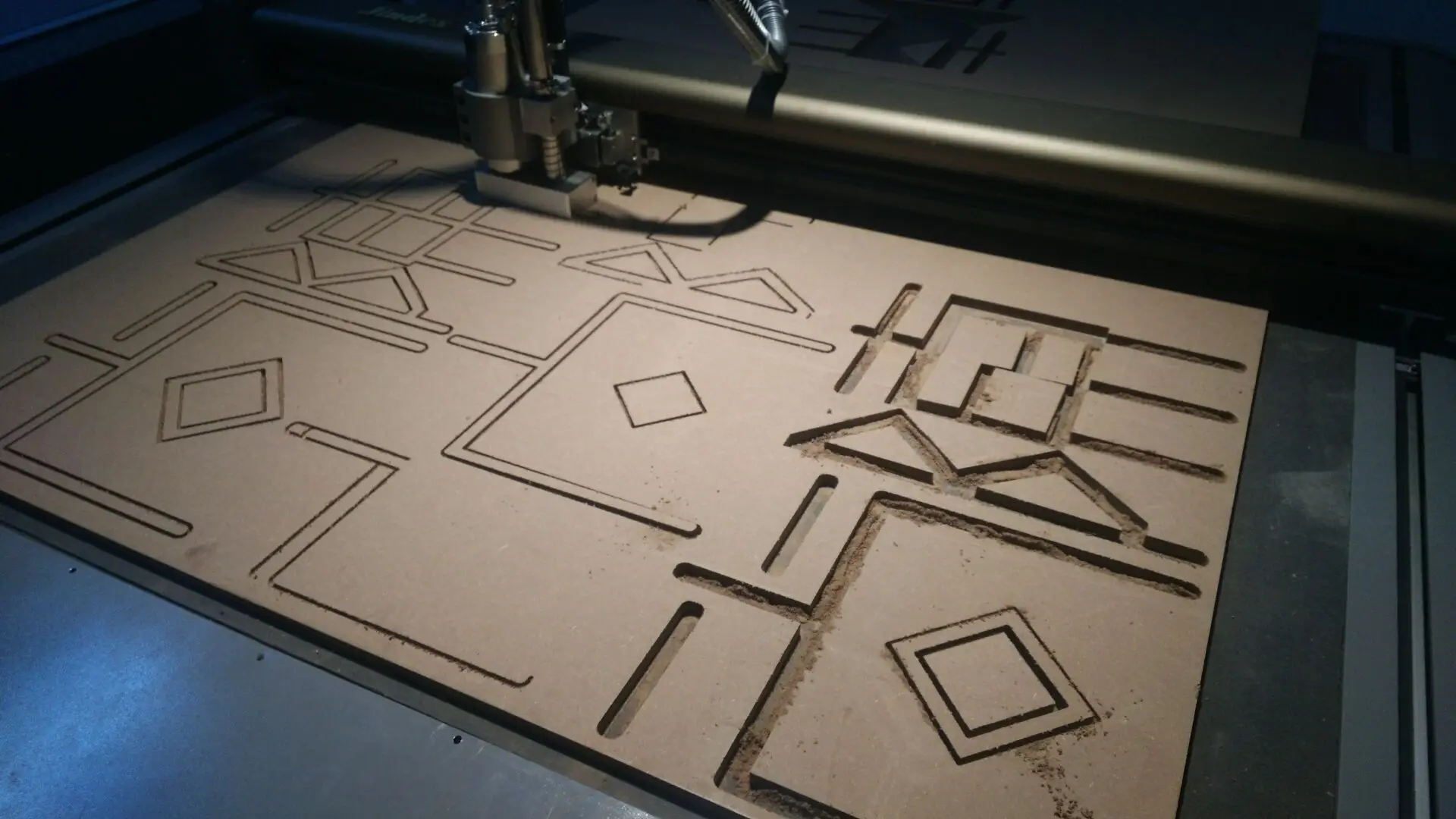

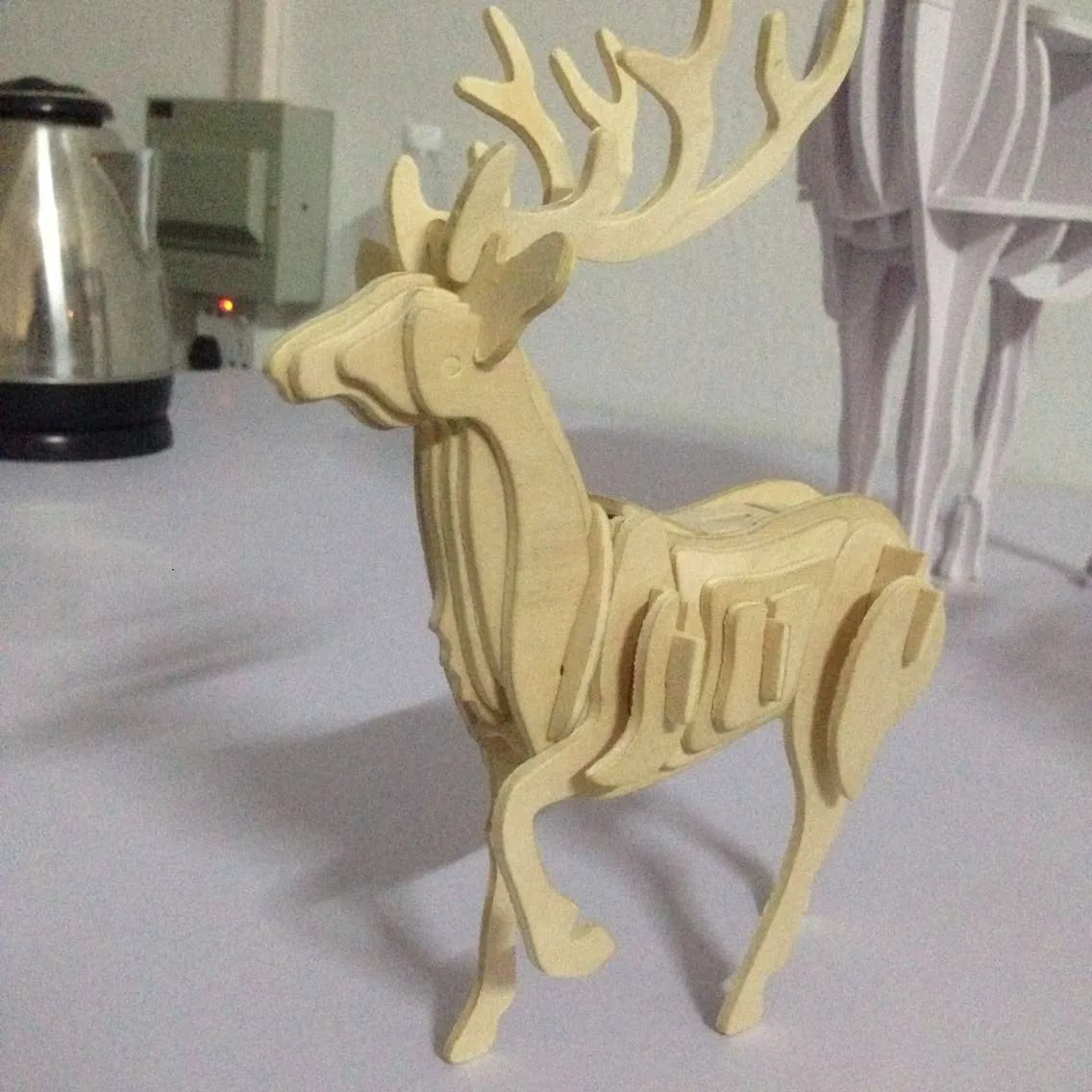

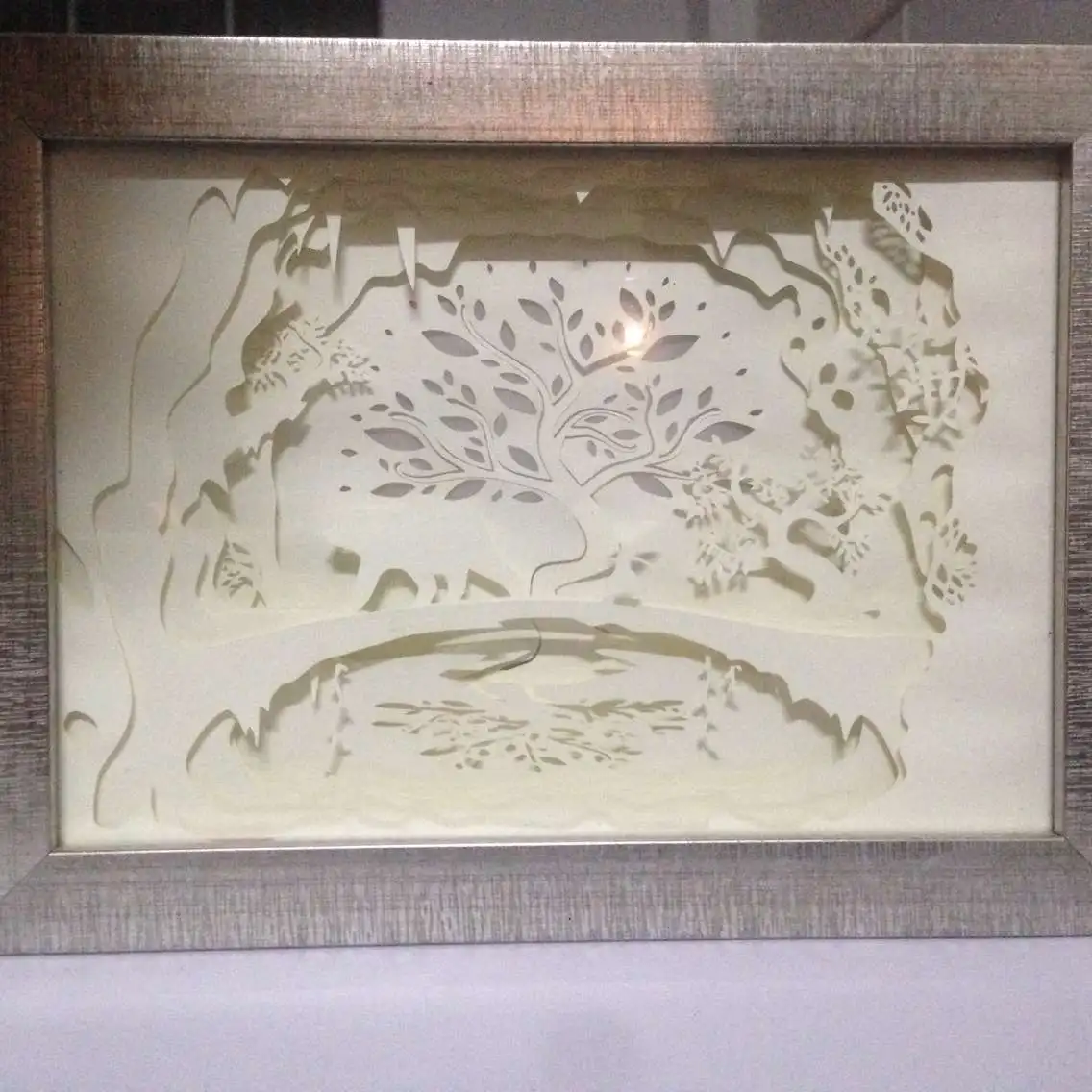

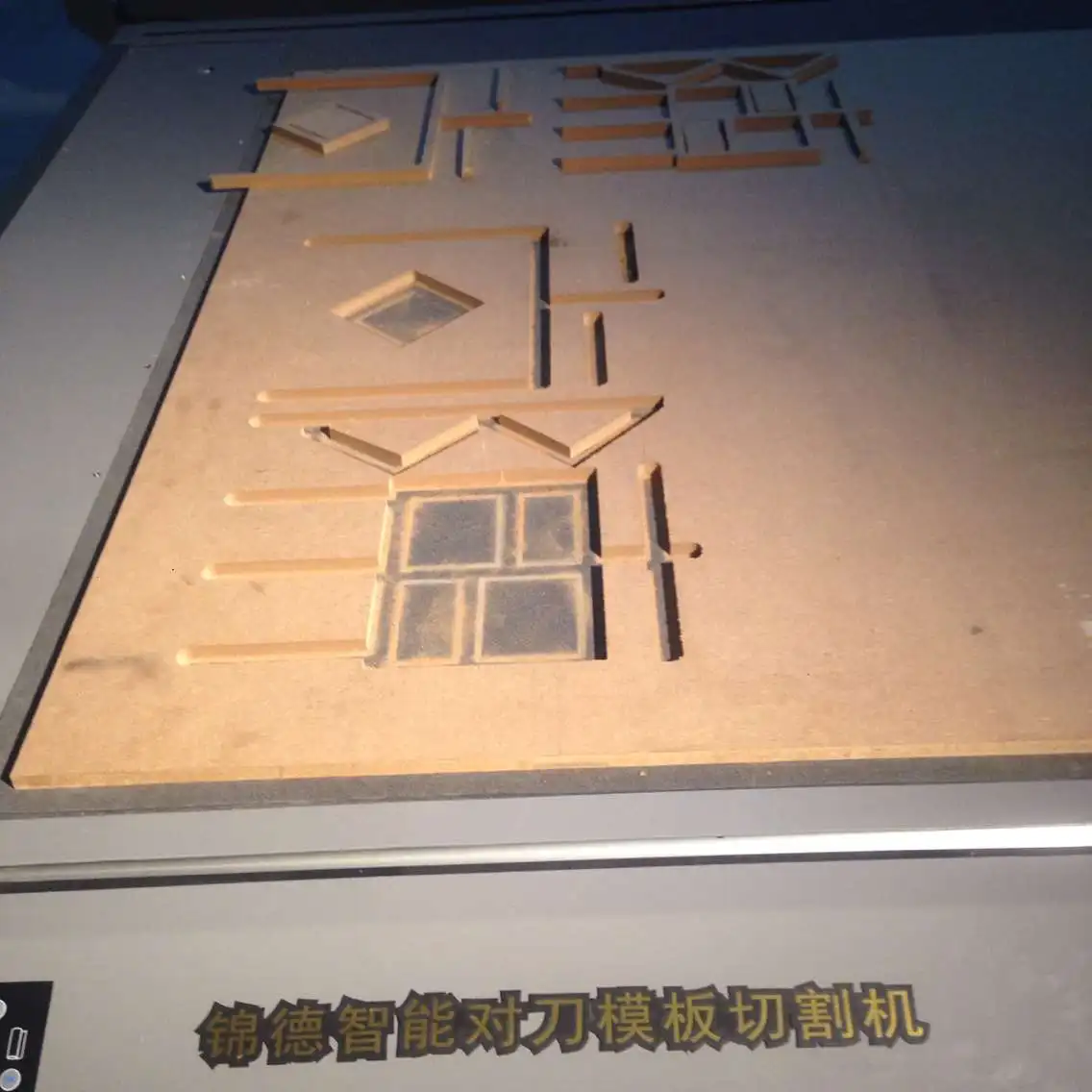

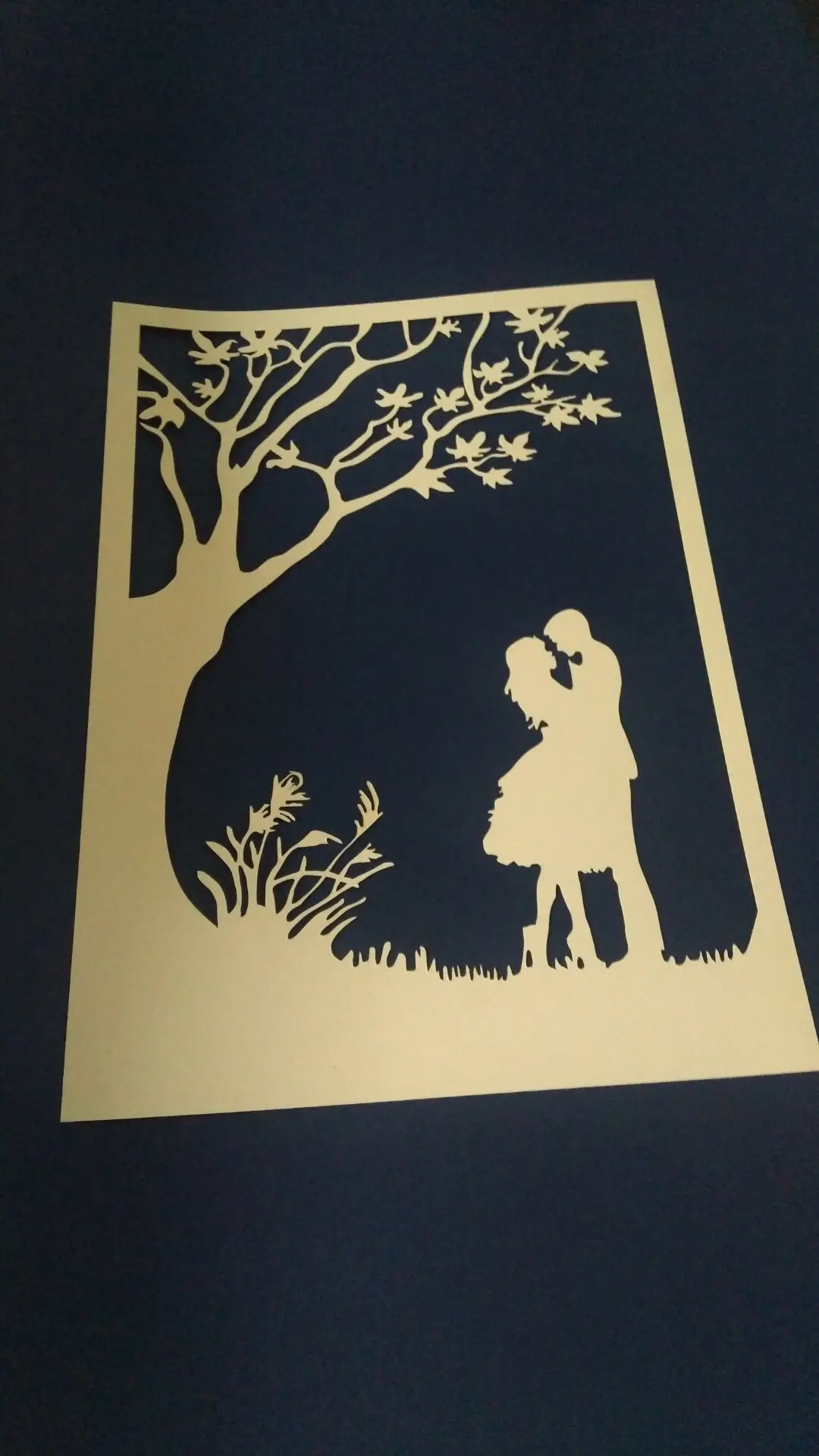

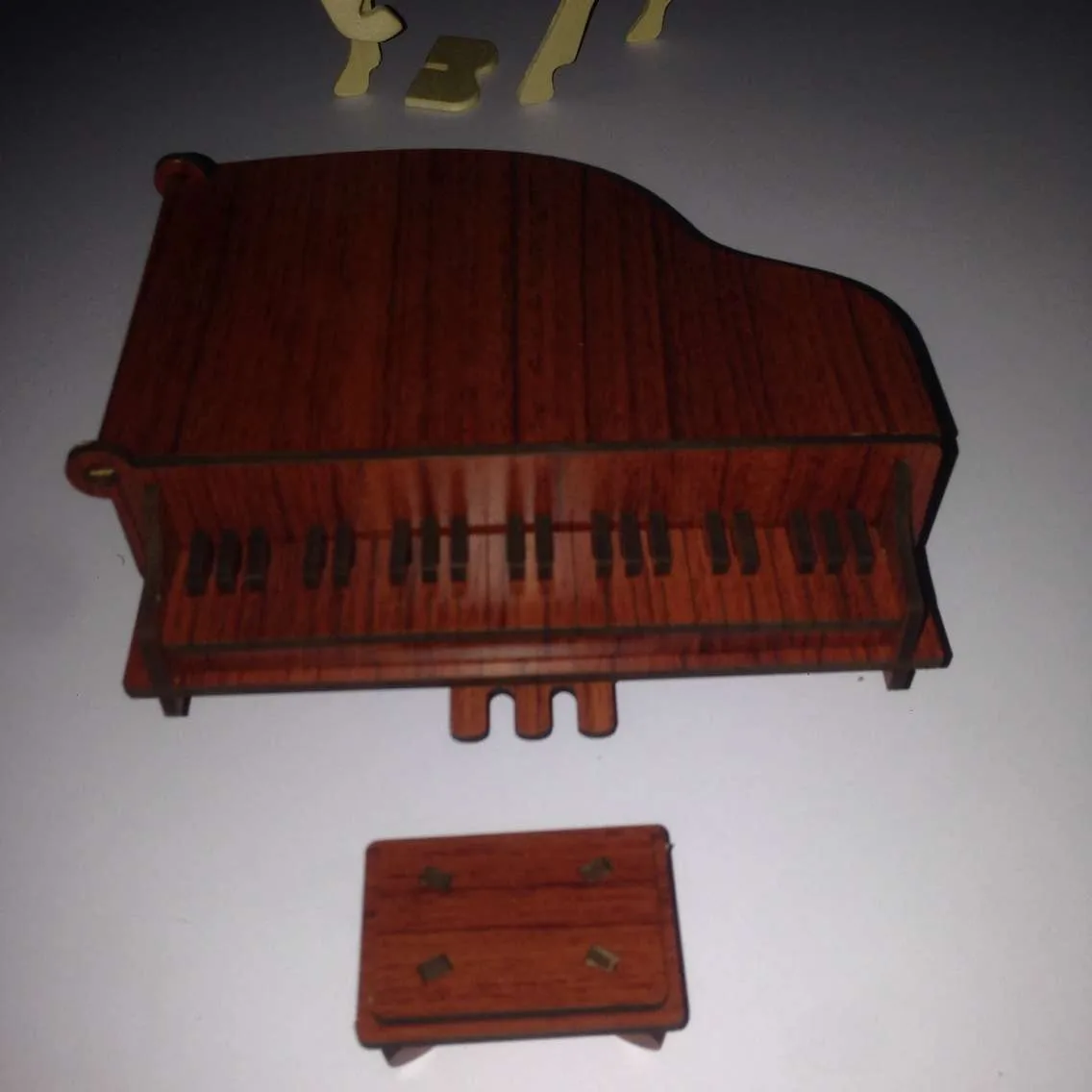

Acrylic Acrylic Bubble KT Board Artwork

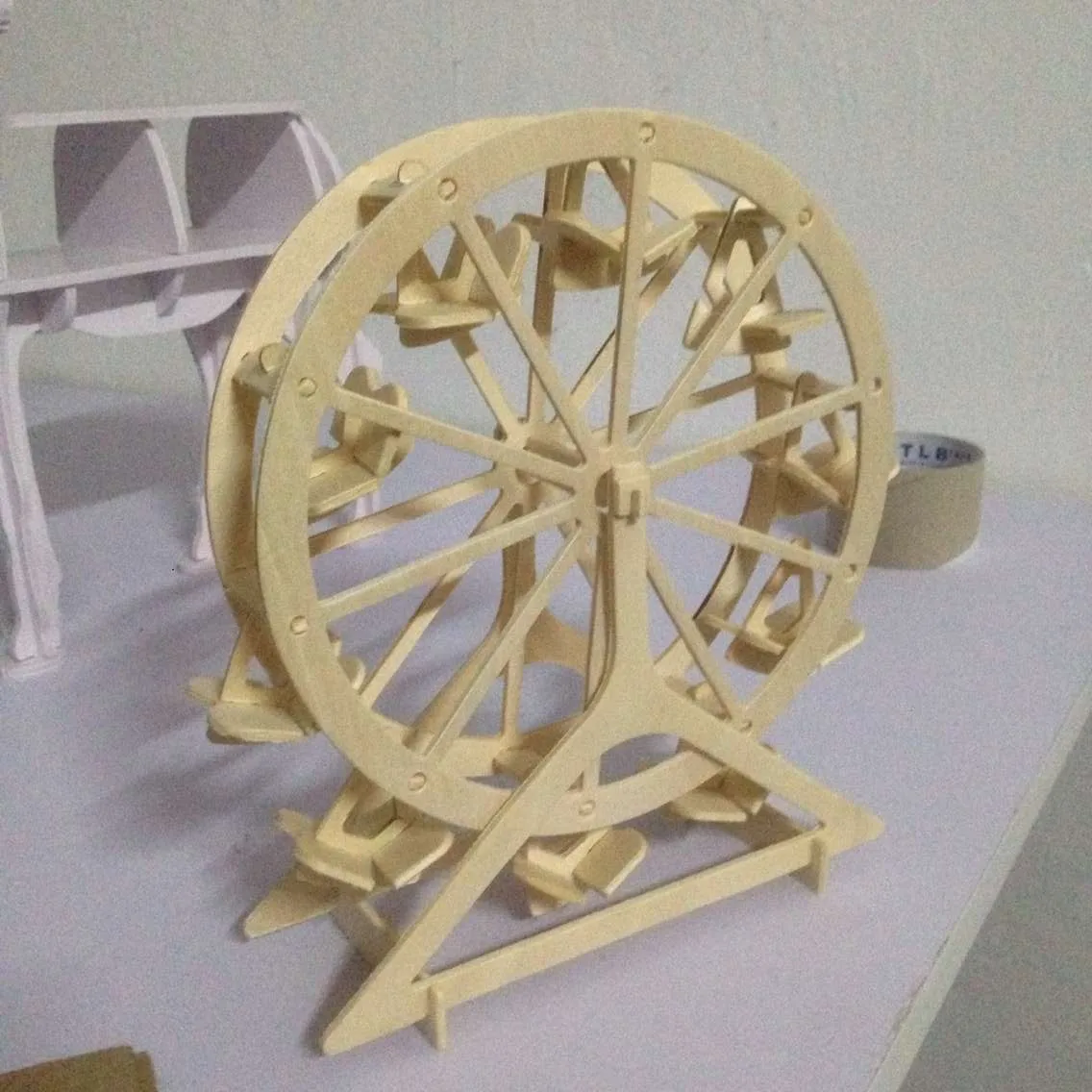

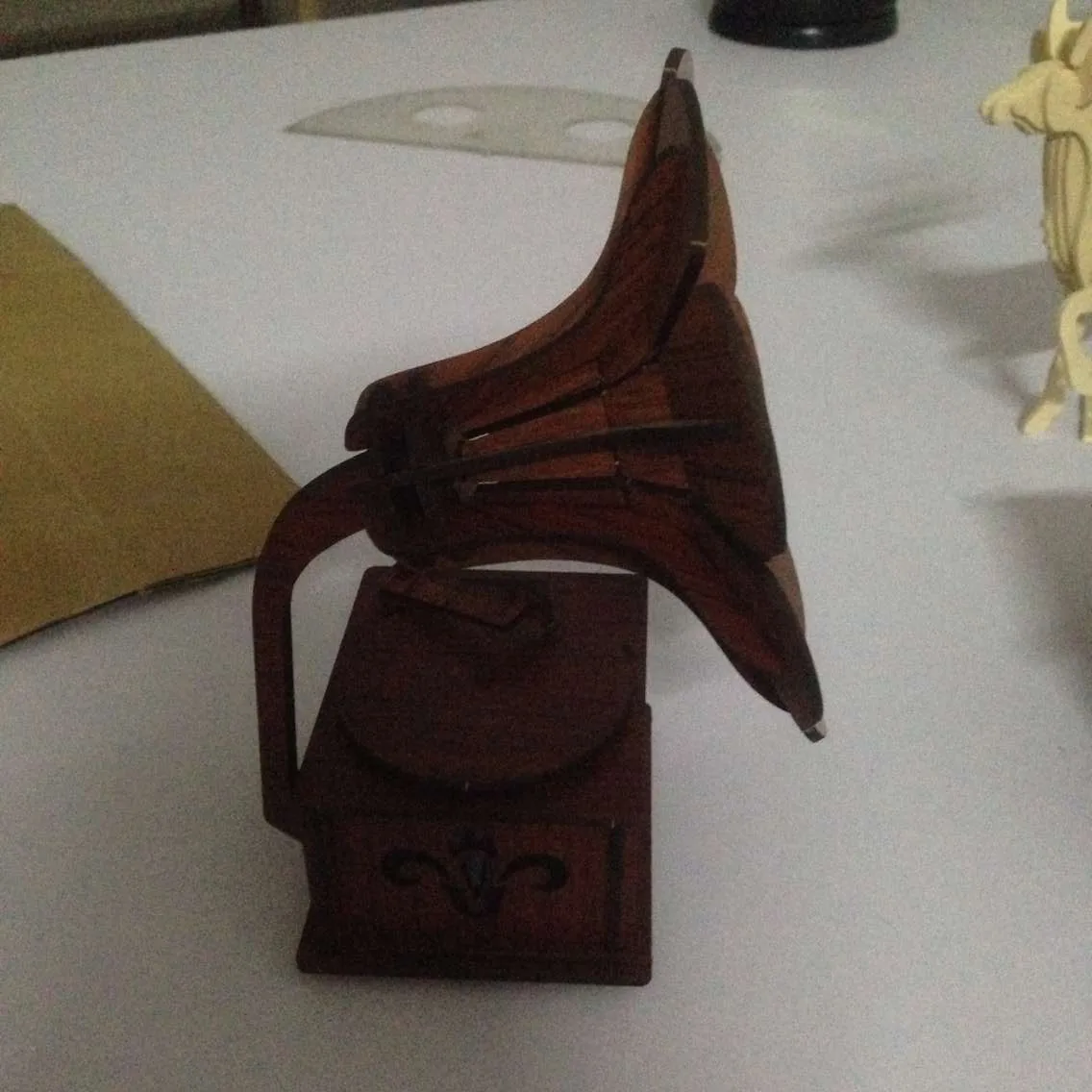

More product samples , please see the following:
Recommend Products
Packing&Shipping

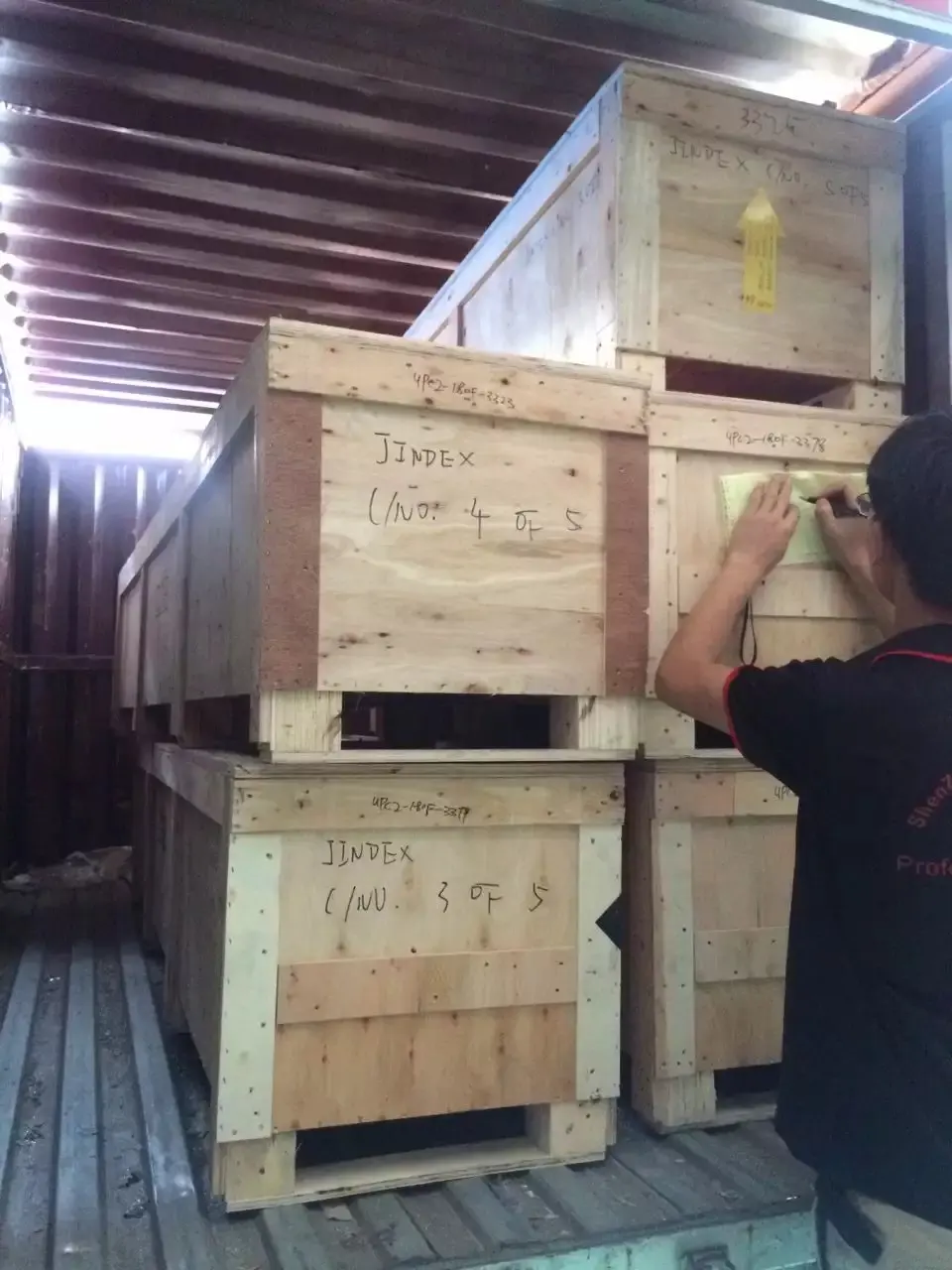

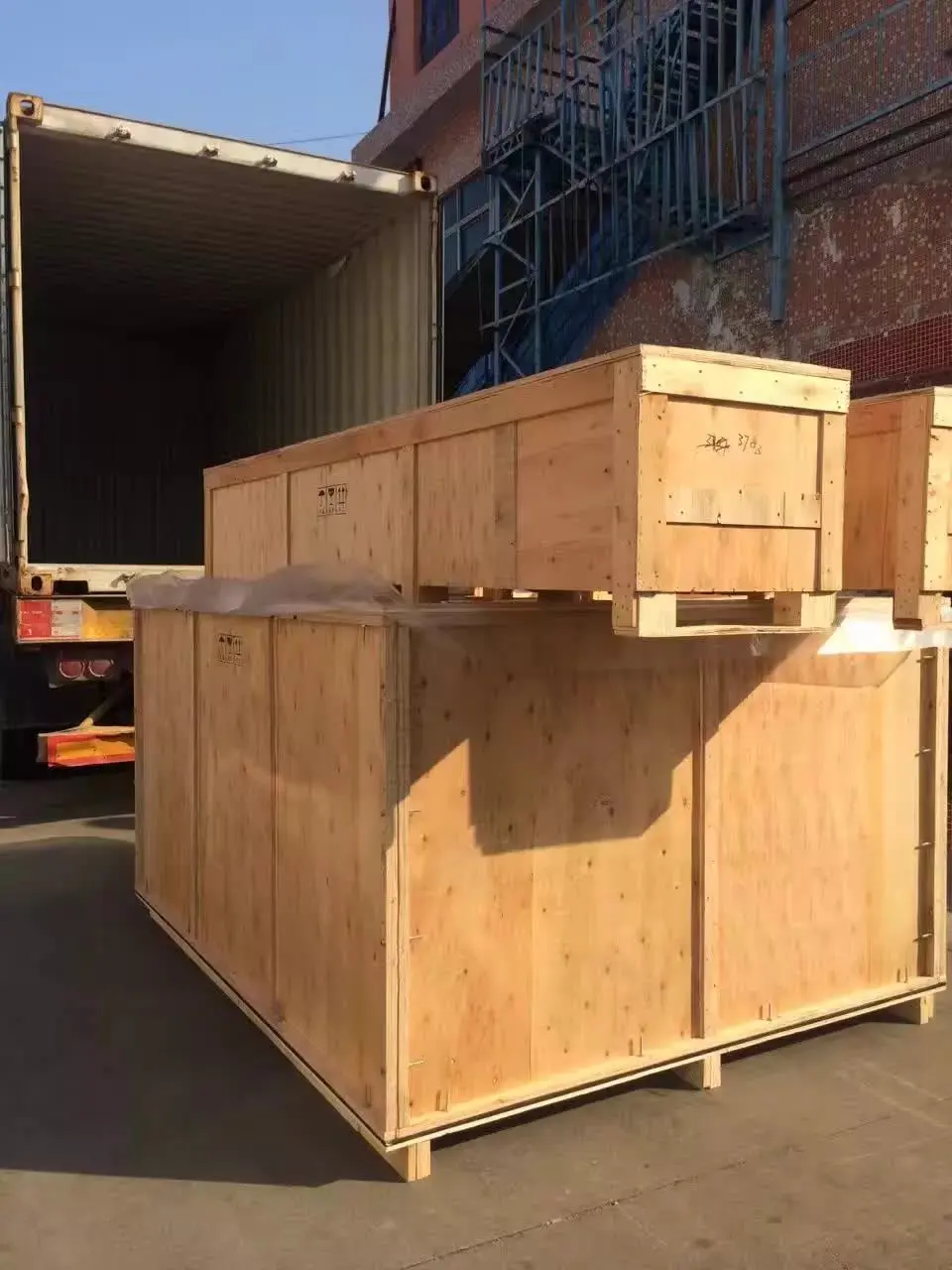

We Will Pack Machine By Carton Or Wooden .
We Will Ship Machine By Sea After Receiving Payment 7-15 Days.
More Quantity Need Consultation .

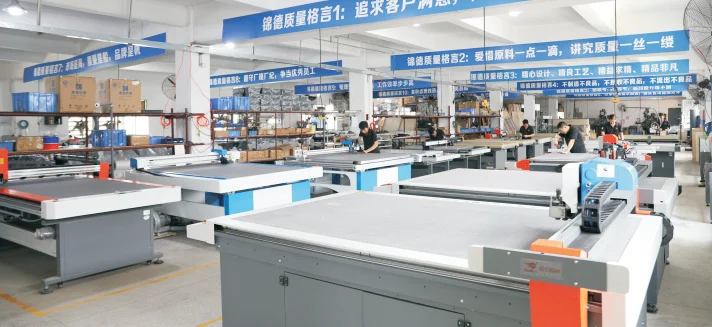

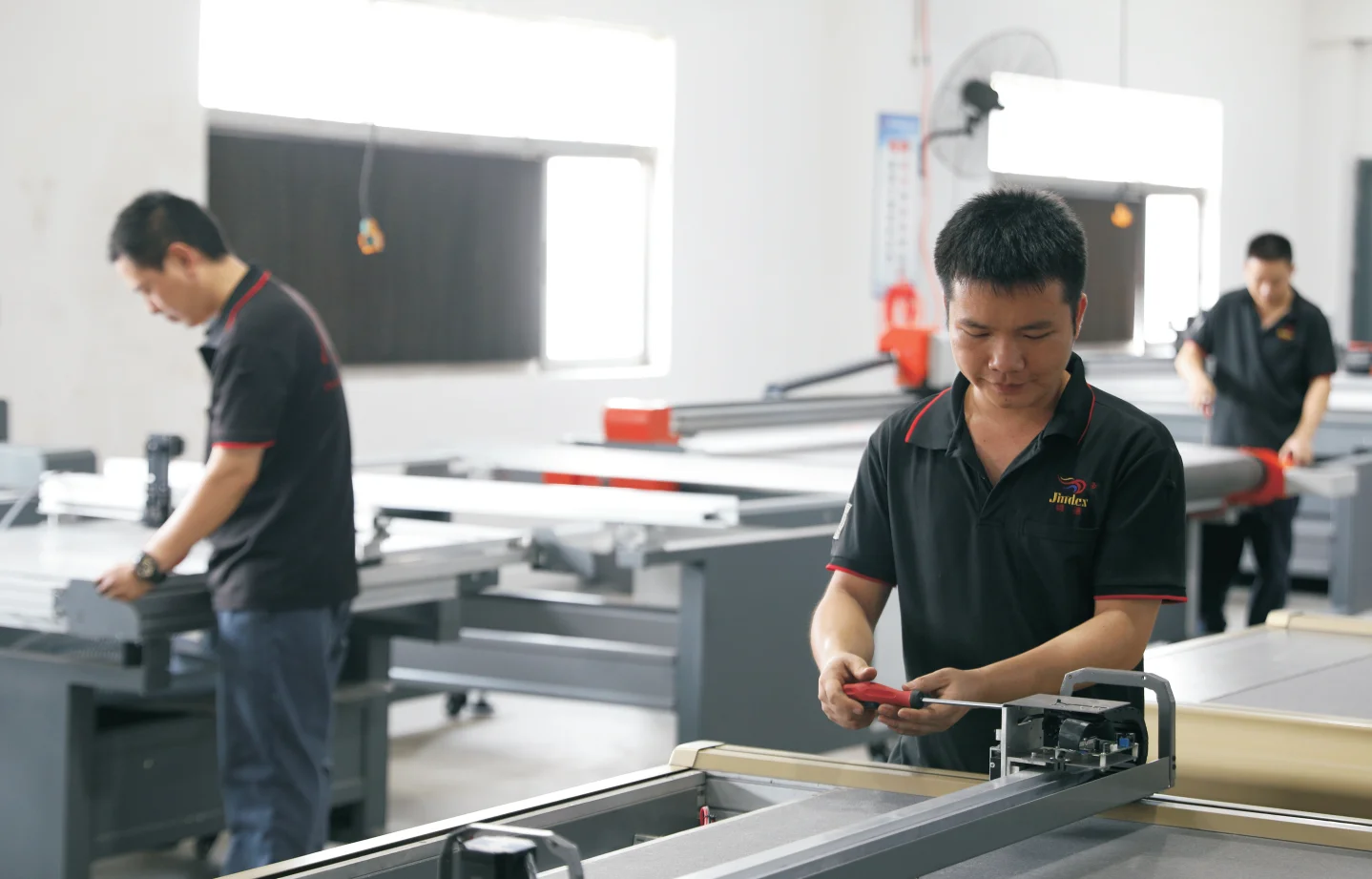

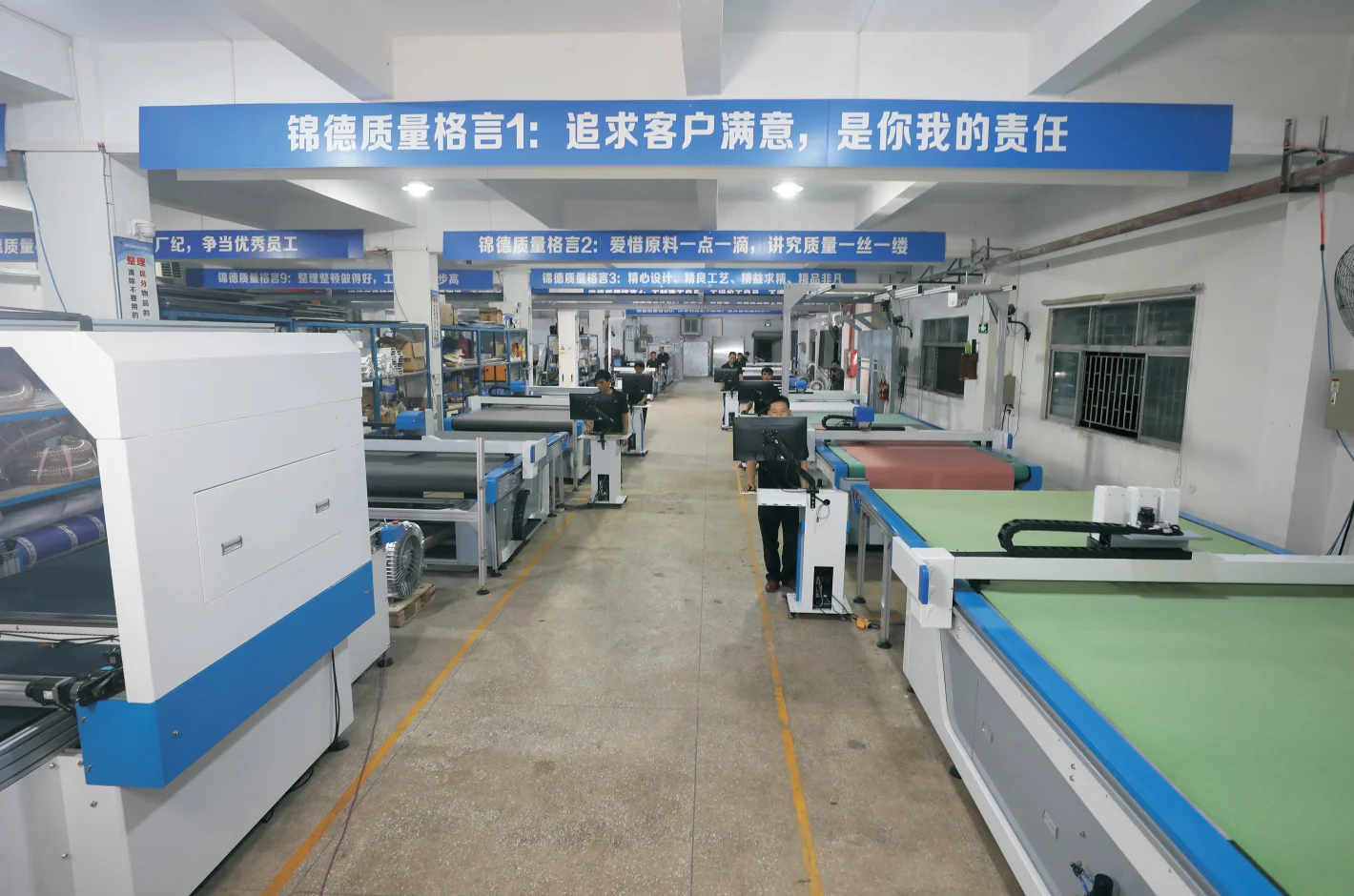

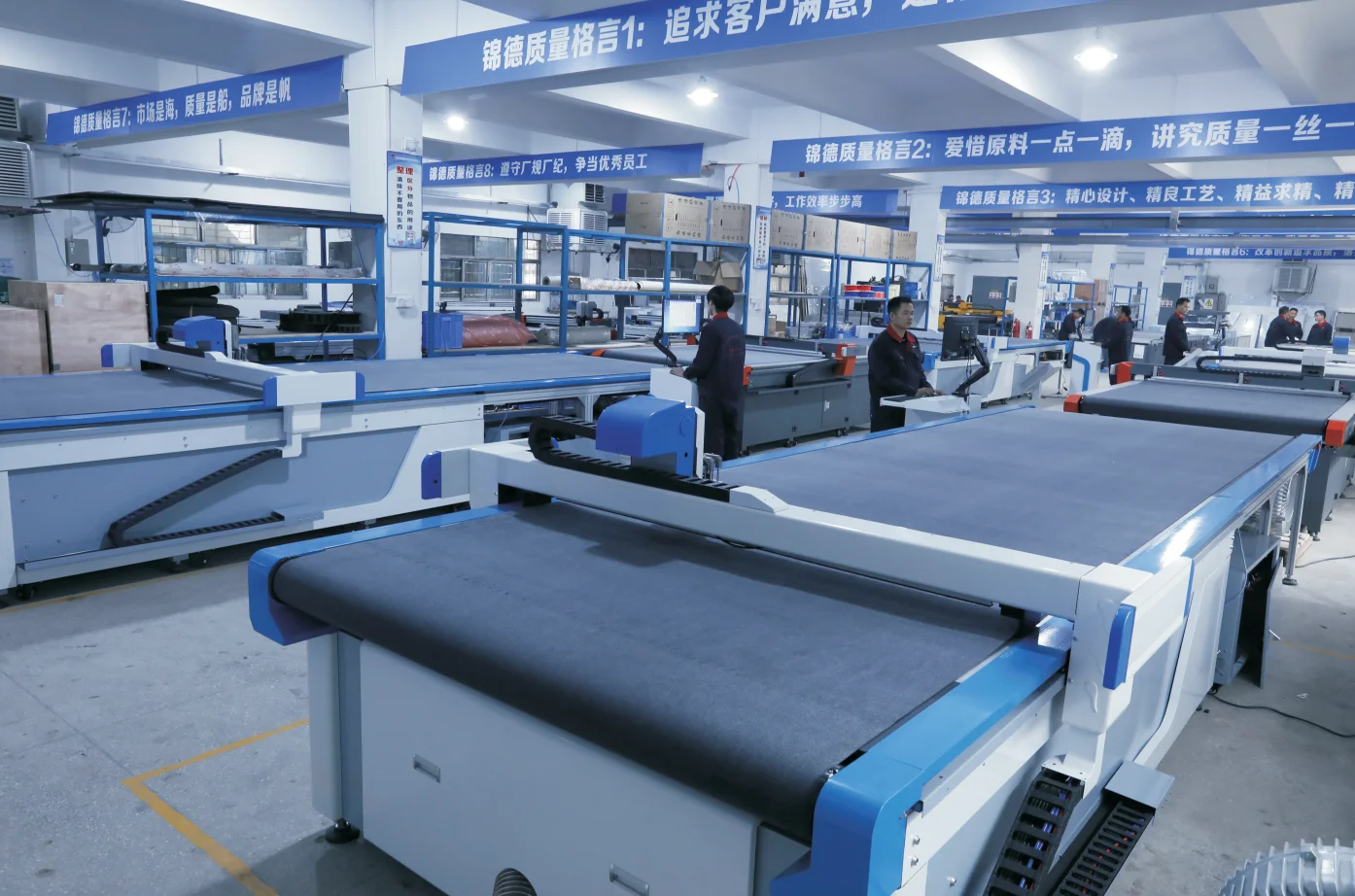

Company Introduction
Shen Zhen Jindex Stock Co., Ltd. as high-technology company in professional R&D, manufacturer, sales and after service in CAD/CAM fields, that’s globally advanced and smart auto cutting machine manufacturer with full production lines for soft material and sales in 60 different countries oversea.
Jindex senior R&D and production people have nearly 20 years experience in the high-tech CAD/CAM industry. It has created a high-quality service team to serve nearly 10,000 customers at home and abroad after nearly ten years of development. Thanks to the praise of customers, we will work harder!worldwide.
