Product Overview
Description

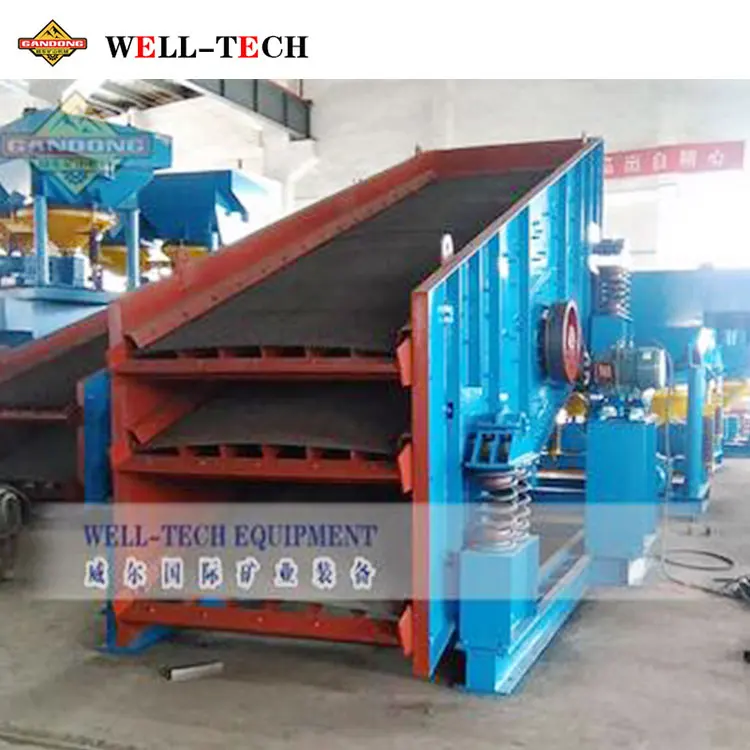

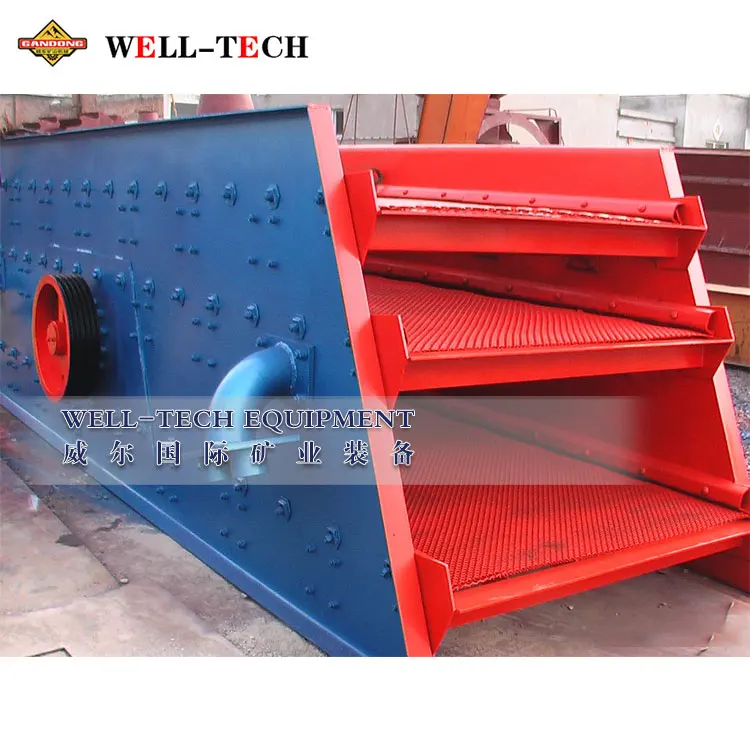

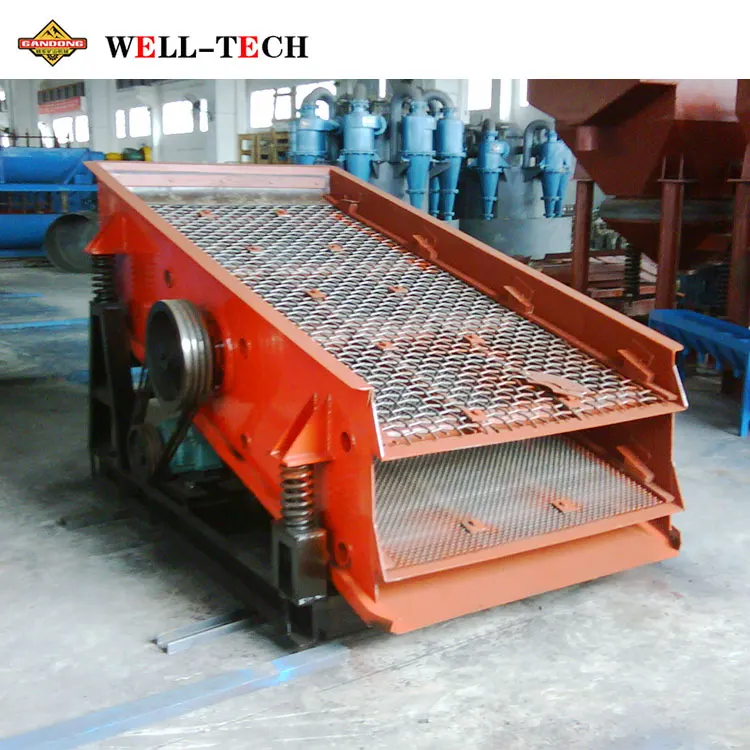

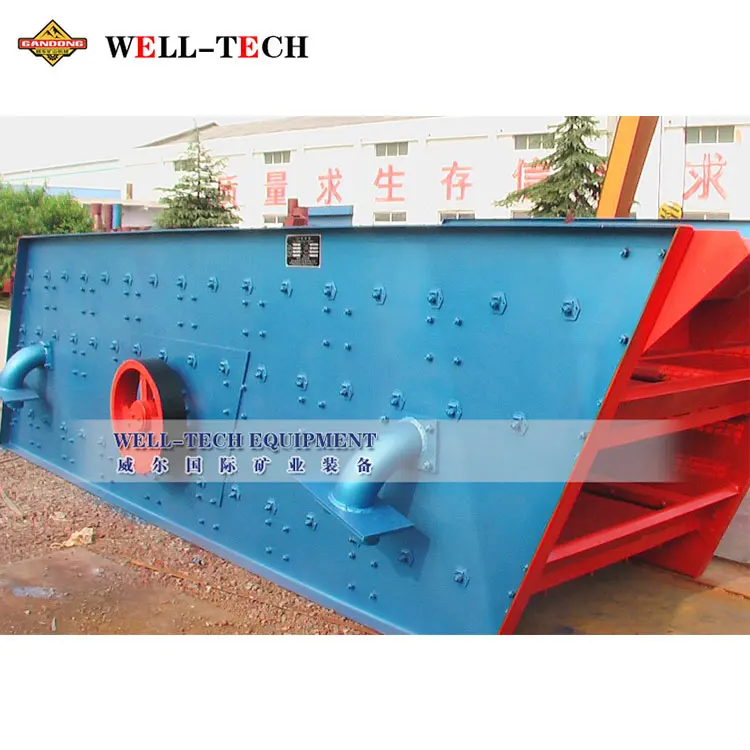

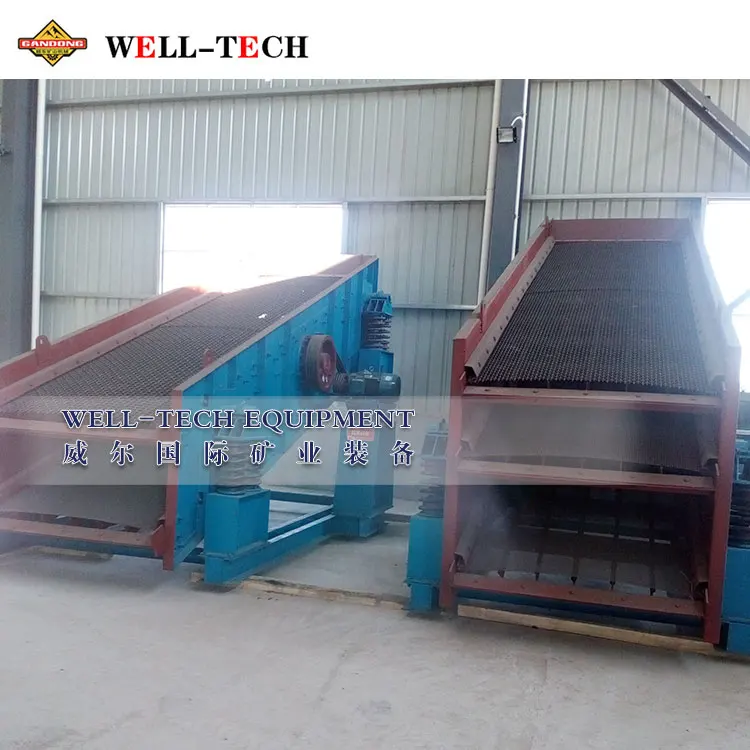

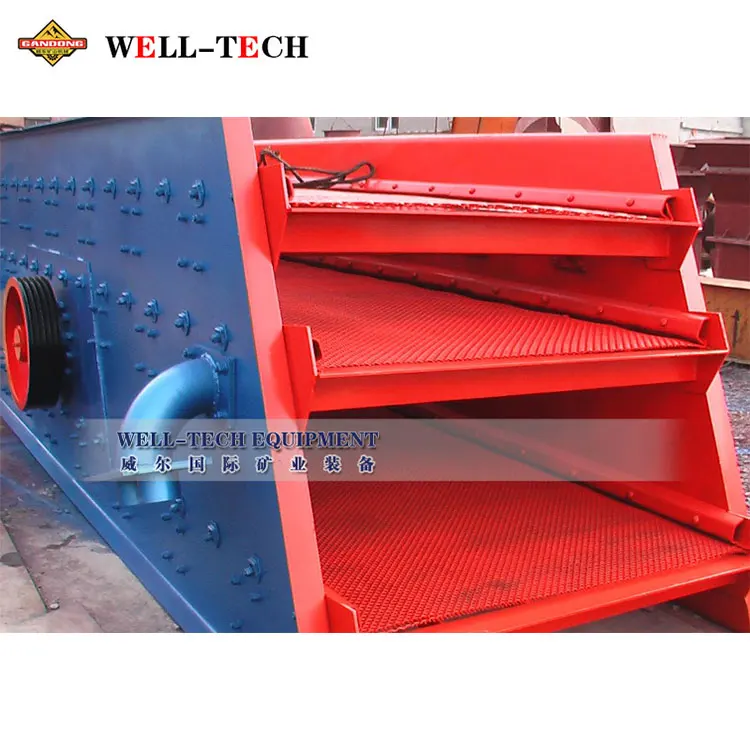

Construction materials classifier mechanical circular vibrating screen
Product Description

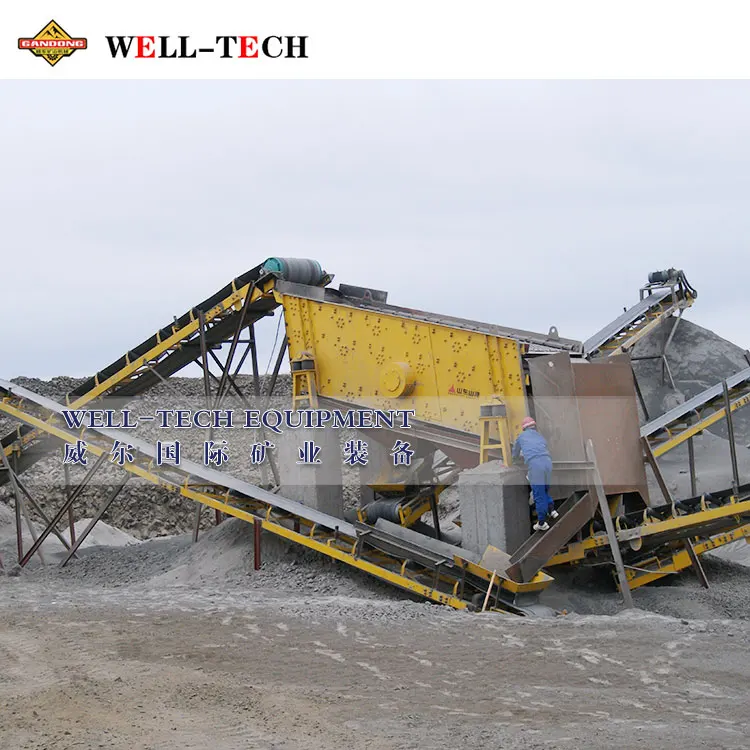

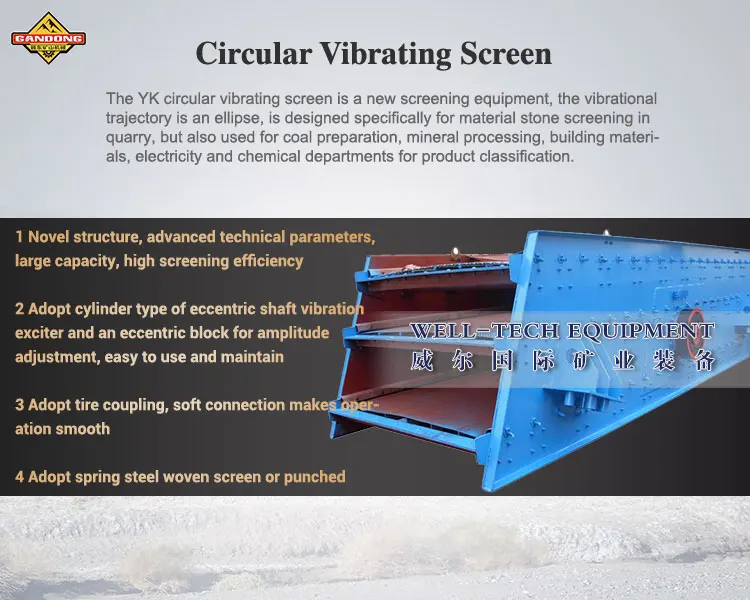

The YK circular vibrating screen is a new screening equipment, the vibrational trajectory is an ellipse, is designed specifically for material stone screening in quarry, but also used for coal preparation, mineral processing, building materials, electricity and chemical departments for product classification.
Main Technical Parameters
Model | Layer | Sieve size (mm) | Max. Feeding size (mm) | Amplitude (mm) | Angle (°) | Capacity (t/h) | Power (Kw) |
3YK1230 | 3 | 3-50 | < 200 | 800-970 | 20 | 12-120 | 5.5 |
3YK1336 | 3 | 6-50 | < 200 | 970 | 20 | 15-160 | 11 |
3YK1548 | 3 | 5-80 | < 200 | 970 | 20 | 50-250 | 15 |
3YK1848 | 3 | 5-80 | < 200 | 970 | 20 | 50-300 | 18.5 |
3YK1860 | 3 | 5-80 | < 200 | 970 | 20 | 50-350 | 22 |
3YK2160 | 3 | 5-100 | < 200 | 730 | 20 | 100-500 | 30 |
3YK2460 | 3 | 5-150 | < 200 | 730 | 20 | 150-700 | 30 |
3YK2770 | 3 | 5-150 | < 200 | 730 | 20 | 200-800 | 30*2 |
4YK1548 | 4 | 5-80 | < 200 | 970 | 20 | 50-250 | 18.5 |
4YK1848 | 4 | 5-80 | < 200 | 970 | 20 | 50-300 | 22 |
4YK1860 | 4 | 5-80 | < 200 | 970 | 20 | 50-350 | 22 |
4YK2160 | 4 | 5-100 | < 200 | 730 | 20 | 100-500 | 30 |
4YK2460 | 4 | 5-150 | < 200 | 730 | 20 | 150-700 | 37 |
4YK2770 | 4 | 5-150 | < 200 | 730 | 20 | 200-800 | 30*2 |
Advantages
1 Novel structure, advanced technical parameters, large capacity, high screening efficiency

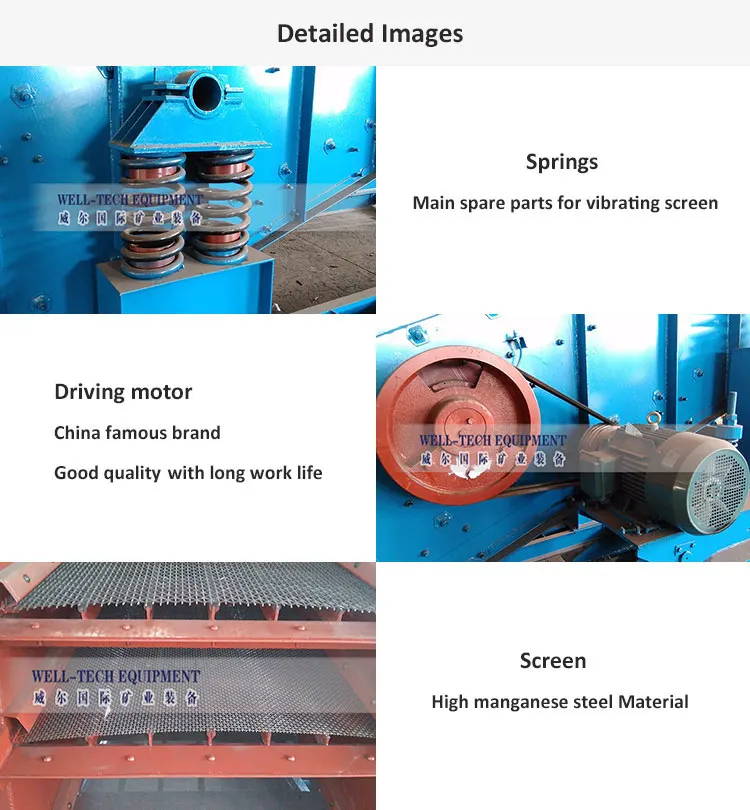

2 Adopt cylinder type of eccentric shaft vibration exciter and an eccentric block for amplitude adjustment, easy to use and maintain
3 Adopt tire coupling, soft connection makes operation smooth
4 Adopt spring steel woven screen or punched screen plate, long useful life and no plugging
5 Long life, quiet, smooth resonance region
Working principle
The motor makes the exciter swing rotate speedily through the tire coupling. The continuous forced circular motions of sieve box were achieved through the powerful centrifugal force. Under the influence of sieve box, the materiel are tossed forward successively on the mesh. they were classified as thrown up, and the particles smaller than the mesh size were sieved out when they are falling, so that the classification of material could be achieved.
Why Choose Us
Jiangxi Well-tech International Mining Equipment Co.,Ltd. (Gandong Mining Equipment) is a large mineral processing service company specialized in designing, manufacturing, installing and debugging of mining equipment as well as providing flow sheet design and course training of mineral processing.
Our company covers an area of 48,000 square meters, the workshop covers 20,000 square meters, we have various large modernized machinery process facilities, professional engineering team and installation team.
Now our company is the largest manufacturer and exporter of gravity dressing equipment in China.
Our customer
Pre-Sales Service
Inquiry and consulting support.
Sample testing support.View our Factory.
After-Sales Service
1.Video technical support
2.Field installation, commissioning and training
3.Field maintenance and repair service
4.Online support
5.Engineers available to service machinery overseas.
