Контроллер солнечного заряда 12 24 В 50 А 60 А
- Category: Solar Charger Controllers >>>
- Supplier: Sunpal Power Co. Ltd.
Share on (62157516582):
Product Overview
Description
Product Description
Parameters
Model | Tracer5210AN | Tracer6210AN | Tracer5415AN | Tracer6415AN | Tracer8415AN | ||||
Nominal System Voltage | 12/24VDC or Auto | 12/24/36/48VDC or Auto | |||||||
Battery Voltage Range | 8V～32V | 8V～68V | |||||||
Battery Type | Sealed(Default)/Gel/Flooded/User | ||||||||
Battery fuse | 80A/58V | 150A/58V | |||||||
Rated charge current | 50A | 60A | 50A | 60A | 80A | ||||
Rated charge Power | 625W/12V 1250W/24V | 750W/12V 1500W/24V | 625W/12V 1250W/24V 1875W/36V 2500W/48V | 750W/12V 1500W/24V 3000W/48V 2250W/36V | 1000W/12V 3000W/36V 4000W/48V 2000W/24V | ||||
Max. PV open circuit voltage | 100V① 92V② | 150V① 138V② | |||||||
MPP Voltage Range | (Battery Voltage+2V) ～72V③ | (Battery Voltage +2V) ～108V③ | |||||||
Tracking efficiency | ≥99.5% | ||||||||
Max. conversion efficiency | 98.0% | 98.0% | 98.3% | 98.6% | 98.5% | ||||
Full load efficiency | 97.0% | 97.0% | 97.8% | 98.0% | 98.0% | ||||
Temperature compensate coefficient | －3mV/℃/2V(Default) | ||||||||
Self-consumption | 98mA/12V;60mA/24V;50mA/36V;46mA/48V | ||||||||
Grounding | Common negative grounding | ||||||||
Relay | Rated Value:5A/30VDC; Max. Value:0.5A/60VDC | ||||||||
RS485 interface | RS485(RJ45) | ||||||||
LCD backlight time | Default:60S,Range:0～999S(0S:the backlight is ON all the time) | ||||||||
Model | Tracer10415AN | Tracer10415AN | Tracer6420AN | Tracer8420AN | Tracer10420AN | ||||
Nominal System Voltage | 12/24/36/48VDC or Auto | ||||||||
Battery Input Voltage Range | 8V～68V | ||||||||
Battery Type | Sealed(Default)/Gel/Flooded/User | ||||||||
Battery fuse | 150A/58V | 80A/58V | 80A/58V | 150A/58V | 150A/58V | ||||
Rated charge current | 100A | 50A | 60A | 80A | 100A | ||||
Rated charge Power | 1250W/12V 2500W/24V 3750W/36V 5000W/48V | 625W/12V 1250W/24V 1875W/36V 2500W/48V | 750W/12V 1500W/24V 2250W/36V 3000W/48V | 1000W/12V 2000W/24V 3000W/36V 4000W/48V | 1250W/12V 2500W/24V 3750W/36V 5000W/48V | ||||
Max. PV open circuit voltage | 150V① 138V② | 200V① 180V② | |||||||
MPP Voltage Range | (Battery Voltage +2V) ～108V③ | (Battery Voltage+2V) ～144V③ | |||||||
Tracking efficiency | ≥99.5% | ||||||||
Max. conversion efficiency | 98.6% | 98.3% | 98.1% | 98.5% | 98.5% | ||||
Full load efficiency | 98.0% | 97.1% | 97.5% | 97.5% | 97.6% | ||||
Temperature compensate coefficient | －3mV/℃/2V(Default) | ||||||||
Self-consumption | 98mA/12V;60mA/24V;50mA/36V;46mA/48V | ||||||||
Grounding | Common negative grounding | ||||||||
Relay | Rated Value:5A/30VDC; Max. Value:0.5A/60VDC | ||||||||
RS485 interface | RS485(RJ45) | ||||||||
LCD backlight time | Default:60S,Range:0～999S(0S:the backlight is ON all the time) | ||||||||
①At minimum operating environment temperature ②At 25℃ environment temperature ③The maximum PV open circuit voltage must never exceed 138V or 180V at 25℃ environment temperature
Electrical Parameters
Model | Tracer5210AN Tracer6210AN | Tracer5415AN Tracer5420AN | Tracer6415AN Tracer6420AN | Tracer8415AN Tracer8420AN | Tracer10415AN Tracer10420AN | ||||
Ambient temperature range | -25℃～+60℃(Derate above 45℃) | ||||||||
LCD temperature range | 20℃～+70℃ | ||||||||
Storage temperature range | -30℃～+85℃ | ||||||||
Relative humidity range | 5% to 95% (N.C.) | ||||||||
Enclosure | IP20 | ||||||||
Pollution degree | PD2 | ||||||||
Mechanica
Model | Tracer5210/5415/5420AN | Tracer6210/6415/6420AN | Tracer8415/8420AN | Tracer10415/10420AN | |||
Dimension | 261×216×119mm | 340×236×119mm | 394×240×134mm | 394×242×143mm | |||
Mounting dimension | 180×204mm | 260×224mm | 300×228mm | 300×230mm | |||
Mounting hole size | Φ7 | ||||||
Terminal | 6AWG/16mm2 | 2AWG/35mm2 | 2AWG/35mm2 | 2AWG/35mm2 | |||
Recommended cable | 6AWG/16mm2 | 6AWG/16mm2 | 4AWG/25mm2 | 2AWG/35mm2 | |||
Weight | 3.5kg | 4.5kg | 6.1kg | 7.4kg | |||

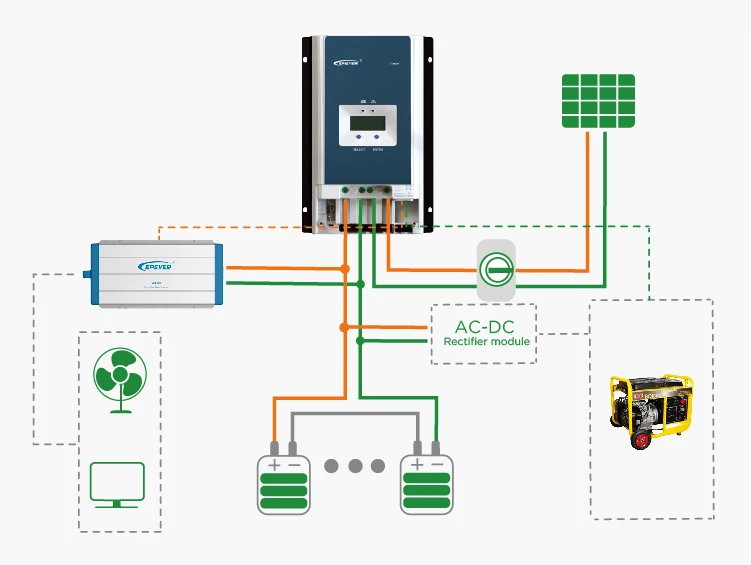

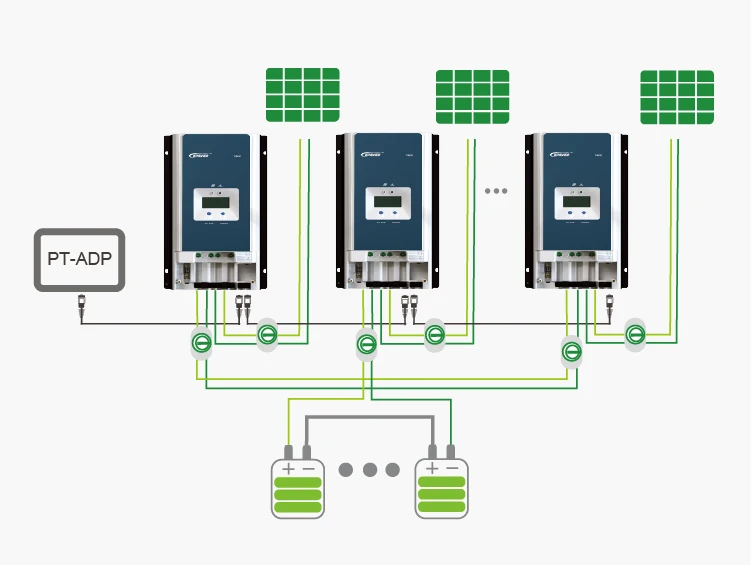

Configuration

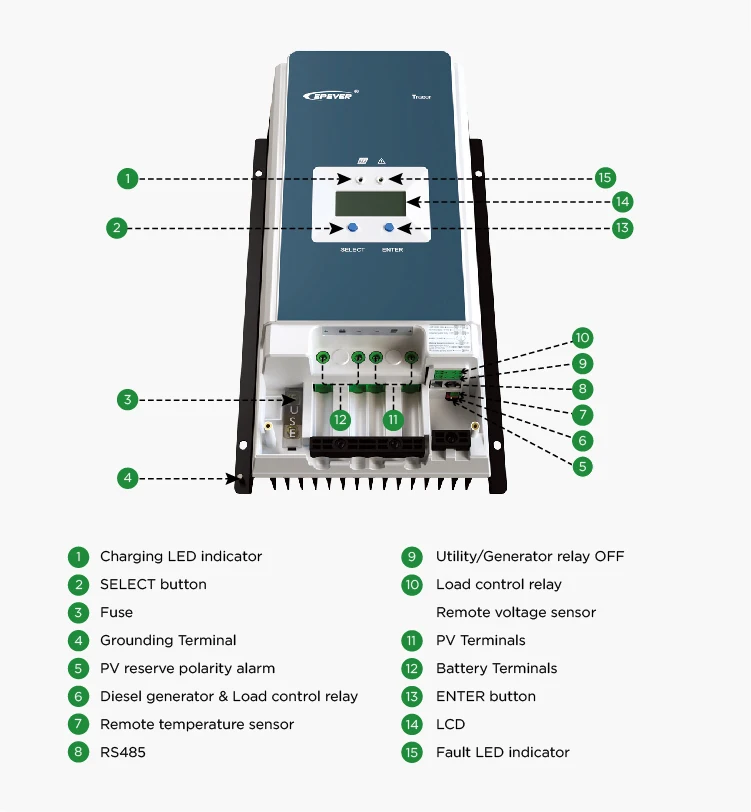

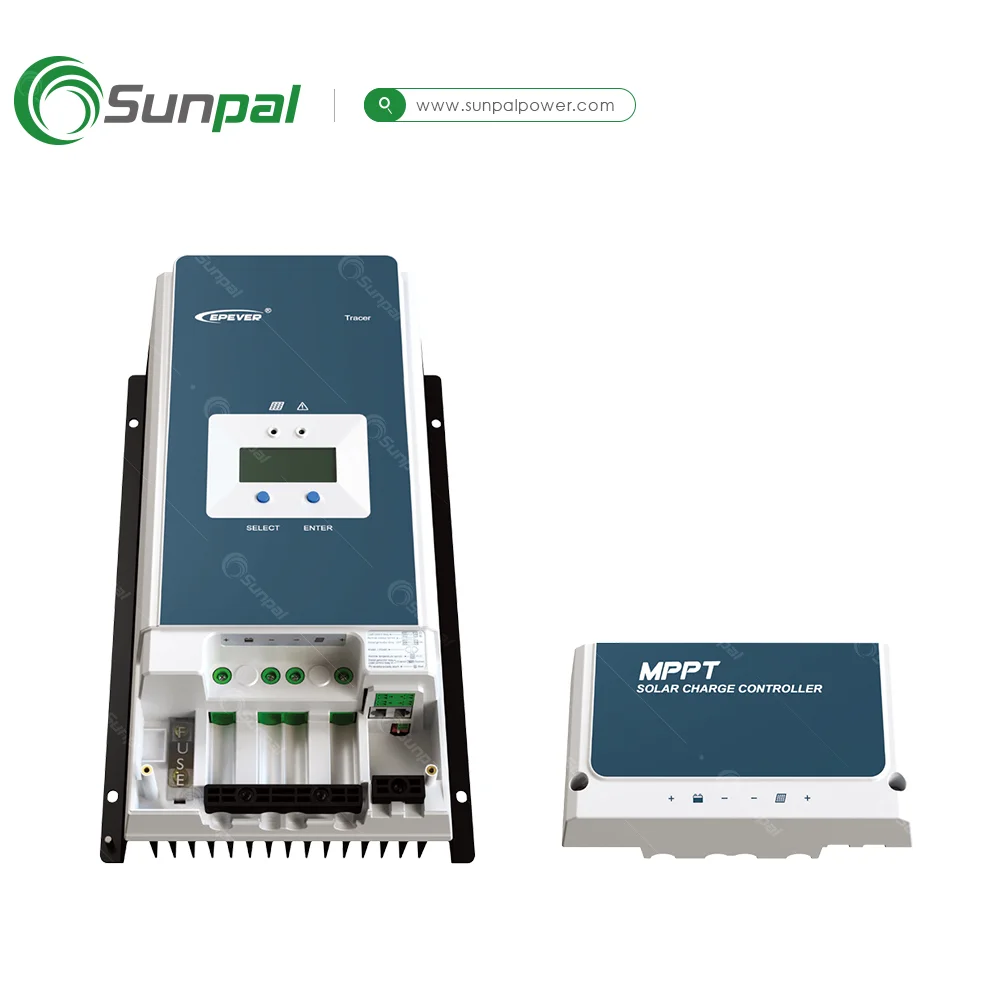

Details Images & Packing
Our Projects
Our Factory
Application
Solar power station systems are typically used for regional centralized power supply, such as village, island, fields monitoring and so on. Also the power level range is between kilowatts to hundreds kilowatts.
Solar home system are typically used for home photovoltaic power generation system, to solve electricity demand of none power or unstable power region. Also the power level rage is between hundred watts to kilowatts.
Solar RVs/Vessels system are typically used for reducing the RVs and the vessels electricity cost, by setting up solar system to assist gasoline/diesel power generator.
Solar Street lights System are typically used for street lightning of cities, villages, the intelligent streetlight system will remote monitoring all street lamps to reduce the operation and maintenance costs of system.
The Hybrid energy system contains solar, wind, diesel and city electricity energy system. The system will meet the load demand of electricity in villages, islands, and telecom stations to reduce the system cost and improve the replenishment ratio of system.
