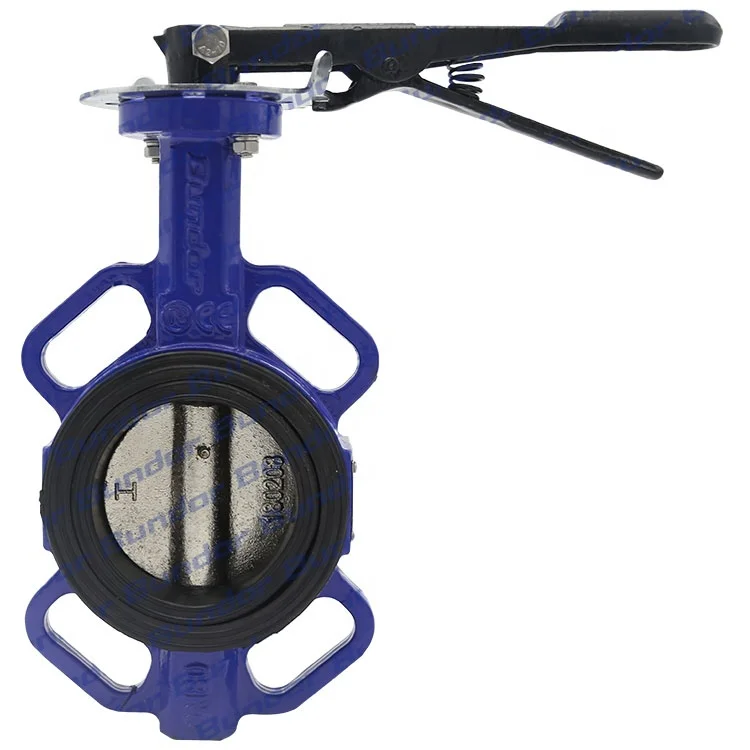

Bundor от китайского поставщика PN10/16 4 дюйма EPDM мягкое уплотнение ручной межфланцевый Клапан Бабочка
- Category: >>>
- Supplier: Henan Bundor Flow Control Co. Ltd.
Share on (62157664930):
Product Overview
Description
Product Description
Product Advantages:
1. This valve is a patented product of the company. The side flange of the product conforms to various pressures of various domestic and international standards.such as national standard, GB,GOST,ANSI,BS,JIS, etc. The connection is convenient and adaptable widely, which can reduce the types of purchase and stocking.
2. The wall thickness of the valve body meets the requirements of GB 26640, the thickness is thick, and the bearing strength is guaranteed.
3. The valve body is made of GGG40 (DI) material, spheroidization rate is 3 grades, the mechanical properties are stronger, the tensile strength is 450Mpa, and the elongation rate is more than 10%. Compared with gray iron body, the same thickness tensile strength is gray iron body. 2 times, the applicable working pressure is higher.
4. The valve seat uses imported rubber raw materials, containing 50% of rubber, Shore A hardness of 73 ± 3, tensile strength ≥ 15.2MPa; elongation at break ≥ 350%, valve sealing is reliable, opening and closing torque is stable, seat durable and long life, the number of opening and closing can reach more than 10,000 times.
5.Bundor brand products are underwritten by Pacific Insurance Company with 10 million quality. Two years warranty, pay two back if one bad . The quality of the product is unconditional.

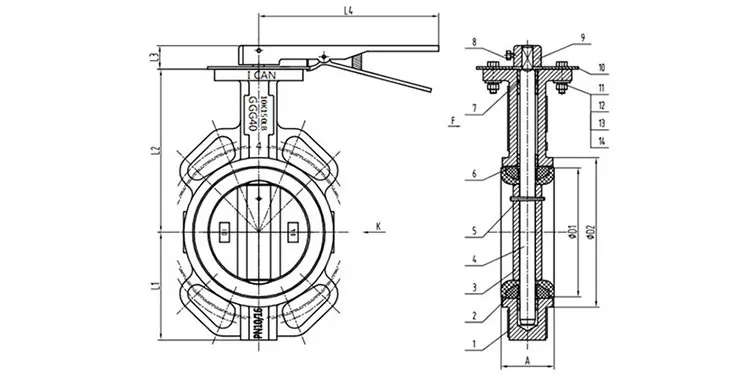

| Name | 1-Body | 2-Seat | 3-Disc | 4-Stem | 5-Actuator | ||
| Material | DI | EPDM | DI | SS410 | Handle | ||
| DN | NPS | H1 | H2 | H3 | ∅A | ∅B | L |
| DN40 | 1.5" | 65 | 128 | 32 | 110 | 95 | 33 |
| DN50 | 2" | 75 | 129 | 32 | 125 | 105 | 43 |
| DN65 | 2.5" | 82 | 136 | 32 | 145 | 127 | 46 |
| DN80 | 3" | 99 | 153 | 32 | 160 | 145 | 46 |
| DN100 | 4" | 110 | 167 | 32 | 190.5 | 165 | 52 |
| DN125 | 5" | 125 | 193 | 32 | 216 | 200 | 56 |
| DN150 | 6" | 145 | 209 | 32 | 241.3 | 225 | 56 |
| DN200 | 8" | 170 | 251 | 40 | 298.4 | 280 | 60 |

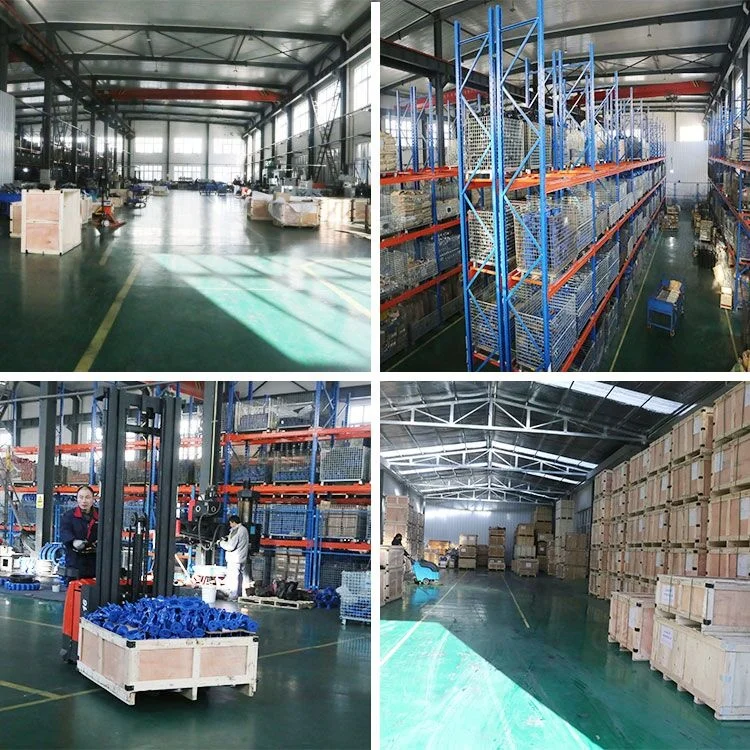

Company Information
Packaging & Shipping
Our Services
Q:When the products will be shipped ?
A:Within 7~25 days after receing the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be provided for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 26 years experience in valve research and production .
