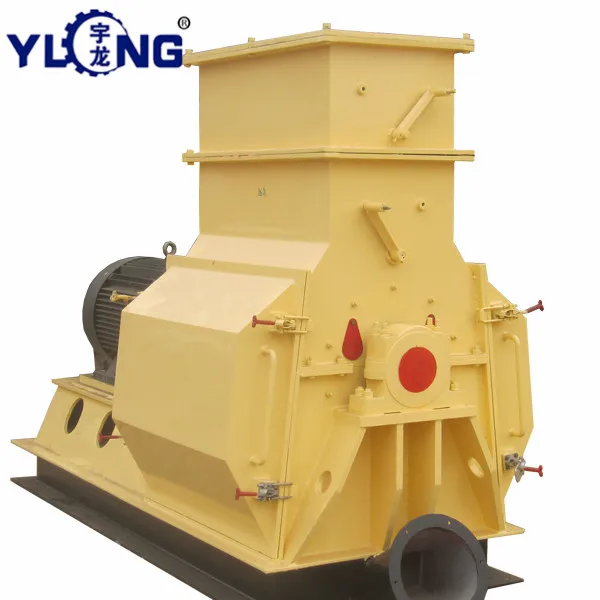

YULONG SZF Three shaft hammer mill wood crusher
- Category: >>>
- Supplier: Shandong Yulong Machine Co. Ltd.
Share on (62157835286):
Product Overview
Description

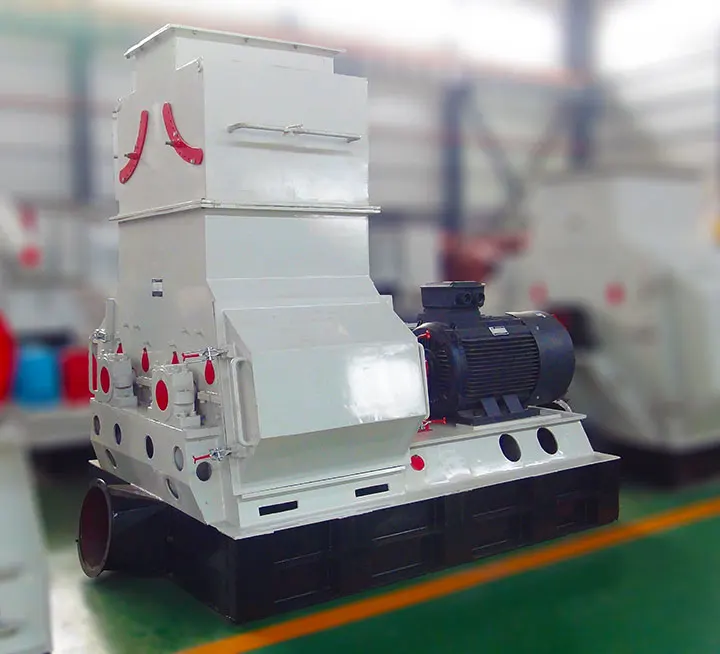

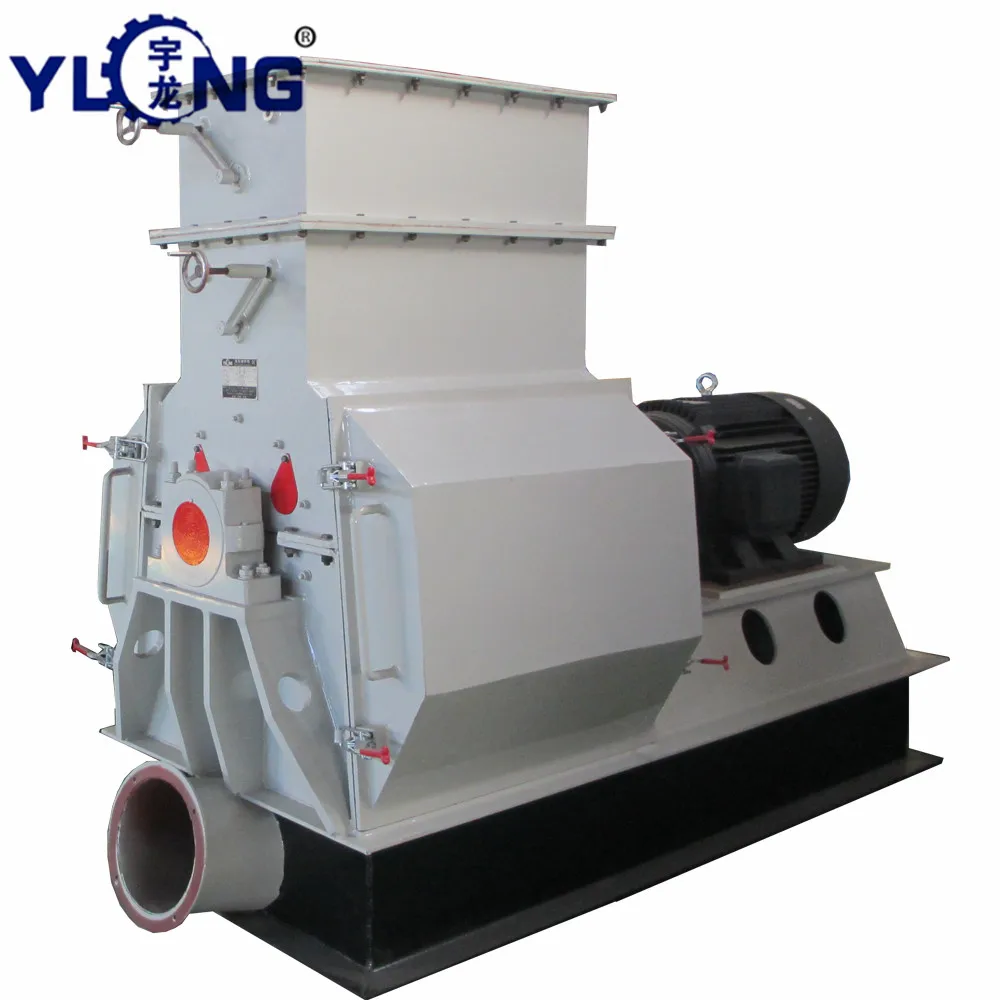

Single shaft efficient crusher
Model | Rpm of shaft(r/min) | Qty of hammers | Power(kw) | Capacity(t/h) |
GXP65×27 | 2940 | 24 | 22 | 0.5-1 |
GXP75×55 | 2950 | 48 | 55 | 1-2 |
GXP75×75 | 2970 | 72 | 75 | 2-3 |
GXP75×75 | 2970 | 72 | 90 | 3-4 |
GXP75×100 | 2980 | 96 | 90 | 4-5 |
GXP75×100 | 2980 | 96 | 110 | 5-6 |
GXP75×120 | 2980 | 120 | 132 | 6-7 |
GXP75×120 | 2980 | 120 | 160 | 7-8 |
GXP75×150 | 3200 | 148 | 200 | 8-9 |
▶The motor and rotor of this series hammer mill installed on the same base. They are directly connected by coupling. The rotor has been checked by dynamic balance test can rotate in both of forward backward direction.
▶There are symmetrical operation door and safety interlock in both side. The operation doors are helpful to renewal thieve plate and hammers, also helpful for checking up and debugging. Feed inlet is placed in the top of crusher which can be matched with all kind of feed equipment.
▶There is one piece of sieve plate installed at the bottom of wood hammer mill. The size of crushed material could be changed by changing different sieve plate with different hole. Normally, the finished size is from 2mm to 30mm adjustable.
▶Spare parts of hammers and sieve plate are made by our CNC system, through high technical heat treatment.
▶This series hammer mill has reasonable structure, sturdy and durable using, safety and dependable, simple installation, easy operation, tiny vibrating, high efficiency etc. advantages, which is the most ideal grinding equipment of all kinds of wood chips,wood shavings, grass, straw, stalk, corn, weeds, soybean, PVC foaming board, rubber and so on.
▶There are symmetrical operation door and safety interlock in both side. The operation doors are helpful to renewal thieve plate and hammers, also helpful for checking up and debugging. Feed inlet is placed in the top of crusher which can be matched with all kind of feed equipment.
▶There is one piece of sieve plate installed at the bottom of wood hammer mill. The size of crushed material could be changed by changing different sieve plate with different hole. Normally, the finished size is from 2mm to 30mm adjustable.
▶Spare parts of hammers and sieve plate are made by our CNC system, through high technical heat treatment.
▶This series hammer mill has reasonable structure, sturdy and durable using, safety and dependable, simple installation, easy operation, tiny vibrating, high efficiency etc. advantages, which is the most ideal grinding equipment of all kinds of wood chips,wood shavings, grass, straw, stalk, corn, weeds, soybean, PVC foaming board, rubber and so on.

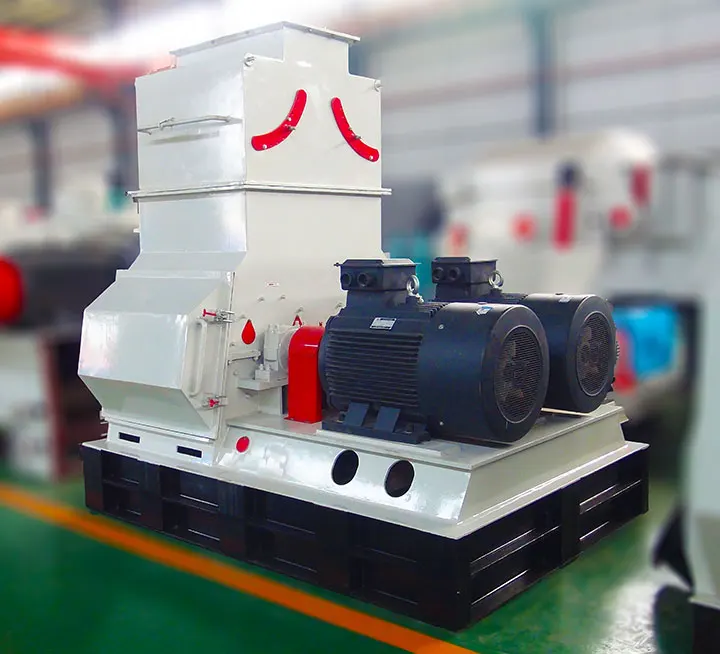

Double Shaft Efficient Crusher
Model | Rpm of shaft(r/min) | Qty of hammers | Power(kw) | Capacity(t/h) |
GXPSS75×100 | 192 | 1480 | 110×2 | 10 |
▶On the basis of inherited traditional grinder advantages, our Dual Rotor Hammer Mill is designed by the modern latest smash theory. It has dual rotors, double tangent speed impact, crushes materials instantly. It avoids problems such as Circulation and sieve blocking which single rotor hammer mill will meet. With same power, its capacity will be more than 30% higher than single rotor hammer mill and power consumption lower 3-4kw for crushing per ton material. It has the incomparable advantages compares with the traditional hammer mill.
▶Set the adjustable break-circulation device, suitable for varied materials with optimization function. Double crushing rooms,double rotors, simultaneously positive and negative rotation, high open porosity sieve instant smash, reduce the production of intermediate particles, no sieve blocking phenomenon. No material circulation during crushing process. The materials rotate with circulation phenomenon completely disappeared.
▶Fully optimized hammer arrangement, greatly reducing the number of hammer; hammer adopted special abrasion resistant treatment technology, lengthening it lifetime. Adjustable space between hammers and sieve plate.
▶All kinds of precise detections such as the high-precision dynamic balancing, ensure more stable operation, no vibration, lower noise, better performance; The slide rails-style door opening structure, linkage dual pressure screening agencies, make the operation more user-friendly, more convenient.
▶It is widely used for all kinds of wood chips, wood shavings, grass, straw, stalk, corn, weeds, soybean, PVC foaming board, rubber and so on.
▶Set the adjustable break-circulation device, suitable for varied materials with optimization function. Double crushing rooms,double rotors, simultaneously positive and negative rotation, high open porosity sieve instant smash, reduce the production of intermediate particles, no sieve blocking phenomenon. No material circulation during crushing process. The materials rotate with circulation phenomenon completely disappeared.
▶Fully optimized hammer arrangement, greatly reducing the number of hammer; hammer adopted special abrasion resistant treatment technology, lengthening it lifetime. Adjustable space between hammers and sieve plate.
▶All kinds of precise detections such as the high-precision dynamic balancing, ensure more stable operation, no vibration, lower noise, better performance; The slide rails-style door opening structure, linkage dual pressure screening agencies, make the operation more user-friendly, more convenient.
▶It is widely used for all kinds of wood chips, wood shavings, grass, straw, stalk, corn, weeds, soybean, PVC foaming board, rubber and so on.

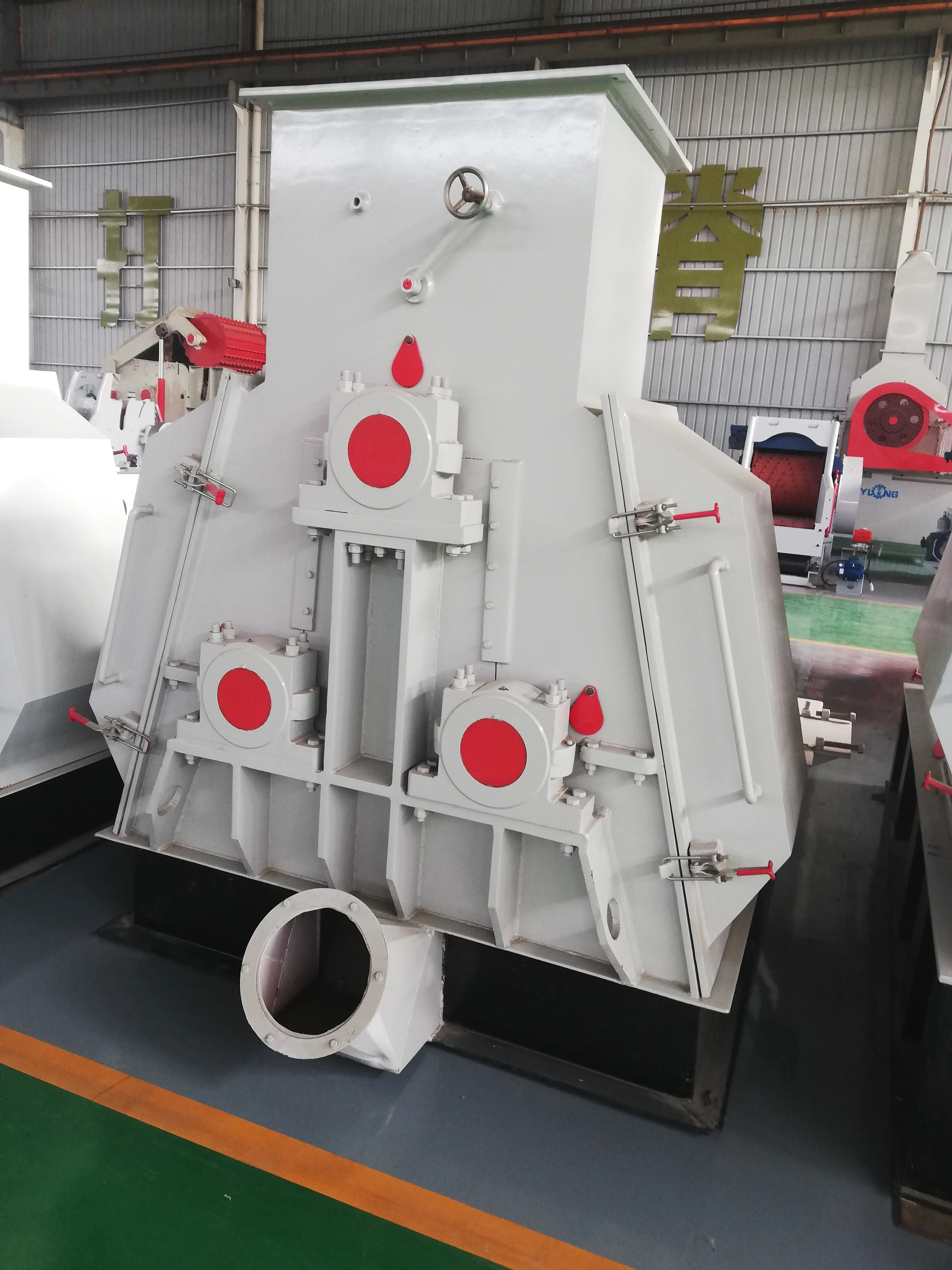

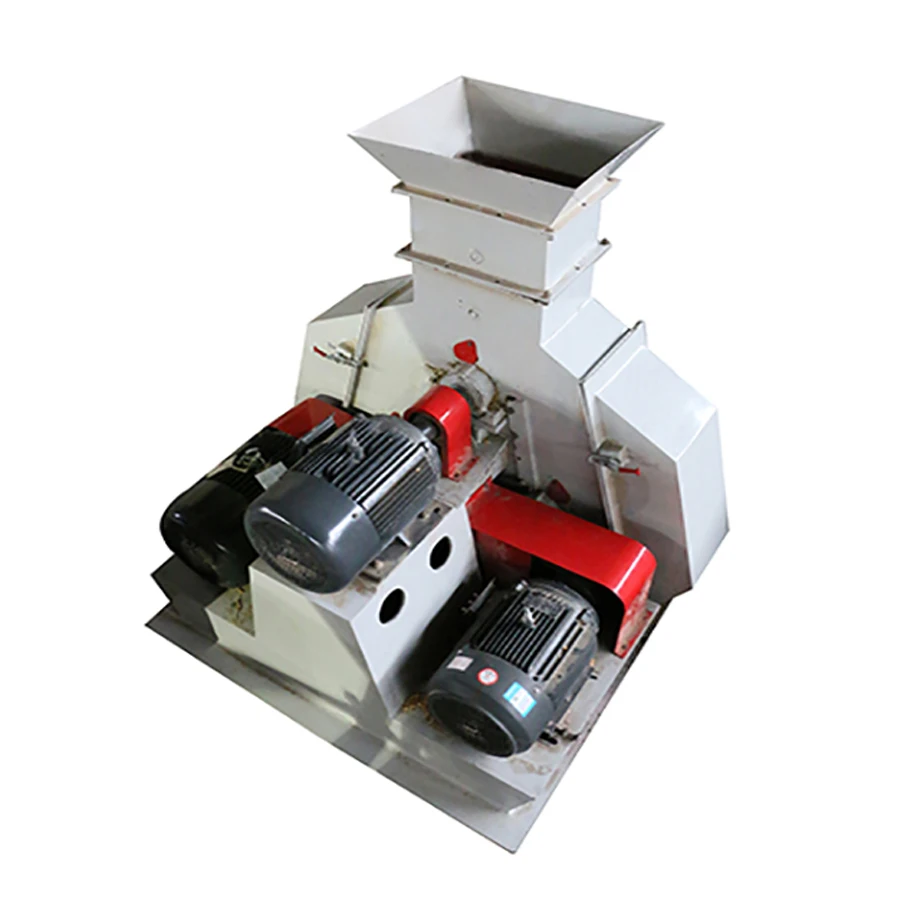

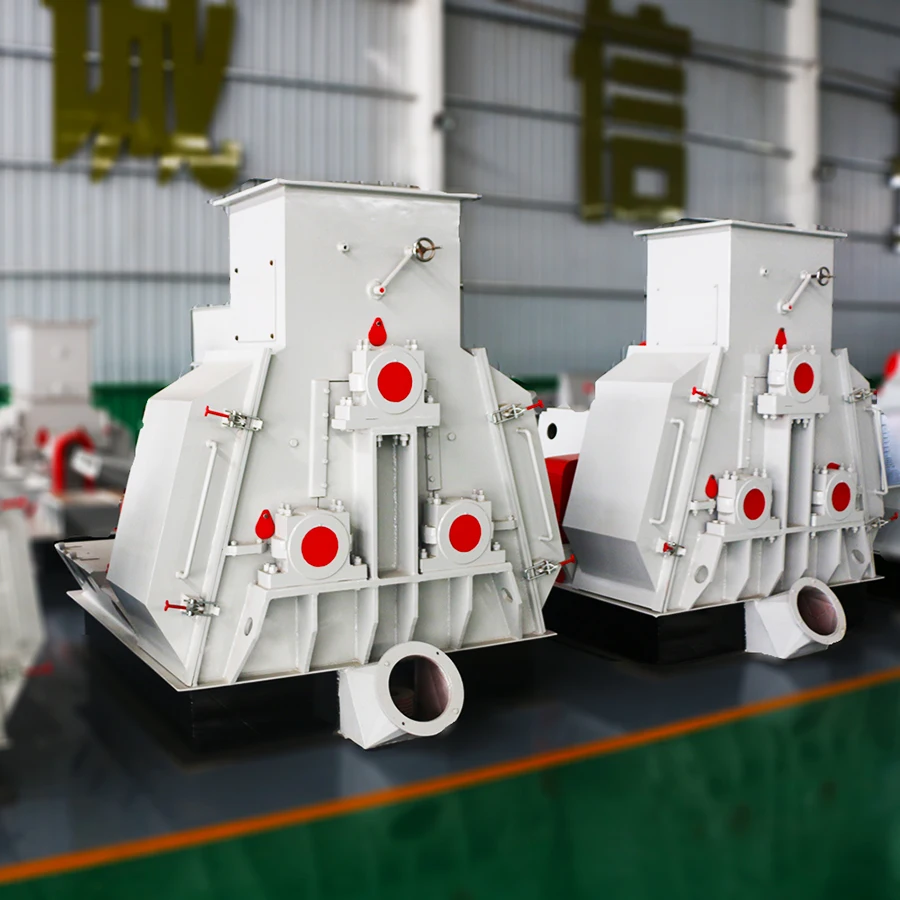

Three Shaft Efficient Crusher
Model | Rpm of shaft(r/min) | Qty of hammers | Power(kw) | Capacity(t/h) |
SZF50×27 | 2950/3200/3200 | 42 | 22+15+15 | 0.8-1.5 |
SZF65×55 | 2950/3200/3200 | 144 | 45+55+55 | 2.5-3.5 |
▶The SZF series three-shaft crusher is a new product developed by our factory.It can crush various kinds of materials with different sizes of blocks,strips and granules,especially for small wood blocks,animal feeds and fertilizers.Such as a variety of wood,straw,shells,beans.grains and other materials,suitable for biomass energy,chemicals,mines,feed,fertilizers and other industries.
▶This series of crusher uses three motors,three rotors,machine structure is reasonable,durable,safe and reliable,easy to install,easy to operate,small vibration,high productivity.
Company introduction
Committed to be coming a leader in the biomass energy industry,creating maximum value for customers
Company Profile
Shandong YULONG Machine Co.,Ltd. is a integrated enterprise with product development, design,manufacturing, training,and trade.YULONG was founded in August 1998.
32 patents on its own R&D products
EU CE,SGS certification and son on
YULONG has modern R&D facilities and infor-mation equipment to facilitate business com-munication with customers around the world, and create good information conditions for the company's product exportation.
Customer Vist
Exhibition
Indonesia Exhibition
Bulgaria Exhibition
Malaysia Exhibition
Guangzhou Exhibition
Changchun Exhibition
Beijing Exhibition
Spain Exhibition
Guangzhou Exhibition
Poland Exhibition
FAQ
Q: General questions to design the production line for you?
A: 1. What is your raw materials? (to confirm mould pressure ratio of machines )
2. What is the moisture content of your raw material?
3. How many output capacity do you want per hour / month/ year?
Note: If the moisture is high, you need a dryer, becuase the suitable moisture content to enter pellet machine is 13-15%. And
please provide us above detailed information, then we would design the most suitable production line with reasonble offers.
2. Q: How long is your guarantee?
A: 12 months warranty but except quick waering parts.
3. Q: Will you send engineers to install the machines?
A: Of course. Our company has professional installation engineers team and specialized after-sale service team. When the machines
arrive your factory, we will send our installation engineers to your factory Our engineers will Guide you to install the machines
and training your workers how to operate the machines and maintain the machine.
4. Q: Voltage requirement ?
A: Our machines can use 380V, 220V, 240V, 415V, 480V, and 50Hz, 60Hz.
