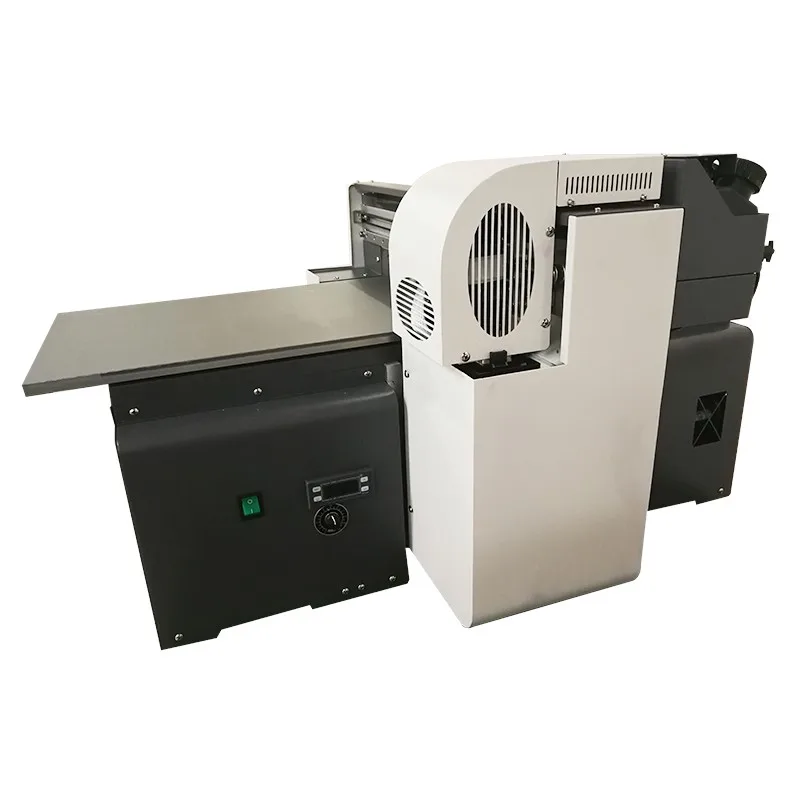

cheap price A3 size digital flatbed UV printing machine for book cover
- Category: Digital Printers >>>
- Supplier: Zhengzhou,Allcolor,Digital,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Application
Ultraviolet Printer (UV) is a high-tech, plate-free, full-color digital printing machine, which is free of material restrictions and can print color photo level on T-shirt, sliding door, cabinet door, sliding door, glass, plate, various signs, crystal, PVC, acrylic, metal, plastic, stone, leather and other surfaces.
There is no need to make a plate to complete a single printing, colorful and rich, wear resistance, uv protection, simple and convenient operation, printing image speed, fully in line with the industrial printing standards.

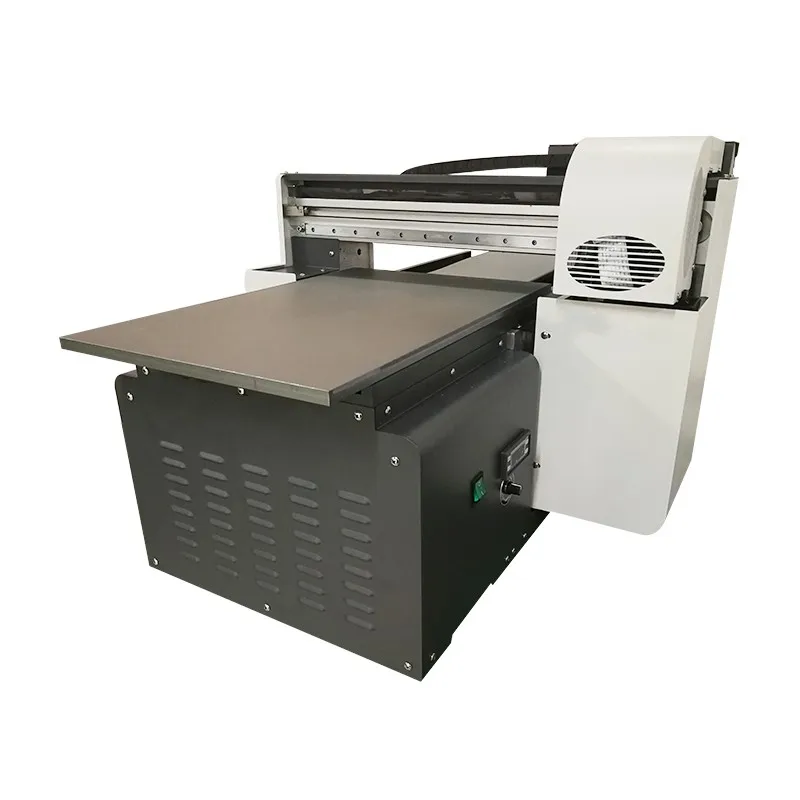

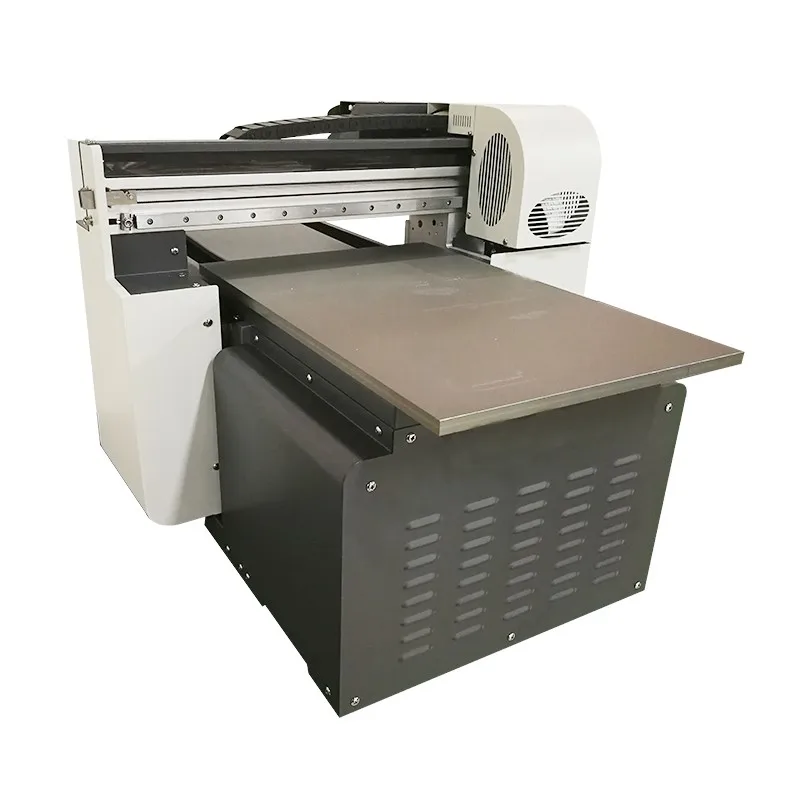

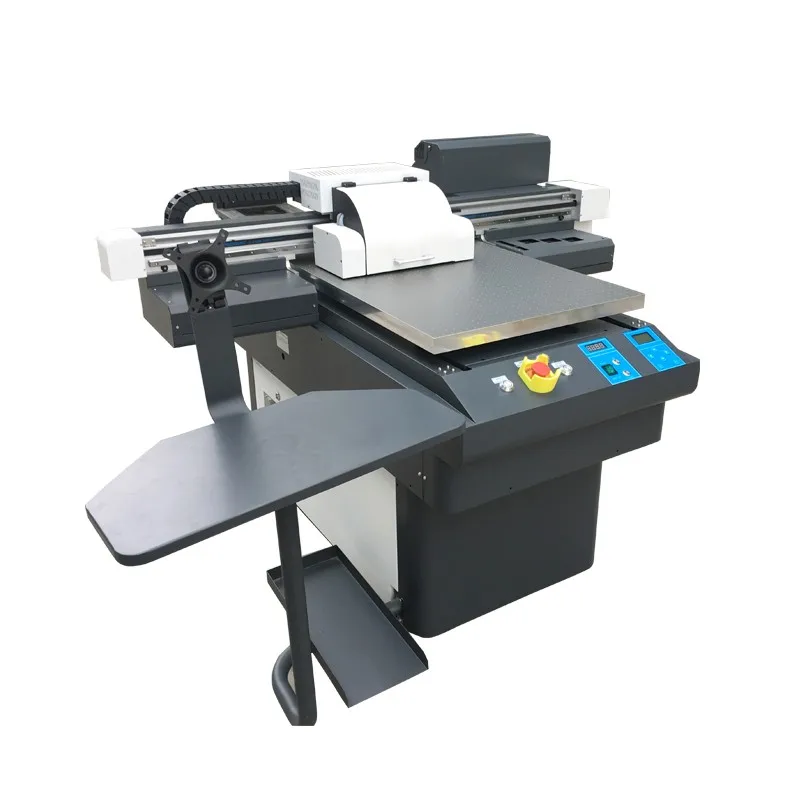

High Quality pen glass ceramic wood UV 3050 flatbed digital 3D printer machine | ||||||
Model | UV3050 | |||||
Print head | one TX800 Print head | |||||
Print Resolution | 1440*720 dpi | |||||
LED Curing light | One | |||||
Printing speed | 3.59 sqm/h | |||||
Print head adjustable height | 0-15cm | |||||
Printing size | 30*50cm MAX | |||||
Height Adjust | Automatic | |||||
Distance of print head printing | 1-3mm(1mm is the best) | |||||
Ink color | 4 color / 5 Color (CMYK or CMYK+ White) | |||||
Ink supply system | CISS | |||||
Ink consumption | 10-15mL/ square meter | |||||
Ink cartridge type | Refillable | |||||
Min ink drop size | 1.5pL | |||||
Interface | Net | |||||
Image format | BMP /TIFF/JPEG/ EPS/ PDF/CAD | |||||
Rip software | Photoprint/ Onyx(Optional) | |||||
Normal Working environment | Temperature:18-30 Celsius,Humidity:40-60%, clean room, low dust, less sun light | |||||
Power | AC 110/220V,50HZ/60HZ | |||||
Cooling system: | Water Circulation Cooling System | |||||
NW/GW | 90KG/120KG | |||||
Package size | 92*77*74 cm wooden case | |||||
Main Features
1)There is no need to make a plate to complete a single printing, colorful and rich, wear resistance, uv protection, simple and convenient operation, printing image speed, fully in line with the industrial printing standards.
2)Be able to handle coil to coil and various sheet materials.3)Media thickness automatic detection and car automatic lifting function.
4)Sprinkler automatic cleaning system and sprinkler car collision prevention device.
5)UV printer adopts the latest LED cold light source technology, no thermal radiation.Instant lighting without preheating, printing material surface temperature is low without deformation.
6)Adopt water cooling (water circulation) mode, in hot summer without air conditioning environment can also have a good light curing effect
7)Adsorption type media is adopted to fix the platform, the material is stationary, and the lead screw drives the printing beam to move by virtue of adsorption and press roll.
8)The equipment has a wide range of printing materials, flexible media such as: timely post, PVC, reflective film, canvas, carpet, leather, etc.Hard media such as: mobile phone case, glass, tile, metal, ceiling, aluminum board, wood, door, acrylic board, organic glass board, foam board, corrugated board, etc.
Detailed Images
One TX800 print head , with CMYK+White 5 color UV ink.

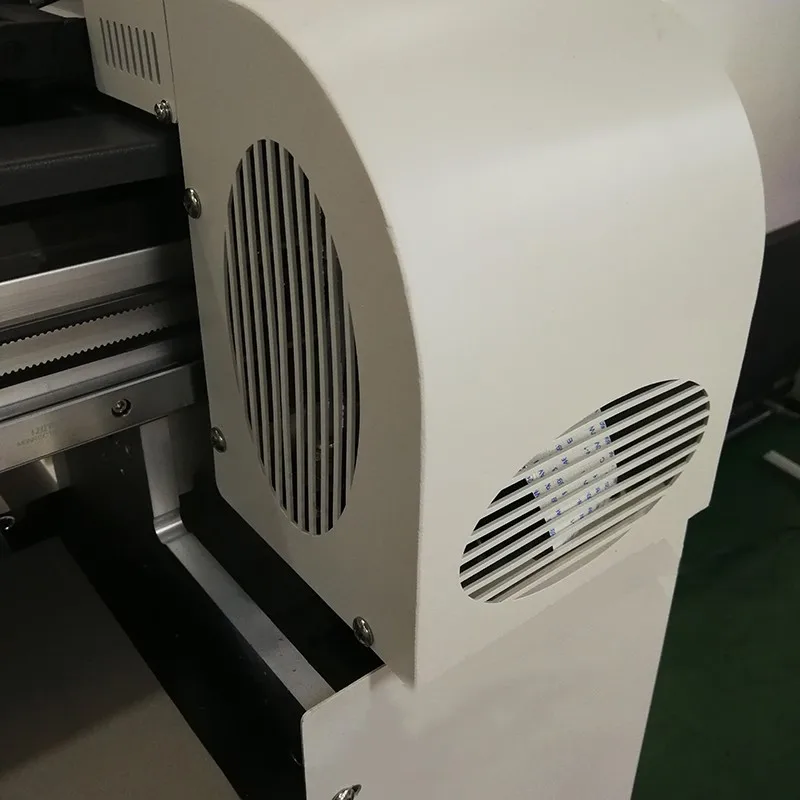

the one LED Curing light is also in here .
Big Volume, One ink tank is 1000mL .
Continuous Ink Suply System.
Hiwin guide rail, it is mute, high precise.
Hiwin guide rail, it is mute, high precise.
Drag chain from Germany, High quality.
Packing & Delivery
Packaging | ||
Size | 176(L) *170(w)*90(H)CM | |
Weight | 370Kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
