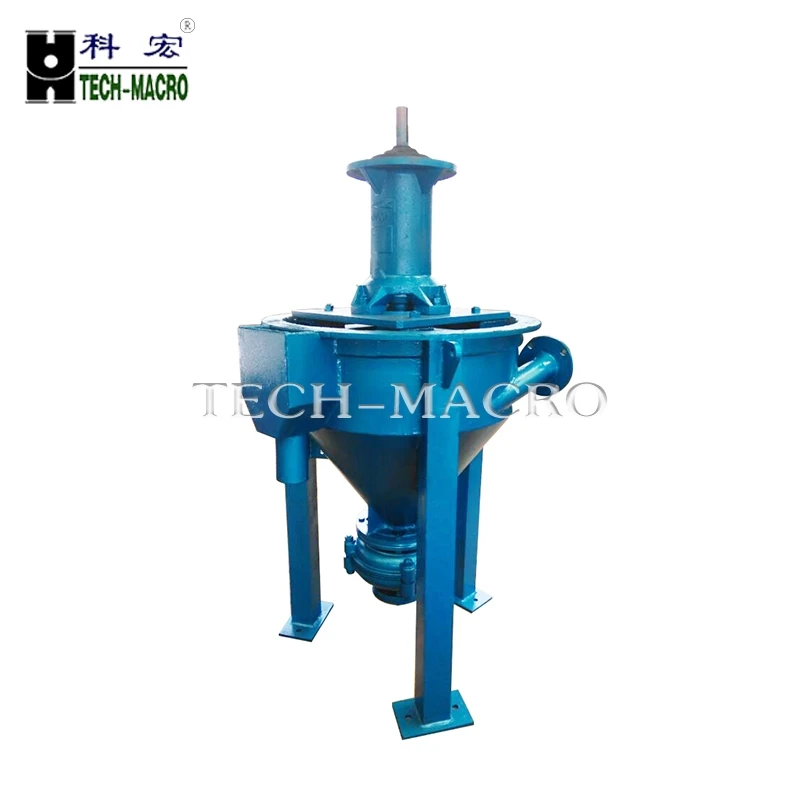

Mining & Mineral Processing Using Froth Flotation Foam Slurry Pump

 Mining & Mineral Processing Using Froth Flotation Foam Slurry Pump
Product Application And Features

AF series foam pump is a new generation product developed by our factory on the basis of absorbing foreign advanced technology, widely used in metallurgy, mining, coal, chemical and other departments.Suitable for conveying abrasive slurry containing foam, this series of pumps can effectively eliminate the foam in slurry when working.In the case of insufficient incoming materials can still work normally, especially suitable for a variety of flotation process, is the ideal product for conveying foam slurry.

Features:
1. This type of pump is used in sp-type bearing assembly. The bearing body is installed with a motor seat or an electric frame, which can be directly or indirectly driven.

2, the material box is made of steel structure or stainless steel, steel lined with rubber, with tangential inlet and overflow box, overflow box can be convenient to send the excess incoming material back to the material pool, tangential import can make the material quickly into the pump and eliminate part of the foam.

3, the pump head structure for the double pump shell structure, according to the different transmission media, the flow parts can be used: metal, rubber, or other non-metallic materials.

Drive Type: DC direct transmission, BD vertica/ horizontall belt transmission and other types.

Product Main Technical Data

Froth pump application

AF series froth slurry pump is suitable for flotation process and a perfect pump for handling frothy pulp, solids liquid mixture,special for delivering frothy pulp generated in flotation machines in metalliferous and coal flotation circuits. AF serises forth slurry punp is widely used in metallurgy, coal, chemical, industrial sector.

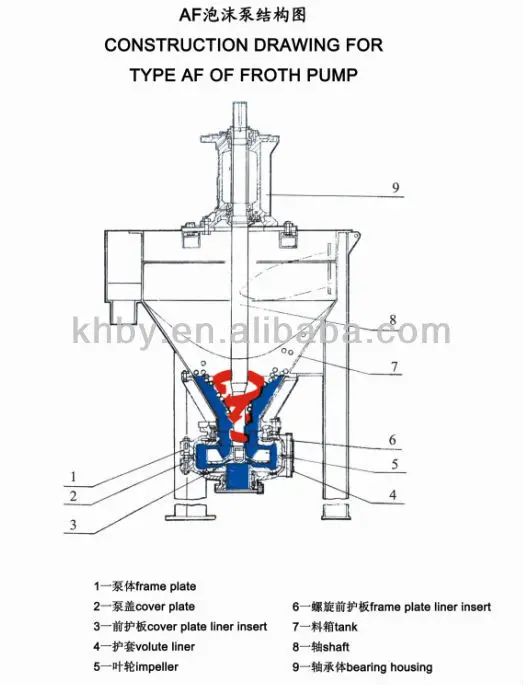

Froth pump structure

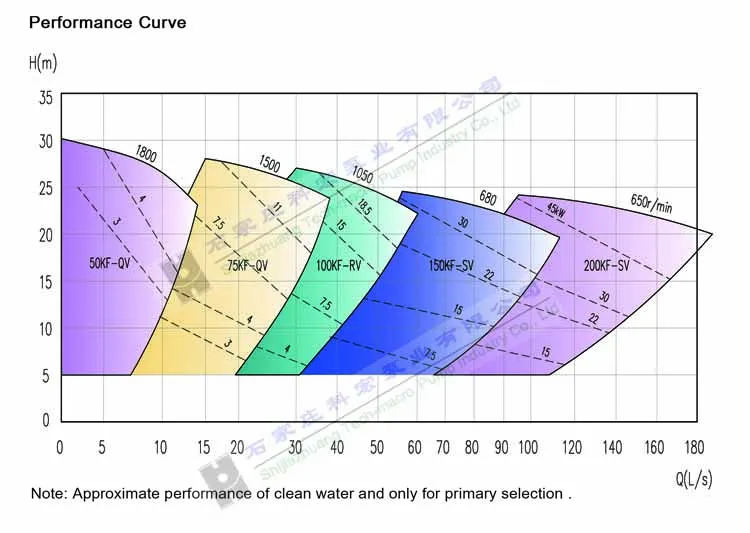

Froth pump selection chart

Our service

To survive with quality, to growth by technology! Providing higher cost-effective pump products and service for the community are our constant pursuits ! We would like to inaugurate the future with you!

High quality products and great service, to ensure reliable operation.

Pre-sale:Accurate grasp of the customer's need.professional technical support .and optimal design solutions.

In-sale:Provide users with professional  duidance ,site installation and specialized training service.

Post-sale:Regual follow-up, timely spare parts supply and quick maintance.
