High Tolerance HC 49U Quartz Crystal Resonator for Communication Equipments

Product Overview

Description

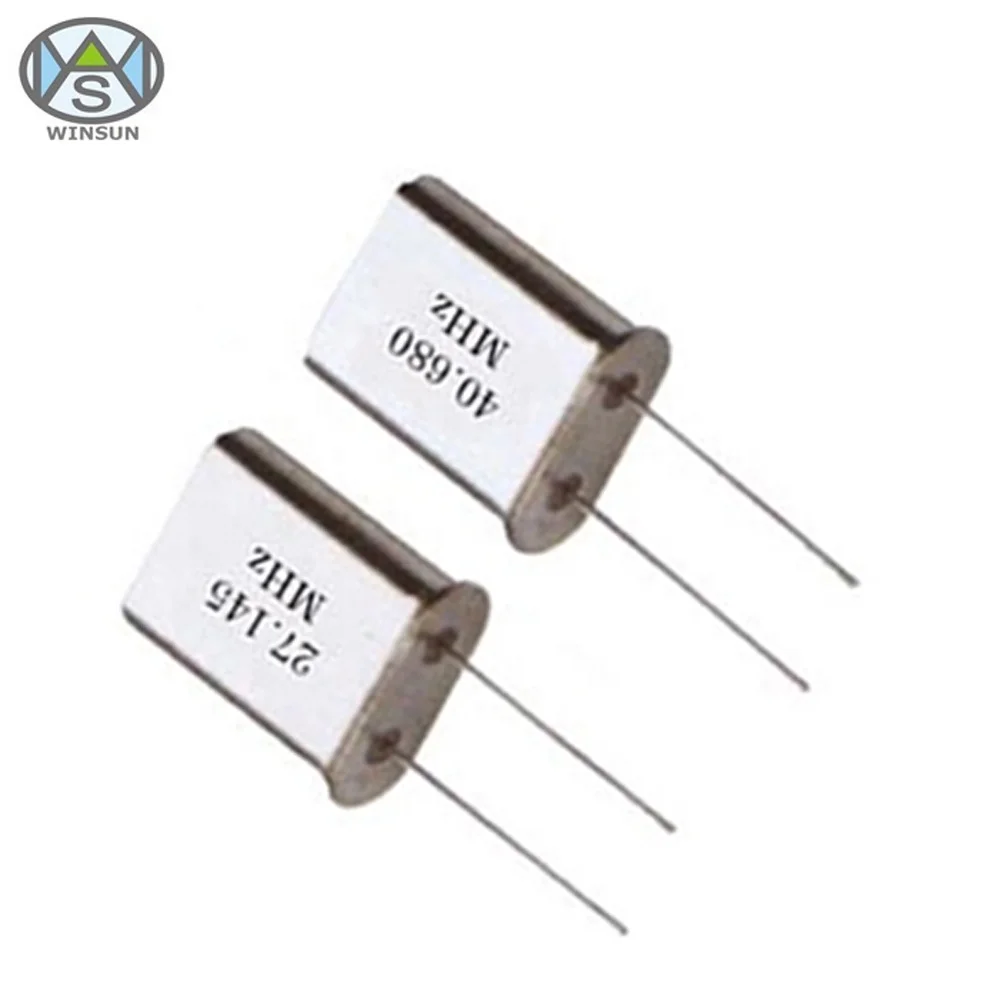

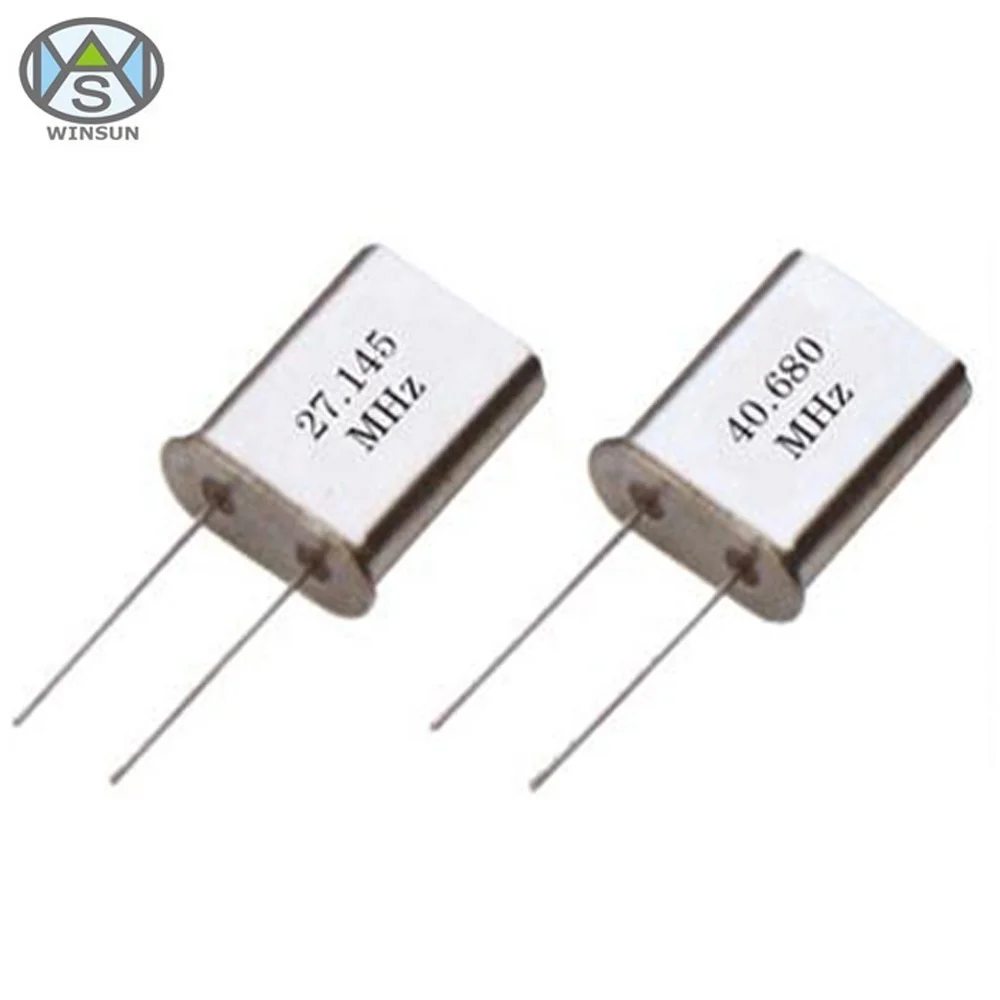

High Tolerance HC-49U Quartz Crystal Resonator for Communication Equipments



Feature:

*2pin Resonator, small size.
*Lead-free production and RoHS compliance



Applications:

*Digital products

*Communication equipments

*Automobile

*Instrument ect.



Typical Specificatons:

Item	Specification
Frequency Range	1.800MHz ~ 110.000MHz
Frequency Tolerance (at 25 °c)	±5ppm, ±10ppm, ±20ppm, ±30ppm,or specify
Frquency Stability Over Operating Temperature Range	±10ppm, ±20ppm, ±30ppm,or specify
Operating Temperature Range	(-10 ~ +60°c) standard, -40 ~ +85°c) extended)
Shunt Capacitance	7.0pf Max
Load Capacitance	Series, 8pf ~ 32pf
Drive Level	0.01μW ~ 300μW, 100μW typical
Storage Temperature Range	(-40 ~ +85°c)
Aging	± 5ppm / year Max



Resistance of Series Resonance(ESR) Frequency (MHZ) Mode ohm Max Frequency (MHZ) Mode ohm Max 1.800~2.000 Fundamental 350 4.001~10.000 Fundamental 60 2.001~3.200 Fundamental 250 10.000~40.000 Fundamental 40 3.201~4.000 Fundamental 100 40.001~110.000 3rd overtone 60



Payment and Shipping:

1, Lead time about 3~5 days.

2, Payment: T/T; Western union; Paypal .

3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect
