Telecom equipment all gigabit 1fiber SFP with 4 port PoE industrial switch for video camera



Features


4 Port Gigabit Industrial Ethernet Switch/Industrial Media Converter/


Industrial Switch POE/Industrial Fiber Switch/Industrial Switch/Inustrial POE Switch


4-Port 10/100/1000Base POE ports + 1 (100/1000M) SFP Slots
Supports both IEEE 802.3af and 802.3at, and every port PoE configuration function
G.8032, support <50ms industrial quick ring protection


♦48VDC , dual redundancy power input, 6-pin 5.08mm-gap plug-in terminal, ensure power working without stop. When one power shut down, the other keeps working.


♦DIN-Rail mounting or Wall-mounted install








Specification






















































































Specification
 Product Name 4 Port 10/100/1000M Industrial Poe Switch
 Product Model YHD14GP-SFP
 Interface 4x 10/100/1000Base-T ports POE + 1x Gigabit SFP slots
 Network Protocols

 IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;


 IEEE802.3ab ; IEEE802.3z ; IEEE802.3x; IEEE802.3af,  IEEE802.3at

 PoE Specification


 PoE Standard: IEEE802.3af/ IEEE802.3at
 PoE ports: 1-4 ports support PoE
 Each PoE Port: Max. 30 Watts
 Power Pin Assignment:1/2+;3/6-
 Output Voltage: DC48V
 Fiber MediaMulti-mode: 2km; Single-mode: 20/40/60/80KM
 Performance Specification Bandwidth: 10Gbps
 Packet Buffer Memory:1M
 Packet Forwarding Rate:1488000pps/port
 MAC Address Table: 2K
 Forwarding Mode Store-and-Forward
 Protection Lightening protection, IP40 protection
 Power Supply Input Voltage: DC48V/Terminal block
 Other Specifications
 Working Environment Working temperature: -40~80 ;  Storage temperature: -45~85
 Relative Humidity: 5%~95 %( no condensation)
 Shell IP40 protect grade, metal shell
 Installation DIN-Rail or Wall mounts
 Weight & Size Product Weight: 0.5 KG
 Product size (L×W×H): 127mm× 107m m× 33mm
 Warranty 5-years







Product Display

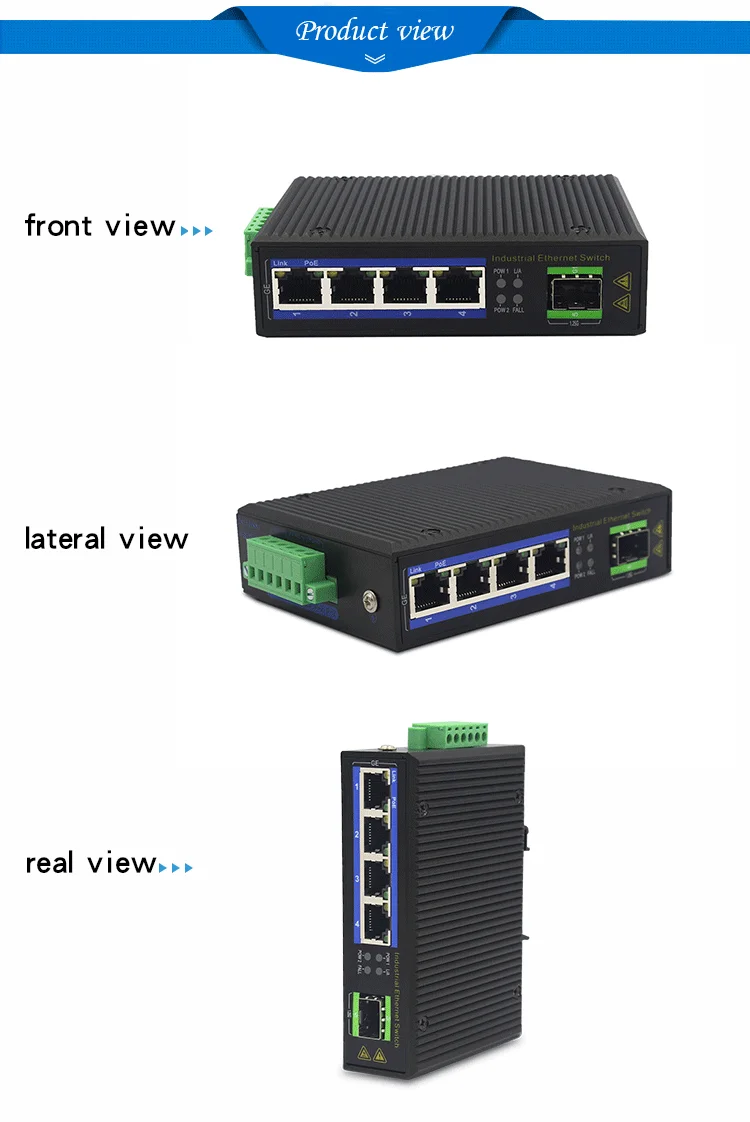

14SFP_01








Package


14SFP_07














Advantages

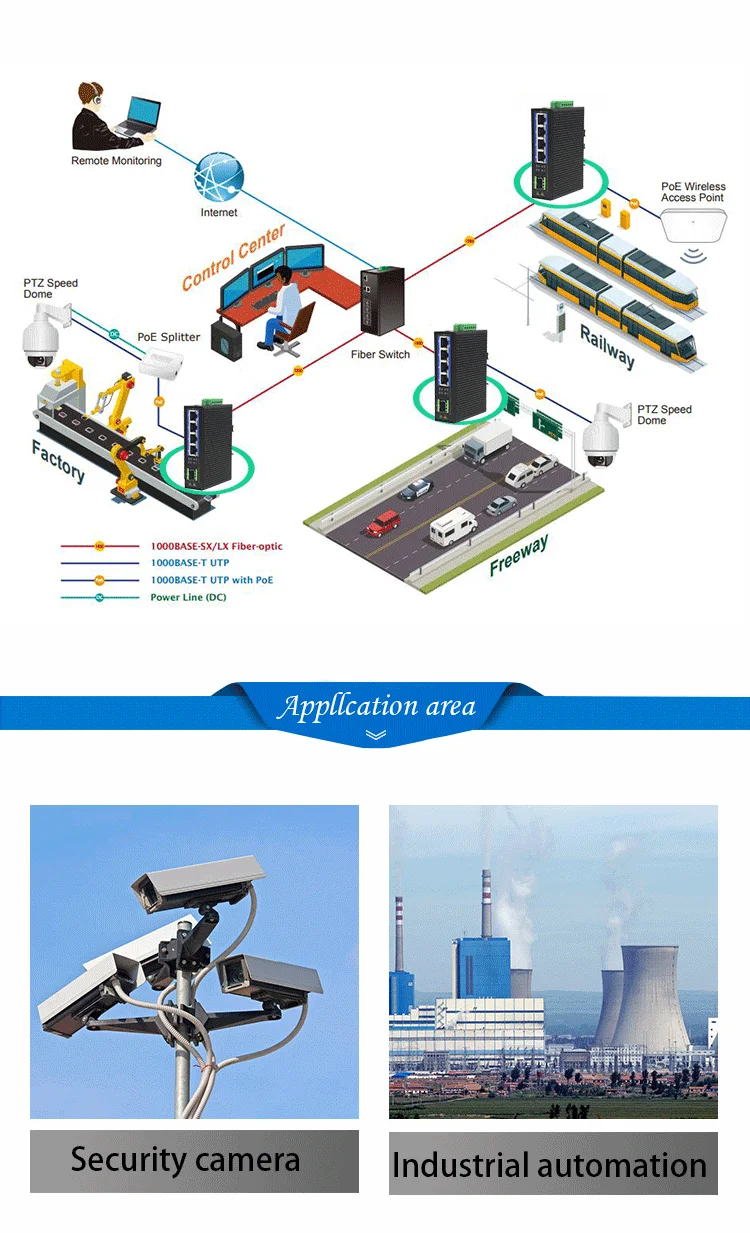

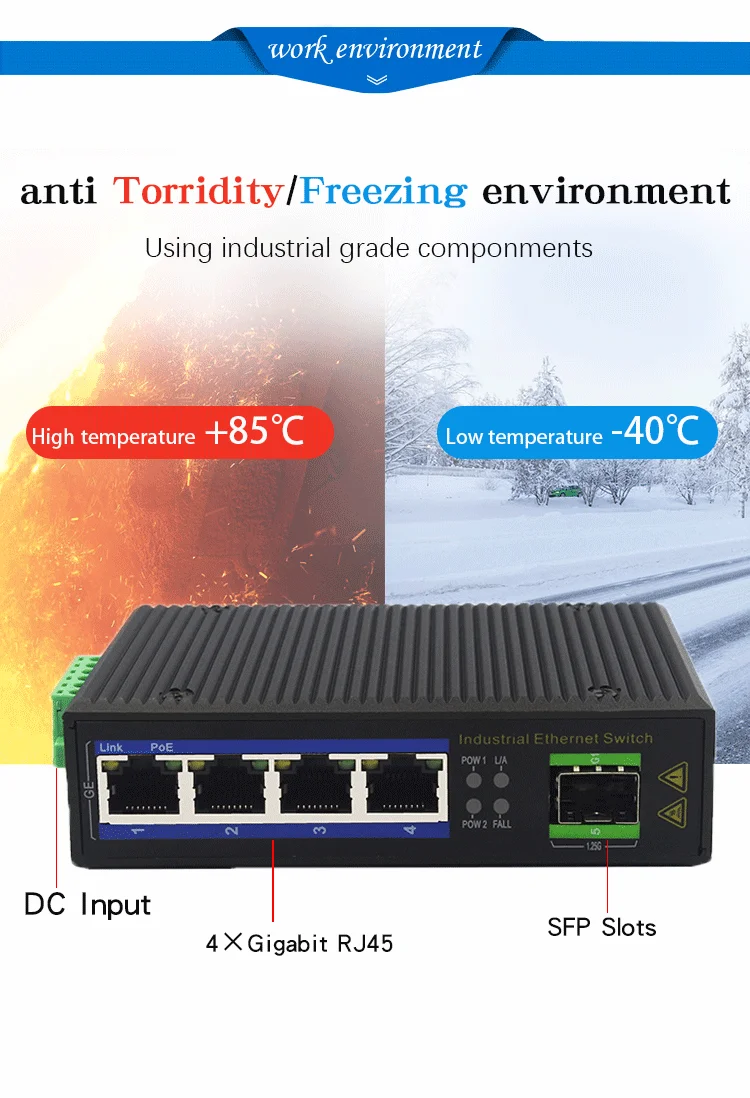

14SFP_0314SFP_0214SFP_0414SFP_06
