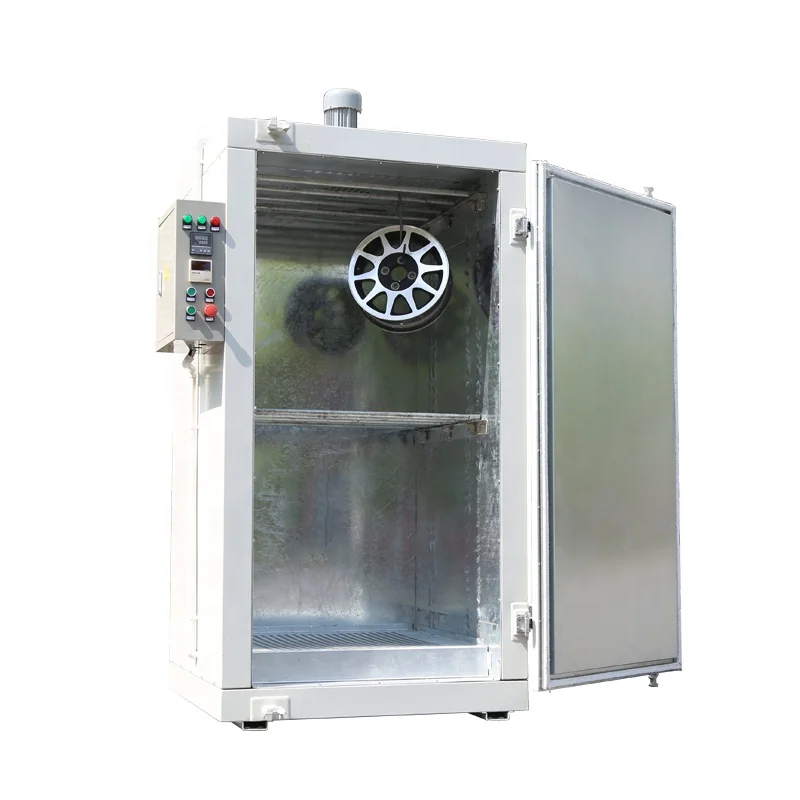

Hot Sell & Quick Delivery & Saving Budget & Save Space & Save power Working size: L0.85m x W0.85m x H1.6m Application: The COLO-1688 powder coating oven is used in the process of powder curing, perfect for powder curing not big metal work-pieces, like auto parts.
Specifications of Electrical Powder Coating Oven
Model
Colo-1688
Worksize dimensions
845width x 1600 height x 845 depth
Overall dimensions
1400 width x 2200 height x 1100 depth
Power supply
Electric/ 6.5kw
Voltage/Frequency
110V/220v(50-60hz)
Warm-up time
15-30 min. (180° C)
Temperature stability
< ± 3-5°C
Temperature max.
250° C
Ventilation performance
805-1677m3/h
Motor power
0.55kw
Circulation/ Air flow
Vertical ,Variable through holes on the walls
Warranty
12 months
Electric powder coating oven Main Features
1. Small portable type, save space, working size(845width x 1600 height x 845 depth) 2. Easy moving, with 4 bottom wheels 3. Fashionable design, popular in European market 4. Specially for car wheels or other small acessories. 5 Quick delivery: 7-10 working days

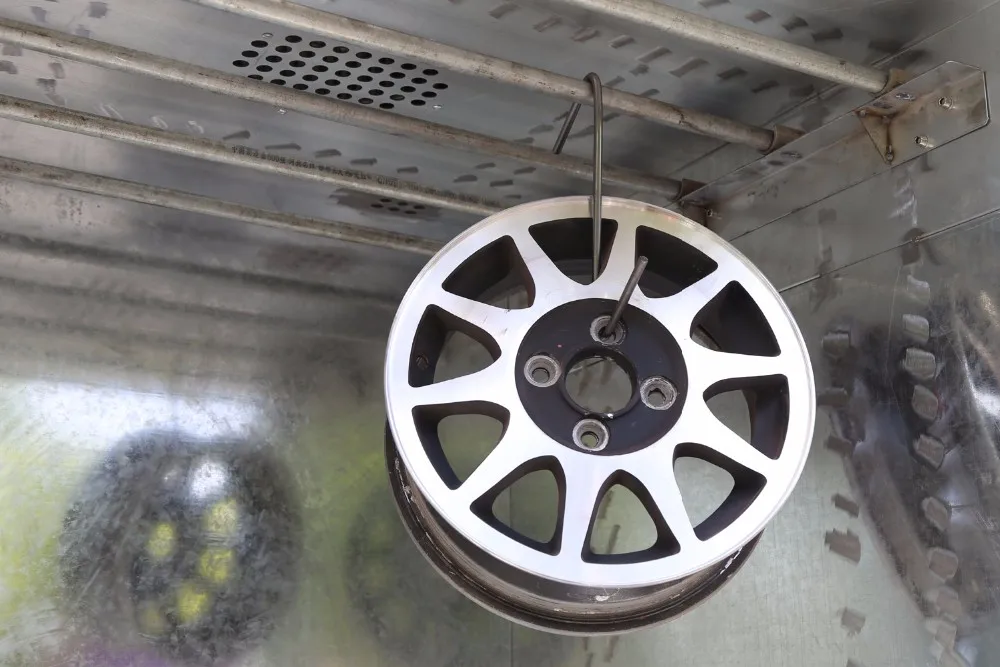

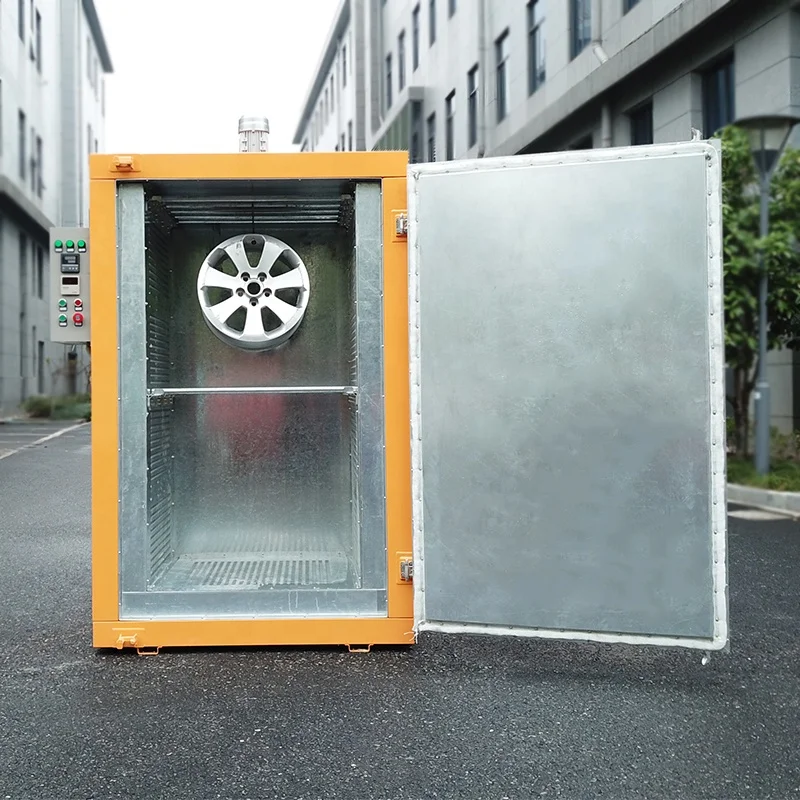

Many customers used this model powder coating oven for curing car wheels. with 2 shelfs and 5 rails per shalf to hang the powder coated work-pieces for curing. Electrical heating tube on the bottom
Certifications
other models
powder coating gun
is the perfect solution for laboratory powder coating applications. Designed for short runs, the Lab Unit features a Dia 20cm ,Height 30cm or 40cm fluidizing powder hopper and is easily cleaned between color changes.
Powder spray booth
is good for collecting the powder coating which during the work.
Powder Coating Spray Wall with 3 cartridge filters for powder recycling, which is ideal for car rim or other small accessories, its work size is W1500*D1000*H1700mm.
Automatic powder coating model
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to install machinery overseas.
Packing & Delivery
Packaging
Size
215 (L) * 90(W) * 90 (D)
Weight
420kgs
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
