Product Overview

Description

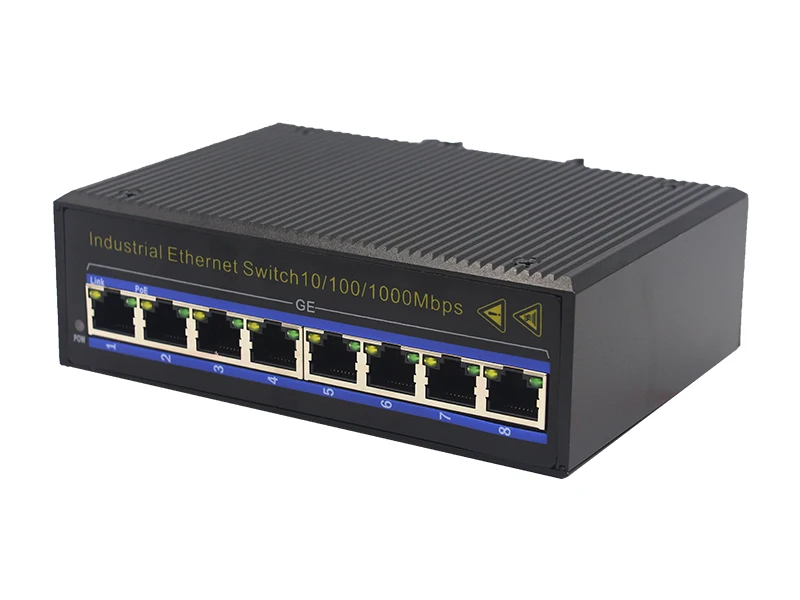

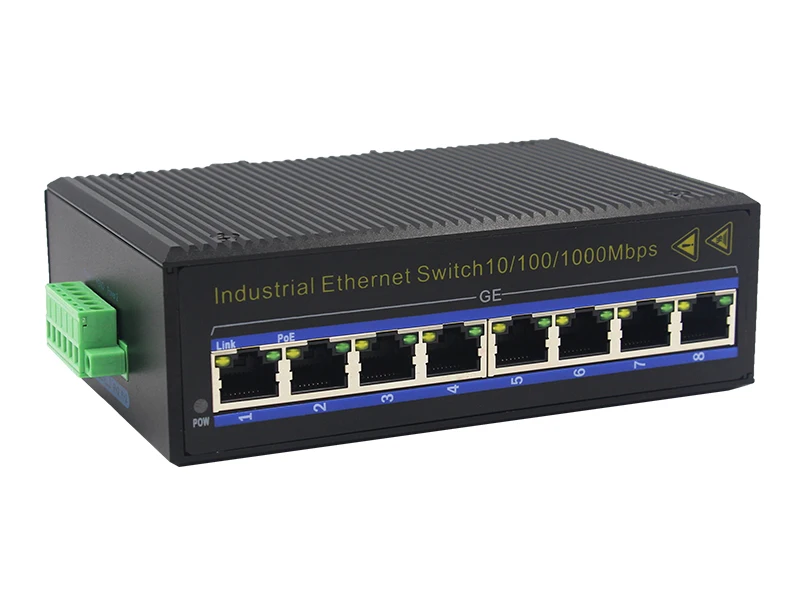

Outdoor unmanaged Fast transmission rate ethernet  network switch 8-port POE Switch



Features


♦8 Port Gigabit Inustrial Ethernet Switch/Industrial Switch/Industrial Media Converter/


Industrial POE Switch/Industrial Fiber Switch.


♦8-Port 10/100/1000Base POE ports
♦Supports both IEEE 802.3af and 802.3at, and every port PoE configuration function.
♦G.8032, support <50ms industrial quick ring protection.


♦48VDC, dual redundancy power input, 6-pin 5.08mm-gap plug-in terminal, ensure power working without stop. When one power shut down, the other keeps working.


♦DIN-Rail or Wall mount install.








Specification






















































































Specification
 Product Name 8 Port 10/100/1000M Industrial PoE Switch
 Product Model

 YHD08GP


 Interface 8x 10/100/1000Base-T ports POE
 Network Protocols

 IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;


 IEEE802.3ab ; IEEE802.3z ; IEEE802.3x; IEEE802.3af,  IEEE802.3at




 PoE Specification










 PoE Standard: IEEE802.3af/ IEEE802.3at



 PoE ports: 1-8 ports support PoE



 Each PoE Port: Max. 30 Watts



 Power Pin Assignment:1/2+;3/6-



 Output Voltage: DC48V


 Fiber Media Multi-mode: 2km; Single-mode: 20/40/60/80KM


 Performance Specification


 Bandwidth: 20Gbps

 Packet Buffer Memory:2M
 Packet Forwarding Rate:1488000pps/port
 MAC Address Table: 2K


 Forwarding Mode Store-and-Forward

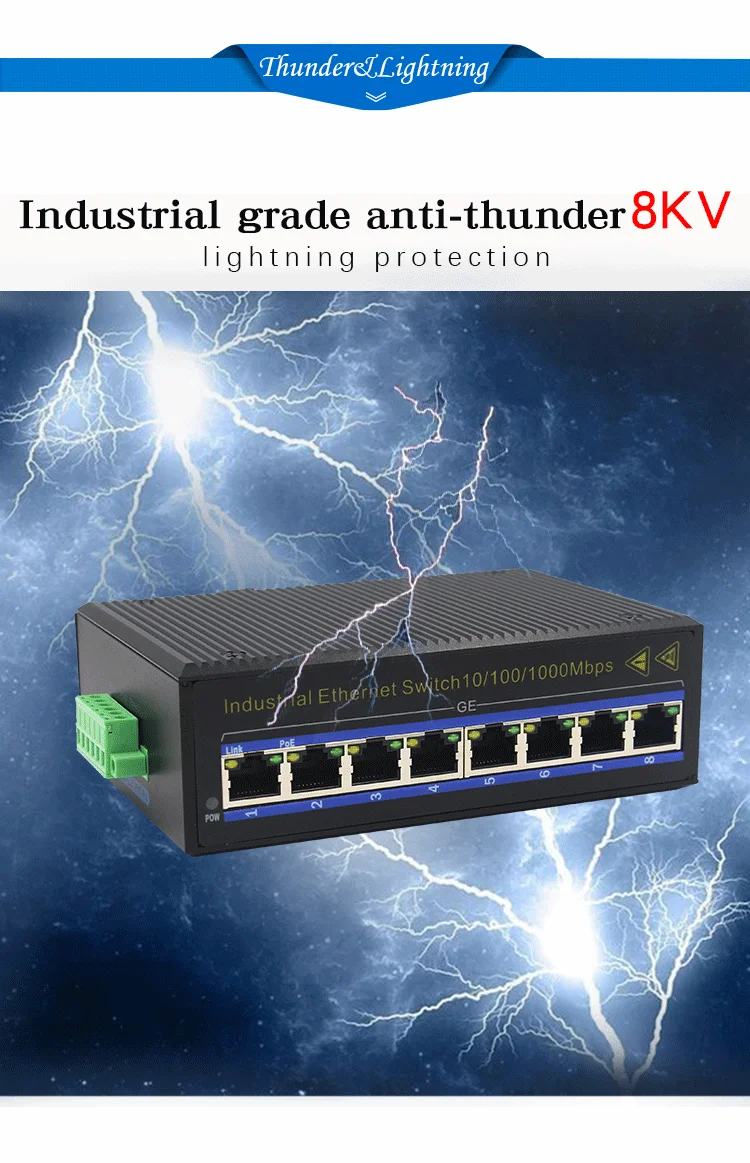

 Protection Lightening protection, IP40 protection
 Power Supply Input Voltage: DC48V  /Terminal block
 Other Specifications

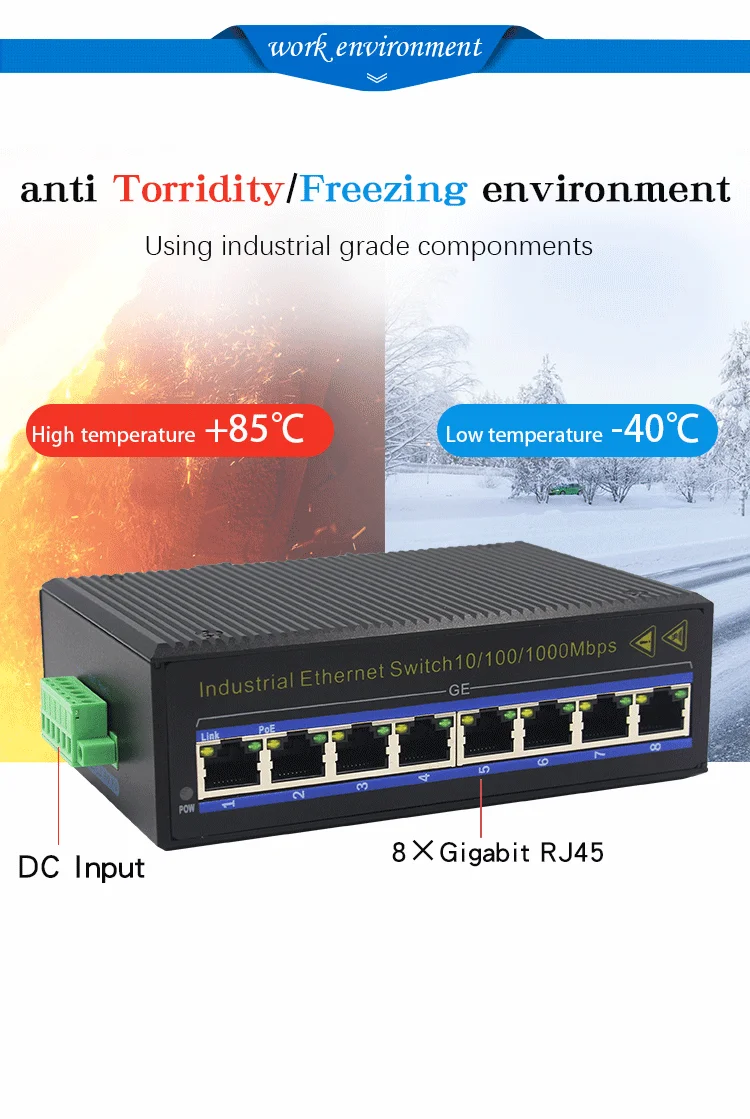

 Working Environment Working temperature: -40~75℃ ;  Storage temperature: -40~85℃

 Relative Humidity: 5%~95 %( no condensation)



 Shell


 IP40 protect grade, metal shell
 Installation DIN-Rail or Wall mounts
 Weight & Size Product Weight: 0.7 KG

 Product size (L×W×H): 152mm× 112mm× 46mm


 Warranty

 5-years

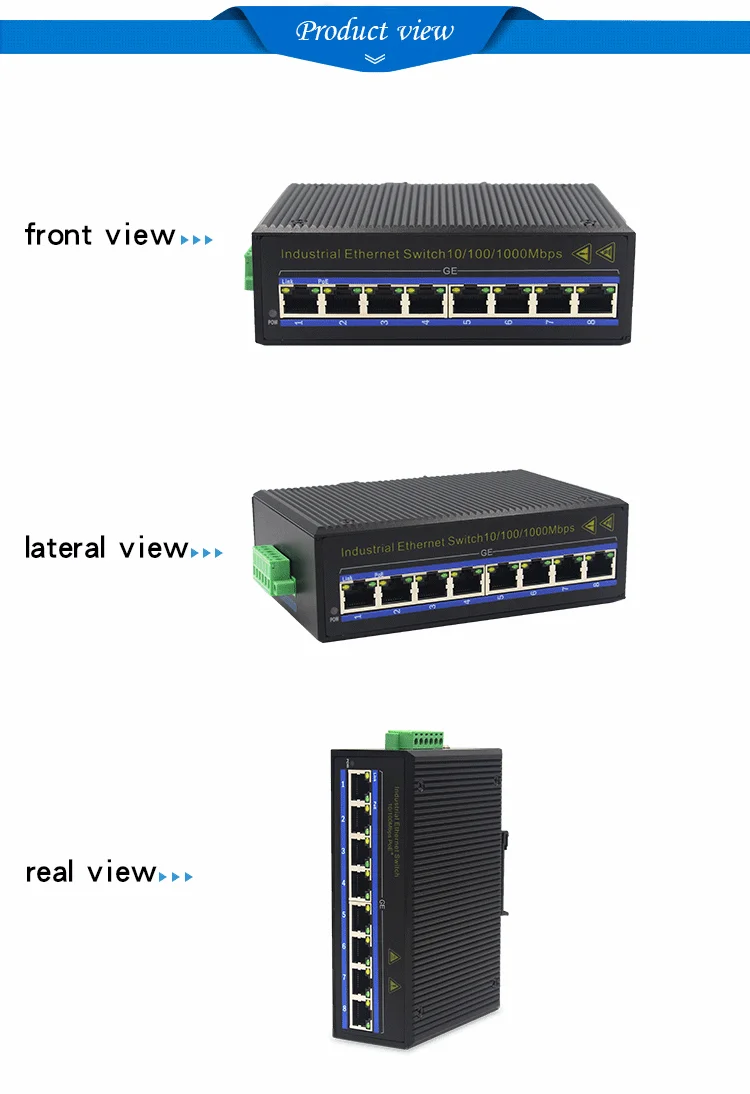

Product Display


8_01

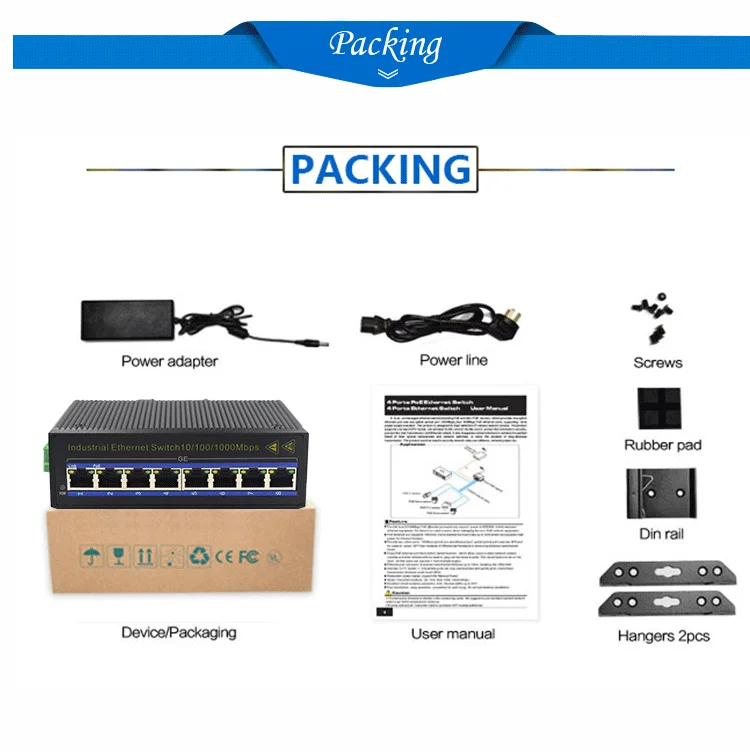

Package


8_08





Advantages


8_028_038_068_07











Workshop& Exhibition


8








Payment&Shipment


9





Contact Us





We are manufaturer with rich experiense in Industrial Ethernet Switch, provide OEM service.


Warmly welcome for inquiry, we will be the first time to give you the best solutions!





Tiffany wang  (Export Dept)


Skype/WhatsApp:+8613387657027


Email: tiffany (at) zdyhgt.com.cn
