Hand push concrete suction slotting machine, road crack slotting machine

Share on (62158954174):


Price:RUB 290,578.78 - RUB 420,574.55

Quantity:


Product Overview

Description

Hand-push concrete suction slotting machine, road crack slotting machine

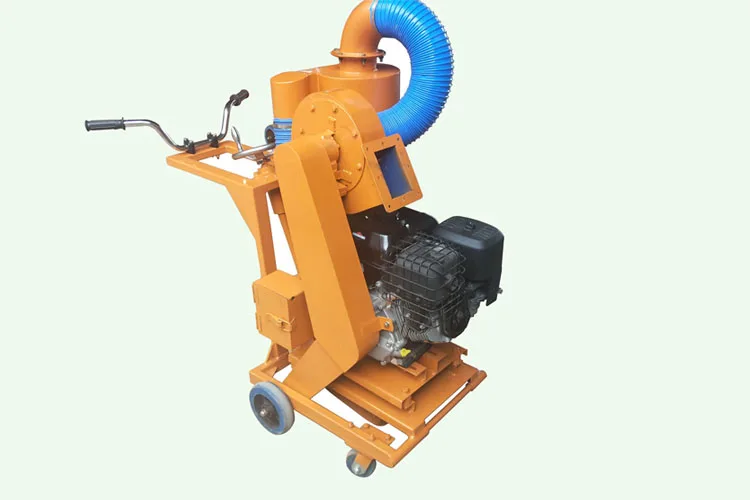

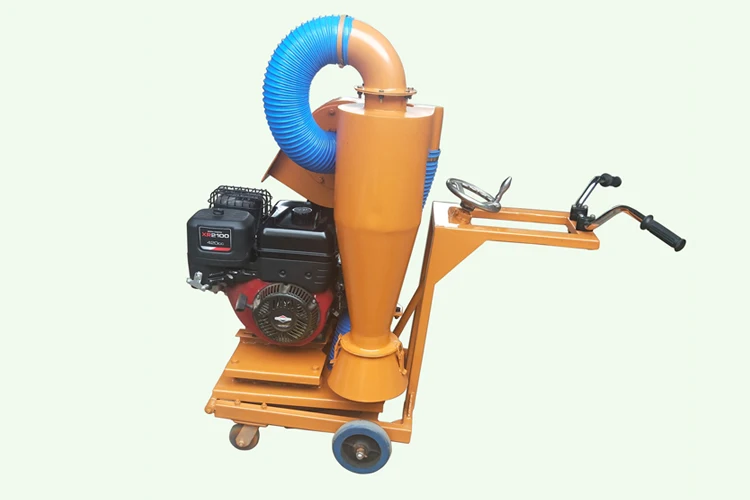

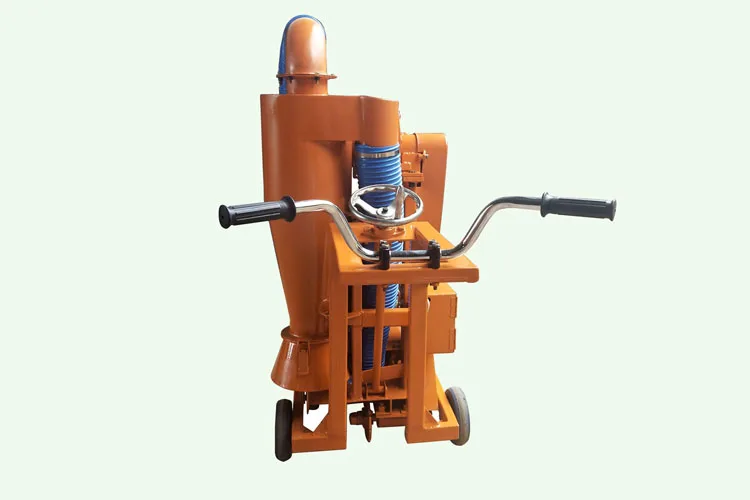

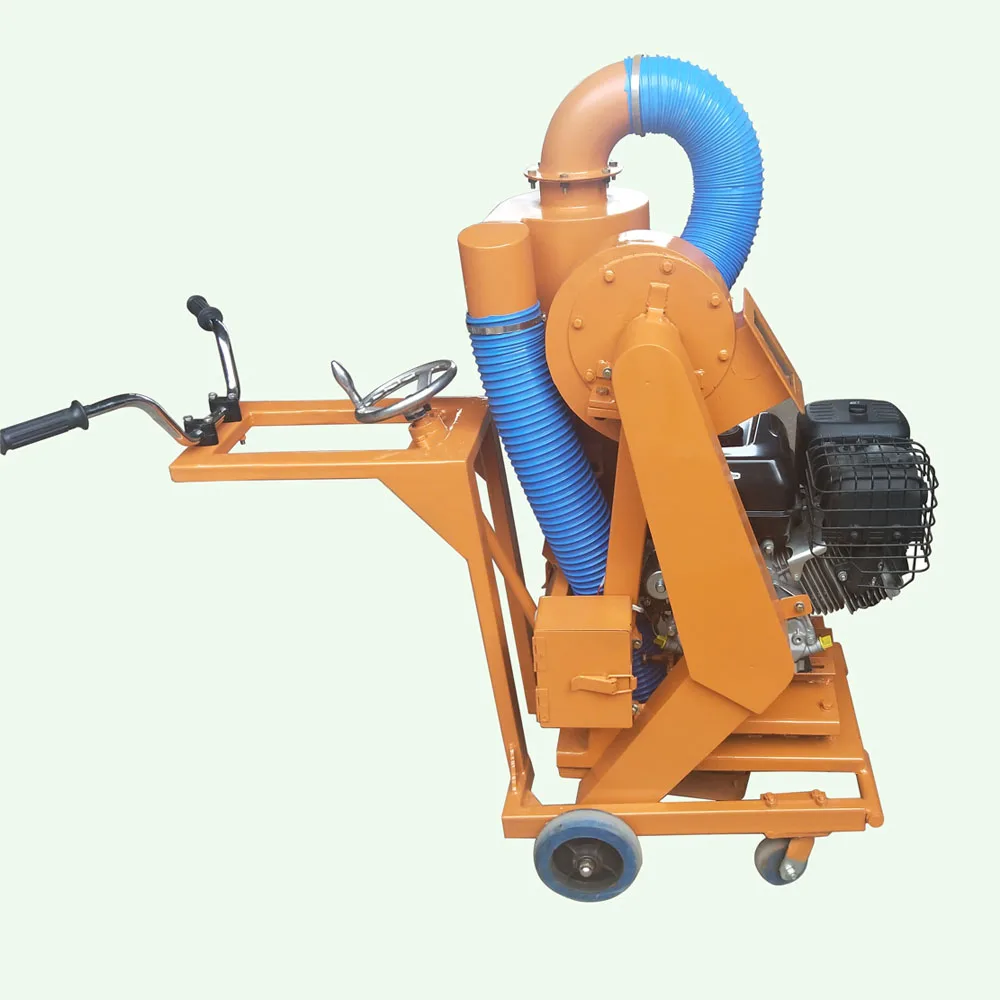

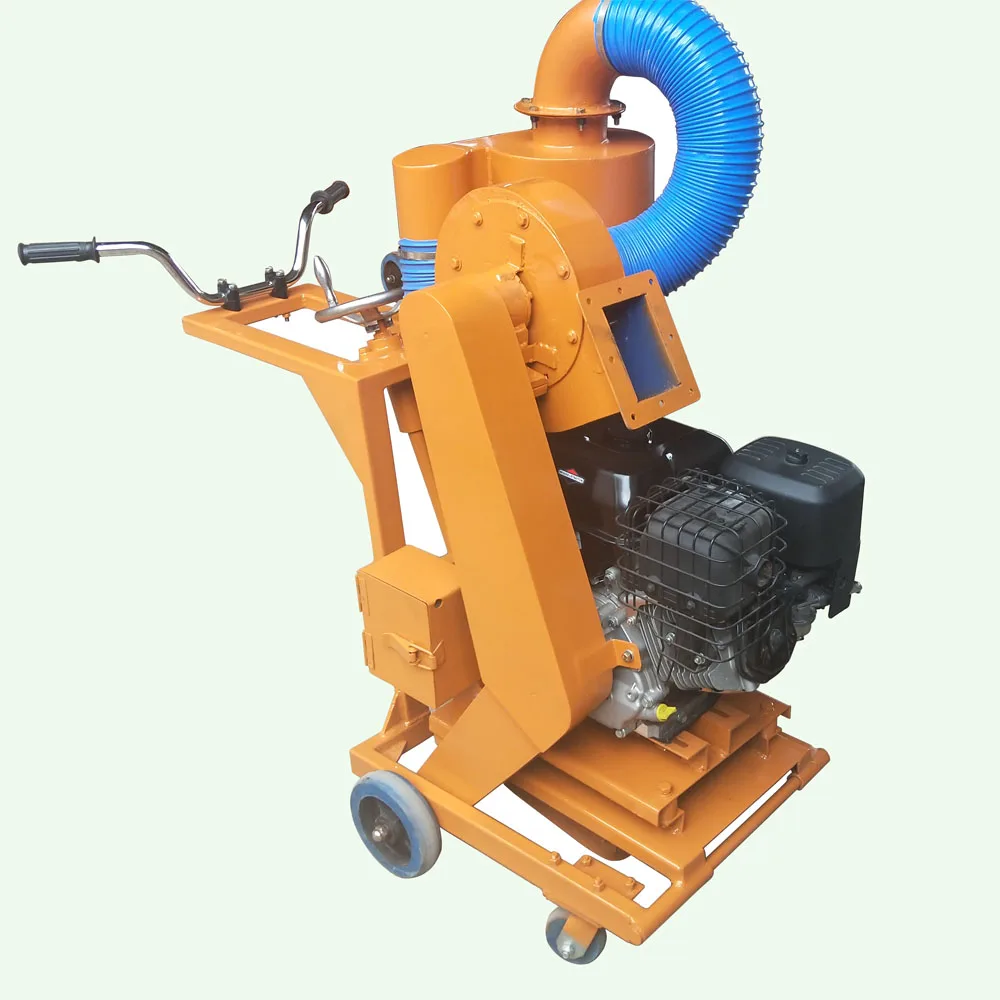

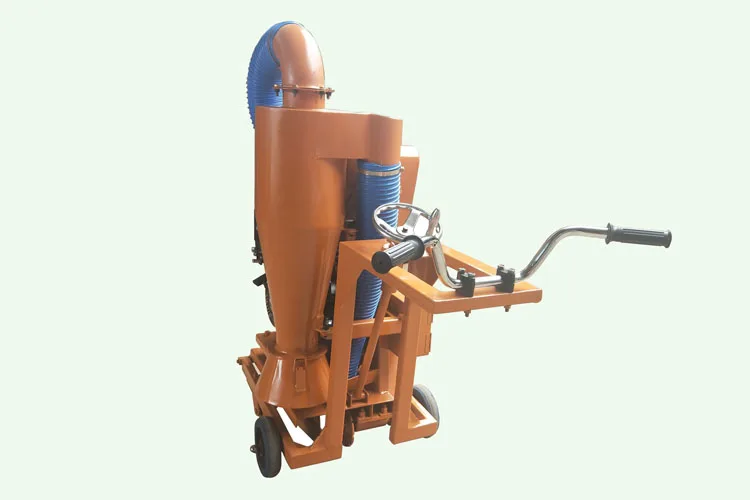

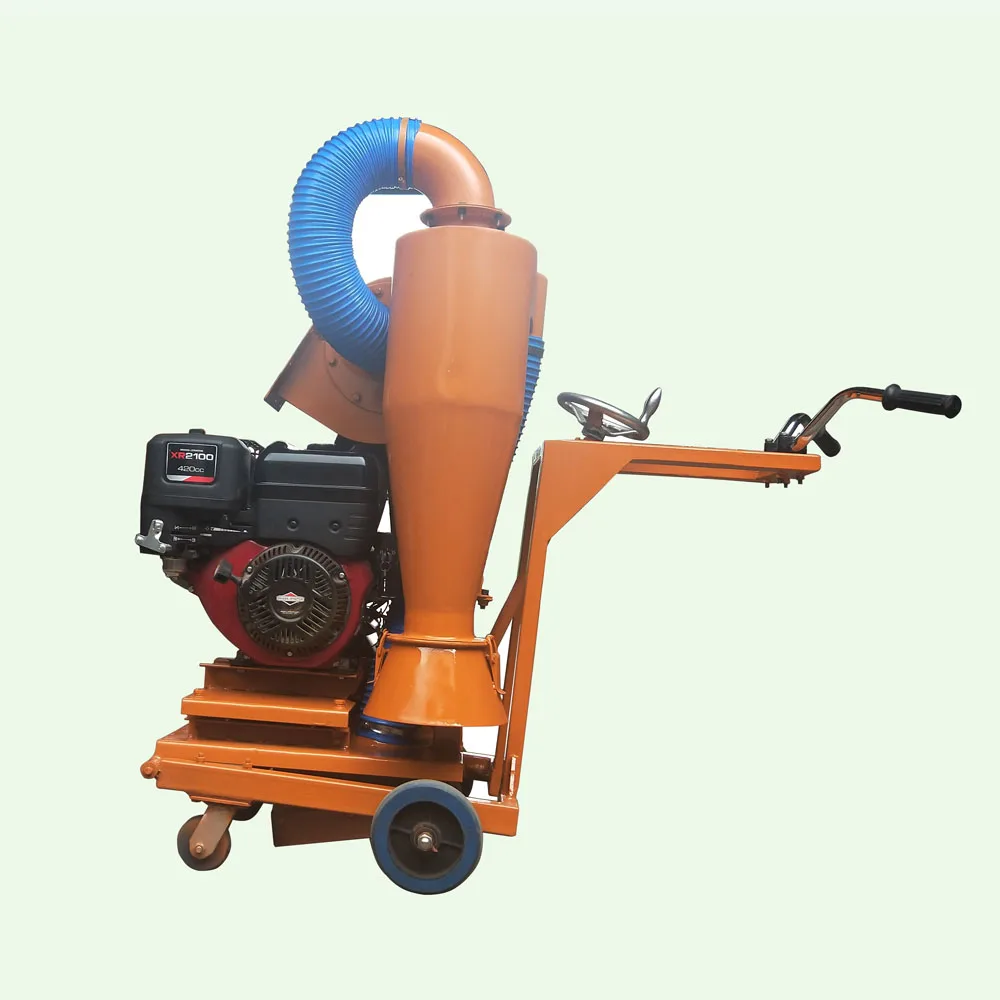

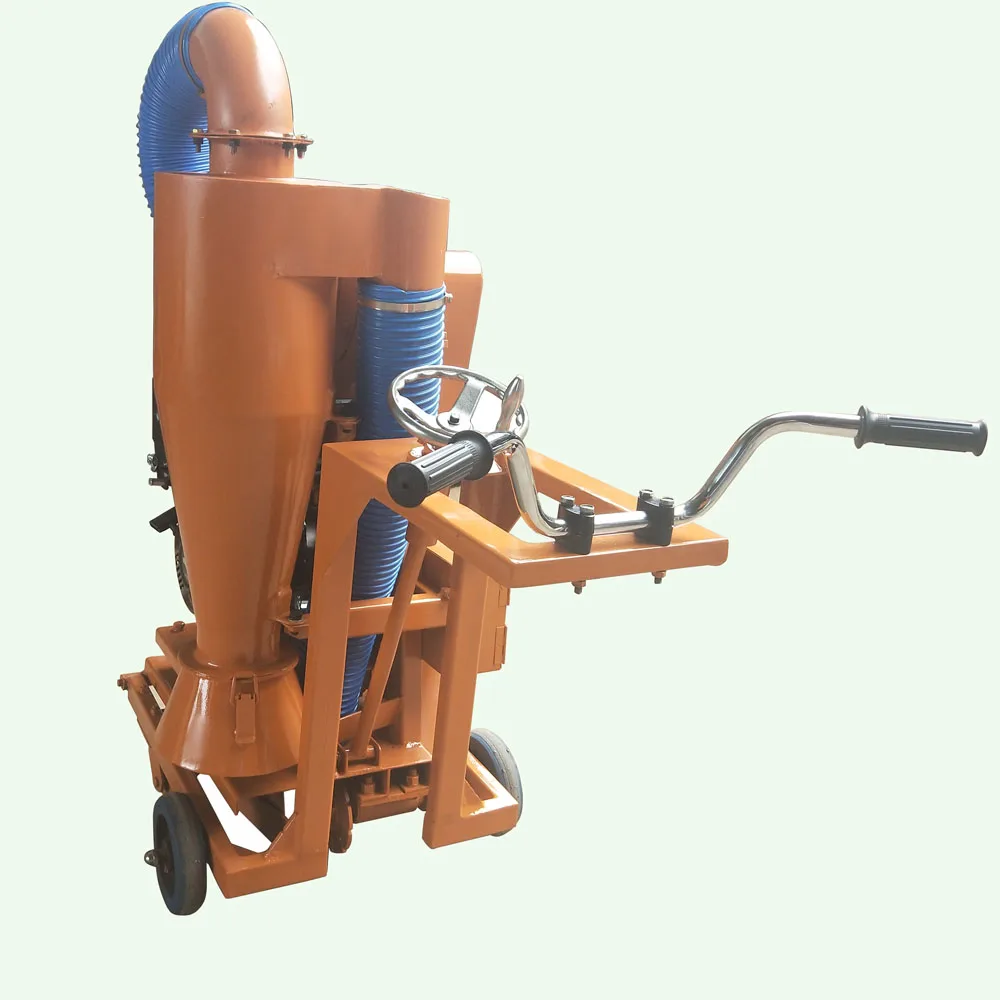

Product Display



Features:

Special multi-tube cyclone dust collector is used for series dust collection, which can collect most of the dust. It can not only solve the problem of dust flying all over the sky in seam cleaning and slotting operation, but also can work continuously for a long time. It can overcome the defects such as bulky and bulky cloth bag dust removal structure, high cost, easy blocking and short working time.

Application: for widening or grooving of cracks in cement roads and asphalt roads.

Basic parameters:

Structure form

Double cyclone dust removal, blade dry cutting

Diameter of blade

150mm

Blade thickness

6mm

Purging way

Multi - tube cyclone dust collector

Spindle speed

3000r/min

Grooving depth

0 ~ 50mm

Grooving width

8 ~ 50mm

Cutting speed

8m/min

Overall dimension

1210x670x1500 (mm)

Weight

110kg
