TIG 160 DC PULSE Multi Functions Portable Electric Cheap Dc Tig Welder

Multiplse Mode
MMA/LIFT TIG/HF TIG.
Up/Down Slope
Selectable Up/Down Slope Time.
Pre/Post Flow
Selectable Pre/Post Flow Time.
Pulse
High performance on ultra thin surfaces with no deformation.
Protections
Equipped with temperature, voltage and current sensors for high protection.
Generator friendly
Designed to work with diesel generators and to avoid failures due to its voltage spikes.

Parameters

Model/Parameters	TIG 160 DC PULSE	Efficiency	≥85%
power supply voltage(V)	1~220/230/240 ±10%	Net Weight(Kg)	5.5
Fre.(HZ)	50/60	Dimensions(mm)	410x146x278
Rated Input Power(KW)	3.4(TIG)/5.2(MMA)	Pulse Fre.(HZ)	0.5~200
Rated input current(A)	25(TIG)/38(MMA)	Pulse width range(%)	5~95
Duty Cycle(40℃ 10Min)	50%160A 60%150A 100%115A	power  factor	0.75
No Load Voltage(V)	74	Insulation Class	H
Welding Current Range(A)	5~160	Protection Class	IP23
Up Slope/Down Slope Time(S)	0~10	Cooling	AF
Pre/Post Flow(S)	0~2/0~10

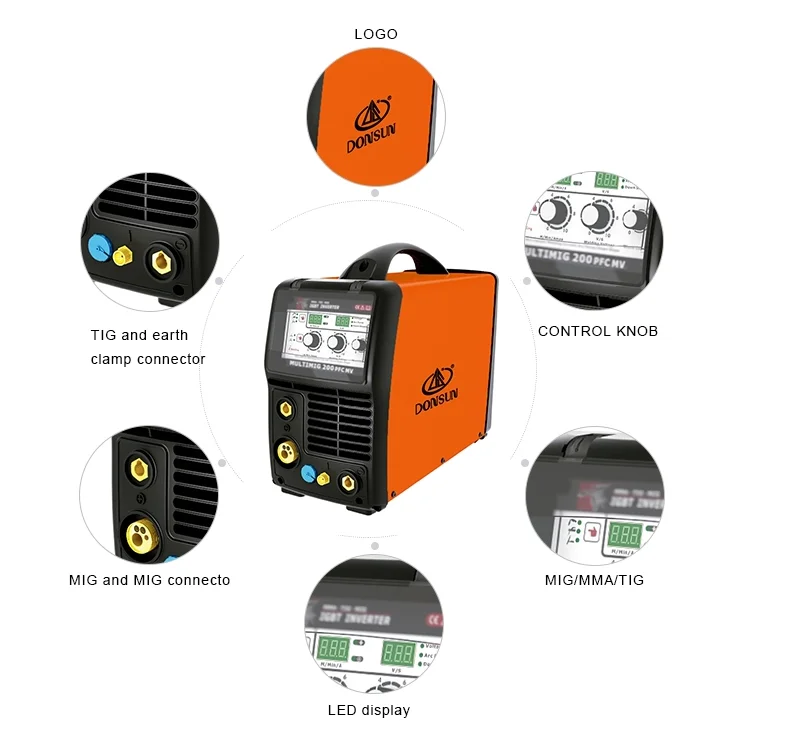

Product Detail
