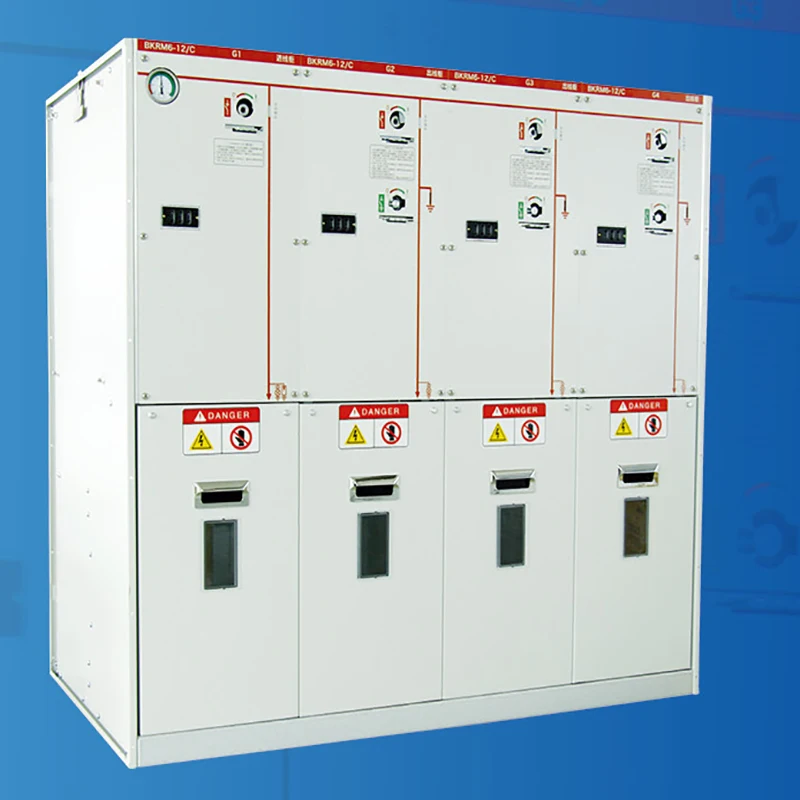

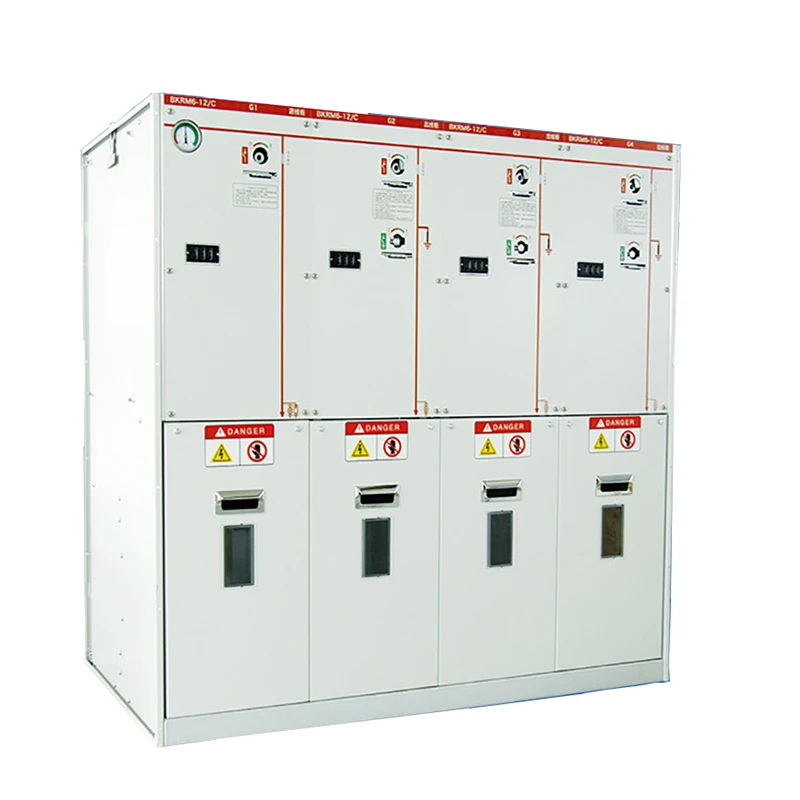

High Quality RM6-12-24 GIS SF6 Gas Insulated Swichgear in Power distribution equipment
| Item | Unit | C module | F module | V module | CB module | ||
| load break switch | switch fuse | vacuum switch | isolate/arting switch | vacuum break | isolate/earthing switch | ||
| Rated Voltage | KV | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 |
| Power Frequency Voltage | KV | 45/50 | 42/50 | 42/50 | 42/50 | 42/50 | 42/50 |
| Lightning Impulse Voltage | KV | 95/125 | 95/125 | 95/125 | 95/125 | 95/125 | 95/125 |
| Rated Current | A | 630/630 | note 1 | 1250/630 | |||
| Closed Loop Currrent | A | 630/630 | |||||
| Off Load Cable Charging Current | A | 135/135 | |||||
| 5% Rated Active Load Drop-out Current | A | 31.5/- | |||||
| Earth Fault Breaking Current | A | 200/150 | |||||
| When Earth Fault,Drop-out Current Of Cable Charging | A | 115/87 | |||||
| Short Circuit Drop-out Current | KA | note 2 | 20/16 | 25/20 | |||
| Marking Capactiy | KA | 63/52.5 | note 2 | 50/40 | 50/40 | 63/50 | 63/50 |
| Short Time Current 2s | KA | 25/- | |||||
| Short Time Current 3s | KA | -/21 | 20/16 | 20/16 | 25/20 | 25/20 | |
| Mechanical Life | Times | 5000 | 3000 | 5000 | 2000 | 5000 | 5000 |
| Note:1.varies with rated current value of fuse | 2.limited by high voltage fuse | ||||||
Related Products

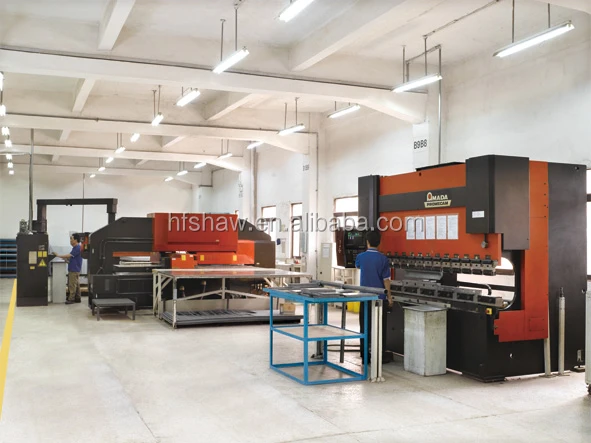

working shop
