HYF MDVR H.265 H.264 AHD 1080P 4 Channels SD Card Mobile DVR for Vehicle Car Truck Taxi School Bus
- Category: >>>
- Supplier: Shenzhen HYF Industrial Co. Ltd.
Share on (62159400665):
Product Overview
Description
Product Description
Item | Parameter | ||
operating system | Linux | ||
System language | Chinese,English,Russian,Others（customizable） | ||
Video compression format | H.264 compression format | ||
OSD | Character overlay function, support time and date, vehicle ID and other information image superposition | ||
GUI | Graph OSD interface | External display can be set, and various parameters of the system can be set by remote control. | |
Video and recording | Video input | 4 channel 1080P AHD/SD/mix video input, Aviation head interface, 1.0Vp-p, 75Ω | |
Video output | 1 channel Composite video output+(Optional)VGA input, 1.0Vp-p, 75Ω, support 1channel full screen or 4channel screen | ||
Preview function | 1 channel、4 screen mosaic preview，Support event triggering, rear view full screen display function | ||
Video resolution | Support 1080P.720P、D1、HD1、CIF, Maximum support 4channel 1080P | ||
Video quality | Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest. | ||
Video Rate | PAL:100 fps，CCIR625line,50 scenes NTSC:120 fps，CCIR525line,60 scenes CIF:256Kbps - 1.5Mbps，8 grades image quality for optional HD1:600Kbps - 2.5Mbps，8 grades image quality for optional D1:800Kbps - 3Mbps,8 grades image quality for optional 720P：800Kbps - 4Mbps,8 grades image quality for optional | ||
Recording Mode | Default automatic video recording, support ignition video recording, schedule video recording, alarm video recording, etc | ||
Audio | Audio input | 4CH Aviation connector inputs | |
Audio output | 1CH Aviation connector output, Output level:1V - 2V | ||
Compression format | G.726, Speed for 8KB/s | ||
Alarm Input | 4CH level alarm inputs | ||
Alarm output | |||
Communication Interface | |||
Wireless Transmission | - | ||
Location/Gsensor | - | ||
Video Storage | Storage | Support at maximum 1*256G high capacity SD card | |
Upgrade Method | Support SD card local upgrade, remote upgrade automatically | ||
File Format | H.264 general video format | ||
File System | FAT32 exclusive file system | ||
Video Playback | Video Search | Search recorded video files by recording time and recording method | |
Playback | Support at max 1 channel synchronous playback, suspend, forward, backward | ||
Support 2/4/8/16 times speed forward or backward | |||
Security Management | User Password or administrator password management, support screen locked | ||
Expansion functions | TTS Voice broadcast | Support TTS voice broadcast | |
Series port expansion | Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc | ||

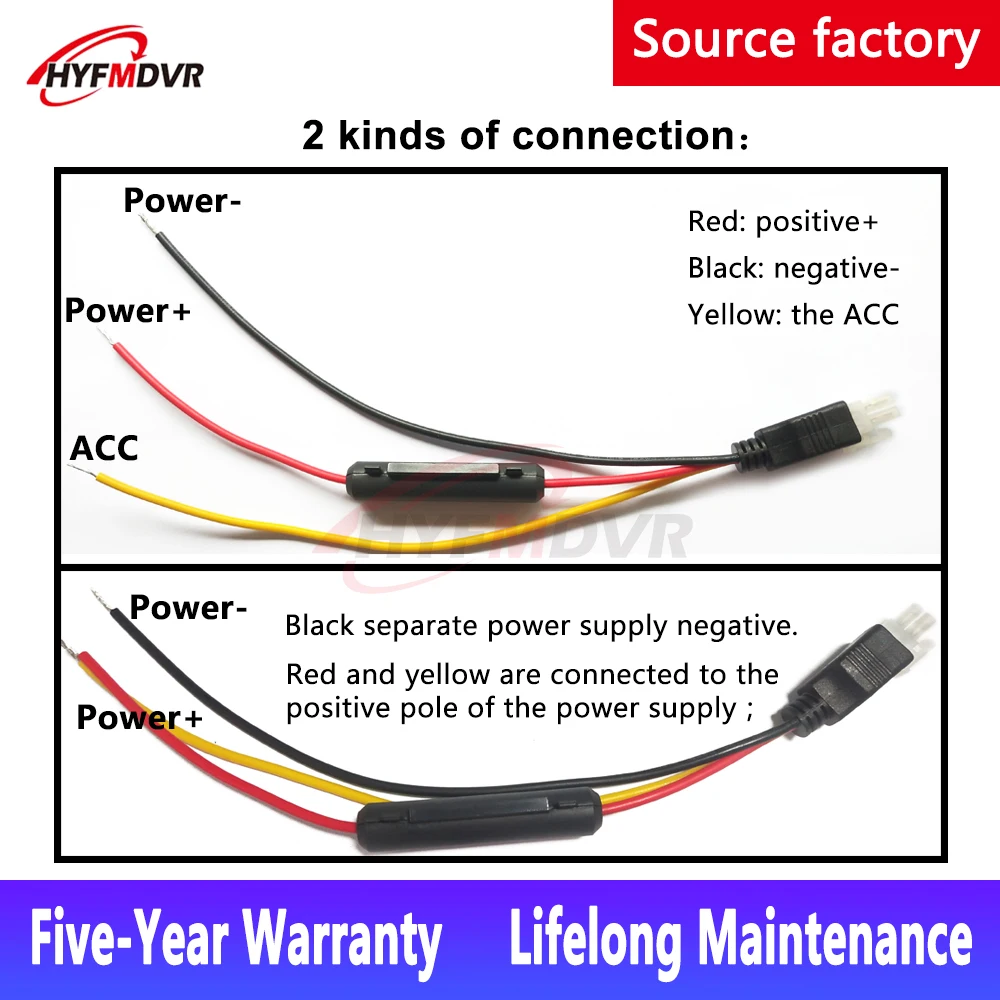

Power and Consumption | Power Management | Self-adaptive wide voltage input, with protect functions for overload, undervoltage, short circuit, reversing connection, etc Support time setting startup/shutdown, delayed power off function | |
Power and Consumption | Input Voltage | DC:+8V - +36V | |
Output Voltage | +12V@1.5A，+5V@1.5A | ||
Working environment | Temperature | -30℃ - +70℃ | |
Humidity | 20% - 80% | ||
SD Card Type Series | Dimension | 145MM*90MM*40MM | |
Weight | 0.75KG | ||
Mean feature
H.264 hard compression mode，Support 4 channels of real-time 1080P million AHD HD input,4 channel analog SD camera input and 2 channel HD + 2 channel Standard Definition mixed input；
8V-36V adaptive wide voltage input, ultra low power design；
SD card storage (maximum support 256G) can completely resist the data damage caused by vibration dust on the car；
Support 4 channels of alarm input.
Exclusive pre-distributed vehicle-specific file system technology，Solve the problem of document fragmentation caused by repeated erasing，Solve the SD file system crash data loss, can not find the SD card and file garbled phenomenon, to ensure data stability and integrity；
Details Images
HiSilicon video solution, H.264 compression mode, multi-stream recording, providing 1080P million HD video effects. Support 4 channels of real-time 1080P million AHD HD input / 4 channels of analog SD camera input / 2 channels of HD + 2 channel Standard Definition mixed input；
Real-time HD recording, video 1080P/720P/D1/HD1/CIF optional, frame rate quality adjustable；
Professional vehicle power supply design, 8-36V DC wide voltage input; overload / under voltage / short circuit / reverse connection and other protection circuits, suitable for all kinds of vehicles；
Real-time HD recording, video 1080P/720P/D1/HD1/CIF optional, frame rate quality adjustable；
Professional vehicle power supply design, 8-36V DC wide voltage input; overload / under voltage / short circuit / reverse connection and other protection circuits, suitable for all kinds of vehicles；
Provides 12VDC/2A power output for constant voltage supply of multiple interface devices such as cameras and small screens；

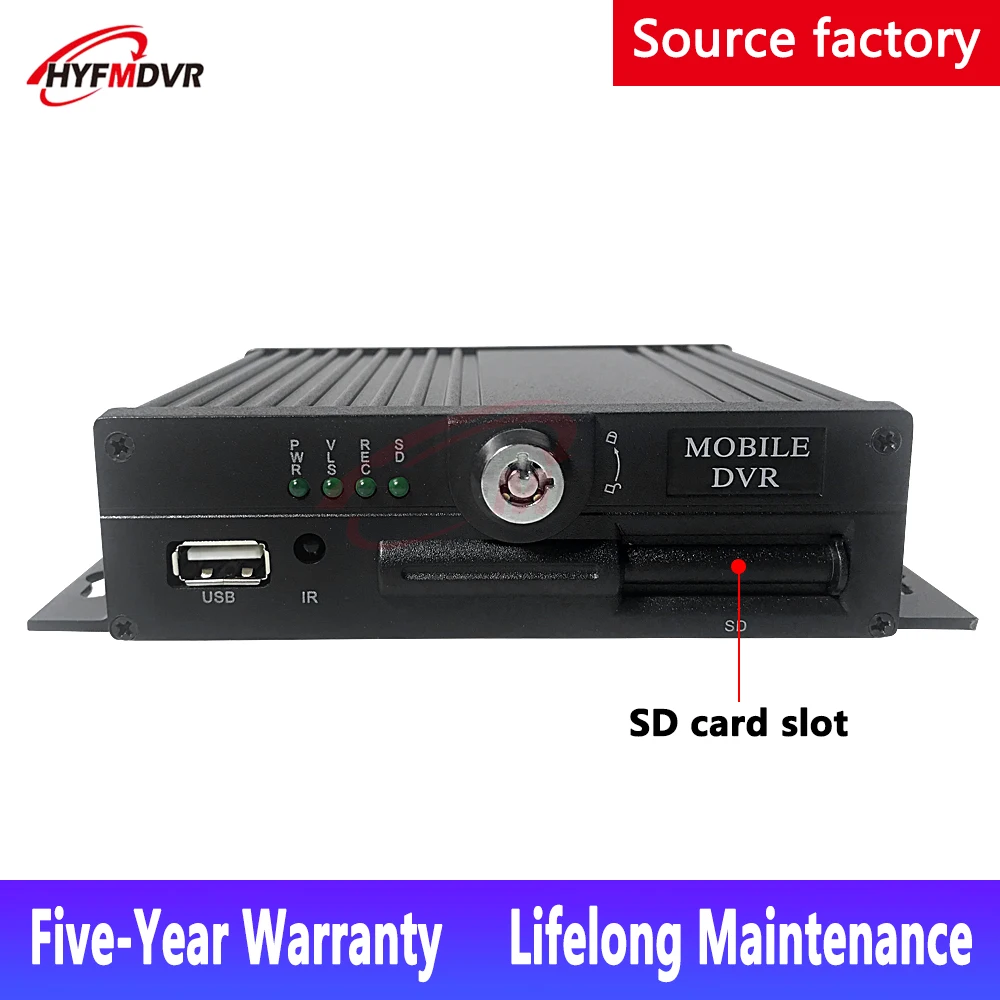

SD card records data (up to single card 256G), can completely resist the data damage caused by vibration dust on the car, so that the product can adapt to the bad road conditions that most products can not adapt.；
Watchdog abnormal restart function protection, better protection of machines and video；
Watchdog abnormal restart function protection, better protection of machines and video；
Exclusive pre-distributed vehicle-specific file system technology to solve the problem of data fragmentation caused by repeated erasure and writing to ensure data integrity；
Flameout time recording function (time can be set up to 24 hours)；
Automatic recording, manual recording, alarm recording and other recording methods to meet different needs；
Flameout time recording function (time can be set up to 24 hours)；
Automatic recording, manual recording, alarm recording and other recording methods to meet different needs；
Display vehicle information such as vehicle driving status, license plate, route, etc., convenient for management；
4-way alarm input (switch door, light, steering, brake, reversing, various types of configurable), can be linked to multiple responses；

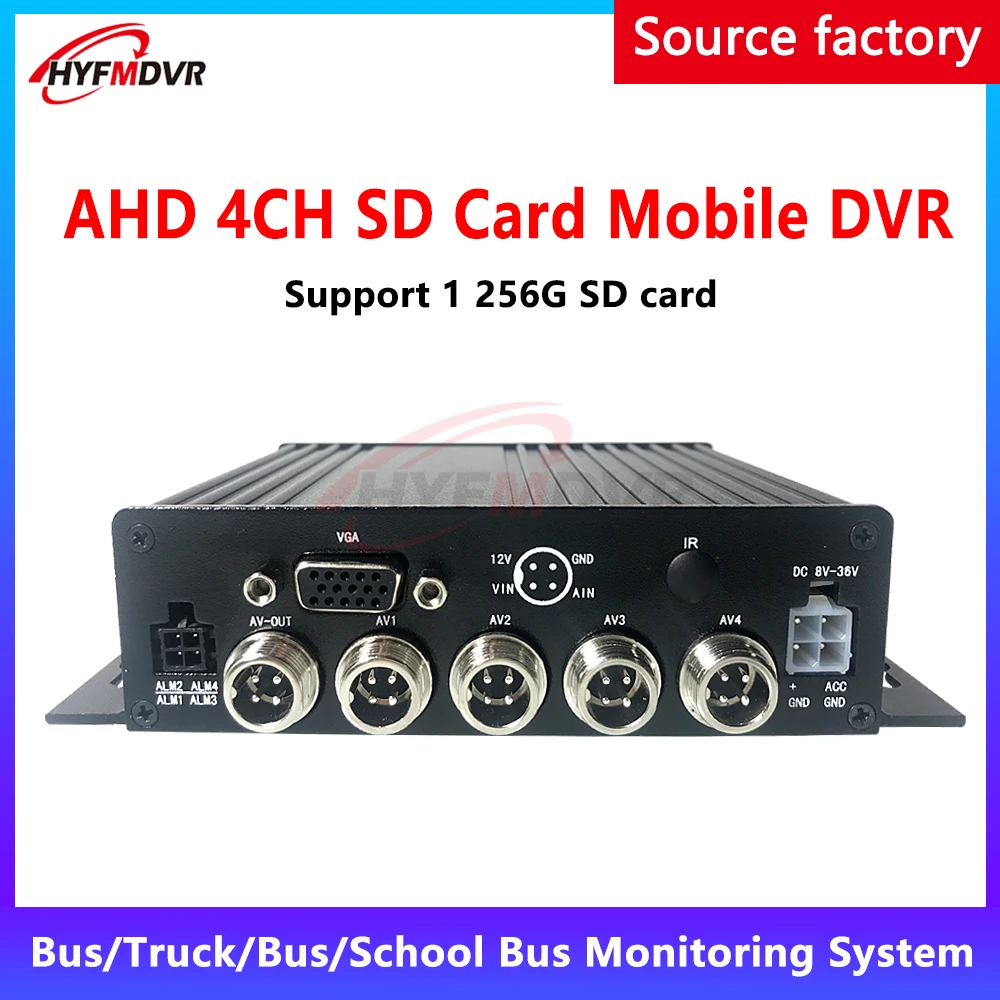

Highly reliable aerial head video input and output interface, easy to install and remove, and more seismic performance；
System interface operation is smooth, intuitive and perfect；
Software upgrade via SD card or USB flash drive；
Batch function customization according to customer requirements；

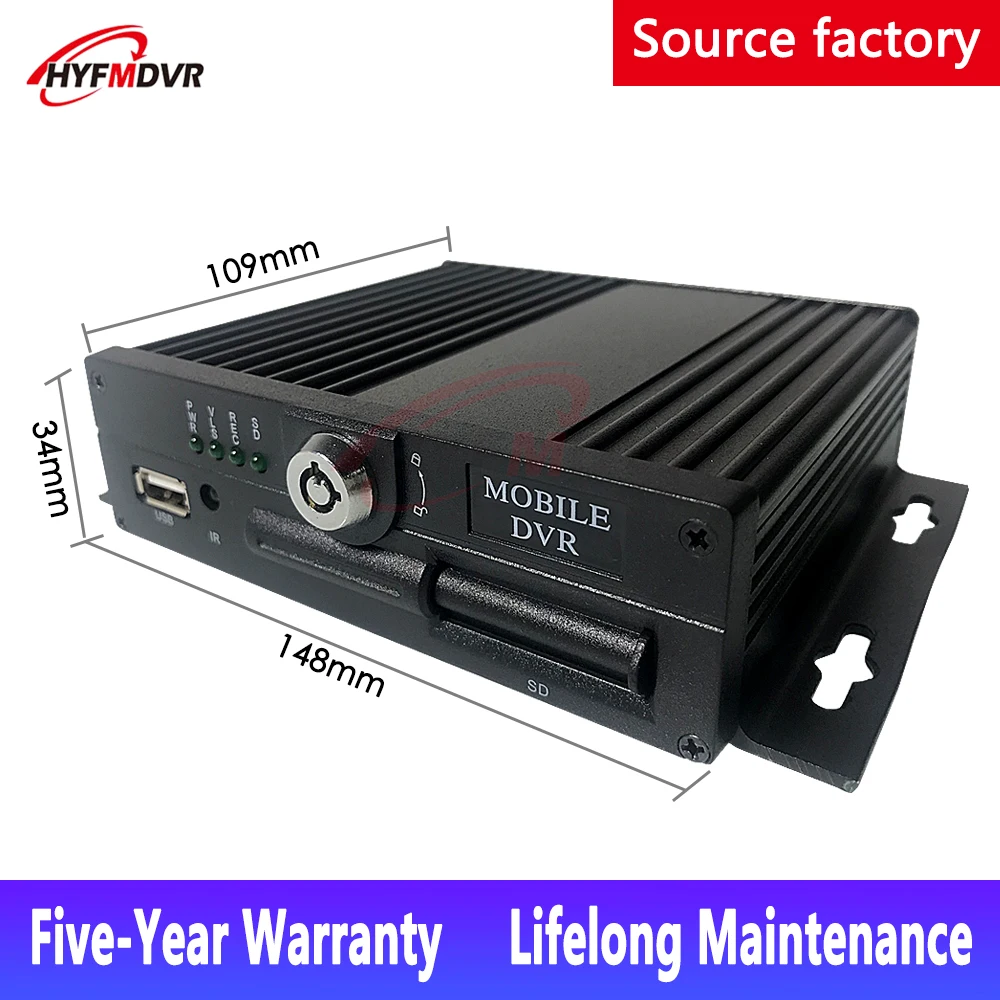

Dimension:145mm*90mm*40mm
Weight:0.75KG；
Software upgrade via SD card or USB flash drive；
Batch function customization according to customer requirements；
Dimension:145mm*90mm*40mm
Weight:0.75KG；
