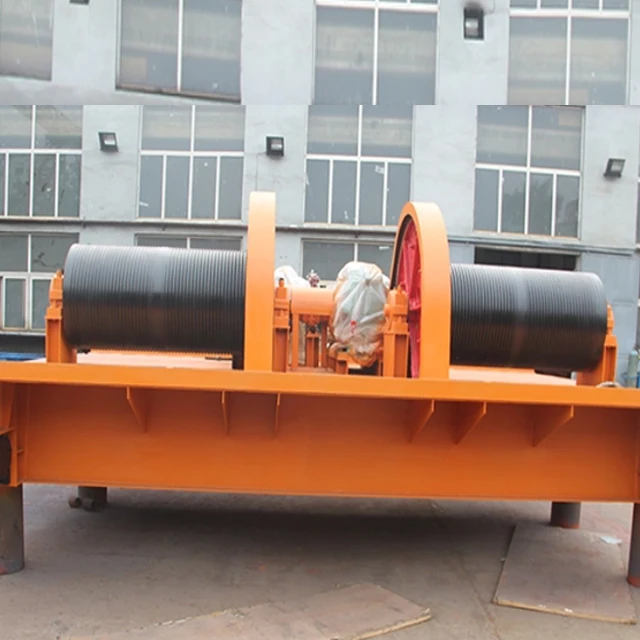

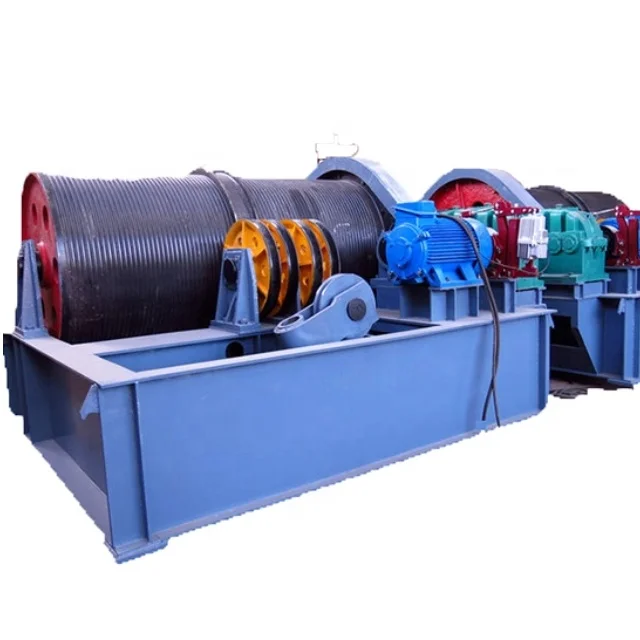

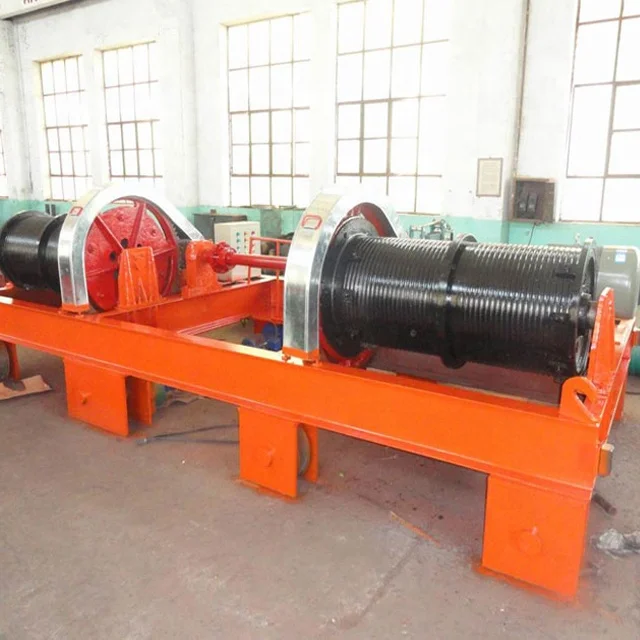

China manufacture double drum electric winch hoist
China manufacture double drum electric winch hoist
China manufacture double drum electric winch hoist
China manufacture double drum electric winch hoist
China manufacture double drum electric winch hoist
China manufacture double drum electric winch hoist
China manufacture double drum electric winch hoist

China manufacture double drum electric winch hoist

Share on (62159446255):


Price:$4,500.00 - $5,000.00

Quantity:


Product Overview

Description


Product Description

Product Application

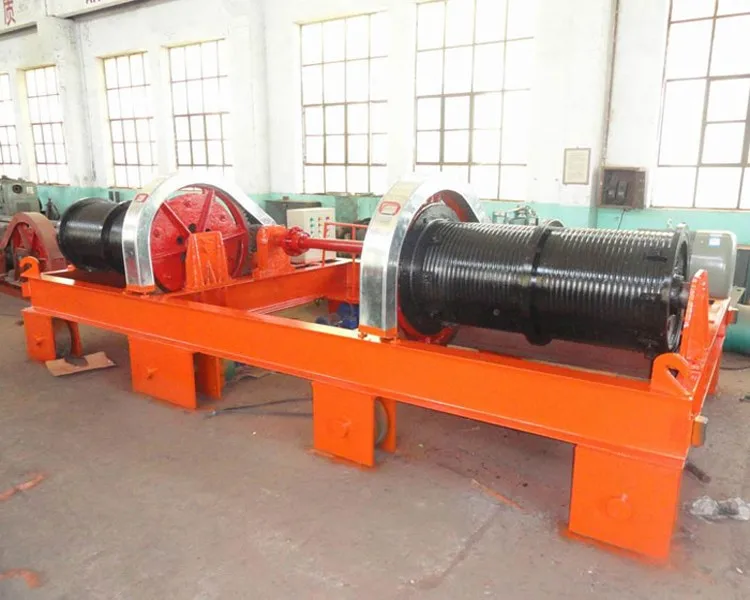

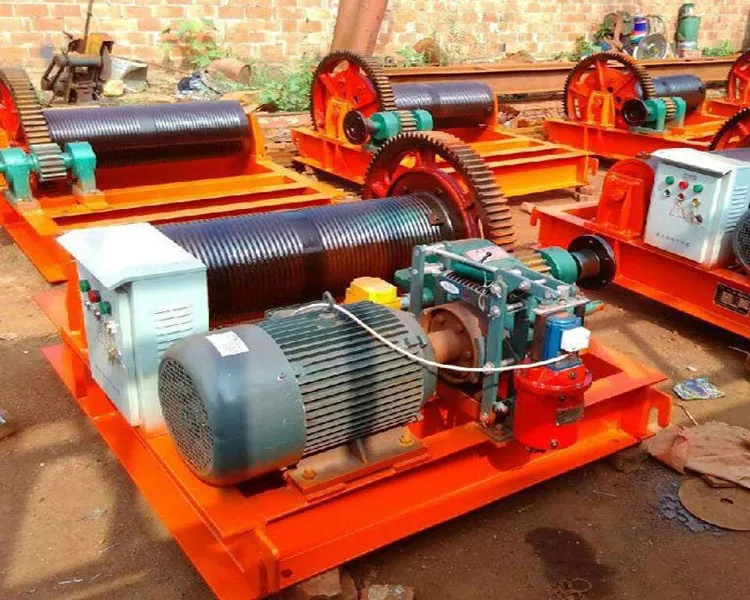

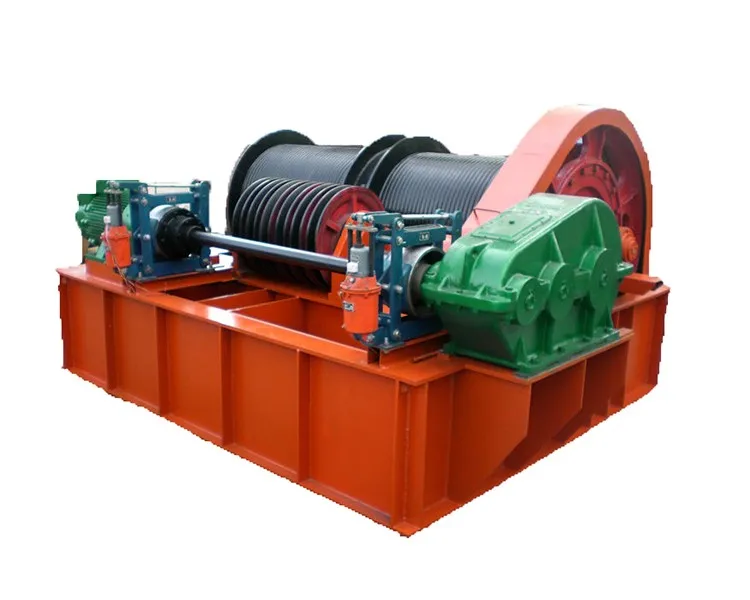

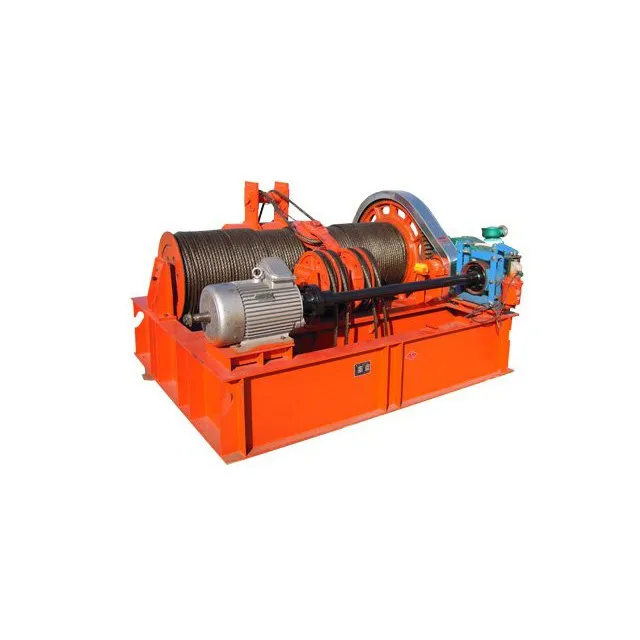

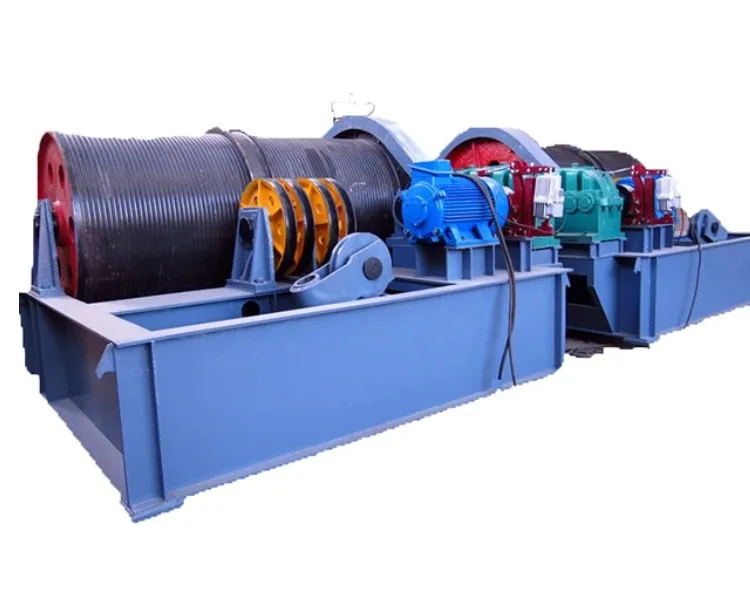

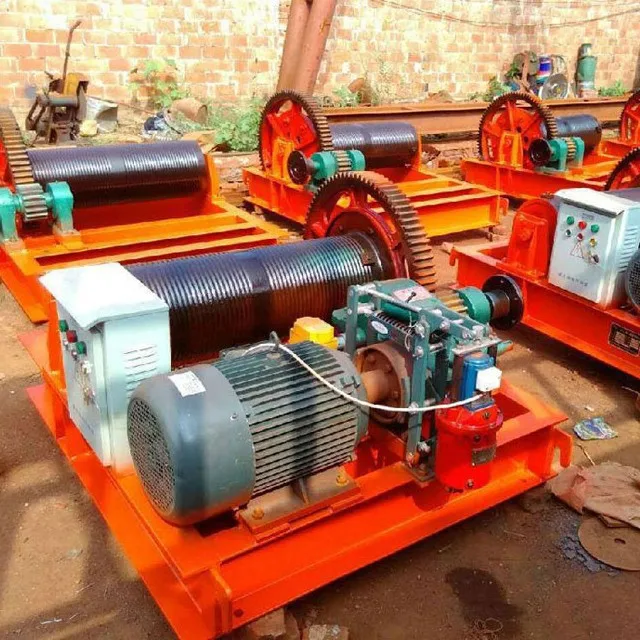

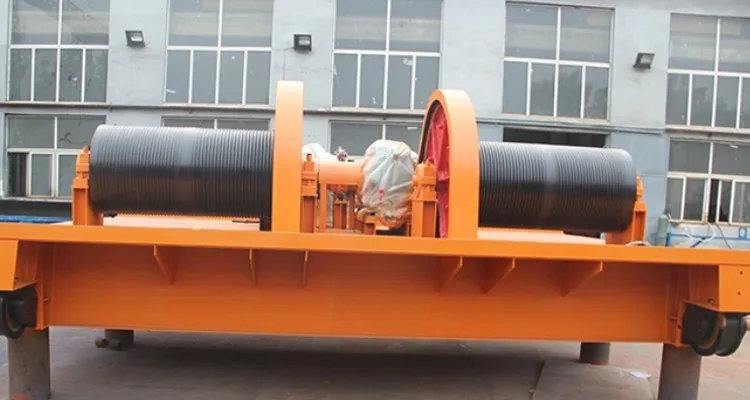

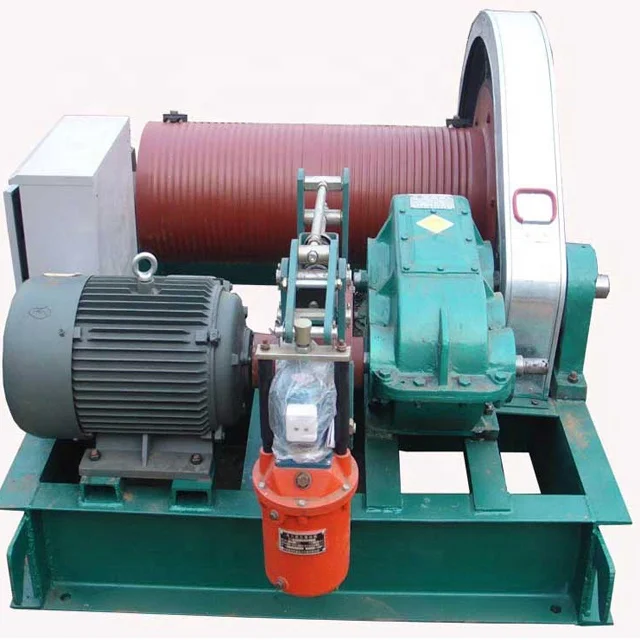

Doubel Drum Electric winch Hoist

Double Drum Electric winch hoist, which with a reel winding wire rope or chain lift or traction heavy light lifting equipment. The winch can be lifted vertically, horizontally or tilted the material.It can be used alone, but also can as mechanical components for lifting, road construction and mine lifting machinery.With the advantages of simple operation, large rope around, easy to move and widely used. Mainly used in construction, water conservancy projects, forestry, mining, port to lift or drag materials. GET QUOTATION NOW

\t
SPECIFICATIONS FOR ElECTRIC WINCH
\t
JM ELECTRIC WINCH
\t
Type
\t
Rate load(KN)
\t
Rate speed
\t
Rope capacity
(m)
\t
Rope diameter
\t
Motor
type
\t
Motor power(KW)
\t
Dimension
(mm)
\t
QPQ10
\t
100
\t
8
\t
170
\t
Φ30
\t
YZR200L-6
\t
22
\t
2090×1475×956
\t
QPQ10B
\t
100
\t
9.5
\t
250
\t
Φ21.5
\t
YZR200-6
\t
22
\t
1705×1598×985
\t
QPQ12.5
\t
125
\t
8
\t
300
\t
Φ34
\t
YZR225M-6
\t
30
\t
2880×2200×1550
\t
QPQ13.5
\t
135
\t
0-5
\t
290
\t
Φ28
\t
YZP225S-8
\t
22
\t
2990×2363×1650
\t
QPQ16
\t
160
\t
10
\t
500
\t
Φ37
\t
YZR250M2-8
\t
37
\t
3750×2400×1850
\t
QPQ20
\t
200
\t
10
\t
600
\t
Φ43
\t
YZR280S-8
\t
45
\t
3950×2560×1950
\t
QPQ25
\t
250
\t
9
\t
700
\t
Φ48
\t
YZR280M-8
\t
55
\t
4350×2800×2030
\t
QPQ32
\t
320
\t
9
\t
700
\t
Φ56
\t
YZR315S-8
\t
75
\t
4500×2850×2100
\t
QPQ50
\t
500
\t
9
\t
800
\t
Φ65
\t
YZR315M-8
\t
90
\t
4930×3050×2250

The hydraulic hoist lifting winch is mainly used for lifting, pulling in construction,water conservancy projects, forestry, mining, port.
It also used as main hoisting equipment in crane.
It is also can working together with trolley to handling the heavy load material. INQUIRE NOW

Main Features

1. Freely provide project designing, process designing, choosing suitable equipment for you.
2. Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export
3. 12months warranty
4. One year free parts
5. Professional technicians provide installation, commissioning services
6. Technical advisory for any time

Electric winch hoist

                  JM ELECTRIC WINCH

                JDM ELECTRIC WINCH

               KDJ ELECTRIC WINCH
