Normal Specification Polycrystalline Solar Panel tracking system Dual Axis Sun Solar Tracker controller system
- Category: >>>
- Supplier: Shandong Jinhong New Energy Co. Ltd.
Share on (62159489525):
Product Overview
Description
Product Description

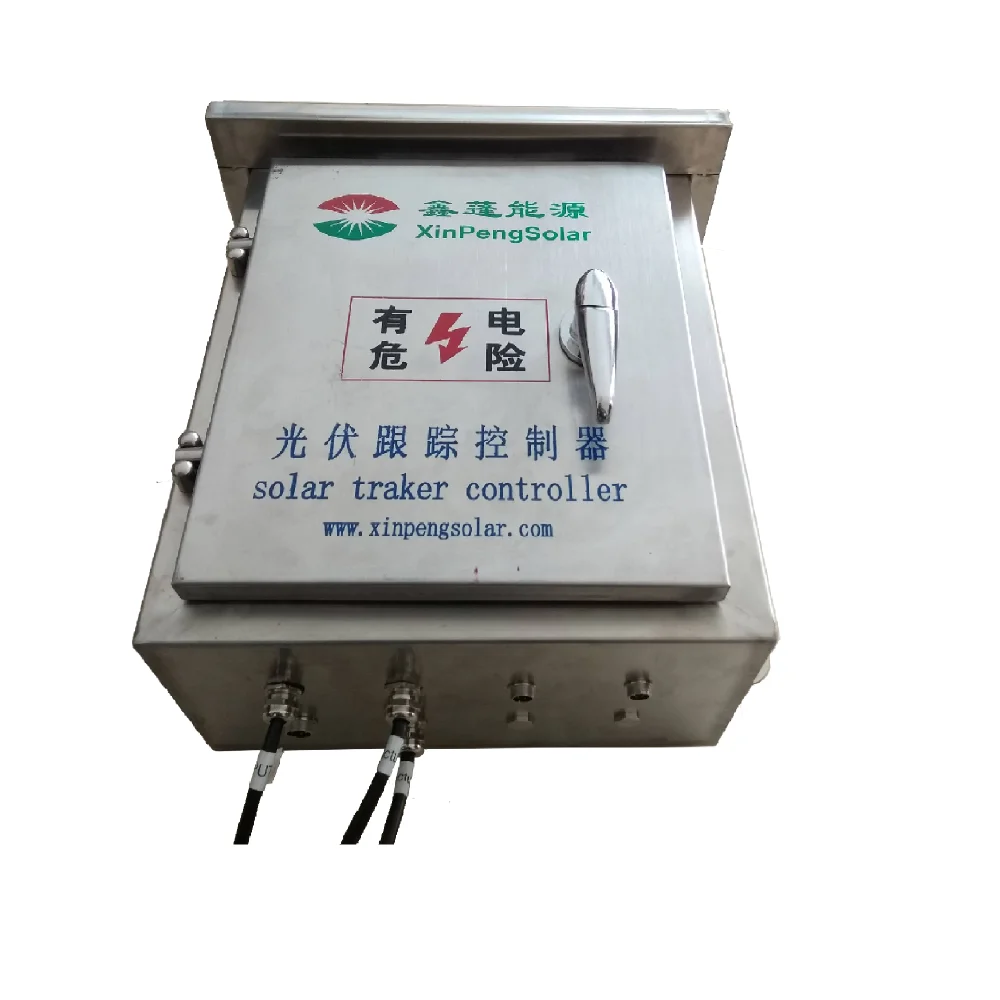

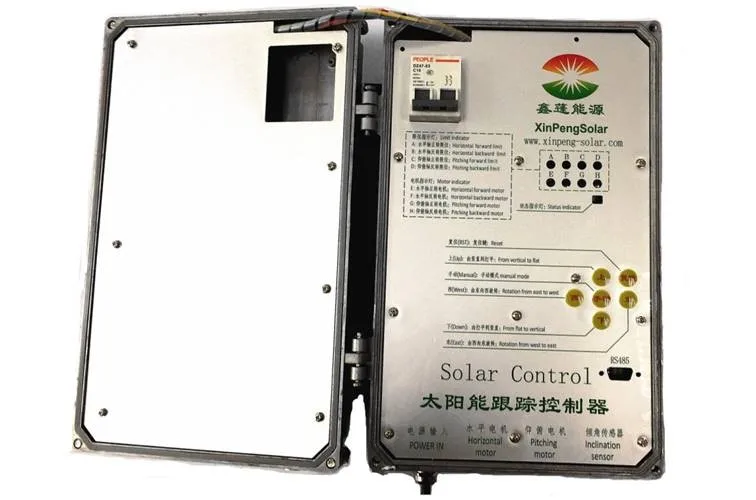

solar tracker controller

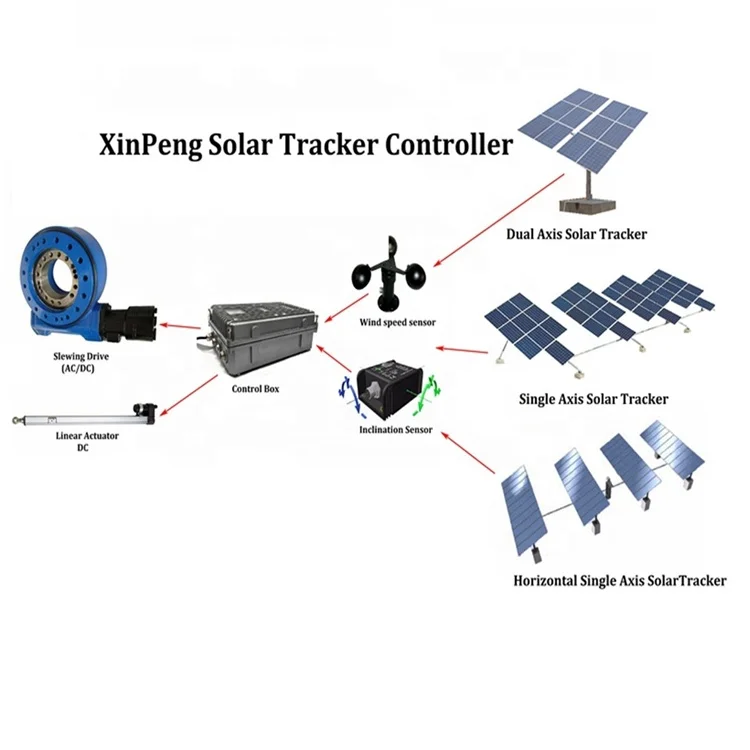

The solar tracking system controller uses high-precision astronomy algorithm to calculate the angle of the sun, combined with high-performance microcontroller (DSP core), making the system accurate and reliable, not rainy days interference,using international first-line brand tilt sensor, real-time closed-loop feedback tracking angle, automatic tracking, without human intervention.
| \t | |||
| \t | \t | \t | \t |
| \t | \t | \t | \t |
| \t | \t | \t | \t |
| \t | \t | \t | \t |
| \t | \t | \t | \t |
| \t | \t | \t | \t |
| \t | \t | \t | \t |
| \t | \t | \t | \t |
| \t | \t | \t | \t |
| \t | \t | \t | \t |
Main Features
1.Automatic tracking, without manual debugging.
2.Tracking precision < 0.5°.
3.Good environmental suitability, not affected by wet weather.
4.Using high accuracy sun location algorithm, calculating the local location of the sun accurately.
5.Automatic wind resistance, back to flat initial position at night.
6.Azimuth tracking angle -120°to 120°, elevation tracking range 30° to 90°.
7.Backup battery to ensure automatic operation within the system in the case of power failure for a year, no loss of data, automatically into running state when system starting up.
8.High weather resistance, safe and steady operation under -40~+85℃ without accumulated error.
9.Excellent EMC design, high reliability, system crash prevented.
10.Common plug-in connecting terminal, easy installation.
11.With manual control mode to adjust the tracking angle manually.
12.RS485 interface, device data and current running status read through software, remote control, group control of multiple devices.
2.Tracking precision < 0.5°.
3.Good environmental suitability, not affected by wet weather.
4.Using high accuracy sun location algorithm, calculating the local location of the sun accurately.
5.Automatic wind resistance, back to flat initial position at night.
6.Azimuth tracking angle -120°to 120°, elevation tracking range 30° to 90°.
7.Backup battery to ensure automatic operation within the system in the case of power failure for a year, no loss of data, automatically into running state when system starting up.
8.High weather resistance, safe and steady operation under -40~+85℃ without accumulated error.
9.Excellent EMC design, high reliability, system crash prevented.
10.Common plug-in connecting terminal, easy installation.
11.With manual control mode to adjust the tracking angle manually.
12.RS485 interface, device data and current running status read through software, remote control, group control of multiple devices.
Certifications
CE certification
9000 certification
CQC quality certification
Related Products
Jinan

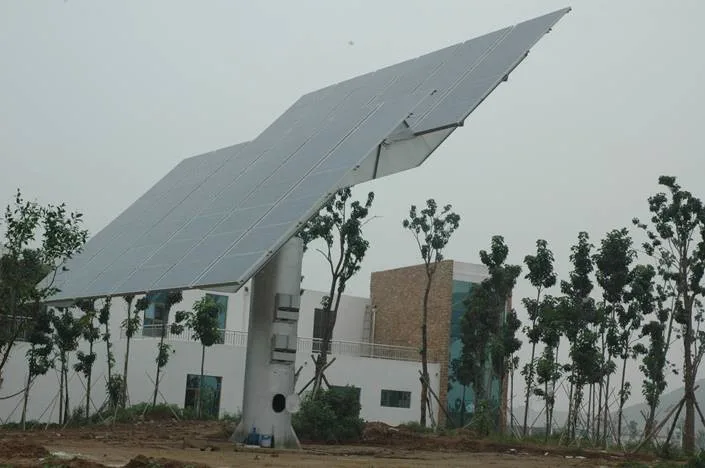

inan 20KW dual-axis tracking power station was completed in 2008, with a support area of about 120 square meters and 72 pieces of 1650*992mm components installed per set. This power station is located in jinan garden expo park, which is the largest dual-axis tracking power station with single machine capacity at home and abroad.
Jiangxi

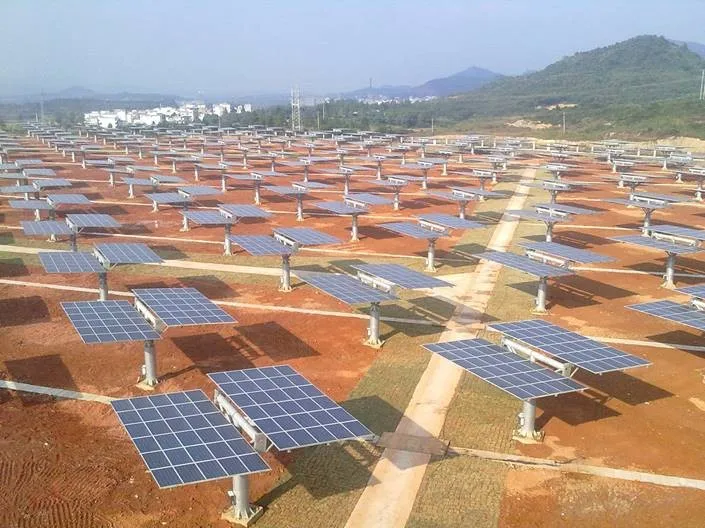

Jiangxi 2.59mw dual-axis tracking power station was completed in 2010, with a supporting area of about 100 square meters and 60 pieces of 1650*992mm components per installed machine. The power station is located in xinyu city, jiangxi province, with harsh climate, frequent rain and a place at the draught.
Carlifornia
California 10MW dual-axis tracking power station was completed in 2012, with a supporting area of about 20 square meters and 12 1650*992mm components per installed machine. The climate is complex and changeable, and typhoons, rain and snow frequently occur.
Our Company

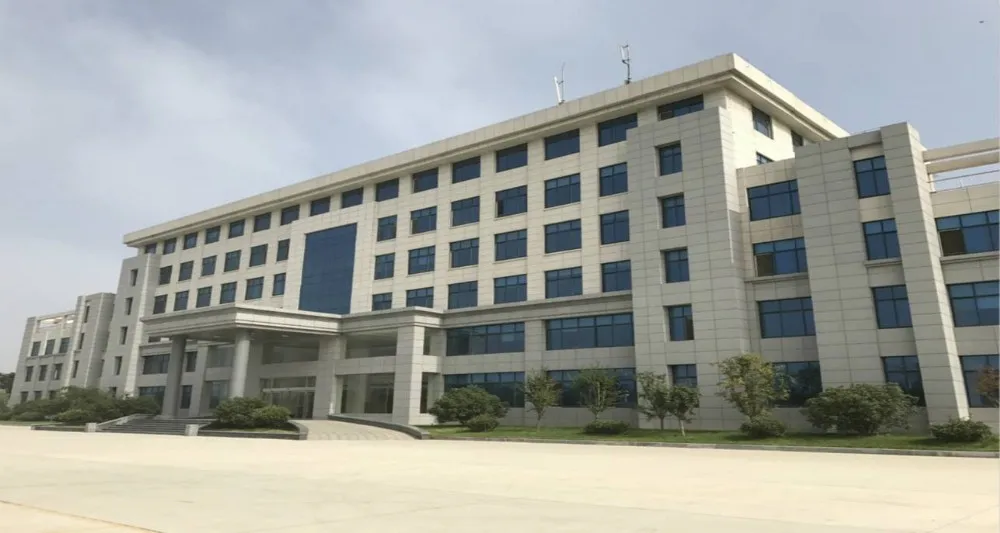

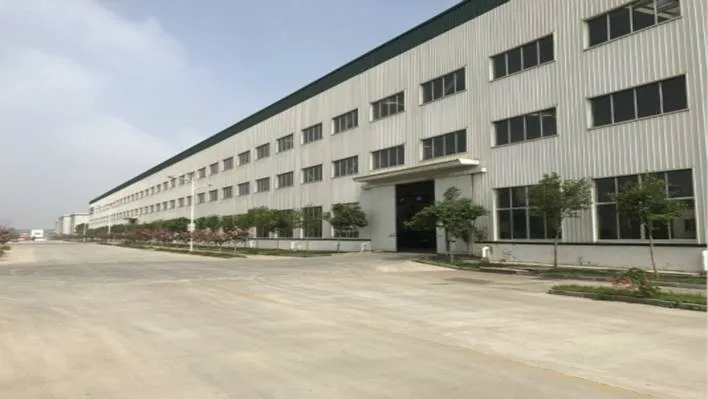

Office building

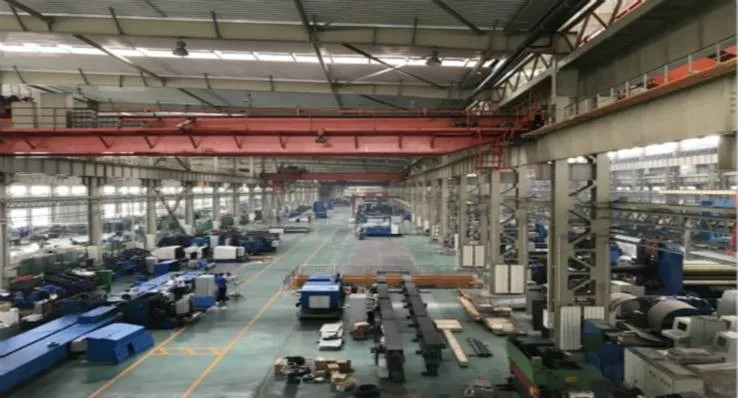

Work shop
FAQ
Q: How long is your delivery time?
A: Generally solar tracker is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.
Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram?
A: Our payments vary according to different countries and regions.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
