    Distiller Equipment 50L Rotovap Using With Chiller


Introduction:

    R-series rotary evaporators, mainly used in biological, pharmaceutical, chemical, food and other areas of small test, pilot and production. The rotary evaporator have large capacity, large diameter rotary evaporation bottle, placed in the water bath, rotating while heating, so that the efficient diffusion of the solution evaporation. Products can be used with circulating water type vacuum pump, diaphragm vacuum pump, low temperature cycle (vacuum) pump, circulating cooler, constant temperature circulator, low temperature coolant circulation pump and other supporting system device.

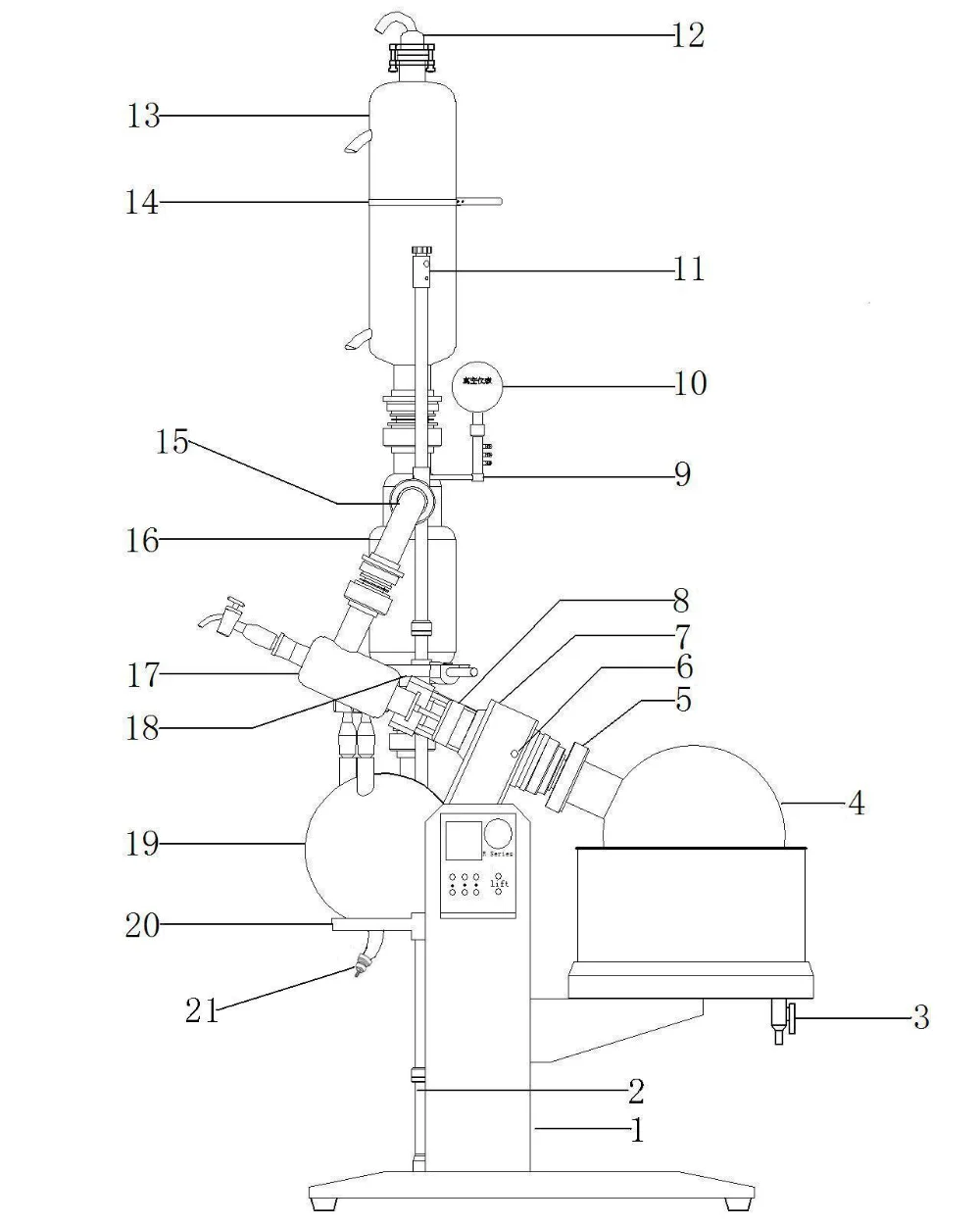

1. Main machine and water bath;            2. Upright tube;                                  3. Discharge valve
4. Evaporation flask;                                 5. Evaporation flask nut;                   6. Locking hole
7. Drive head;                                            8. Retaining nut;                                9. Vacuum meter bracket
10. Vacuum meter;                                   11. Condenser clamp holder;          12. Vacumm port
13. Main condenser;                                 14. Silicon rubber binding;              15. Glass elbow
16. Vice condenser;                                 17. Three-way flask;                         18. Condenser stander
9. Receiving flask;                                     20. Receiving flask stander;            21. Discharge valve



Features of Rotary Evaporator:

1. Teflon (PTFE) and fluorine rubber double rotary seal, patented technology to ensure high vacuum;
2. Temperature control system, accurate and reliable;
3. Continuous collection without affecting system vacuum and solution distillation;
4. PTFE discharge valve, corrosion-resistant, non-polluting;
5. There are two kinds of conventional and explosion-proof, according to the experimental environment to choose.


Parameters of Rotovap:

\t
Model
\t

R1005

\t

R1010

\t

R1020

\t

R1050

\t

Evaporating Flask (L)

\t

5

\t

10

\t

20

\t

50

\t
Receiving Flask (L)
\t

3

\t

5

\t

10

\t

20

\t
Rotating Motor (W)
\t

250

\t
Rotating Speed (rpm)
\t

20~140

\t

20~130

\t

20~110

\t
Max Vacuum Degree (Pa)
\t

399.9

\t
Overall Power(kW)
\t

2.3

\t

4.8

\t

6.3

\t

8.3

\t
Water Bath Size (mm)
\t

Φ300×170

\t

Φ350×220

\t

Φ450×260

\t

Φ550×320

\t
Lifting Mode
\t

Automatic

\t
Lifting Height (mm)
\t

0~150

\t

0~160

\t

0~190

\t

0~180

\t
Voltage
\t

220V 50/60Hz Single phase

Detailed Images

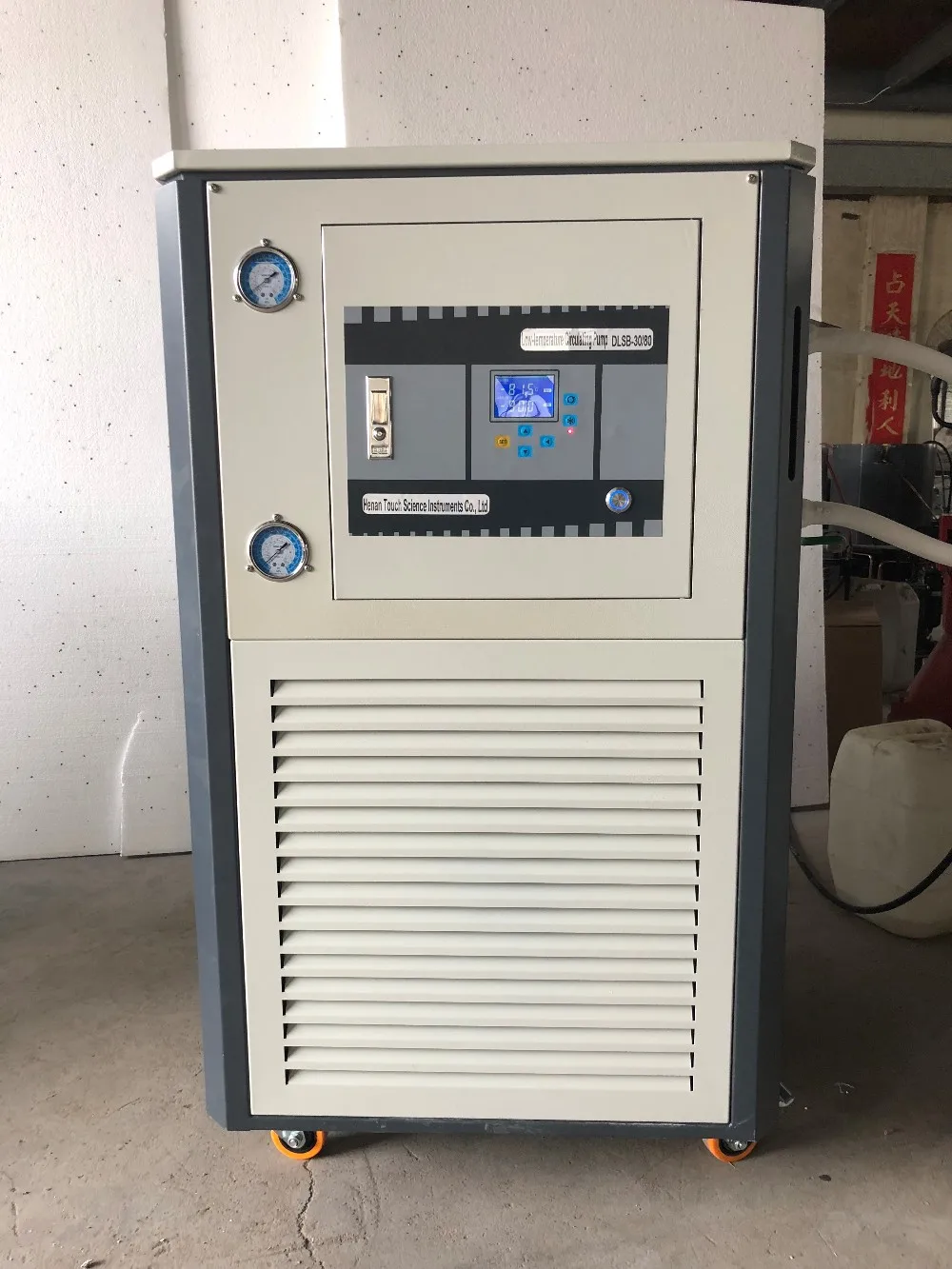

Corollary Equipment
Packing & Delivery

Packing:

-Rotary evaporator glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packed in wooden cases.
-Both neutral and customized packaging can be available.

Shipping:

Usually we ship the goods by one of three methods as follows. You can choose the most appropriate one according to your timeline and budget. Shipping by your own shipping agent is acceptable.


\t
Shipping method
\t

Note

\t
By express
\t
Door to door, very convenient, don't need to do customs clearance or pick-up
\t
By air to the airport
\t
Airport to airport, you need to do customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
\t
By air and dispatch
\t
Airport to airport, you need to do customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
