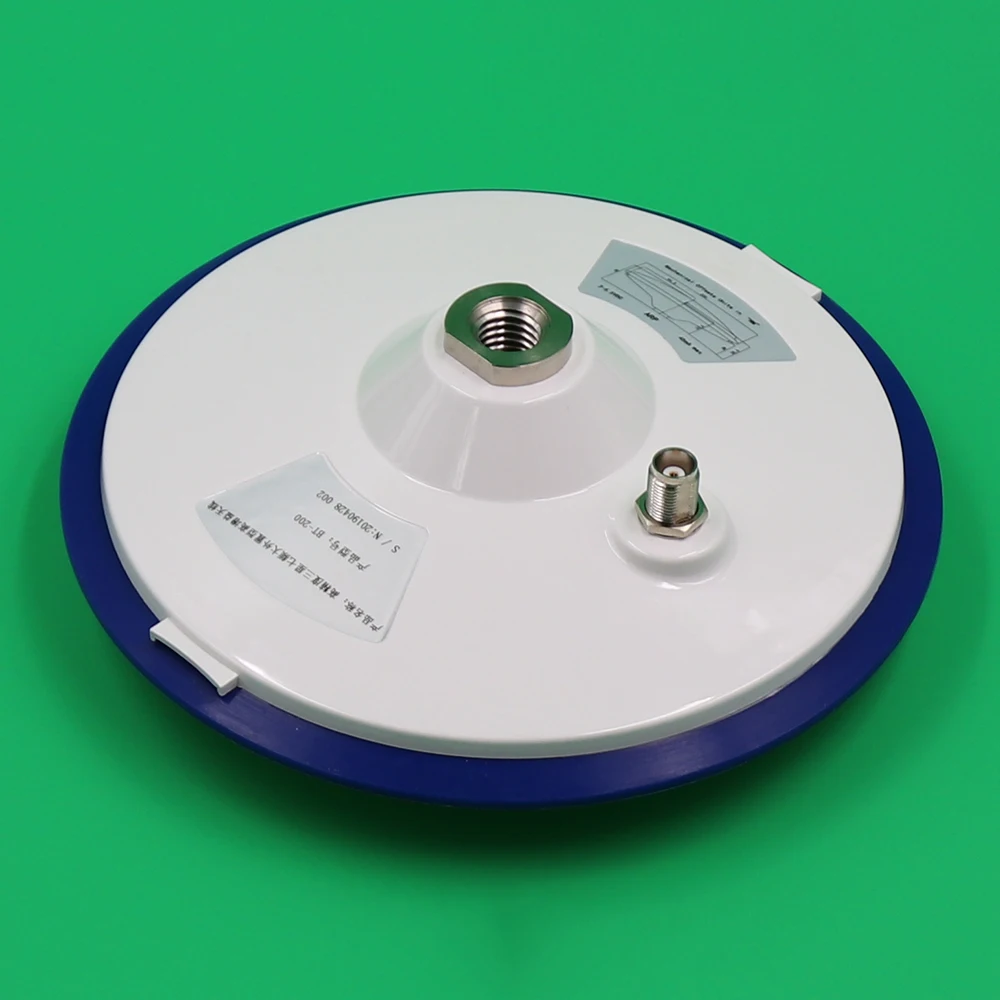

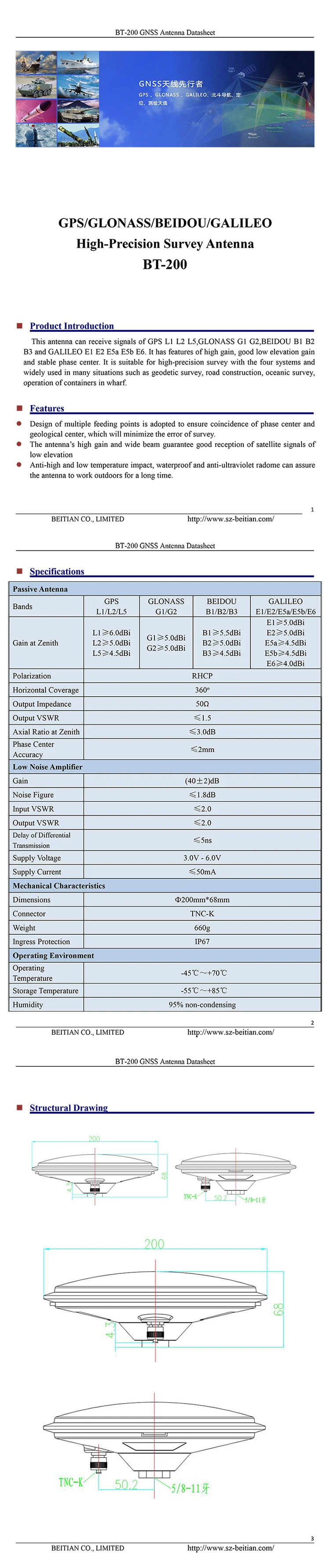

Passive Antenna

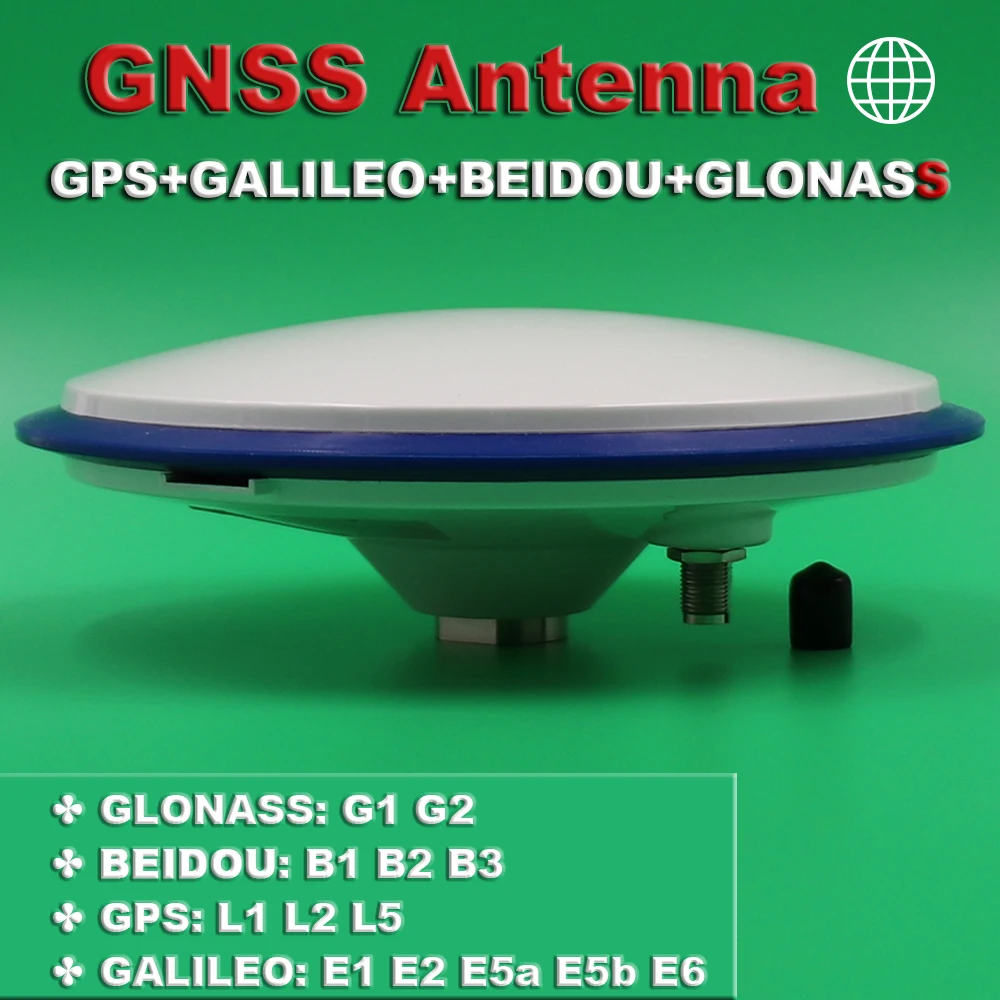

Bands

GPS

L1/L2/L5

GLONASS

G1/G2

BEIDOU

B1/B2/B3

GALILEO

E1/E2/E5a/E5b/E6

Gain at Zenith

L1≥6.0dBi

L2≥5.0dBi

L5≥4.5dBi

G1≥5.0dBi

G2≥5.0dBi

B1≥5.5dBi

B2≥5.0dBi

B3≥4.5dBi

E1≥5.0dBi

E2≥5.0dBi

E5a≥4.5dBi

E5b≥4.5dBi

E6≥4.0dBi

Polarization

RHCP

Horizontal Coverage

360^o

Output Impedance

50Ω

Output VSWR

≤1.5

Axial Ratio at Zenith

≤3.0dB

Phase Center Accuracy

≤2mm

Low Noise Amplifier

Gain

(40±2)dB

Noise Figure

≤1.8dB

Input VSWR

≤2.0

Output VSWR

≤2.0

Delay of Differential Transmission

≤5ns

Supply Voltage

3.0V - 6.0V

Supply Current

≤50mA

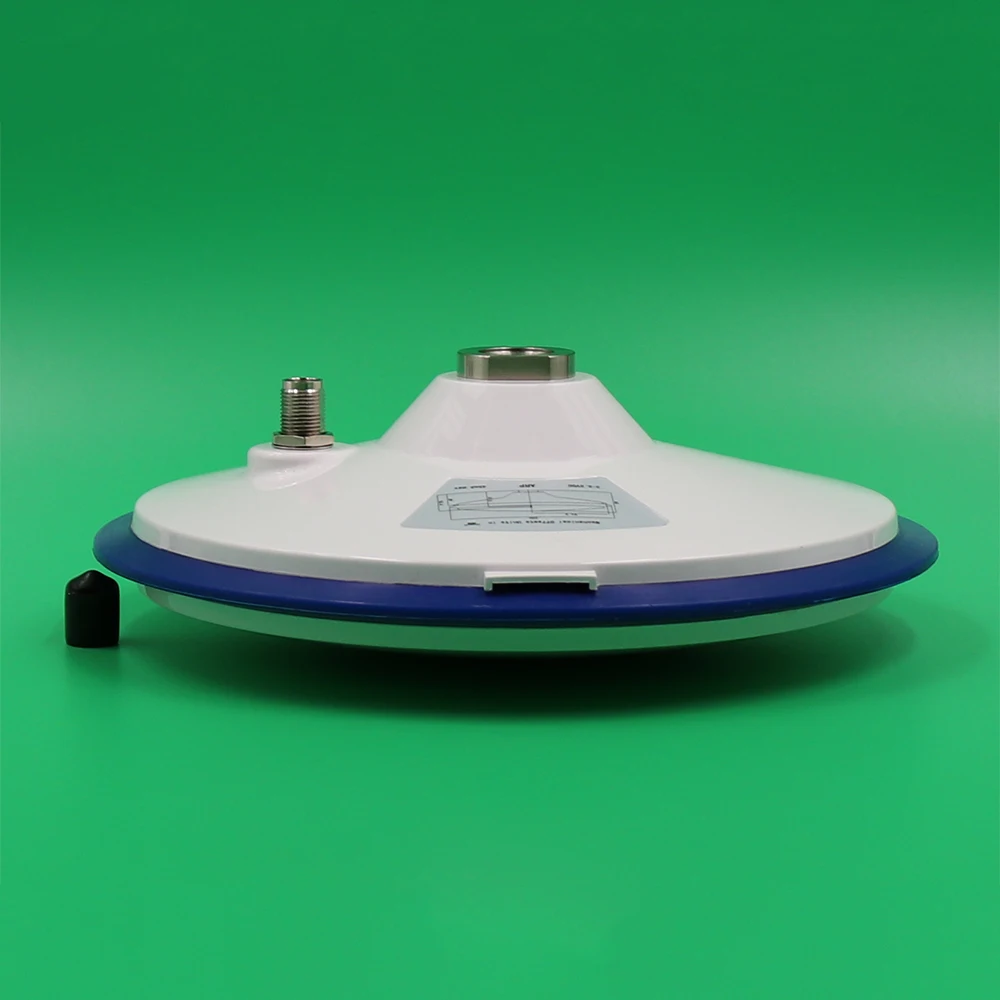

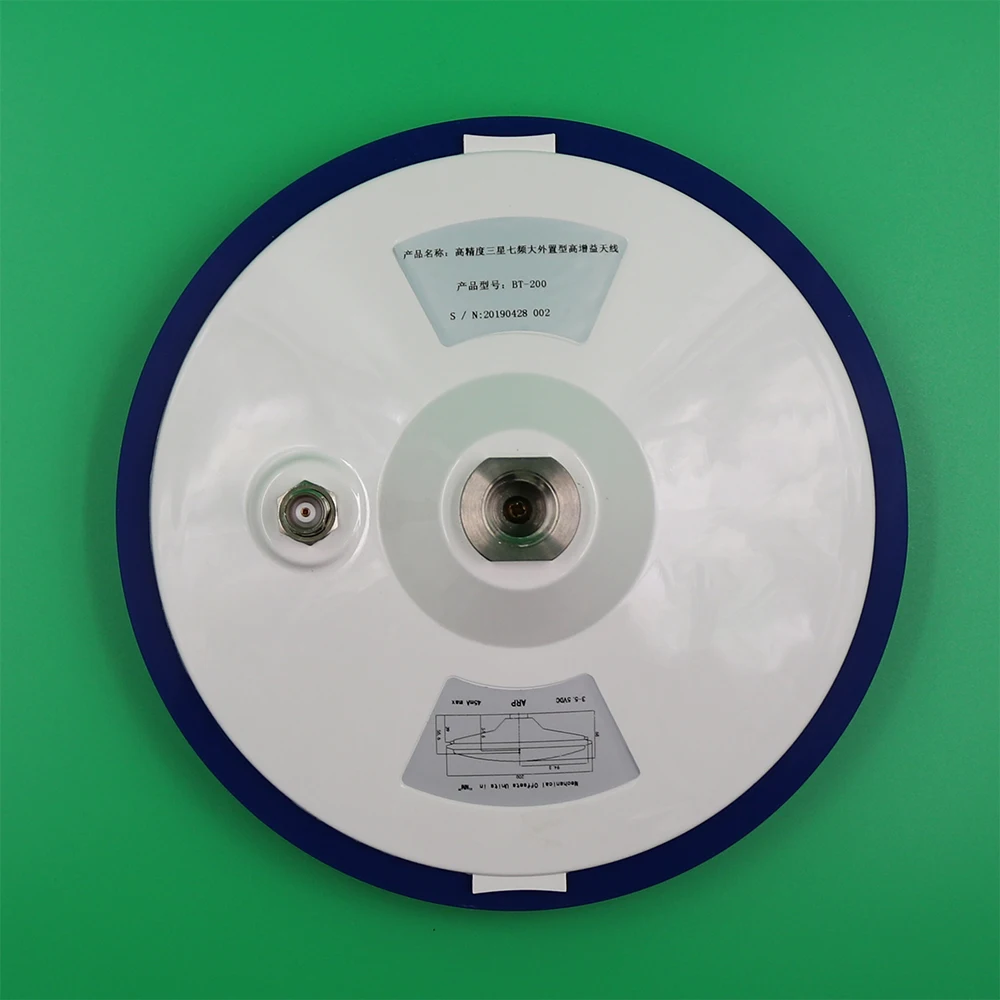

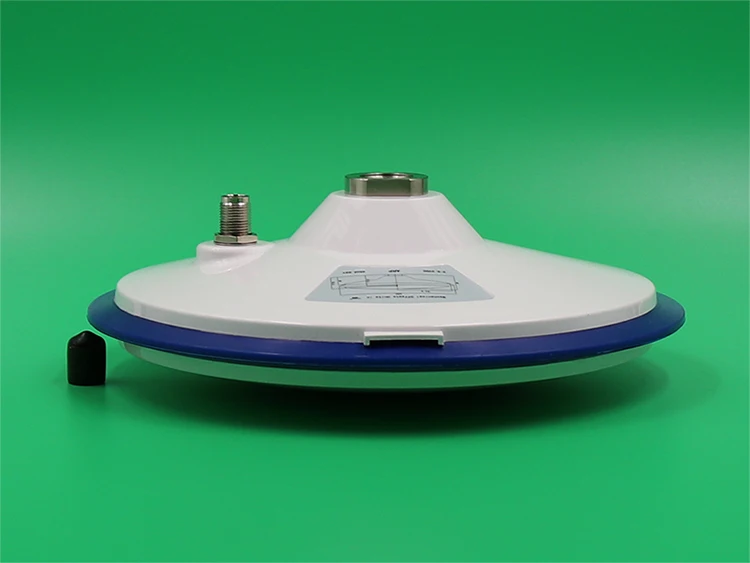

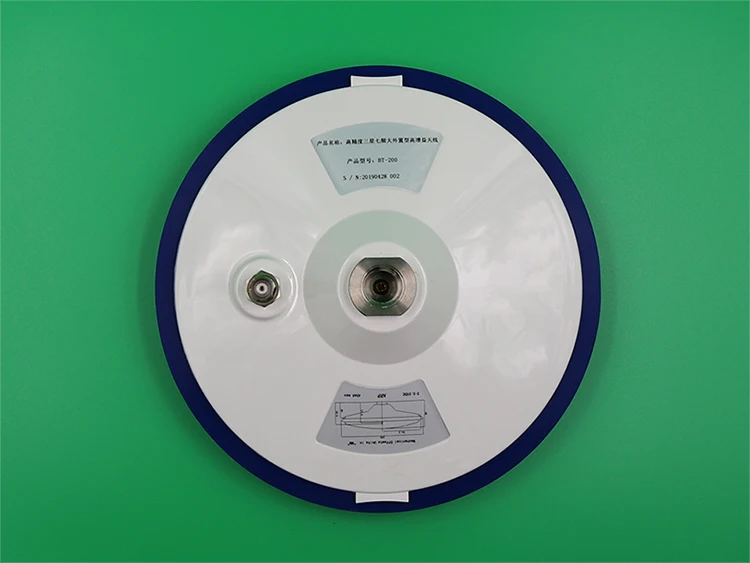

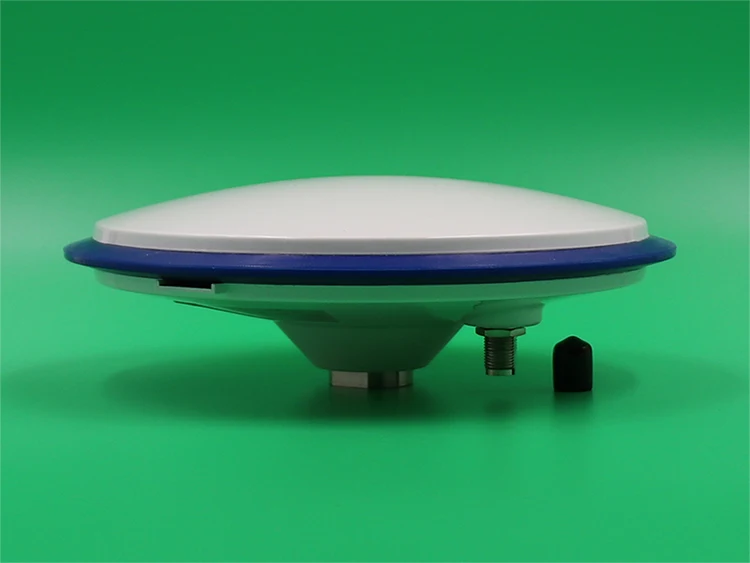

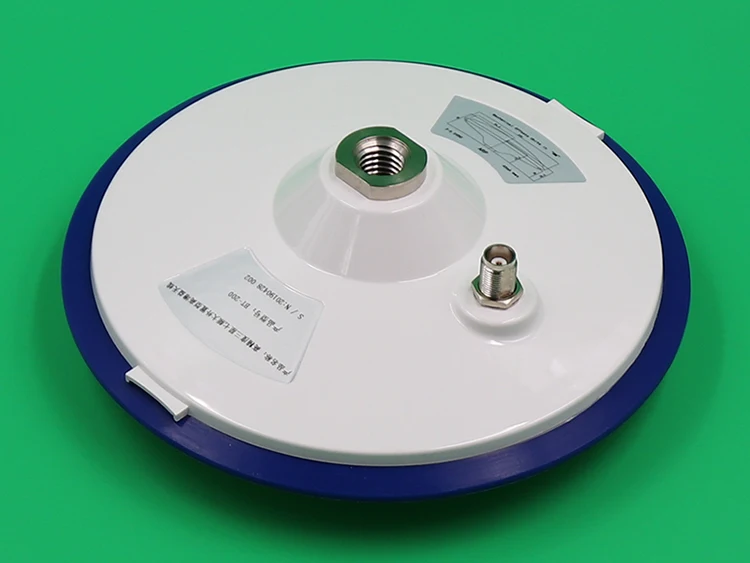

Mechanical Characteristics

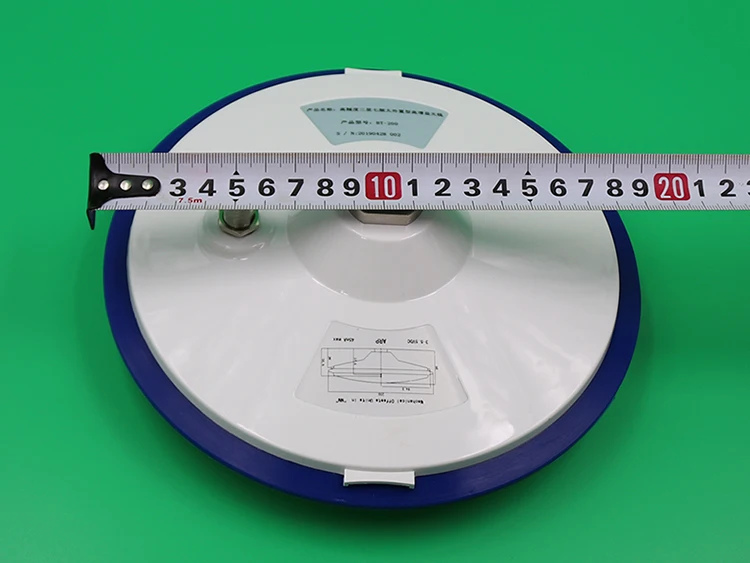

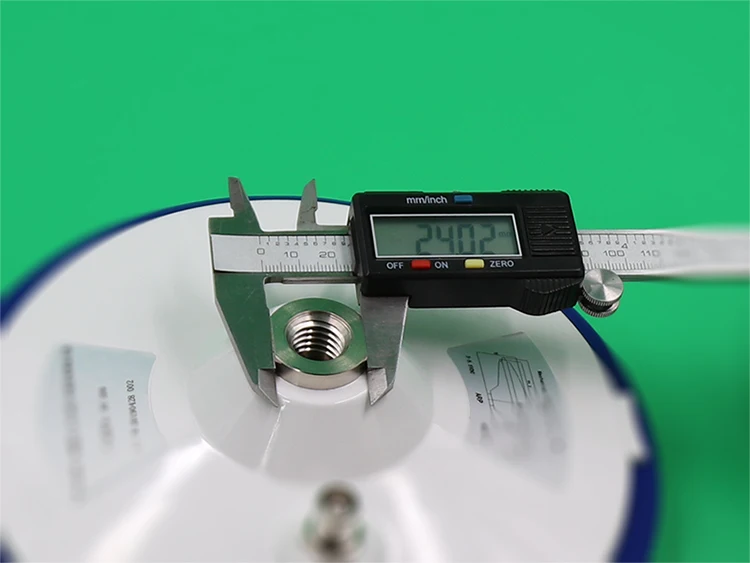

Dimensions

200mm*68mm

Connector

TNC-K

Weight

660g

Ingress Protection

IP67

Operating Environment

Operating Temperature

 -45℃~+70℃

Storage Temperature

 -55℃~+85℃

Humidity

95% non-condensing
