1NO 1NC DPST Emergency Stop Push Button Switch AC 660V 10A Switch Equipment Lift Elevator Latching Self Lock Red Mushroom

Product Name : Push Button Switch;

Action Type : Lacthing;

Contact Type : 1 NO + 1 NC;

Poles : DPST
Ui : 660V;Ith : 10A;Terminals Quanlity : 4 Pins
Button Diameter : 40mm/ 1.6";

Mount Hole Diameter : 22mm / 7/8";

Fit Panel Thickness(adjustable) : 6mm / 15/64"(max.)

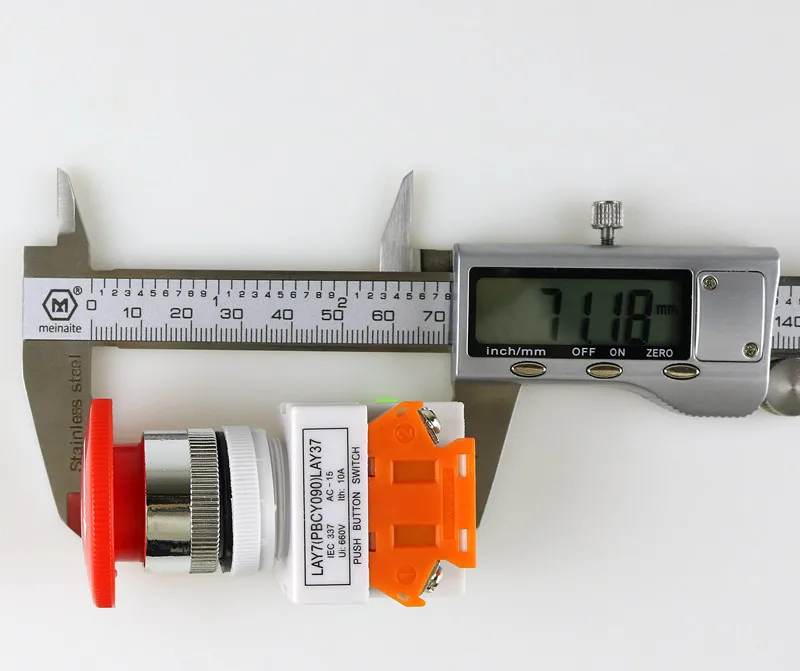

Size : 60 x 70mm/ 2.4" x 2.8" (Max.D*H);

Cap Lamp : Red;

Material : Plastic,Metal
Color : As Picture Shown;Weight : 46g;Package Content : 1 x Push Button Switch Red Mushroom Cap 1NO 1NC DPST Emergency Stop Push Button Switch AC 660V 10A

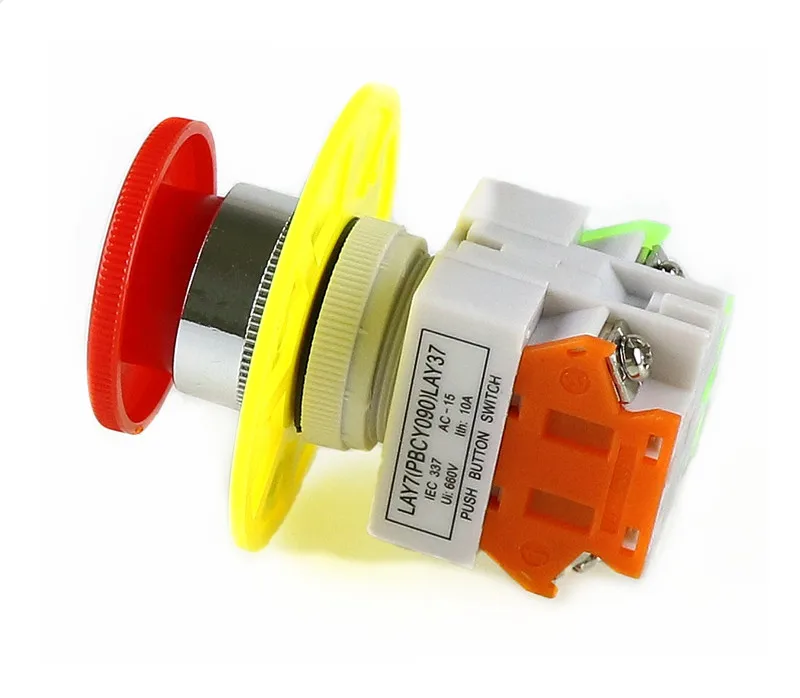

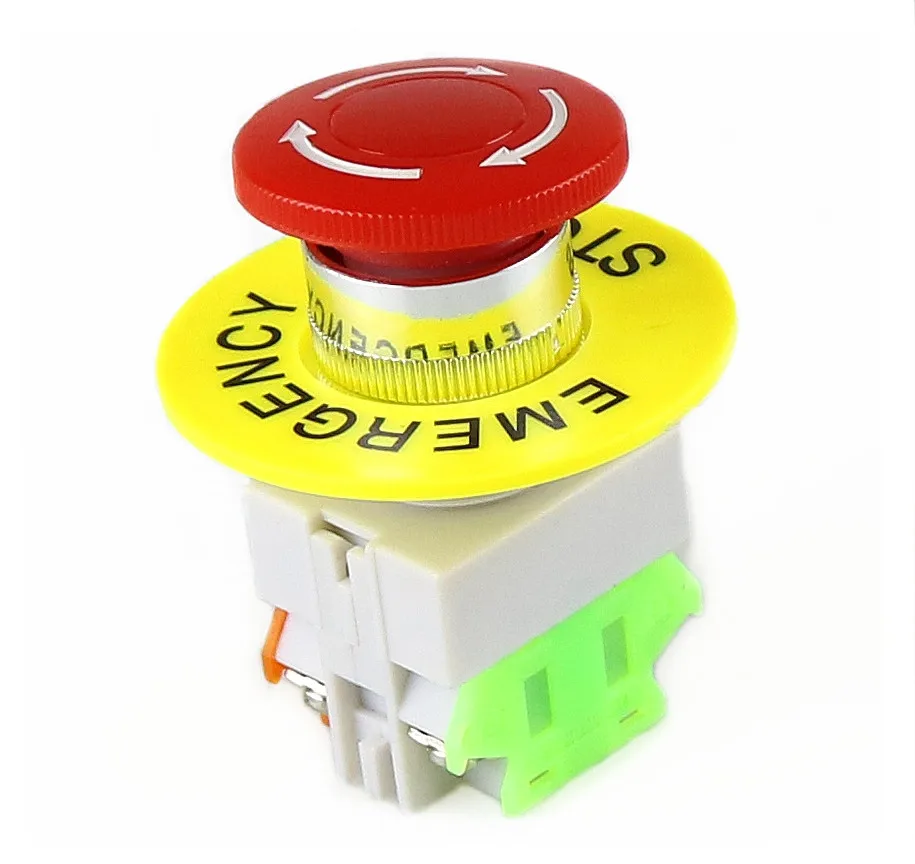

* Features: 4 terminals, 22mm mounting hole, 1NO+1NC contact type, red mushroom emergency stop latching push button switch with yellow cap.
* Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
