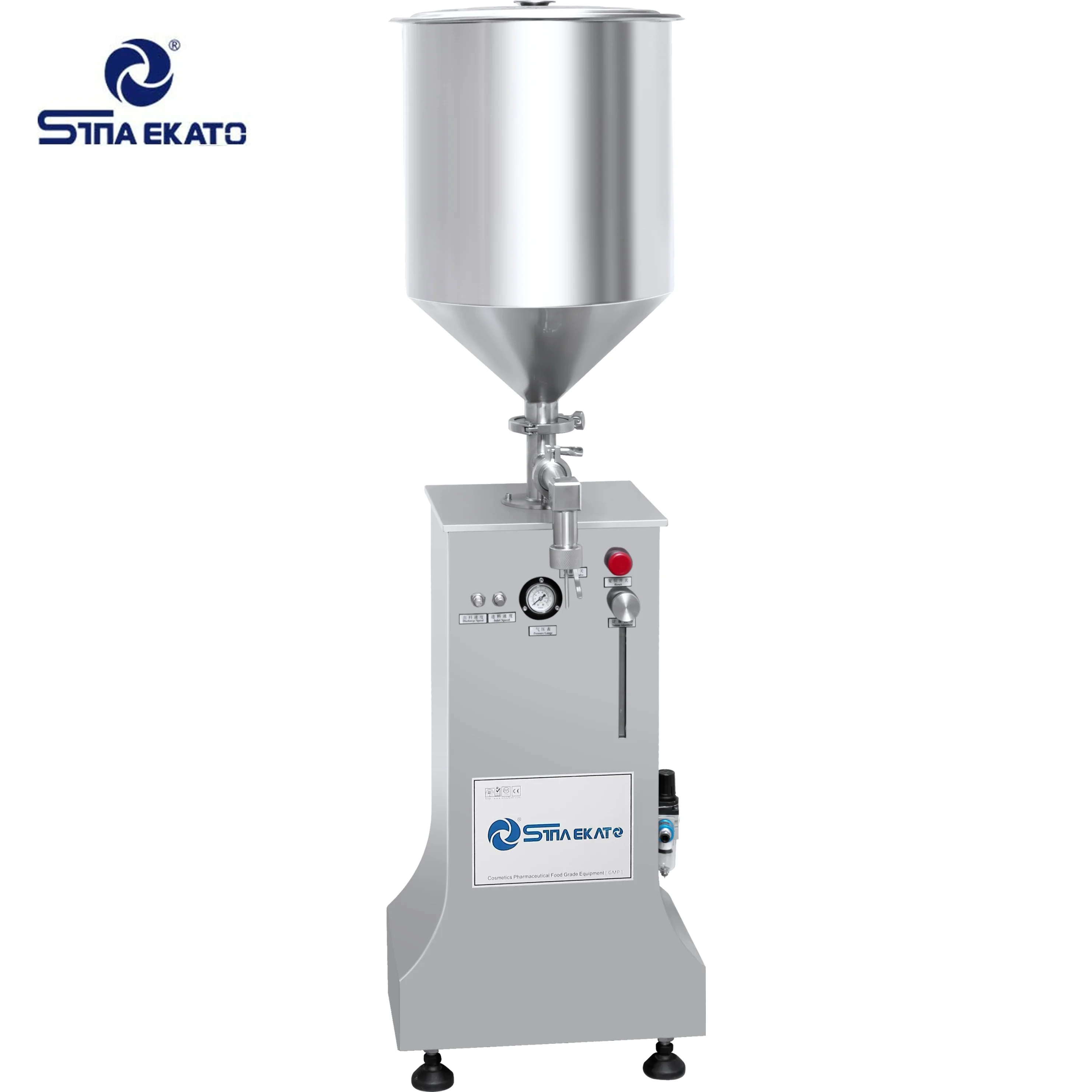

Hot sales semi auto pneumatic honey/oil / food filling machine with heater and mixer

Product Overview

Description

1.Application: Liquid & cream

  Offer one-year warranty and lifetime maintenance.

  It is suitable for the liquid filling, New horizontal design, lightweight convenience, easy to operate



2.this machine adopts imported machine parts pistion and cylinder which made of stainless steel and polytetraflutoethylene Excellent qualified imported components and perfect



3.mechanical design ensure its leading position among domestic similar machines New type horizontal design legerity and convenient take out material automatically and avoid trouble of



4.frequent putting in material of vertical hopper Switch function between manual and automatic when machine is under automatic condition ,machine fills continuously



5.automatically withe set speed .when machine is under automatic condition ,operator steps on footplate to realize filling if stepping on footboard all the time .it will change to automatic continuous filling condition, cylinder and three -way part adopt cuff connection which is easy to remove ,it doesn,t need any special tools so it is easy to clean Anti-leaking filling system



6.during filling ,cylinder moves up and down and drive end ring ,when cylinder is downwards ,endring is downwards then valve is open and start to fill material ;when cylinder is upwards end ring is upwards then valve is close and stop to fill matereal and avoid leaking and wire drawing



Item	Specification	Remark
Import cylinder	Germany FESTO
Material	Material touch part is SS 316L	Outside adopt SS 304
Filling volume range	100-1000 ml	Filling volume range (Optional) 25-250ml,50-500ml
Filling Speed	20-40bottles/min
Filing Precision	±0.5%	drip-tight
Air Pressure	0.5-0.8MPa
Working Pressure:	0.2-0.5MPa
Air Consumption:	0.05m³/min
Weight:	55kg
