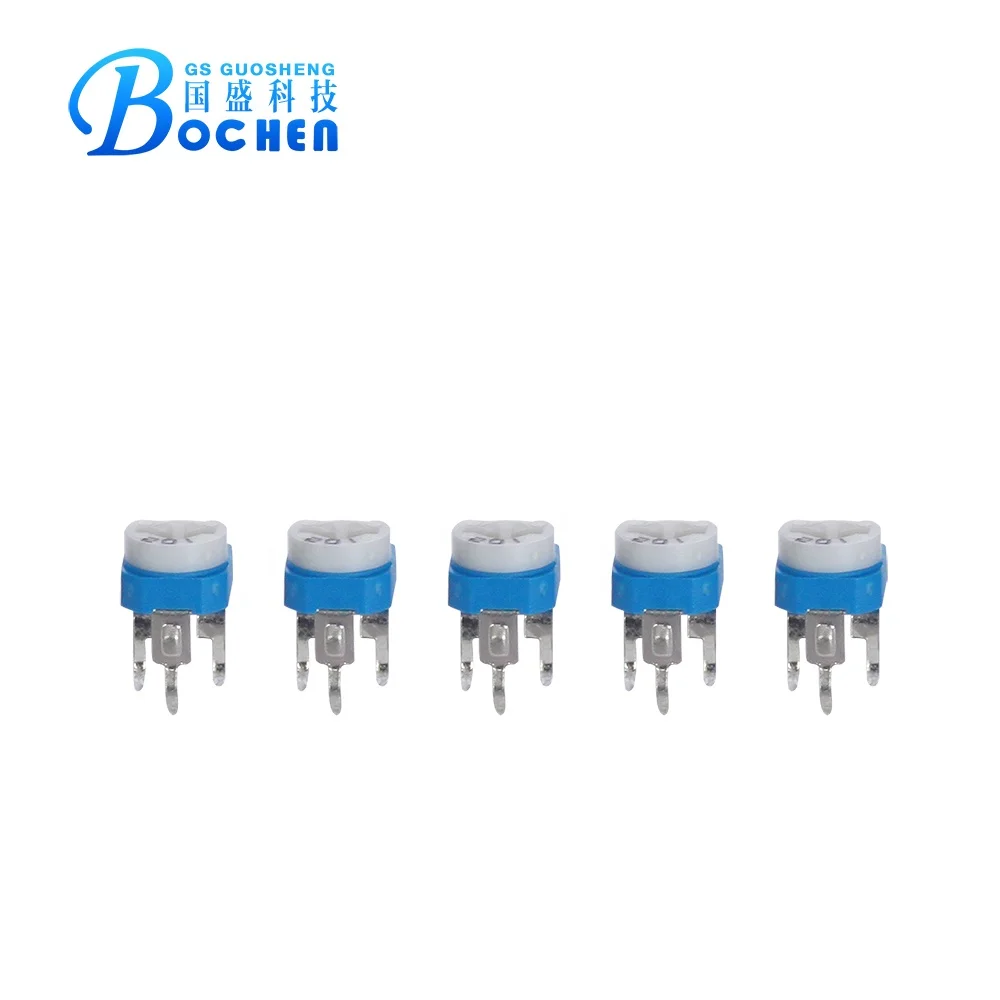

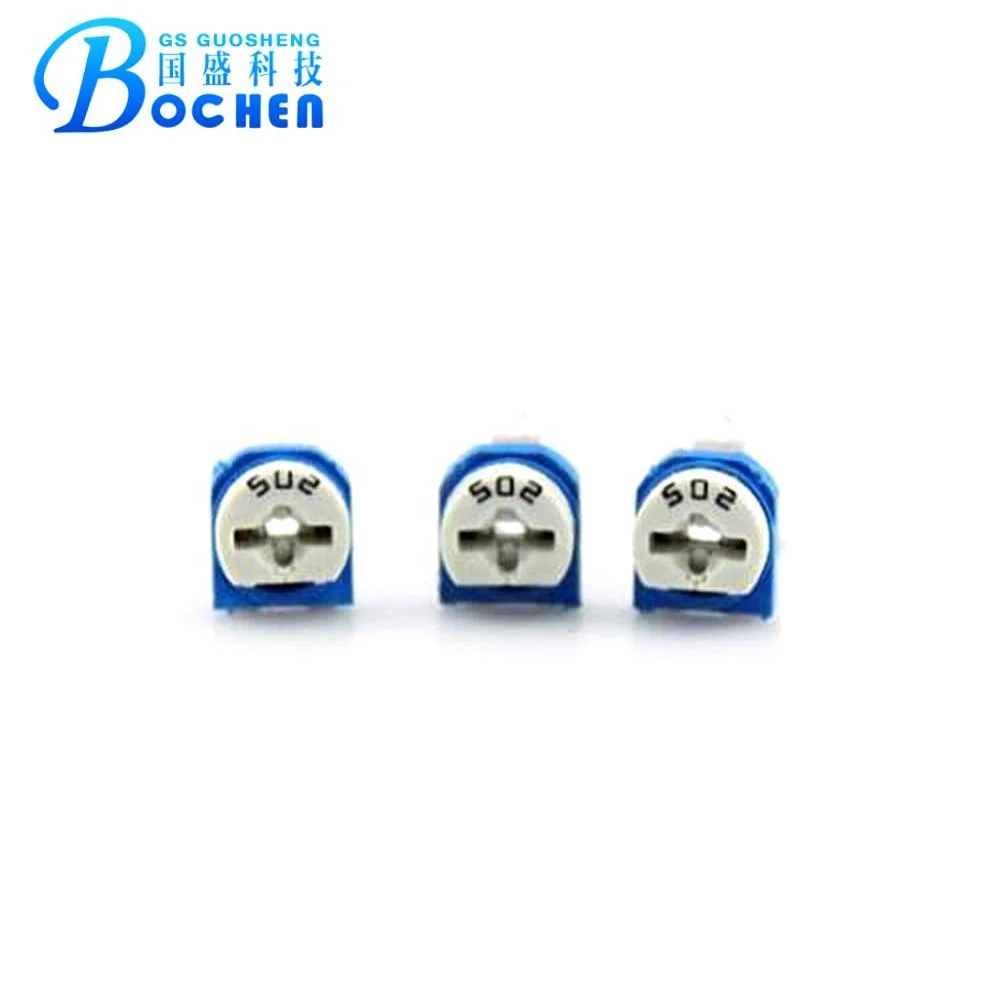

Rheostat DIP5K 50K 500K Adjustable Resistor RM065 carbon mini Potentiometer
- Category: >>>
- Supplier: Chengdu Guosheng Technology Co. Ltd.
Share on (62159839740):
Product Overview
Description
Rheostat DIP5K 50K 500K Adjustable Resistor RM065 carbon mini Potentiometer
Carbon Potentiometer RM065
| |
| Electrical Characteristics: | |
| Total Resistance | 100Ω-1MΩ |
| Total Resistance Tolerance | ±10% ±20% |
| Max. Operation Voltage | AC50V Max |
| Rated Power | 0.1W |
| Resistance Taper | B (Linear) |
| Insulation Resistance | ≥100MΩ at 100V ac |
| Residual Resistance | ≤30 ohm |
| Rotational Life | Max. ±15% change in resistance after 100 unload circles |
| Load life | Max. ±5% change in resistance after 3 hours loaded |
| Mechanical Characteristics: | |
| Total Rotational Angle | 270°±20° |
| Rotational Torque | 20-450gf.cm |
| Rotational Life | 10,000 cycles |
| Stop strength | 3kgf.cm |
| Environmental Characteristics | |
| Operating Temperature | -10°C~+70°C |
| Temperature Characteristics | Resistance change +5%~+30% after 5 hours at 70°C |
| Humidity Characteristics | Max. resistance 20% after 350 hours at 40° and R.H 90% |

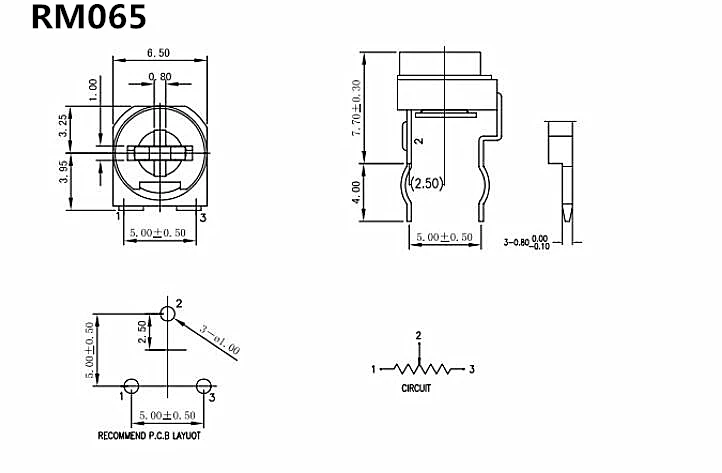

Shape Dimension:
