LPC Capsule Slip Rings,6Circuits IP54 240VAC 0~300rpm or higher,Can customizable
- Category: >>>
- Supplier: Shenzhen Jinpat Electronics Co. Ltd.
Share on (62160028892):
Product Overview
Description
Product Description
Bargain Price Only in Alibaba
Standard middle-sized Capsule Slip Ring is able to integrate over 125 circuits, with optional outer diameter from 22mm~54mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compact and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.
LPC-06B Slip Ring parameter
| Protection Grade | IP54 |
| Working Speed | 300 RPM |
| Circuits | 6 |
| Current Rating | 2A Or higher |
| Voltage | 240VAC |
| Working Temperature | -40~+80℃ |
| Electric shock material | Gold to Gold |
| Wire specification | AWG28#, silver plated Teflon, UL |
| Lead Wire Length | Rotor:250mm; Stator:250mm |
| Insulation | 1000MΩ@500VDC |
| Dielectric Strength | / |
| Electrical noise | / |
LPC-06B Slip Ring Outline Drawing

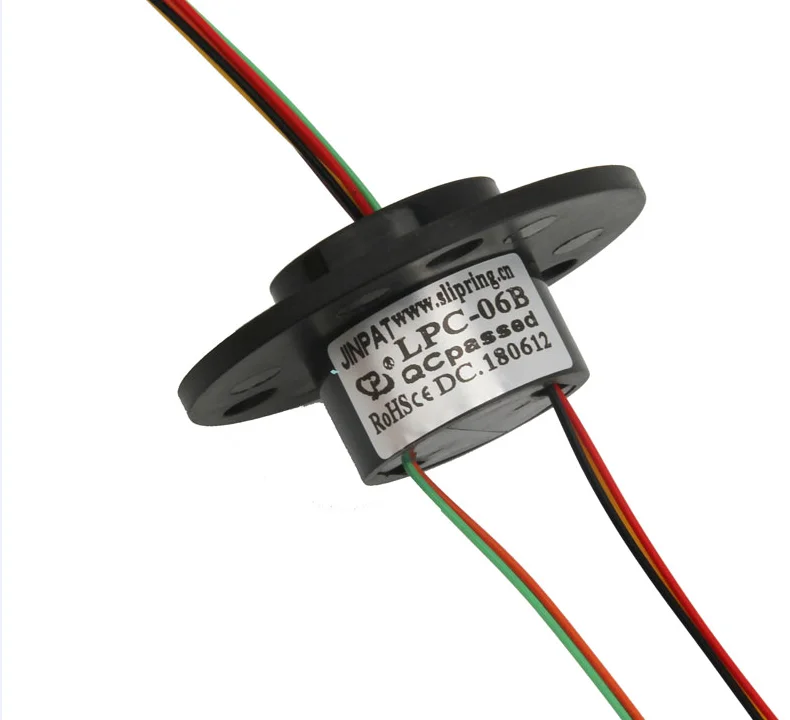

Product Image
Features:
- Military standard surface processing
- Precise
- Gold-to-gold contact
- Low resistance
- Long service life
Options:
- Rotating speed
- Life span
- Protection grade
- Number of circuits
- Current capacity
- Size
- Housing material
- Mass produc-tion
Main applications:
- High speed dome
- Camera platform
- Electrical testing equipment
- Rotary table
- Manufacturing and control equipment
