5 Rows Precise Soybean and corn Seed Drill 2BYFSF 5
- Category: >>>
- Supplier: Wuhan Xinkai Machinery Co. Ltd.
Share on (62160041198):
Product Overview
Description

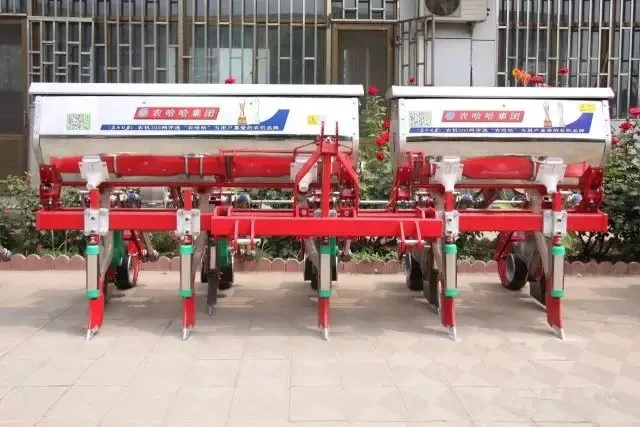

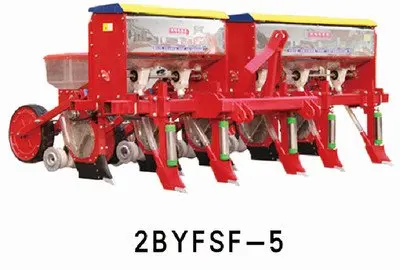

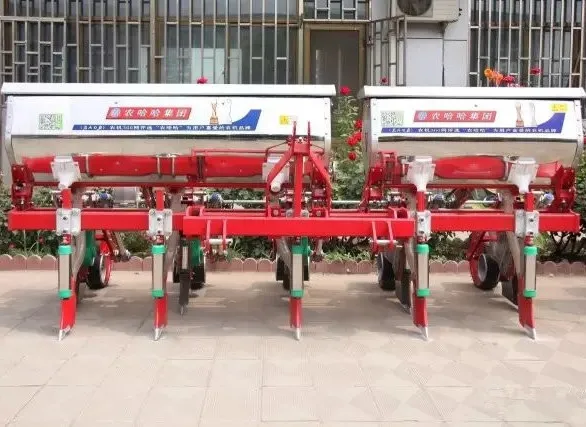

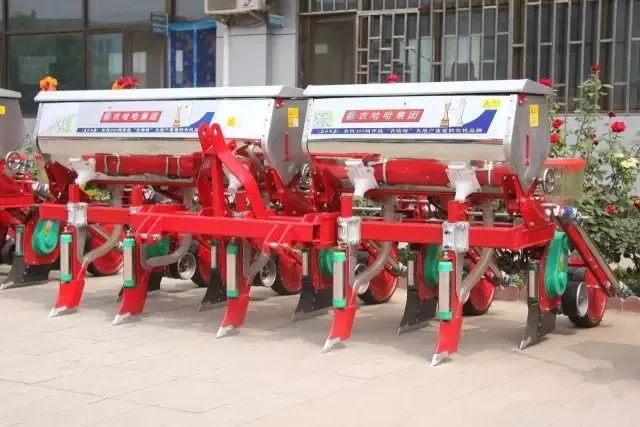

5 Rows Precise Soybean and corn Seed Drill 2BYFSF-5
Product Description
1. This series seeders can finish furrowing, fertilizing, seeding, covering soil, pressing during one operation.
2. The planting structure adopts the monomer installation with adjustable rows spacing: the multiple-class speed may meet the requirement of various planting distance: the ski-shaped coulter boot has small resistance and small power consumption; the parallel-linkage contour may ensure the planting mechanism can make contour either on flat, valley or sloping land, so the planting depth is consistent..
Specification Detail
Model | 2BYFSF—2 | 2BYFSF—3 | 2BYFSF—4 | 2BYFSF—5 |
Overall Dimension(mm)(mm) | 1700×1250×1180 | 1700×1520×1180 | 1580×2000×998 | 1630×2900×980 |
Weight(kg) | 190 | 290 | 350 | 490 |
Matched Power kW (HP) | 14.7~18.3 (20~25) | 18.3~29.4 (25~40) | 18.3~29.4 (25~40) | ≥36.8 (≥50) |
Rows | 2 | 3 | 4 | 5 |
Line Spacing(mm) | 530~700 | 530~700 | 450~686 | 600 |
Row Spacing(mm) | 80,100,120,130,140,150,160,170, 180,200,230,250,280,300,330,360 | |||
Working Width(mm) | 1060~1400 | 1590~2100 | 1800~2744 | 3000 |
Fertilizer Depth(mm) | 60~80 | 60~80 | 60~80 | 60~80 |
Seed Depth(mm) | 30~50 | 30~50 | 30~50 | 30~50 |
Max.Fertilizer Consumption(kg) | 140 | 140 | 140 | 140 |
Seed Rate(kg) | 1.5~2.5 | 1.5~2.5 | 1.5~2.5 | 1.5~2.5 |
Rate of Injury | ≤1.5% | ≤1.5% | ≤1.5% | ≤1.5% |
Fertilizer Tank(L) | 130 | 195 | 260 | 325 |
Seed Tank(L) | 8.5×2 | 8.5×3 | 8.5×4 | 8.5×5 |
Working Efficiency(hm2/h)
| 0.2~0.3 (3~4.5) | 0.3~0.45 (4.5~6.7) | 0.4~0.6 (6~9) | 0.5~0.75 (7.5~11.2) |
Min.Ground Clearance at transport | 300mm | 300mm | 300mm | 300mm |
Min. Vertical distance between seed tank and fertilizer tank (mm) | >50 | >50 | >50 | >50 |

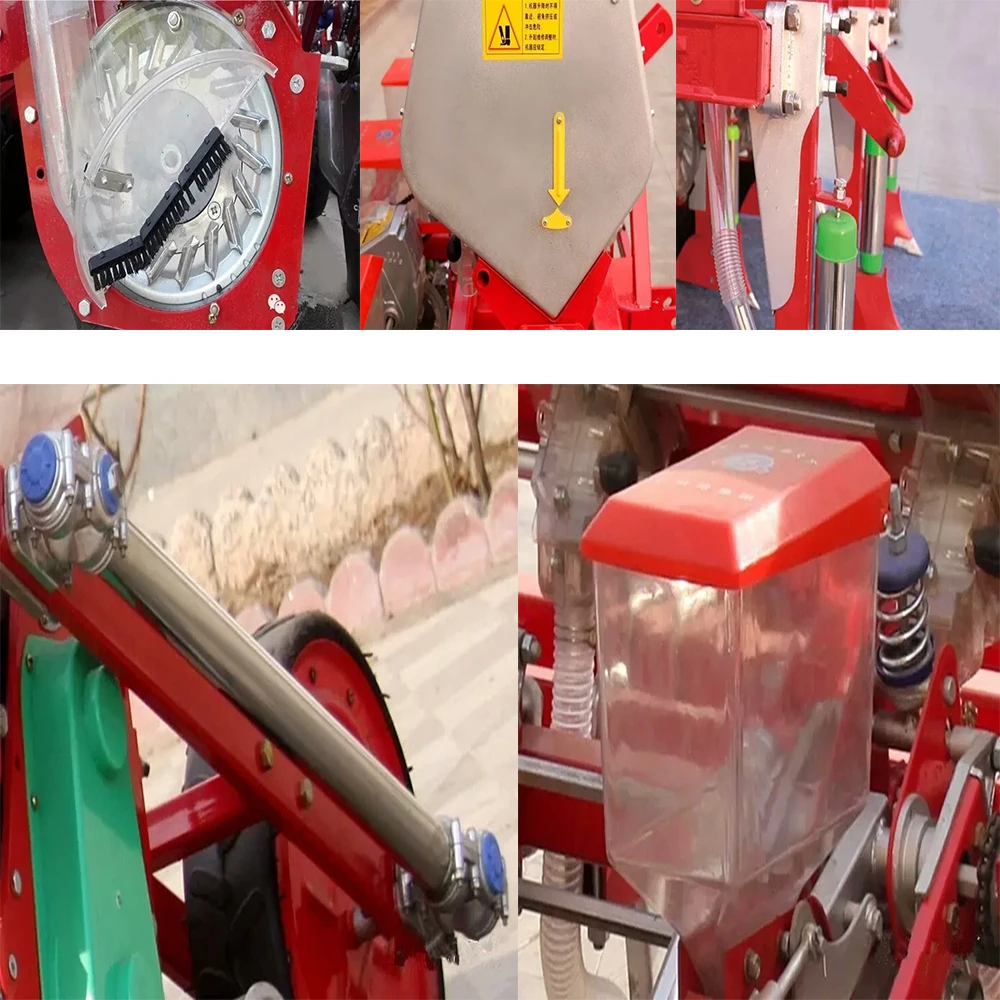

Detailed Images

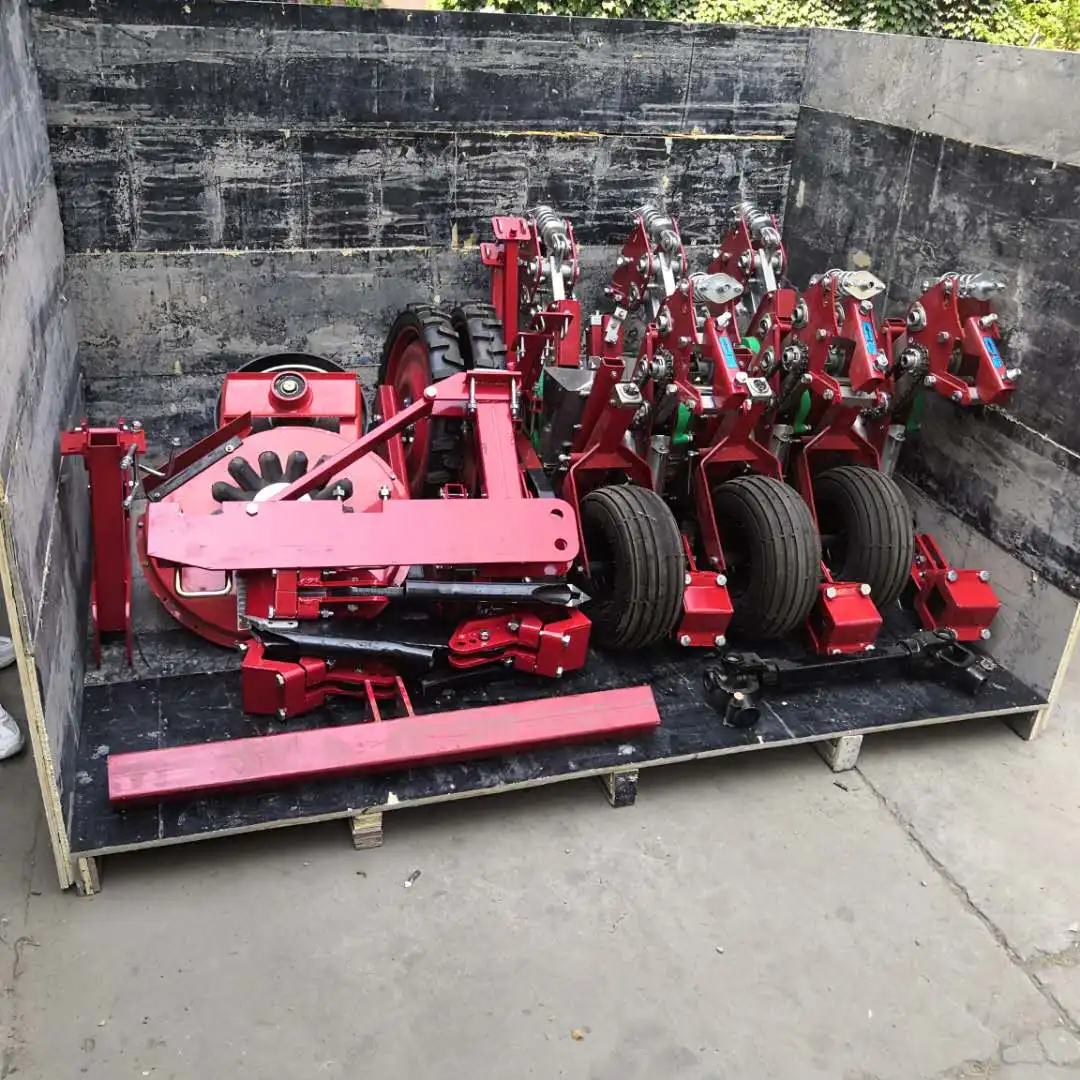

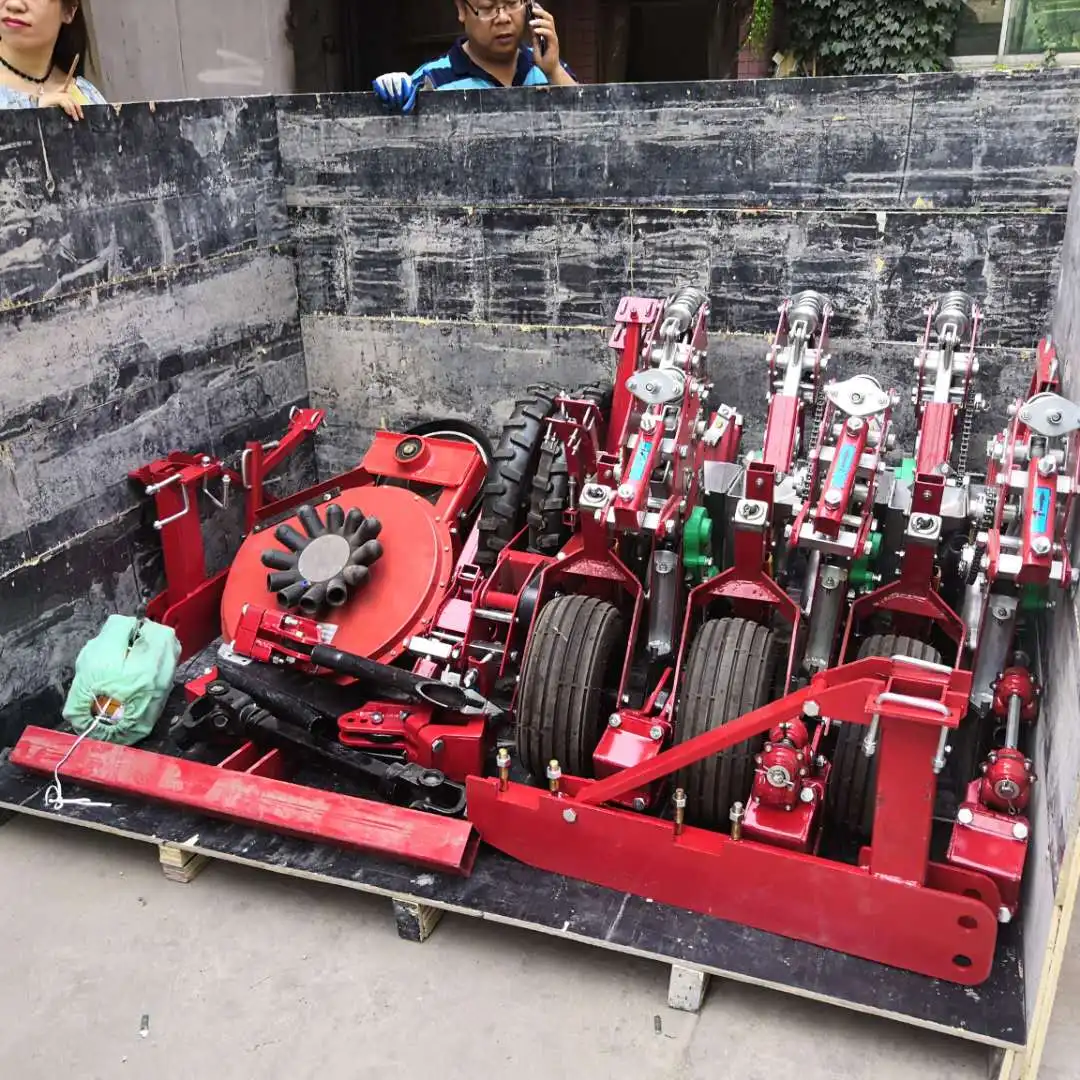

Packaging & Shipping
