14hp BS engine UTV front mounted flail mower/120cm work width quadbike mulcher/13HP meadows cut mower/15hp utv hammer lawn mower
- Category: >>>
- Supplier: Shanghai Diamond Garment Accessories Co. Ltd.
Share on (62160175796):
Product Overview
Description
Product Description

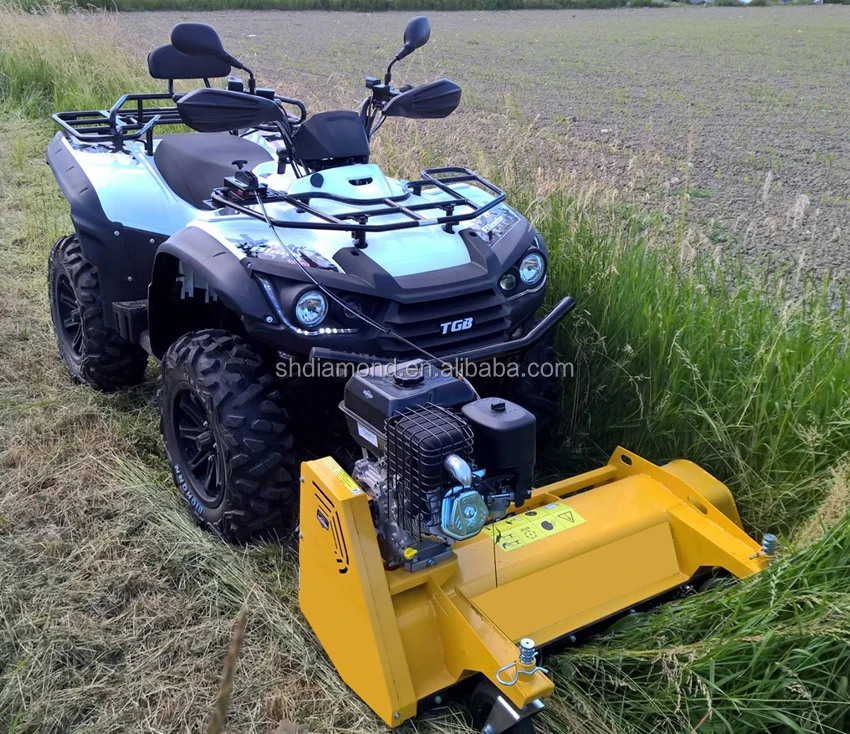

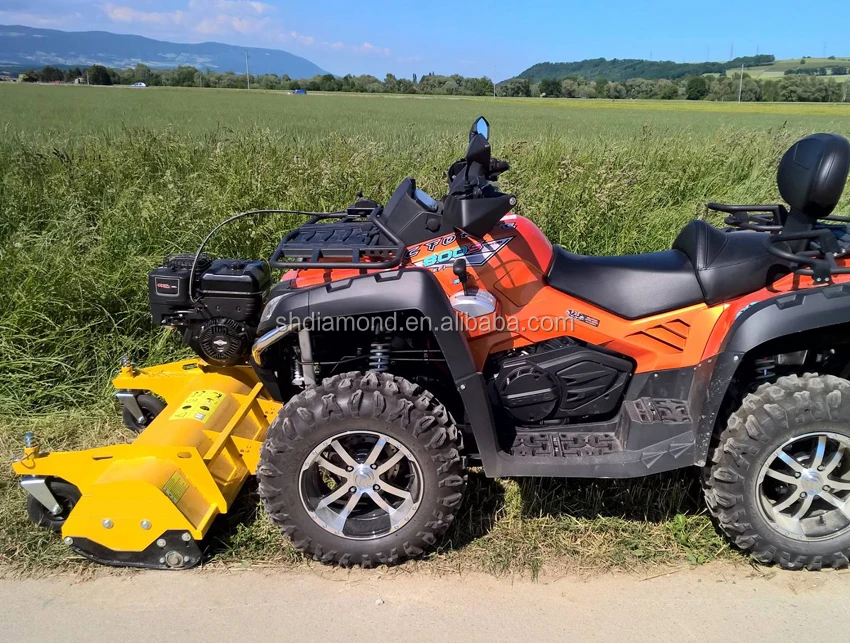

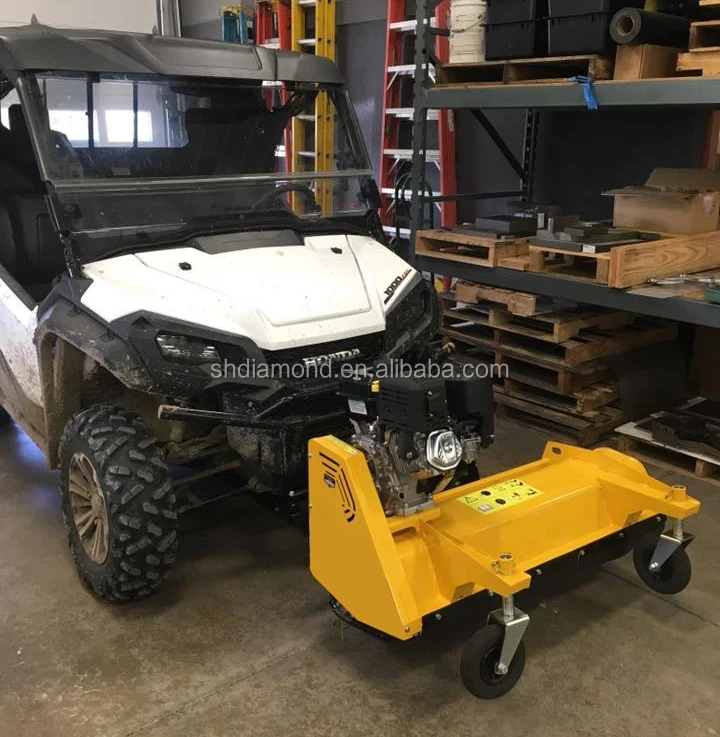

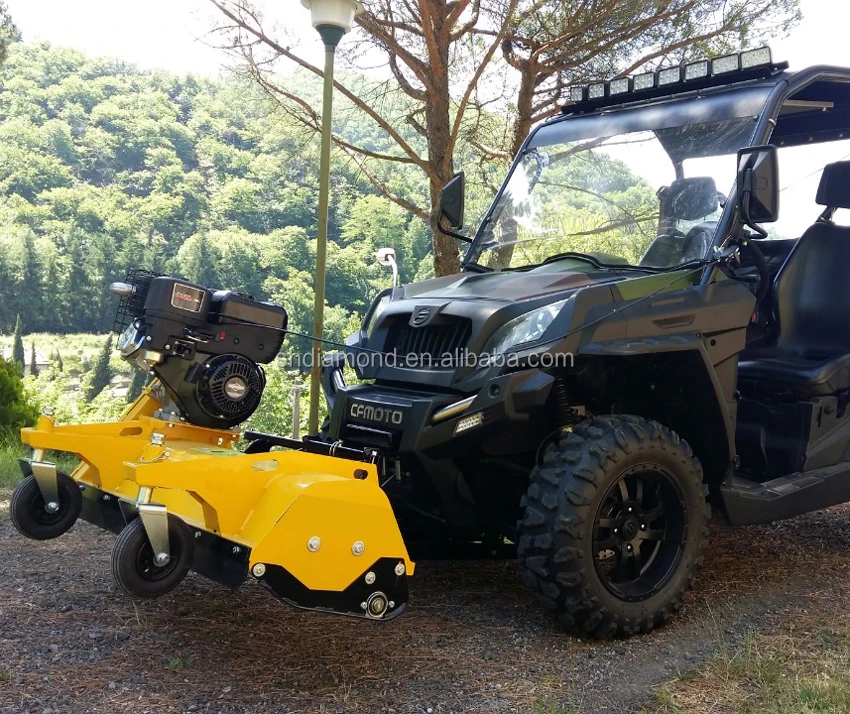

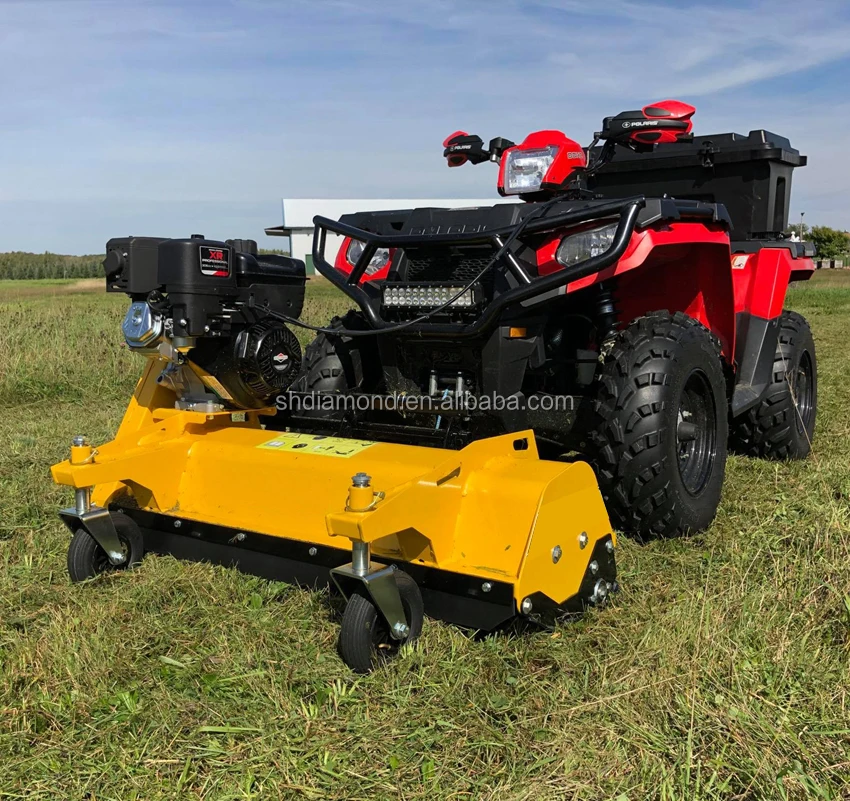

14hp BS engine UTV front-mounted flail mower/120cm work width quadbike mulcher/13HP meadows cut mower/15hp utv hammer lawn mower
13hp BS engine quad flail mower/120cm work width atv mulcher/tractor grass cut mower w hood/15hp utv mower w rear flap CE
Idea for cutting hay, meadow grass and small trees on lawn, meadows and roadside.
With OPTIONAL 13HP HONDA or optional 15 HP engine with electric start
Side Drawbar
Adjustable wheels height
Either knives or hammers applicable
GASOLINE MOTOR
automatic belt tension
CE safety standard
SPEC:
| Model | AFM1511 |
| Powertrain | |
| Type | 13hp OR 15HP Single cylinder - 4 strokes OHV /14hp BS optional |
| Displacement | 389 cc OR 420CC(15HP) |
| Stroke x bore | 88 x 64 mm OR 90X66mm |
| Compression | 8.0 : 1 |
| Power | 13.0hp/ 3600 rpm or 15.0hp/ 3600 rpm |
| Torque | 25,1 N.m / 2500 rpm or 28 N.m / 2500 rpm |
| Ignition | Electronic |
| Starter | Electric / manual launcher |
| Cutting device | |
| Cut Width | 120cm |
| Optional | 150cm |
| Tires | |
| rotatable and height | Adjustable |
| wheels | |
| Body dimension | |
| Length | 1835mm |
| Width | 1250mm |
| Height | 775mm |
| Dry weight | 158 kg |
| Tank | 12,8 l |
| Fuel | Unleaded gasoline |
| NO. of Knives | 44pcs |
| Cutting height | Adjustable |
| Number of Belts | 2 |
| CE | approval safe standard |
MORE PHOTOS:
