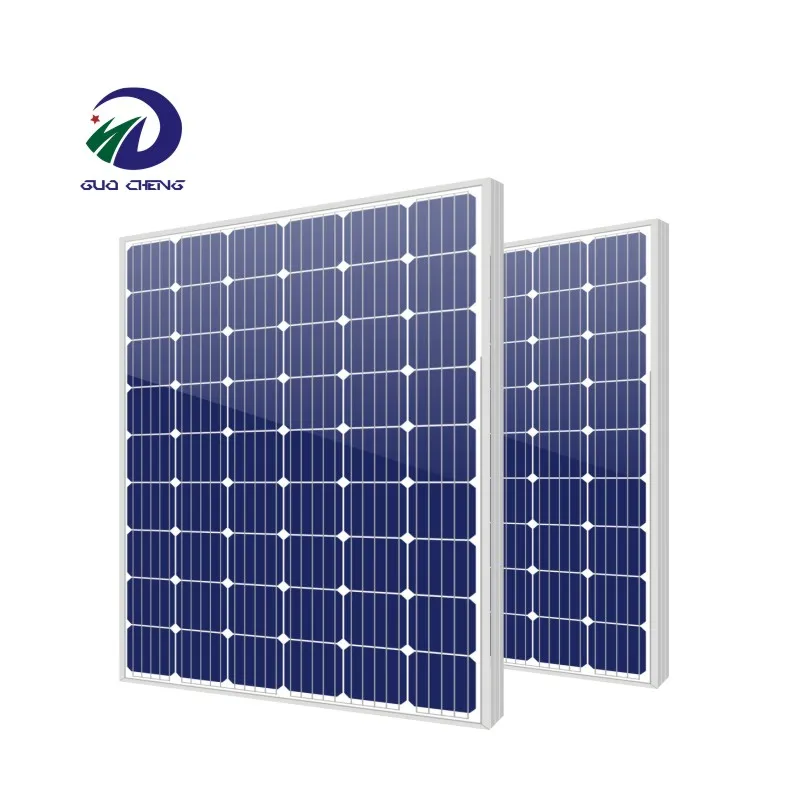

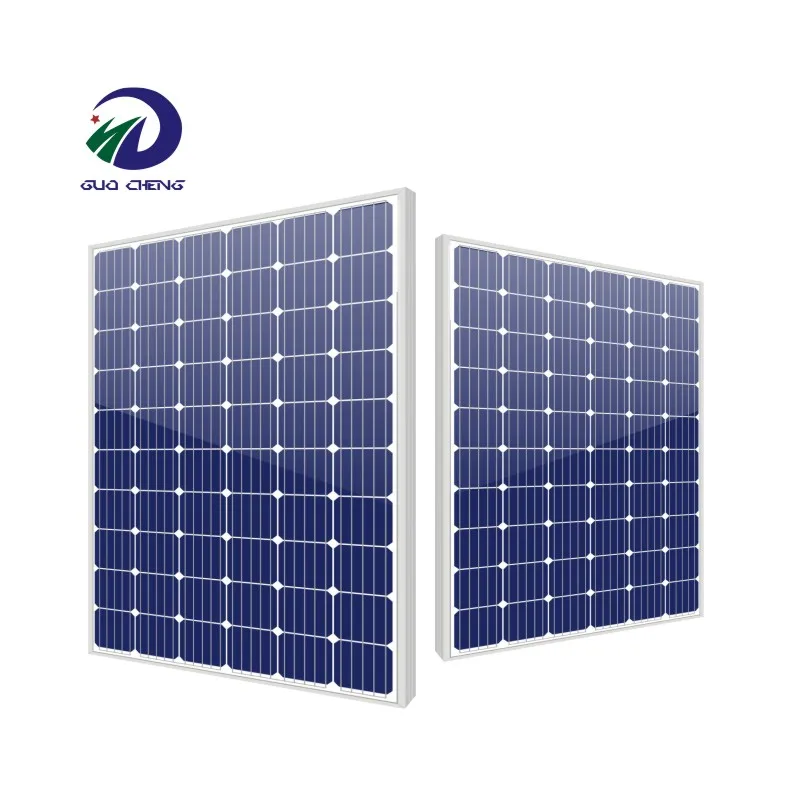

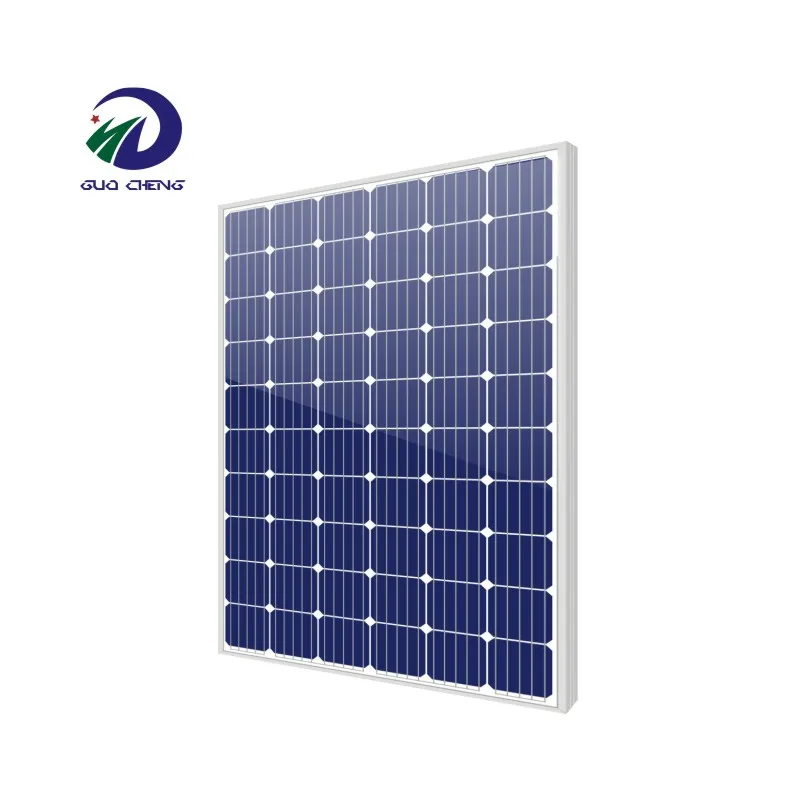

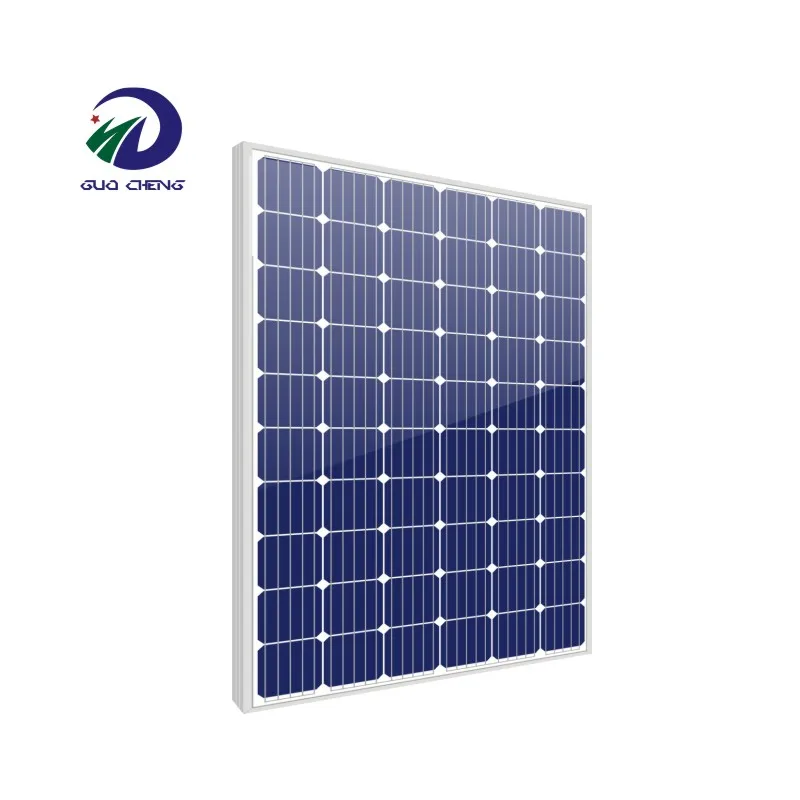

Top 10 Alibaba Supplier 350w 400w 500w Pv Mono Solar Panel Cheapest Price
- Category: >>>
- Supplier: Goosun Energy Construction Group Co. Ltd.
Share on (62160562345):
Product Overview
Description
Product Description
Module Type | GCM72-335 | GCM72-340 | GCM72-345 | GCM72-350 | |||
Maximum Power(Pmax) | 335w | 340w | 345w | 350w | |||
Open-circuit Voltage (Voc) | 46.3 | 46.5 | 46.7 | 46.9 | |||
Maximum Power Voltage(Vmp) | 37.9 | 38.2 | 38.4 | 38.5 | |||
Short-circuit Current (Isc) | 9.36 | 9.45 | 9.50 | 9.60 | |||
Maximum Power Current (Imp) | 8.84 | 8.90 | 8.99 | 9.09 | |||
Module Efficiency (%) | 17.28 | 17.90 | 17.80 | 18.06 | |||
Power Tolerance | 0~+5W | ||||||
Standard Test Environment | Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5 | ||||||
Detailed Information

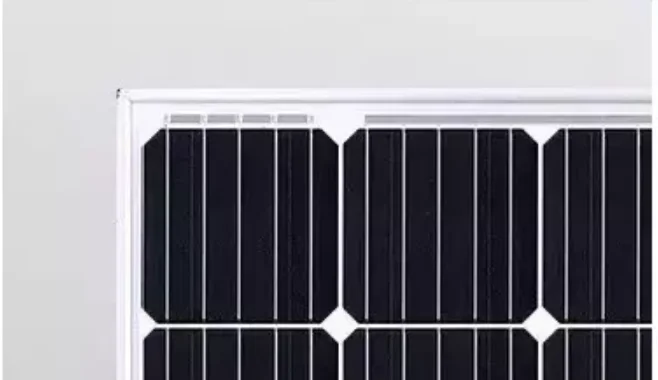

Glass
>Antireflective glass
>Translucency of normal luminance is increased by 2%
>Module efficiency is increased by 2%
>Self-cleaning function
>Service life is as long as 25 years(30 years optional)

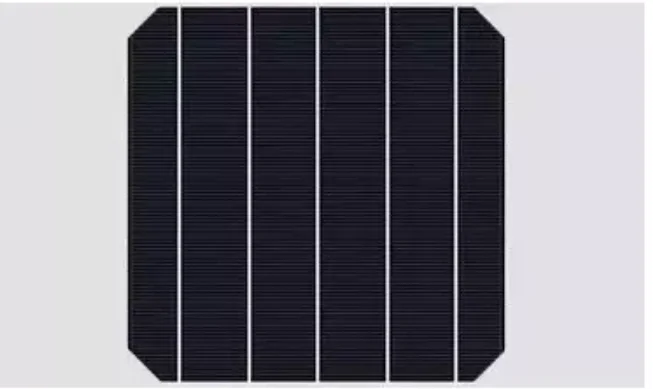

Solar cell
>\tHigh Efficiency PV Cells
>\tAppearance Consistency
>\tColor sorting ensure consistent appearance on each
module
>\tAnti-PID

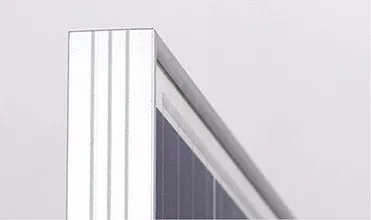

Frame
>\tConventional frame
>\tSilver or black frames are optional
>\tBoost bearing capability and prolong service life
>\tSerrated-clip design tensile strengt
>\tSeal-lip designglue injection

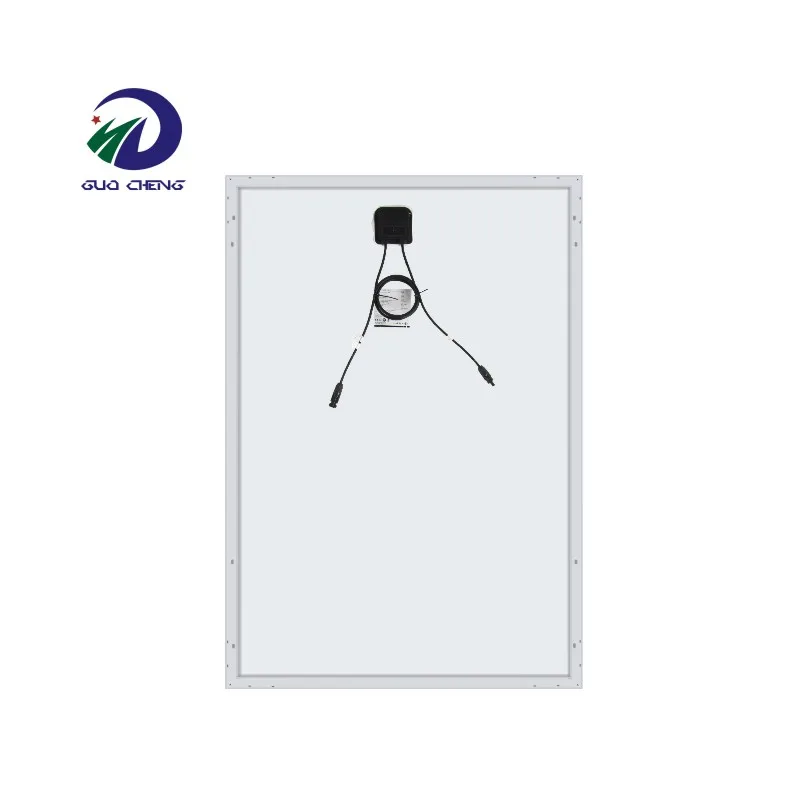

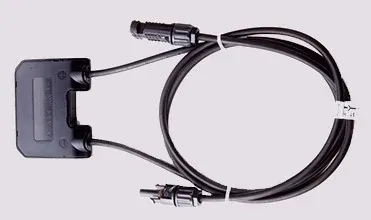

Junction box
>\tConventional standalone edition and engineering custom edition
>\tQuality diode ensures module running safety
>\tIP67 protection level
>\tHeat dissipation
>\tLong service life
Quality Inspection
100% Cells Sorting
Ensure Colour and Power Difference.
Ensure high yields consistent performance and durability.
First of 52 steps strict quality ocontrol and inspection process.
100% Inspection
Before and After Lamination
Most stringent acceptance criteria and tightest tolerance,Inteligent alarm and stop mechanism in case of any deviationor errors.
100% EL Testing
Before and Following Lamination
Ensure" Zero' micro crack monioring before nal inspecton,Continuous line monitoring and video/photo record for each cell and panel.
100%"Zero
Defects Objective Before shipment
Most stringent acceptance criteria and tightest tolerance.
Ensure the best modules on the market- guaranteed!
100% Optimal Testing
Ensure 3% Positive Power Tolerance
Comprehensive QC intormation management system with barcode ID .Quality traceable system in place to allow quality data flow constantly.

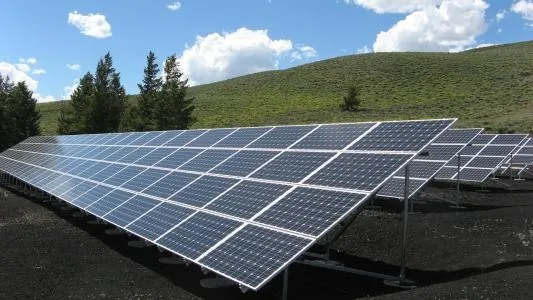

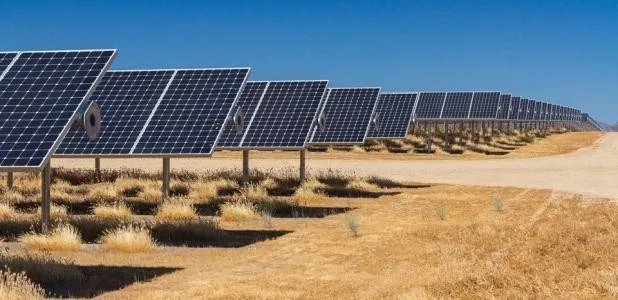

Home Commercial Use
Certification

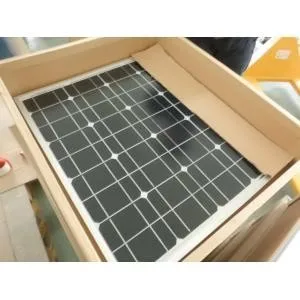

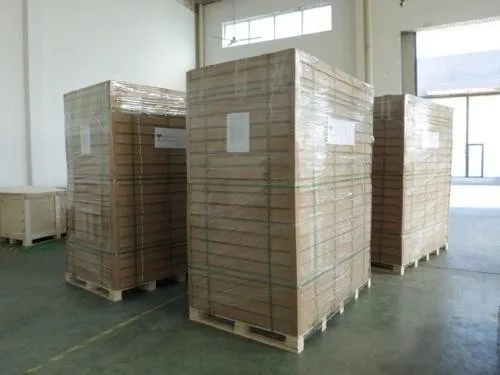

Packing
Delivery&Payment
Payment Terms | T/T | EXW | 30% TT in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% TT in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000usd, we can accept L/C at sight | ||||
Western Union | Amount lower than 5000 usd | ||||
Trade Assurance | |||||
Delivery Time | 7-10 working days after receiving payment for one container monocrystalline solar panel | ||||
FAQ
Q1: Are you a manufacturer or a trading company?
We are both a manufacturer and a trading company. Our factory has great production capacity. The number of solar
panels produced can reach more than 10,000 pieces per day.
Q2: Required mainly certifications?
Our products are certified by CE and RoHS. For small solar panels, it is in line with import requirements in places like Europe and the United States.
Q3: Your main product produced?
Semi flexible solar panel, SMT small solar panel, foldable solar charger bag and solar power bank and other solar products suitable for end-consumer.
Q4: How many employees in your company?
We have about 100~120 employees, including office staff, R&D engineers, production line workers.
Q5: Can I have a sample order for your products?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q6. What about the lead time?
Sample needs 15 days, the mass production is based on your purchase quantity, which is estimated to be 3-4 weeks.
