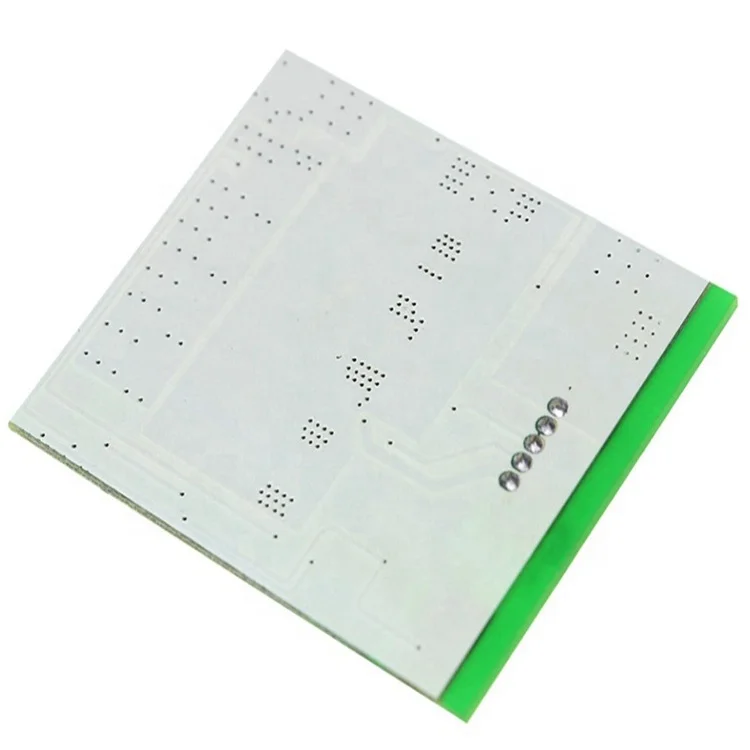

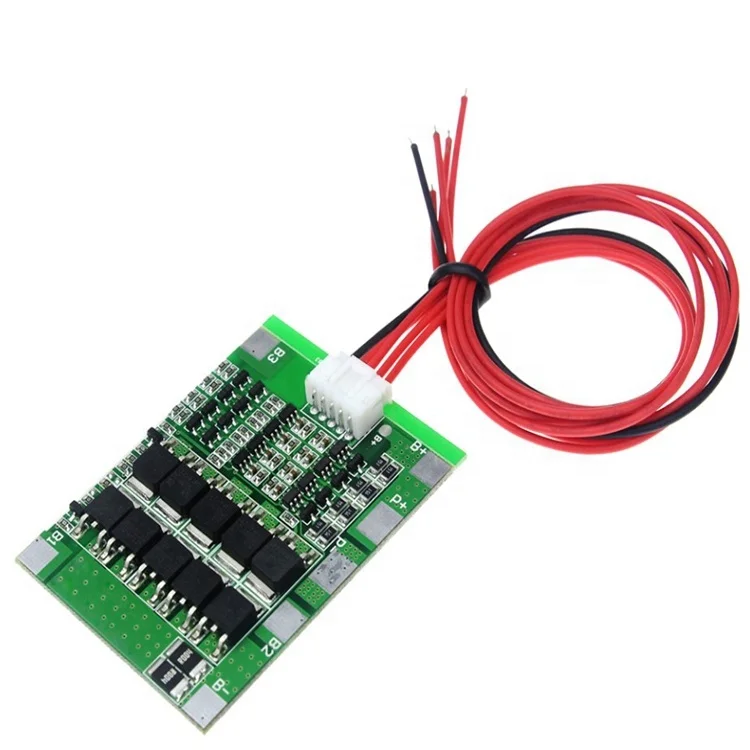

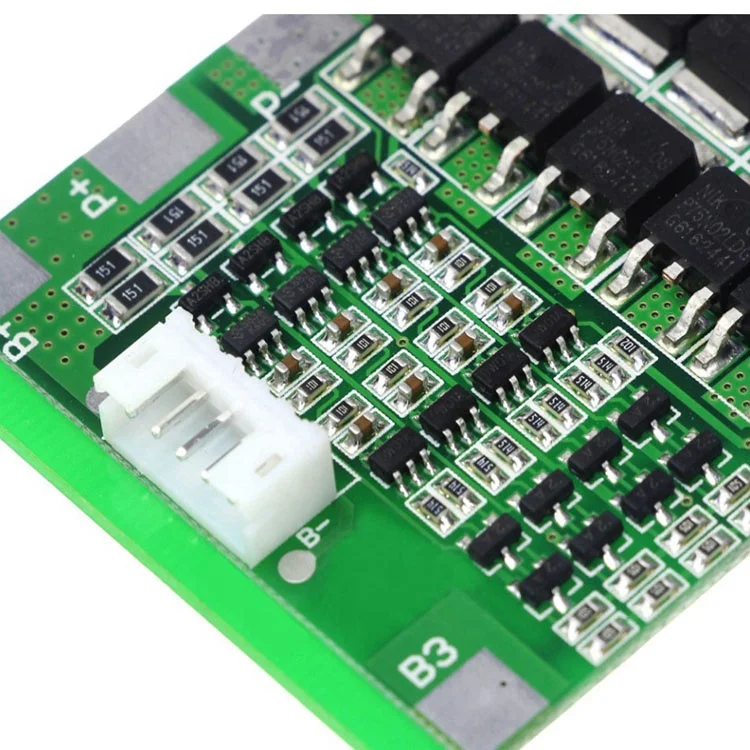

Custom PCB Circuit Board Assembly For Lithium Battery Management System BMS Electronic Module

UTC has the capability to manufacture PCBs up to 20 layers and offers the latest technical capabilities to meet your most demanding project requirement. You can send us the Gerber file and BOM list for a quote. We can also start from the basic drawing or the schematic. We believe that there is a chance for collaboration to help you achieve a cost effective approach to current and future needs.

Fast Delivery —2 to 3 weeks

Competitive Price —Up to 50% cost saving on your current projects

High Quality —ISO 9001:2008, RoHS, IPC compliance

1, PCB copy

2, PCB layout/design according to your schematic diagram

3, PCB fabrication

4, Component sourcing

5, PCB Assembling

6, PCBA function testing

 Rigid PCB                                                        Flex PCB

Flex-rigid PCB                                                              PCB Assembly

PCB: Please provide gerber file and process requirements, quote will be offered within 24 hours.

PCBA: Please provide gerber file, BOM list and process requirements, quote will be offered within 2 working days.

PCB/PCBA copy: Please provide us the picture, sample is preferable.

PCB schematic diagram

PCB gerber file

PCB BOM list

Sample order: 100% before produciton.

Batch order: 40% advance payment before production, 60% balance before delivery.

 Vacuum packing with anti-static bubble bag protection in exporting cartons
