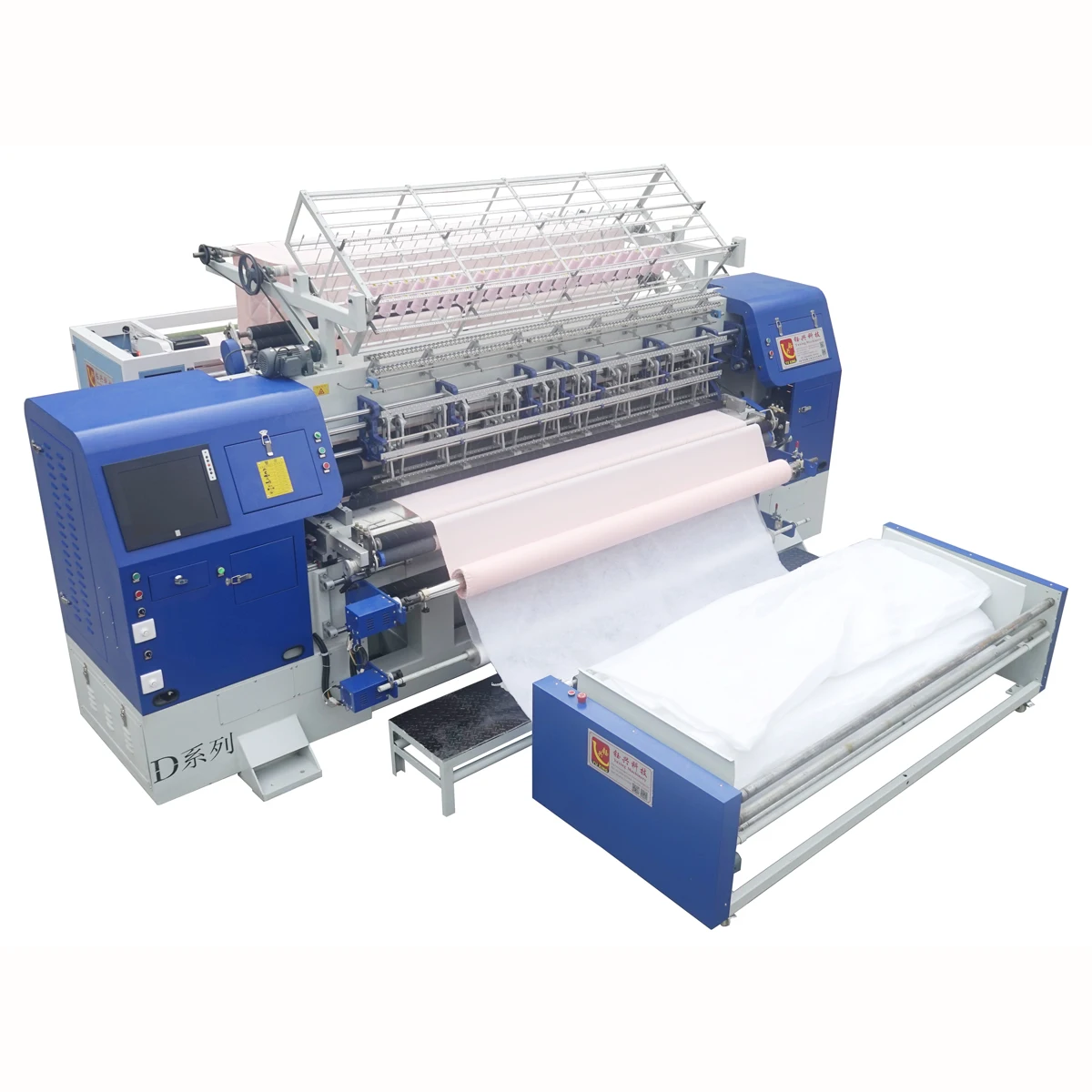

1200rpm Automatic Quilting Sewing Machine for Blanket with Embroidery Function

Product Overview

Description

Product Name	High Speed Computerized Shuttle Lock Stitch Multi-needle Quilting Machine
Model	YXS-96-2D/3D
Size(L*W*H)	4730*1750*1700mm
Weight	5800kg
Quilting width	2450mm
Needle bar space	76.2(3")
Quilting thickness	≤50mm
Rolling speed	500-1200r/min
Output	10-240m/hour
Needle type	#14, #16,#19
X-axis movement	254mm
Needle space	25.4mm
Stitch	2-8mm
Rated voltage(AC)	380V/50HZ,/220V/60HZ
Power	6.5KW



Function:

1.Adopt the NEW UPGRADED advanced computer software and mechanistic technology.

2.Needle bar running with needle bar frame, no need to add extra lube, avoid the materials be        soiled by lube.

3.Needle bar frame structure is more firm and durable, so that the cost of maintenance is cheaper.

4. Saddling rack and roller are driven by Japan imported servo system. More steady running and pretty stitches.

5. Principal axis uses the frequency conversion device.

6. Adjust speed by computer, the speed can adjust from 50-12

00r/min,the stitch can be set between 2mm-8mm.

7. 360°random quilting and limitless multi-span and independent quilting.

8. Compensation function, an effective solution for looping pattern with thick material.

9. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.

10. The infrared system ,make your operate more safe.

11. Pattern editing is easy to learn. Ringing notice when start machine.

12. Machine body and beam are reinforced. Machine running more stably.

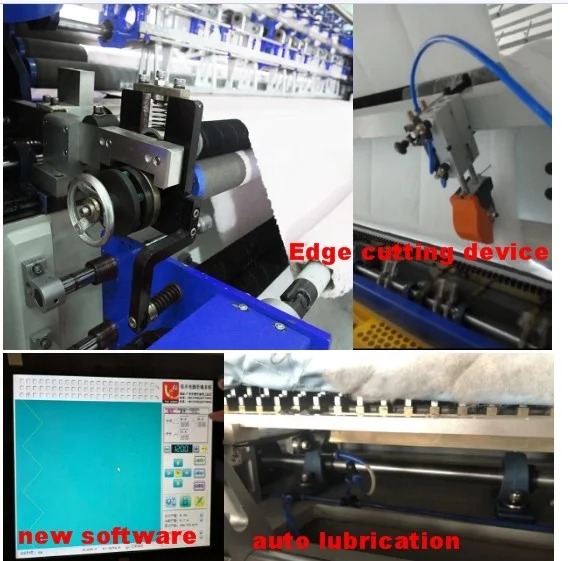

13. Automatic lubrication system, prolongs the service life of bearings
