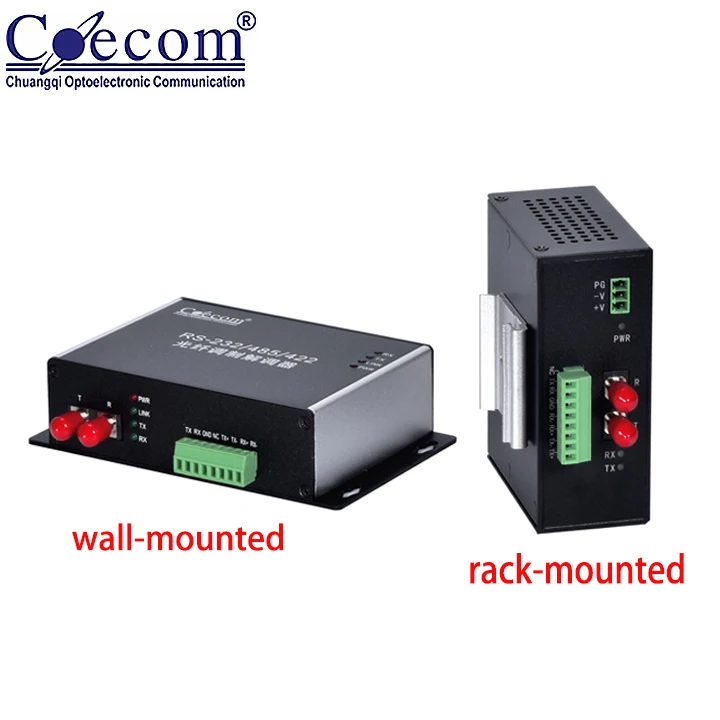

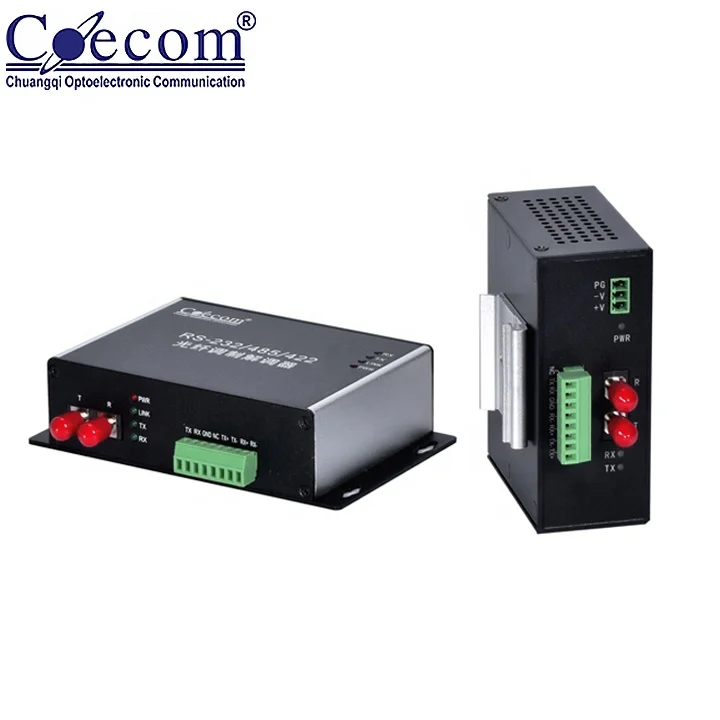

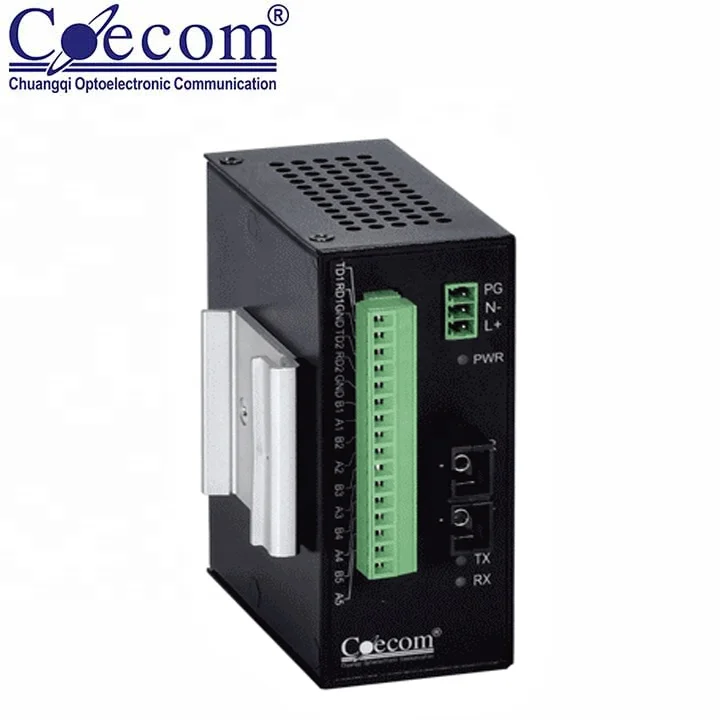

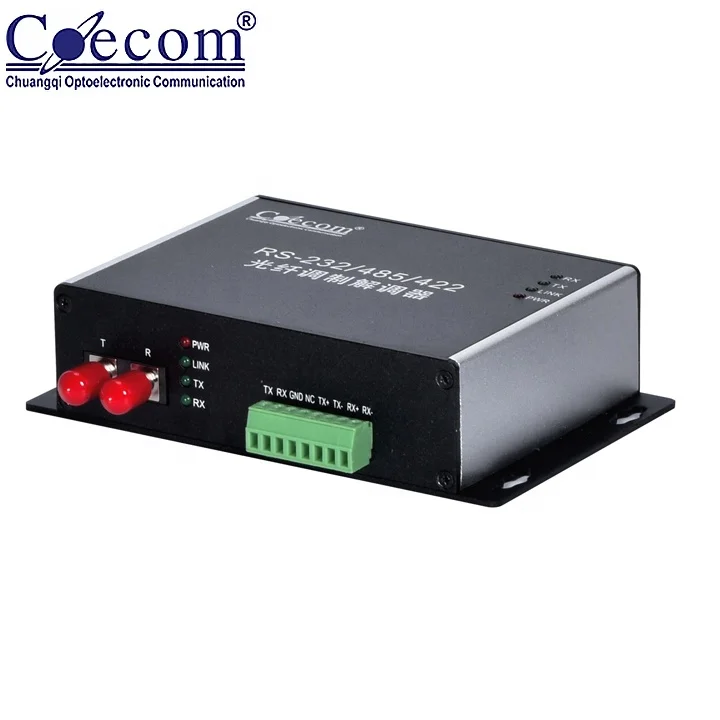

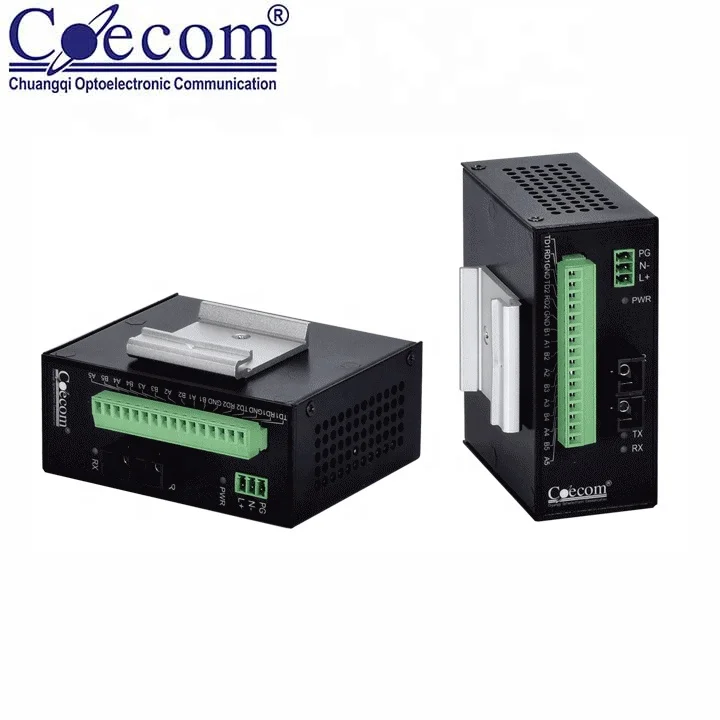

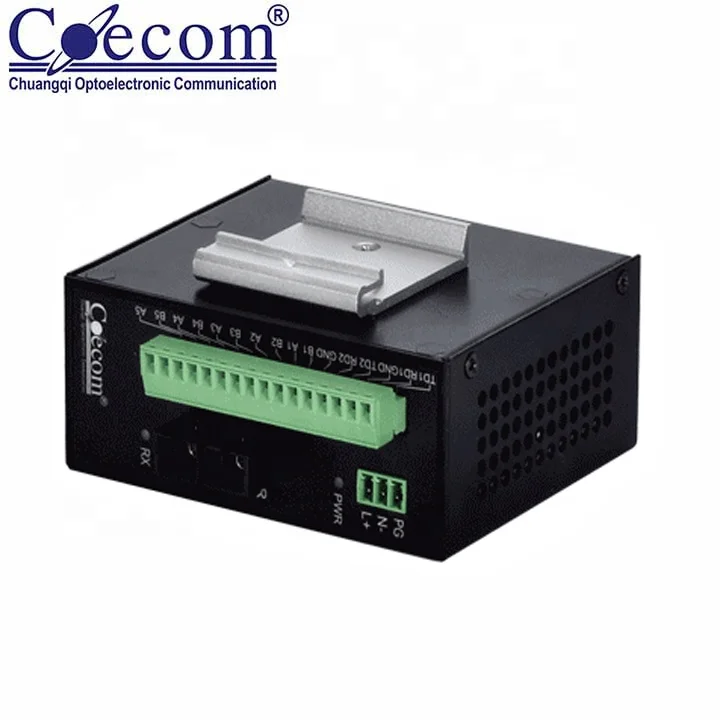

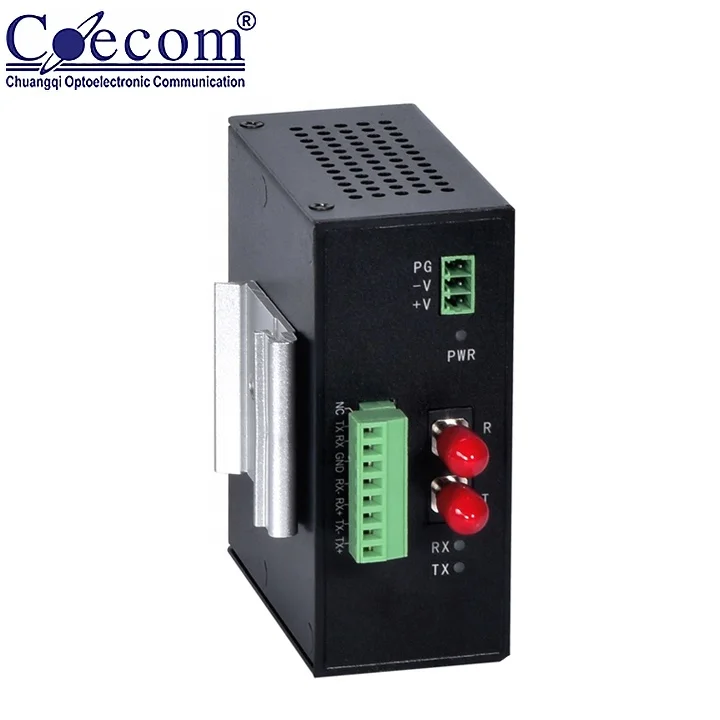

ROHS Single Channel Fiber Modem DIN RS232 / 422 / 485 Serial Port Fiber Modem Single Mode ST Fiber Modem
- Category: >>>
- Supplier: Nanjing Coecom Optoelectronic Equipment Co. Ltd.
Share on (62161778552):
Product Overview
Description
Product details
ROHS Single Channel Fiber Modem DIN RS232 / 422 / 485 Serial Port Fiber Modem Single Mode ST Fiber Modem
Product Features:
Supports access devices
485 (422) 12kΩ devices ≤ 32; 96kΩ devices ≤ 256
- Built-in TVS clamp protection in serial port for live plug-in
- Supports built-in power supply and various power optional
- Built-in DIP switch, 485/422 mode optional, matching resistance adjustable

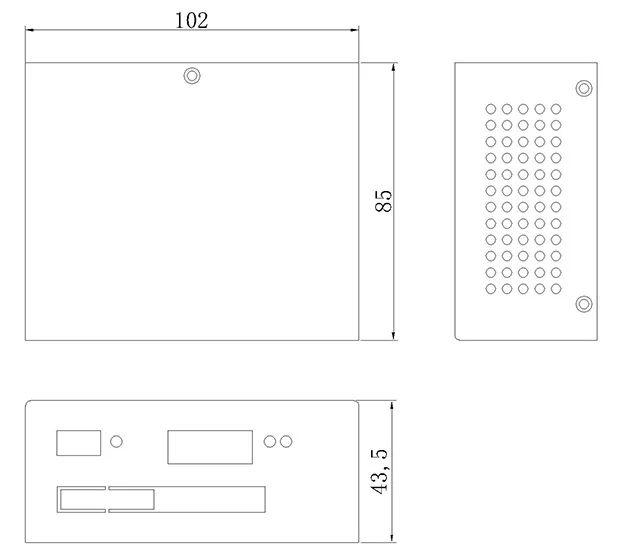

Dimension(mm)

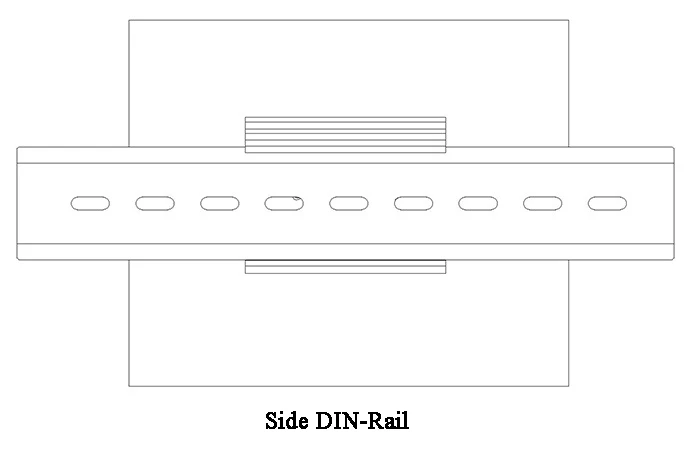

Mounting
Product parameters
ROHS Single Channel Fiber Modem DIN RS232 / 422 / 485 Serial Port Fiber Modem Single Mode ST Fiber Modem
Product name | ROHS Single Channel Fiber Modem DIN RS232 / 422 / 485 Serial Port Fiber Modem Single Mode ST Fiber Modem |
Product model | COE-232/485/422S--K-ST |
Fiber optic interface | 1*ST single mode dual-fiber SC/FC Single mode/Multi mode, Single fiber/Dual fiber optional |
Fiber optic rate | 84M |
Fiber wavelength | Single mode / Multi mode 1310nm |
Transmission distance | Multi mode 2km/Single mode 20km |
Electrical interface | 1*8 Bit Euro terminal (3.81mm) |
Distance | 232 (≤15m), 485/422 (≤1.2km) |
Rate | RS-232 (300bps-115.2 Kbps), RS-485/422 (300bps-115.2 kbps) |
Channel | one 232 or 485 or 422 |
Number of Access devices | 232 devices = 1 485 (422) 12kΩ devices ≤ 32 96kΩ devices ≤ 256 |
DIP switch | 3-bit (1-bit select 485 or 422 switch, 2/3-bit match 485/422 resistance) |
Protection | 600W/1ms Surge protection, 15KV Electrostatic Protection |
Power supply | AC/DC110~265V × 1 , DC12/24/48 Optional |
Power consumption | < 5W |
Installation | DIN-Rail |
Weight | 0.4kg |
