5000 gallon liquid gas propane bullet tank 20000 liter

Product Overview

Description

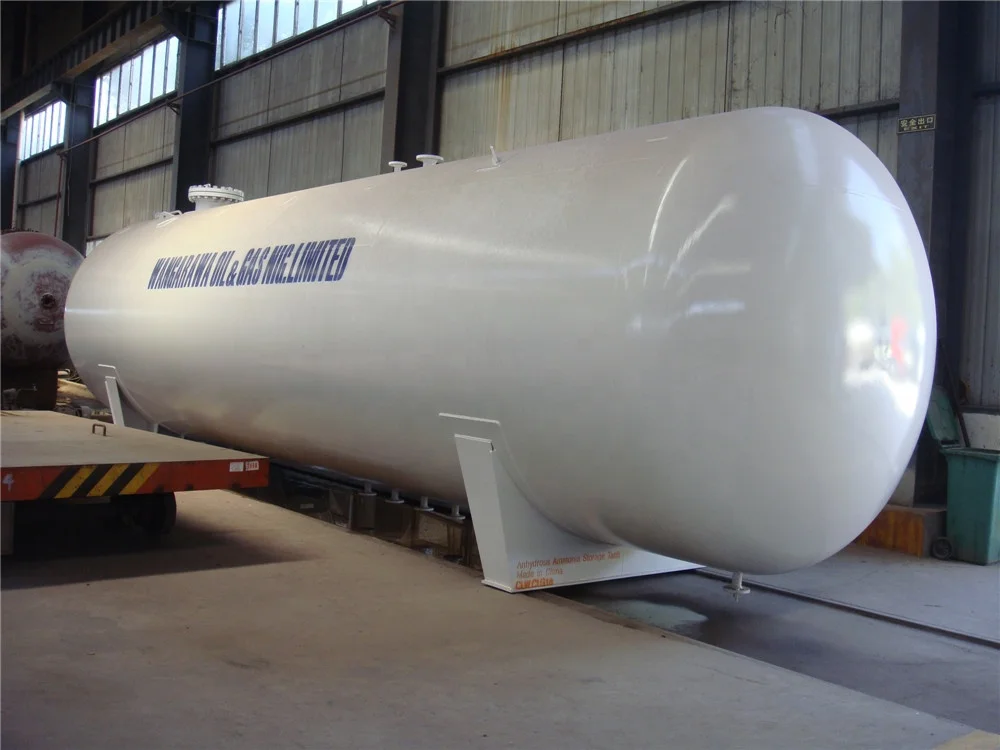

brand new horizontal 5000 gallon liquid gas propane bullet tank 20000 liter



Brief introduction of propane gas tank

The lpg storage tank is also called lpg tank, LPG gas tank, lpg tank for sale, lpg skid tank, lpg gas storage tank,bulk lpg storage tanks, propane storage tank, lpg pressure vessel, lpg gas bullet tank,etc. The lpg storage tank is belong to pressure vessel.



The lpg gas bullet tank for sale are horizontal lpg tank, vertical lpg tank. toroidal lpg tank, It mainly used to store up liquid petrolum gas, propane. We also produce pressure vessel to store liquid ammonia, dimethyl ether, isobutane .



The propane gas tank is made of special material Q345R. As a professional lpg tank manufacturer in China, we have  the aptitude to design and manufacture A2 type of pressure vessel, C2 type of lpg tank truck, C3 type of LPG tank container. The lpg tank we produce is from 5 cubic meter to 120 cubic meter.



The manufacturing processing of lpg tanker is complex and strict. All the lpg gas tanks must do nondestructive examination, air tight test, hydrostatic test and any other inspections.



China best quality 10 mt lpg tank for sale



Item	Item Name	Unit	Specification
General information	Product Name		LPG storage tank
	Filling Medium		LPG(Propane)
	Approx.overall dimension	mm	5608×2224×2814
	Curb Weight	kg	5080
	Loading Weight	kg	7980
LPG Tank Parameters	Effective Tank Volume	m³	20
	Tank Material		Q345R
	Cylinder Thickness	mm	12
	Tank Head Thickness	mm	14
	Density of Medium	Kg/m3	420(50°)
	Tank Painting		One anticorrosive paint,one primer,one finishing coat which can be customized.
	Design Pressure	M pa	1.77
	Hydraulic test Pressure	M pa	2.22
	Corrosion Allowance	mm	1
	Heat Treatment		Stress Relief
	Filling Coefficient		0.95
	Limited Service Time	Year	15
	Manufacture Standard		GB150









































Advantages of LPG gas storage tank for sale

a.) Fixed-point procurement of raw material manufacturer



b.) Strictly inspection for incoming material



c.)  Vigorous production process



d.)  Nondestructive examination / 100% X-ray testing



e.)  Water pressure and air tightness testing



f.)  Excellent safety device, long service time



 Tank shaped use the advanced welding technology, end socket arc butt welding, and the once-forming of  composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition. Be applied to transport varied oil, fuel and chemical material, such as natural gas, liquefied petroleum gas, liquefied ammonia, carbon bisulfide, epoxy ethane,gas, butane, dimethylmethane, propylene, etc. Cross section of tank could be oval, round and round-square. heat insulation and heating device is optional.



We, Chengli Special Automobile Co., Ltd., were established in 2004. We are a professional manufacturer and exporter that is concerned with the design, development and production of special trucks, including LPG trucks, cement mixer trucks, water trucks, refrigerator trucks, cargo trucks,garbage truck, oil tanker truck,wrecker towing truck, truck mounted crane and others.

Packing & Shipping

Our lpg tanks are all nude with wax. They are usually transported to sea port by flatbed trailer, then ship to foreign port by container ship, bulk carrier ship.





Our Service

1. lpg tank, lpg truck, lpg semi trailer

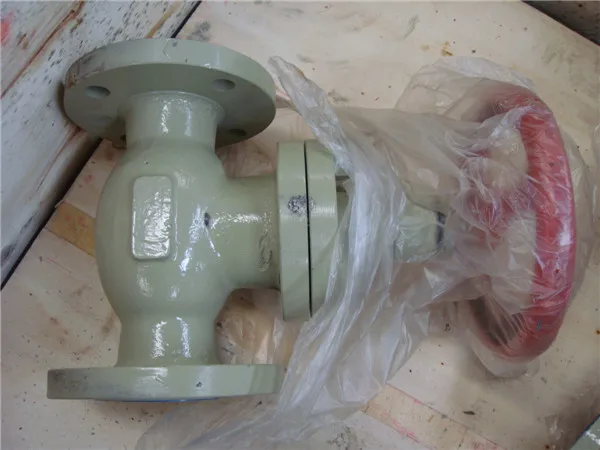

2. safety valve such as thermometer, pressure gauge, pressure relief valve, content gauge,etc.

3. We provide installation drawing and technical support for you.

4. All products are enjoy one year guarantee.

Customer visiting picture

If you are intersted in any of new lpg gas tank, lpg transport truck and lpg trailer, if you want lpg tank price, please feel free to contact me. Also, welcome China and visit our factory.
