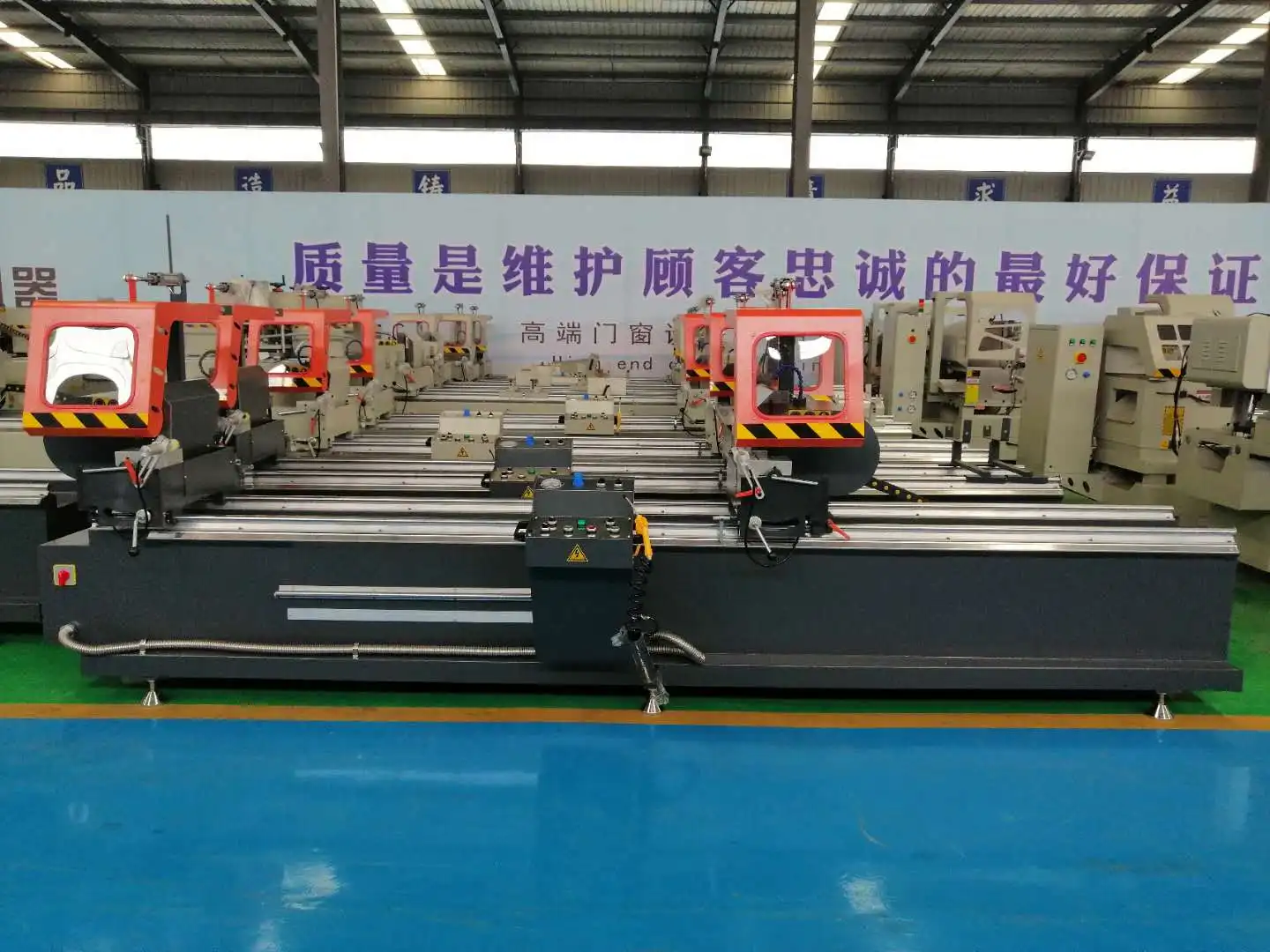

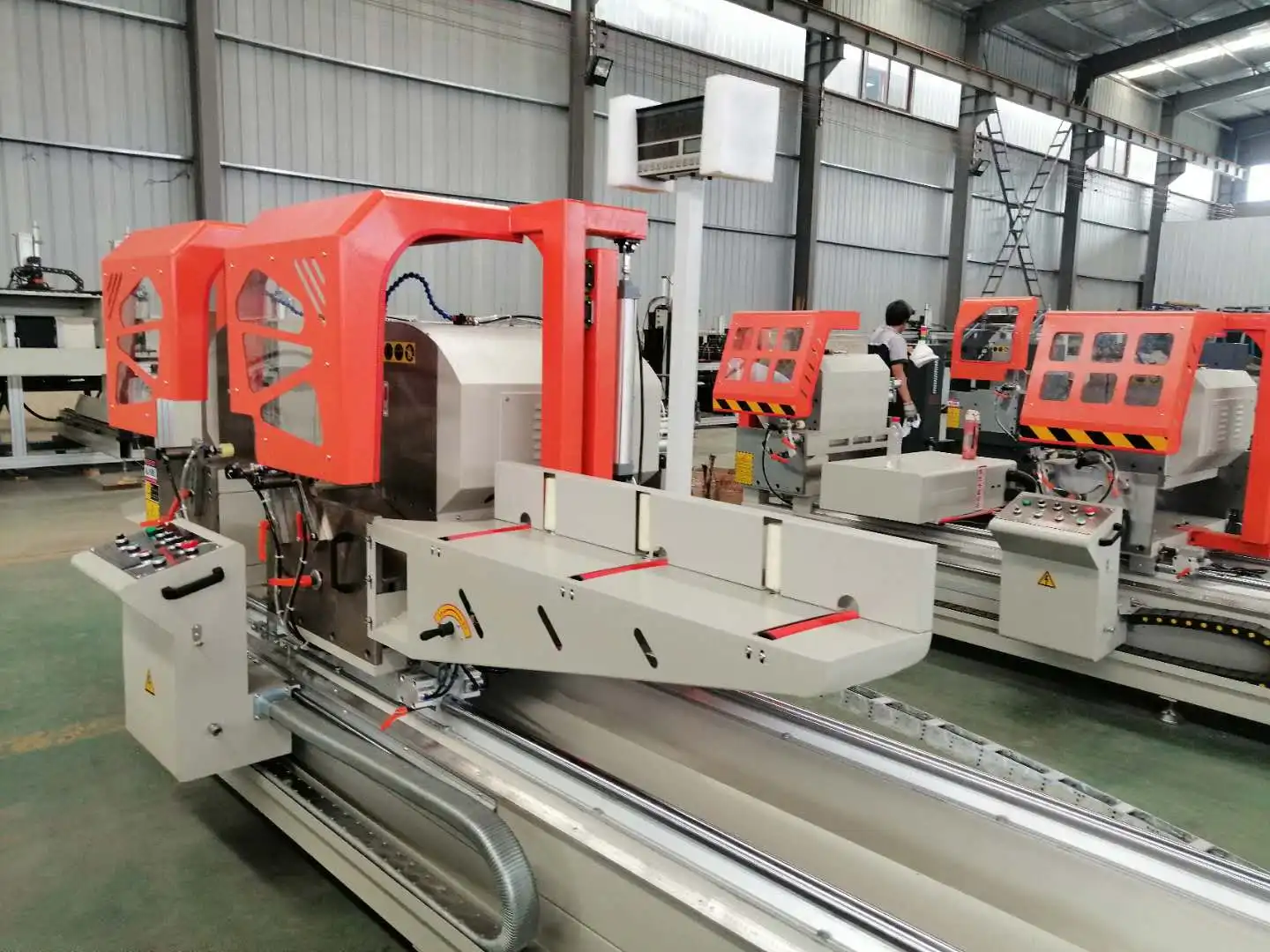

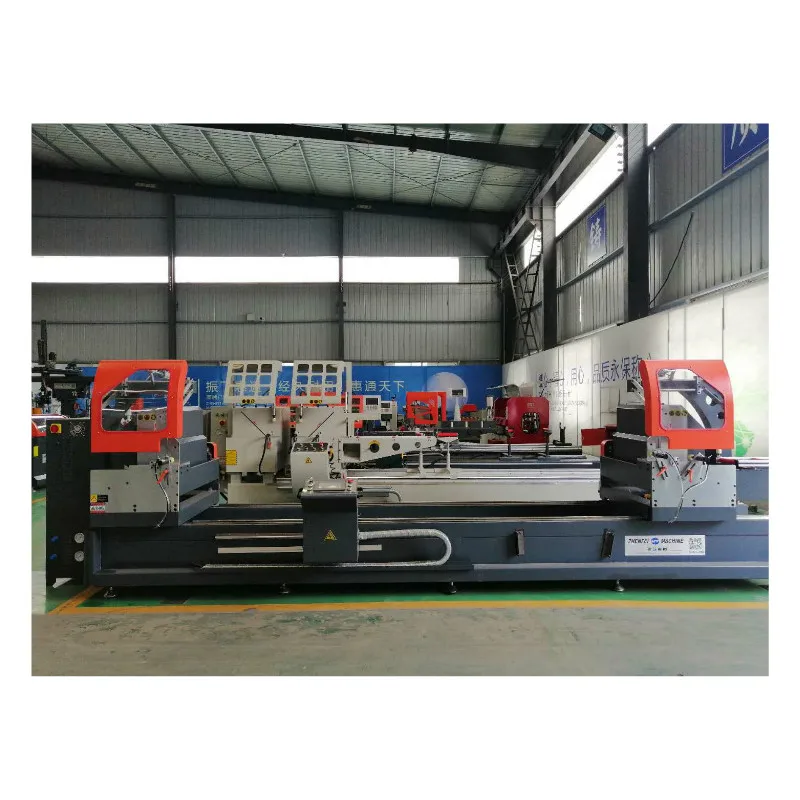

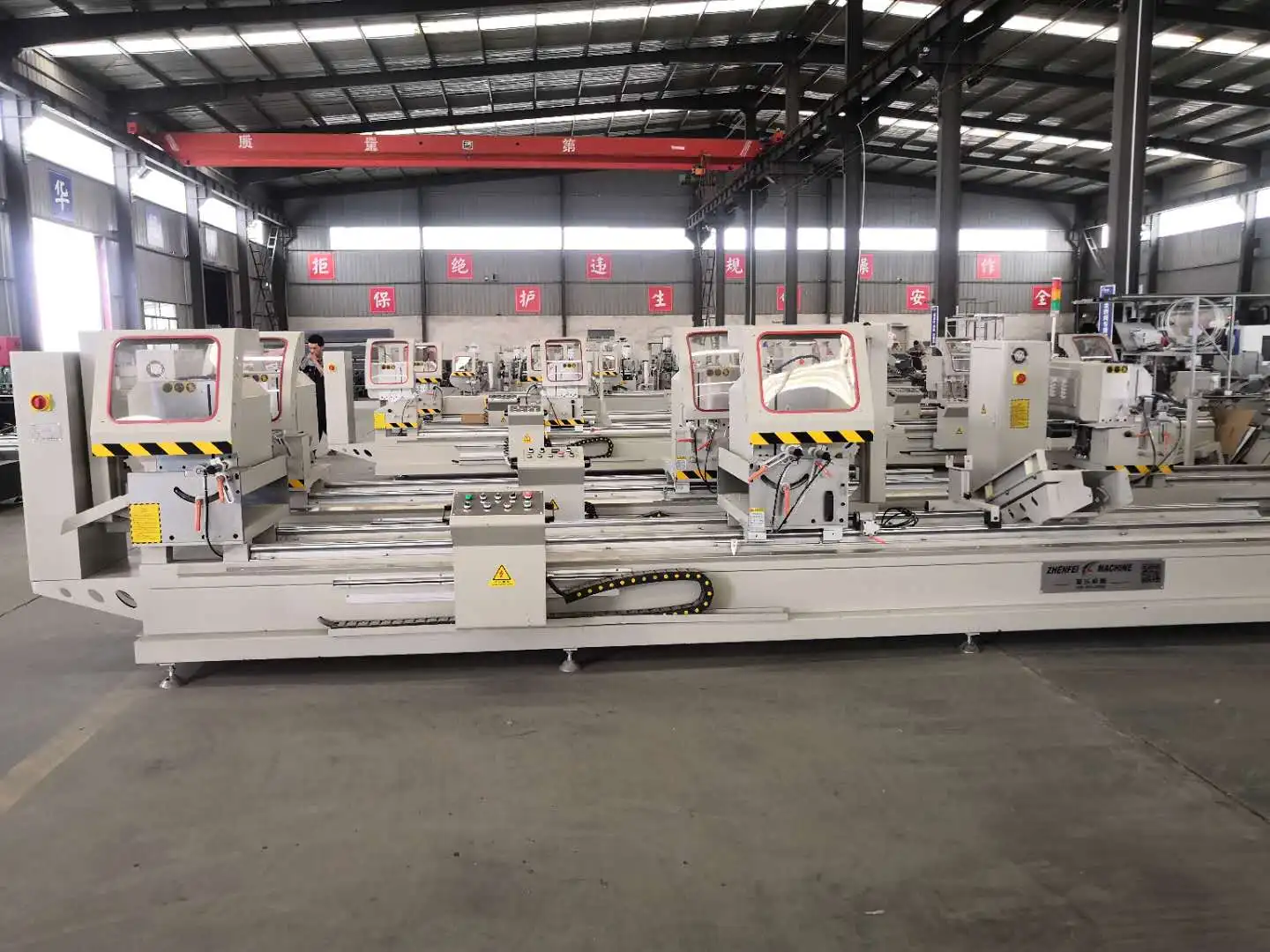

Aluminum Curtain Wall Cutting Saw/Curtain Wall Aluminum Profile Cutting Saw Machine

Product Overview

Description



Aluminun Curtain Wall Cutting Saw/Curtain Wall Aluminum Profile Cutting Saw Machine:





1) Used for the double-head cutting of aluminum and UPVC profiles in the angle of

    45°,90°,-45°;

2) Specialized hard alloy saw blades enable to guarantee the quality of the cutting surface

     and  its durable extent ;

3) High-precision spindle can make the saw bit move smoothly. Its biggest cutting area is

     up to 120*200mm;

4) Two saw heads can work individually as well as simultaneously;

5) Cutting angle allowance ±5’;

6) Cutting profile surface flatness  less or equal to 0.05mm;

7) Cutting profile surface roughness Ra 12.5μm.



Technical Data:

Power supply	380V/50Hz or customized
Input power	1.5X2KW
Air pressure	0.5-0.8MPa
Motor rotation speed	2800r/min
Saw blade specification	D=450mm  d=30mm
Cutting angle	45°,90°,-45°
Cutting length	480*3700
Machine size	5000*1600*1700mm
