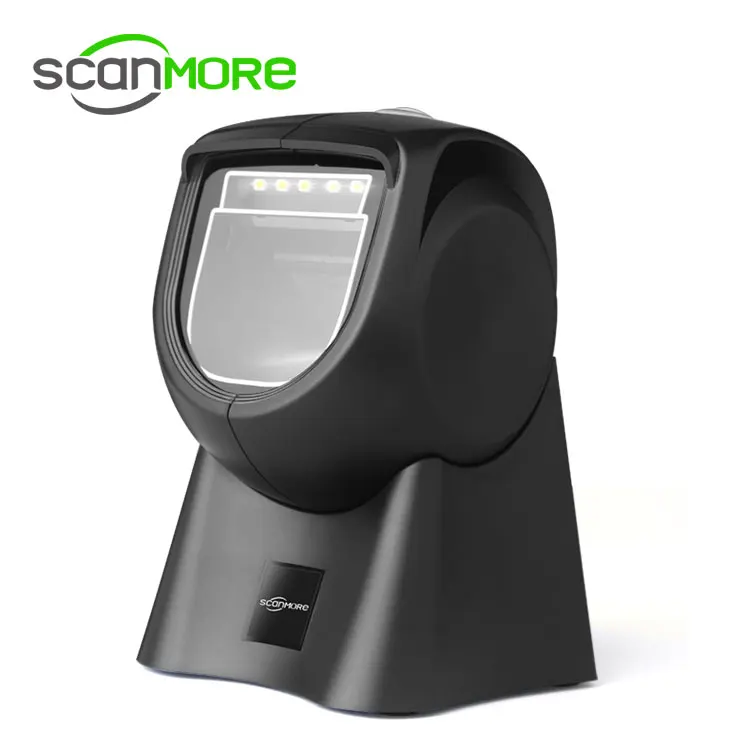

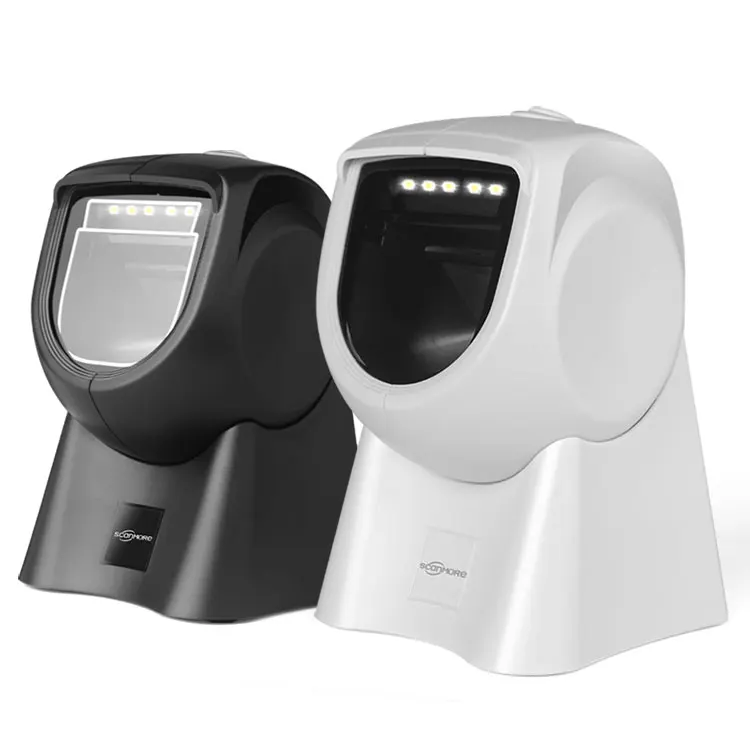

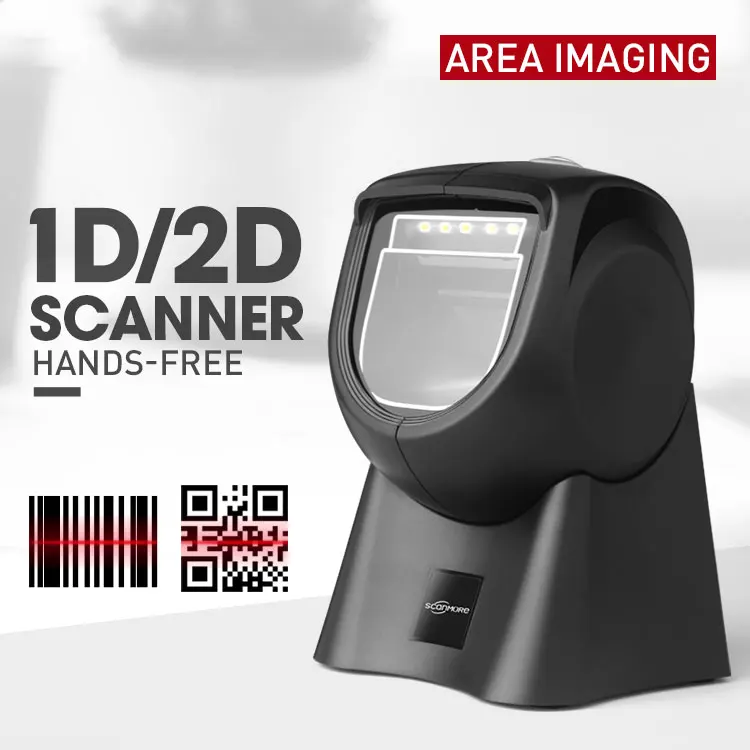

2D POS Desktop Barcode Scanner Hand free Omnidirectional Laser Symbol Scanners

Indicator Light

Two-Color Light LED(Green and Red)

Model Number

SM314Y

Error rate

1/5,000,000

Symbologies

1D: Codabar, Code39, Code32, InterLeved 2of5, Industrial 2of5, Matrix 2of5, Code93, Code128, Gsl-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN13, ISSN, GS1 DATABAR Limited. Gsldataar Expanded,

Supported Interface

USB

Trigger mode

automatic successive scanning

Bar width

Minimum 0.1mm(4mils)

Depth of scanning field

0- 470MM

Scan  Angles

Roll 0-360°, pitch ±65°, yaw ±60°

Precision

Minimum 0.1mm(4mils)

Power supply

DC 5V / 300mA

Operating current

400mA(operating mode);170mA(standby mode);450mA(maximum peak)

Scanning speed

400times/sec

Drop Height

1m

Language

Support multi-languages

Application Scenarios

Suitable for Hospital, Logistics, Retail chains, Supermarket, Restaurant, E-payment etc..

Dimension

L156mm x W110mm x H100mm

Weight

 ≈310g(without cable)
