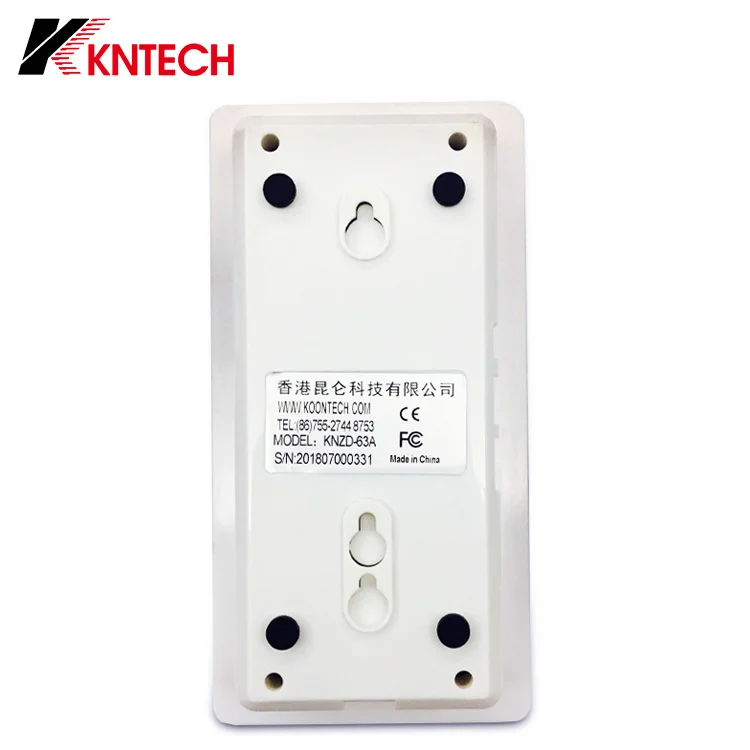

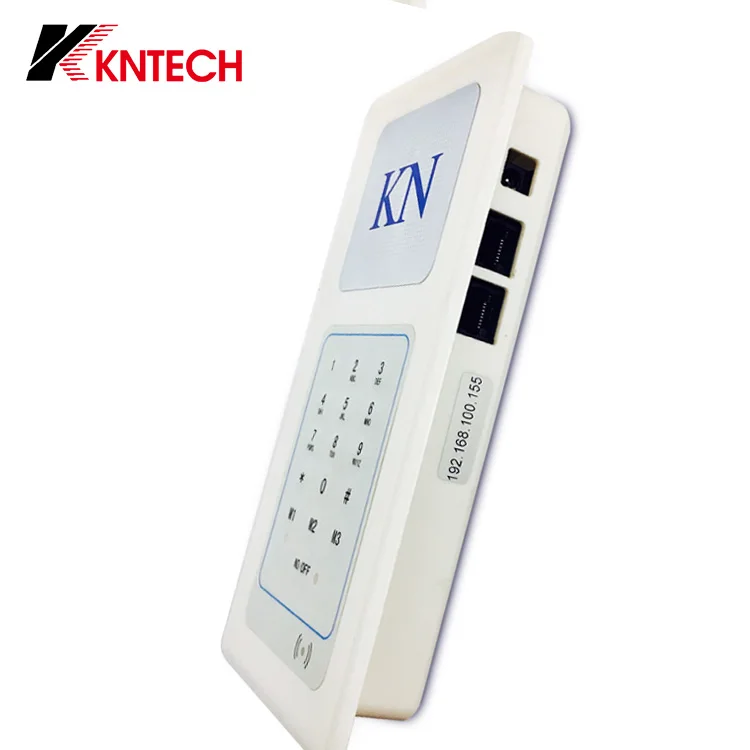

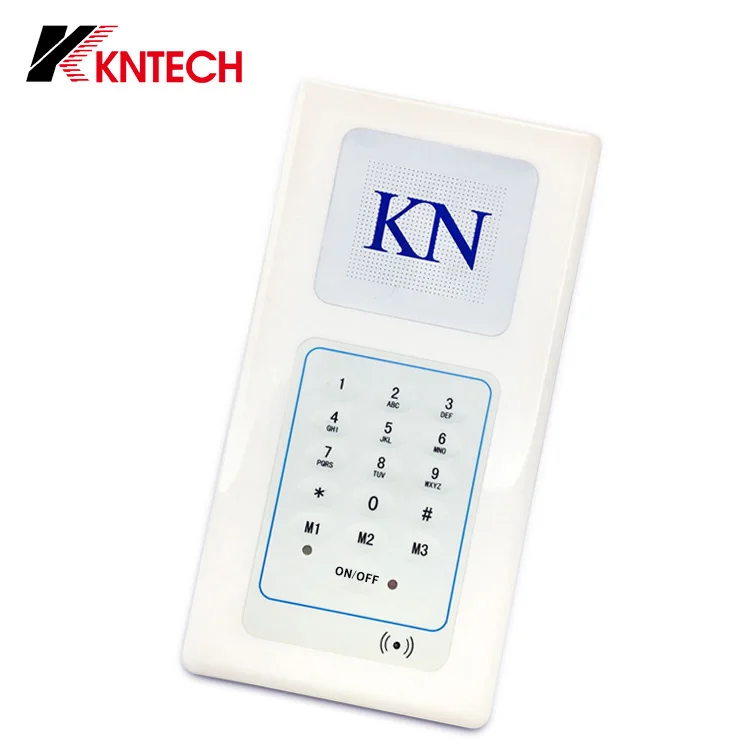

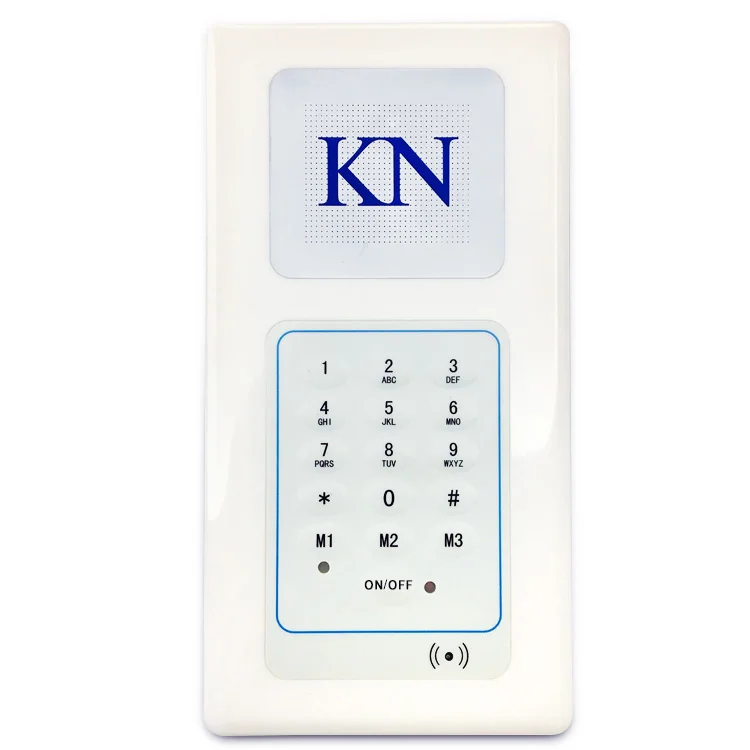

KNTECH Clean Room Telephone Handsfree Cleanroom Intercom VoIP Phone KNZD 63

Model KNZD-63 Cleanroom Telephone

KNZD -63 is a key intercom clean room telephone, strong anti-jamming ability reach European EN50121 standards. Antistatic enclosed design, industrial components without exposure to air.Waterproof and dustproof: send words and receiver built-in completely do not take up space, no dust, no visible lines completely flat surface UV + PE material surface embedded installation, with metope completely flat have waterproof function, can be washed directly or wipe, surface without any abrasion.

DESCRIPTION ITEM
1. Plastic material body for easy Installation.
2. Waterproof rating IP65 dust proof.
3. Full keypad with memory, 10 button programmable free-dial telephone.
4. Hands-free keypad, loudspeaker.
5. Lightening protection to ITU-T recommendation K.21.
6. POE power supply.
7. Temperature range from -40 degree to +70 degree.
8. Support echo cancellation.
9. Remote software upgrade, configuration and monitoring.
10. Optional 7 minute time out to release the line if the handset is left off hook. (This functionu pon buyer's requirement).

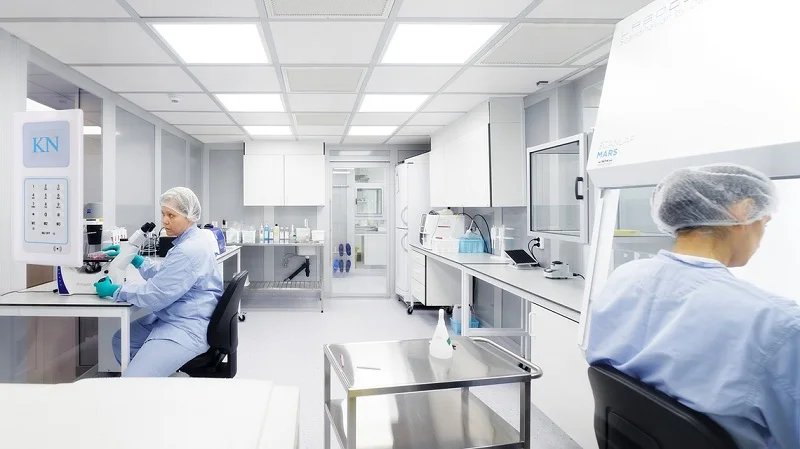

11. Application: Clean room, chemical plant, pharmaceutical factory, hospital, etc.

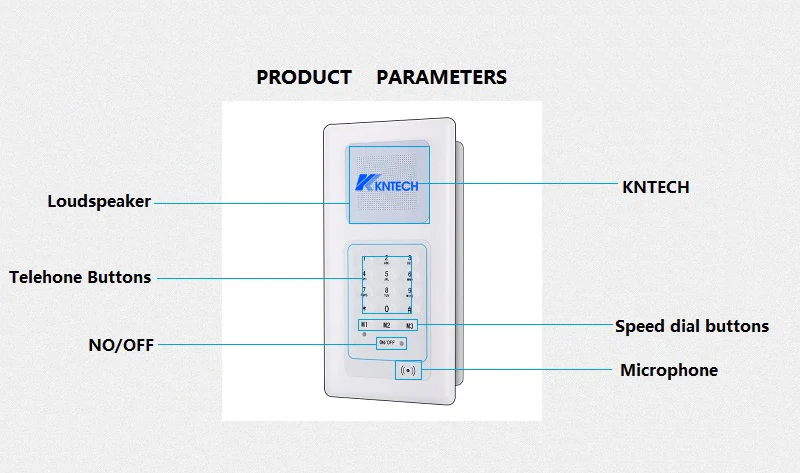

The size about the cleanroom intercom:

Clean Room Telephone (Analogue) Specification:

1. PSTN analogue telephone 2. DTMF dialing
3. MTBF:100000hours 4. MTTR: 2 hours
5. Connection: RJ11 screw terminal pair cable 6. Sound level of ringing:over 70dB(A).
7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM
8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.
9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected
10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)
11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%
12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)

Clean Room Telephone (VOIP) Specification:

1. VoIP SIP2.0 telephone 2. DTMF dialing
3. MTBF100000hours 4. MTTR: 2 hours
5. Auxiliary Contacts:1 Aux Output, dry contact

6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
7. Contact Ratings. Load: Resistive load

8. Echo cancellation code:G.167/G.168
9. Rated carry current:1A

10. Max.switching current:1A
11. Max.switching voltage:125 VAC,60VDC

12. Audio Codes:G.711, G.722, G.729
13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
14. Free dial (maximum length of each number is 16 digits)
15. Communication: Full duplex 2-way hands-free communication
16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W
19. Programming:Non-volatile flash memory programming and configuration through Web GUI
20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d),RSTP(IEEE 802.1d-2004)

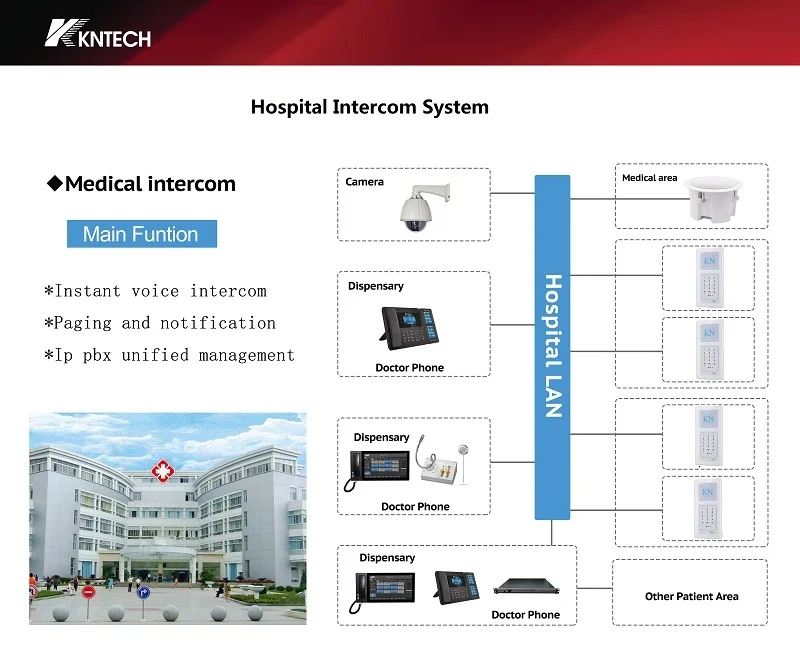

The hospital intercom system

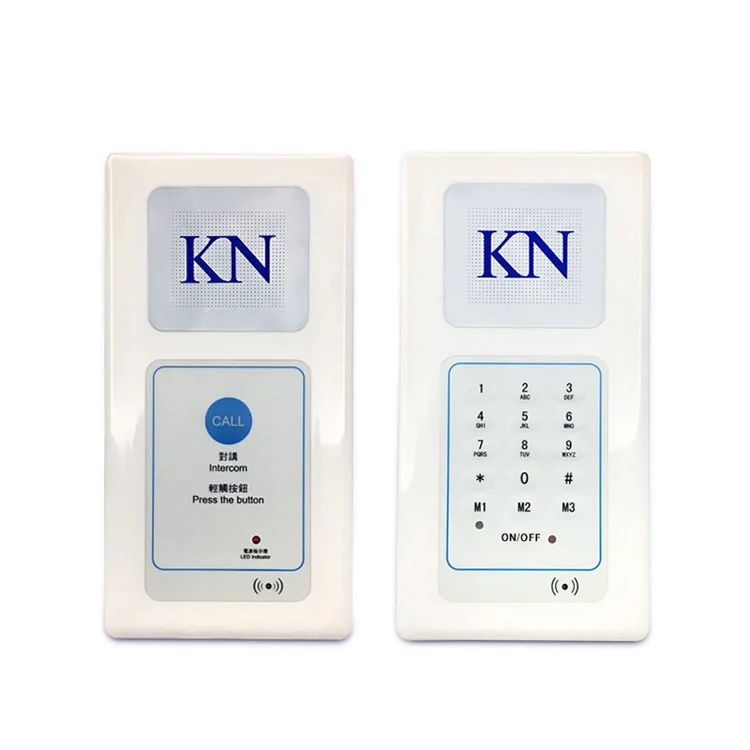

Cleanroom intercom with one push button type and keypad type optional:

HongKong Koon Technology Co., Ltd. (KNTECH) engage in research and development of Emergency Communications System; PAGA broadcast scheduling; scenic spots, airport tourists help management program; municipal SOS, 110, 119 alarm system; special industrial IP telephones, SOS telephones, IP PABX, Servier, TR069/SNMP/Modbus network management, SIP scheduling system for metro, tunnel, airports, petrochemicals, metallurgy, nuclear power, marine, ship building, bridge, mine and other industries.

Strong R&D team, offer you professional technical support and further customization.
High productivity factory, short lead time and fast delivery for you.
We KNTECH team are always here at your prompt and best service

Production Equipment and Production Plant.

Strict Tests to control high quality.

Except terminal, we also provide customer complete system and solution.
Telecom solution, IP PBX, telephone self-diagnostic system, PAGA system, customization function, etc.

KNTECH Cleanroom Telephones Pass Lots of Certificates, such as IOS, CE, FCC, EMC, TUV, ETL, LVD, AU LVD, SASO, Norway DNV, etc.

Unit size:105*205*32mm Unit: N.W:0.3KG
1pcs packing box size: 33*14*9mm Unit: N.W:0.3KG Unit G.W:0.58KG
5pcs in 1 outer Carton box: size: 340*310*150mm N.W:1.5KG G.W:1.98KG

Fast delivery. Sample order: 3-6 days.

Quick response, 24 hours customer service!
