Tracer 4210AN Series MPPT Digital Solar Panel Charge Controller
- Category: Solar Charger Controllers >>>
- Supplier: Sunpal Power Co. Ltd.
Share on (62162239867):
Product Overview
Description
Product Description
Parameters
Series | Tracer AN | ||||||
Model | 1206/2206AN | 1210/2210AN | 3210AN | 4210AN | |||
System nominal voltage | 12/24VDC① Auto | ||||||
Rated charge current | 10A/20A | 10A/20A | 30A | 40A | |||
Battery voltage range | 8~32V | ||||||
Max. PV open circuit voltage | 60V②/46V③ | 100V②/92V③ | |||||
MPP voltage range | (Battery voltage +2V)～36V | (Battery voltage +2V)～72V | |||||
Self-consumption | ≤12mA | ||||||
Discharge circuit voltage drop | ≤0.23V | ||||||
Temperature compensate coefficient④ | -3mV/℃/2V | ||||||
Grounding | Common negative | ||||||
RS485 interface | 5VDC/100mA | ||||||
LCD backlight time | 60S (Default) | ||||||
Working environment temperature | -25℃～+50℃(100% input and output) | ||||||
Storage temperature range | -20℃～+70℃ | ||||||
Relative humidity | ≤95%, N.C. | ||||||
Enclosure | IP30 | ||||||
Dimension(mm) | 172*139*44 | 220*154*52 | 228*164*55 | 252*180*63 | |||
Mounting dimension | 130x130mm | 170x145mm | 170x164mm | 210x171mm | |||
Mounting hole size | Φ5mm | ||||||
Terminal | 12AWG(4mm2) | 6AWG(16mm2) | 6AWG(16mm2) | 6AWG(16mm2) | |||
Recommended cable | 12AWG(4mm2) | 10AWG(6mm2) | 8AWG(10mm2) | 6AWG(16mm2) | |||
Weight | 0.57kg | 0.94kg | 1.26kg | 1.65kg | |||
①When a lead-acid battery is used, the controller hasn’t the low temperature protection
②At minimum operating environment temperature
③At 25℃ environment temperature
④When a lithium-ion battery is used, the system voltage can’t be identified automatically

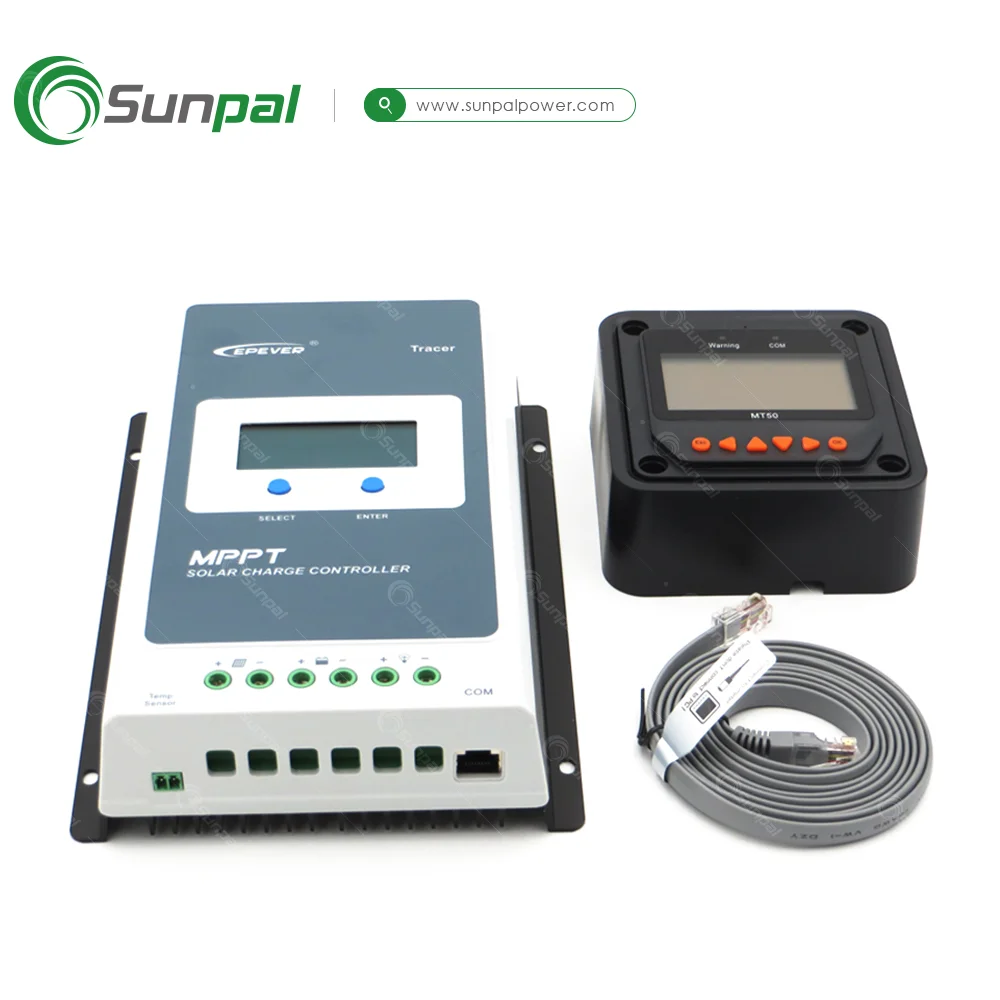

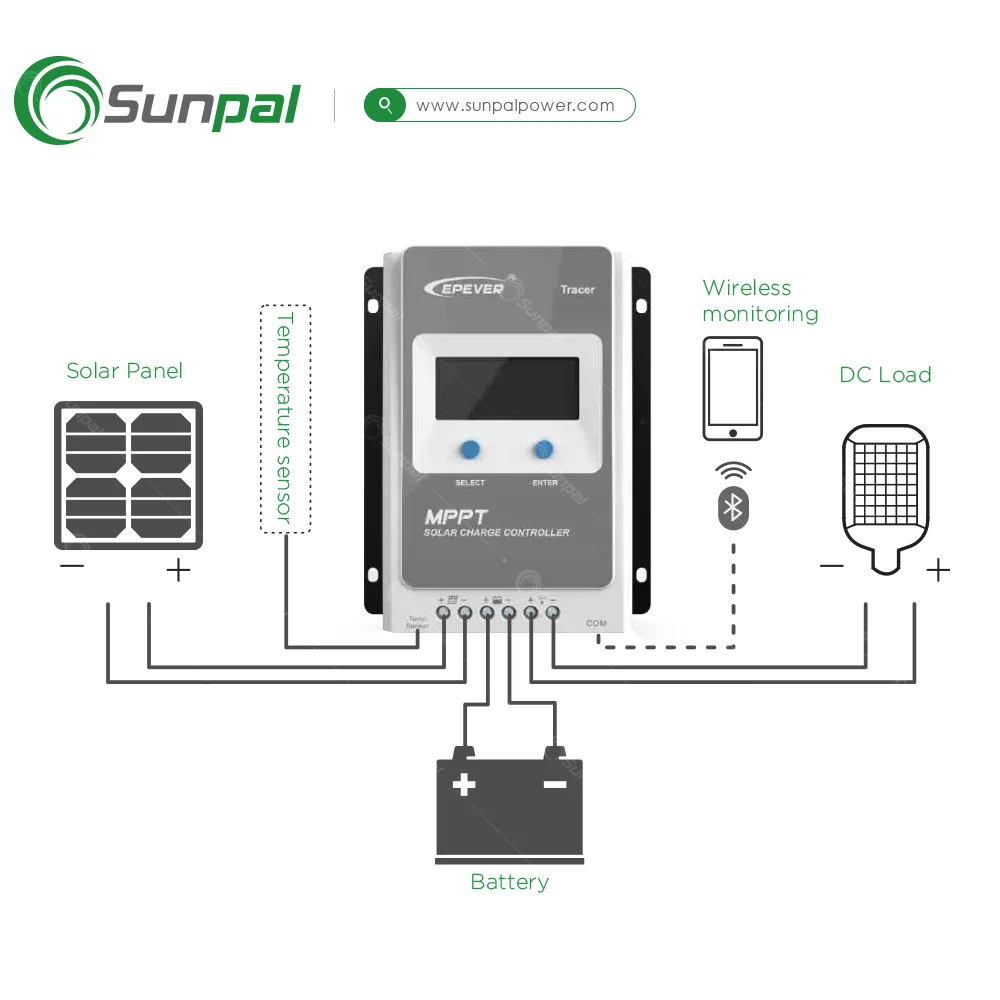

Configuration

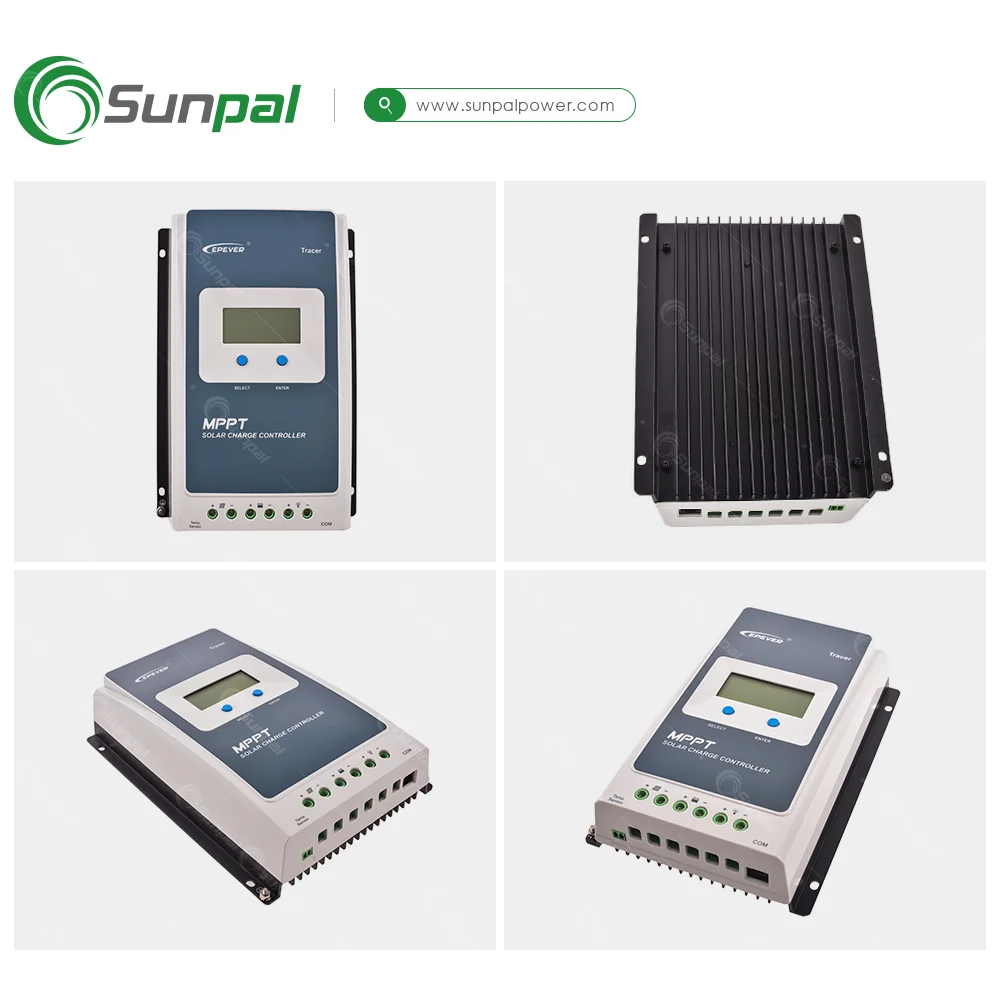

Details Images

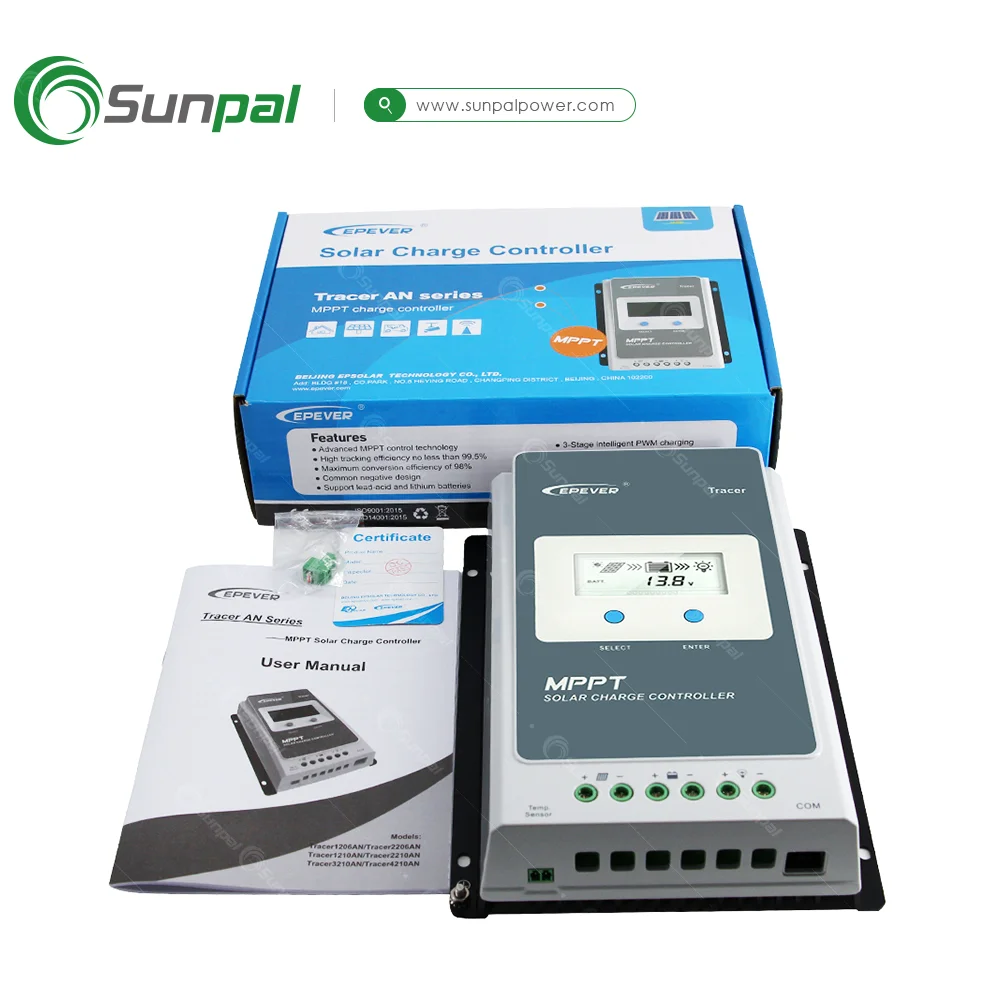

Packing

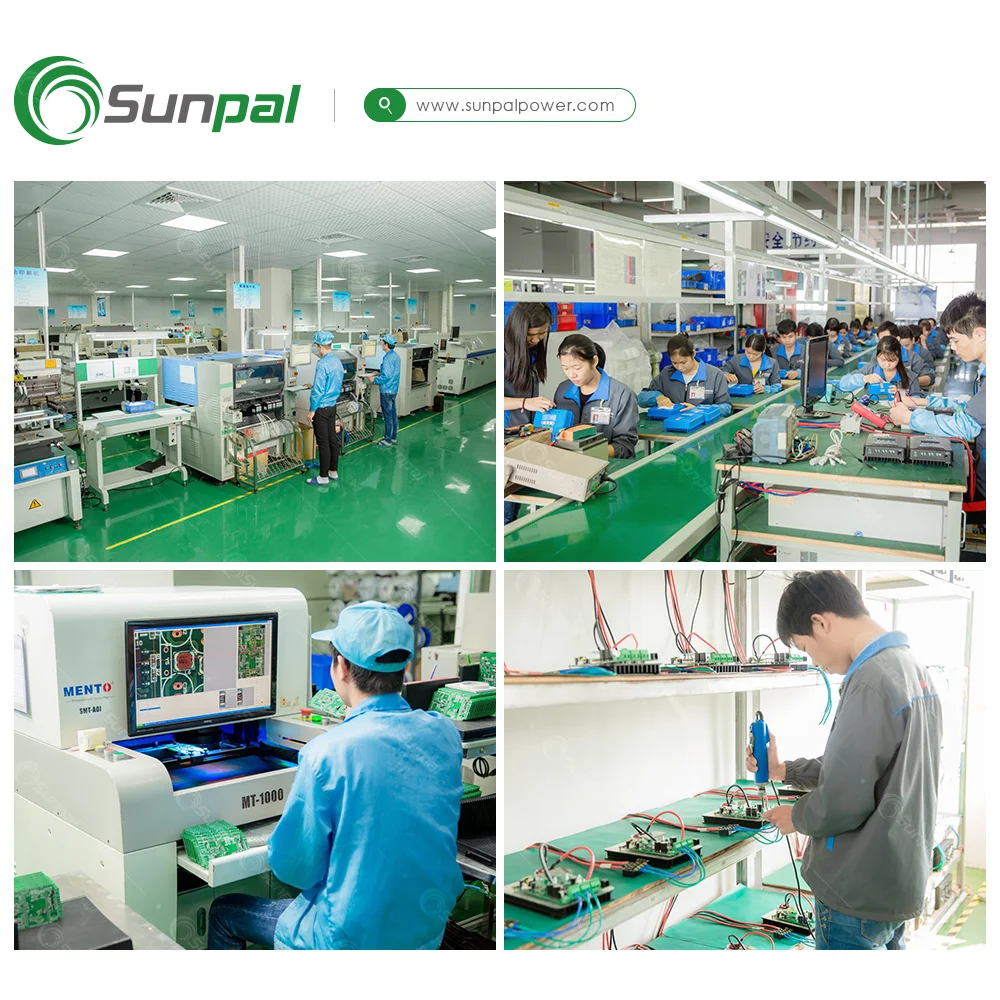

Our Factory
Application
Solar power station systems are typically used for regional centralized power supply, such as village, island, fields monitoring and so on. Also the power level range is between kilowatts to hundreds kilowatts.
Solar home system are typically used for home photovoltaic power generation system, to solve electricity demand of none power or unstable power region. Also the power level rage is between hundred watts to kilowatts.
Solar RVs/Vessels system are typically used for reducing the RVs and the vessels electricity cost, by setting up solar system to assist gasoline/diesel power generator.
Solar Street lights System are typically used for street lightning of cities, villages, the intelligent streetlight system will remote monitoring all street lamps to reduce the operation and maintenance costs of system.
The Hybrid energy system contains solar, wind, diesel and city electricity energy system. The system will meet the load demand of electricity in villages, islands, and telecom stations to reduce the system cost and improve the replenishment ratio of system.
