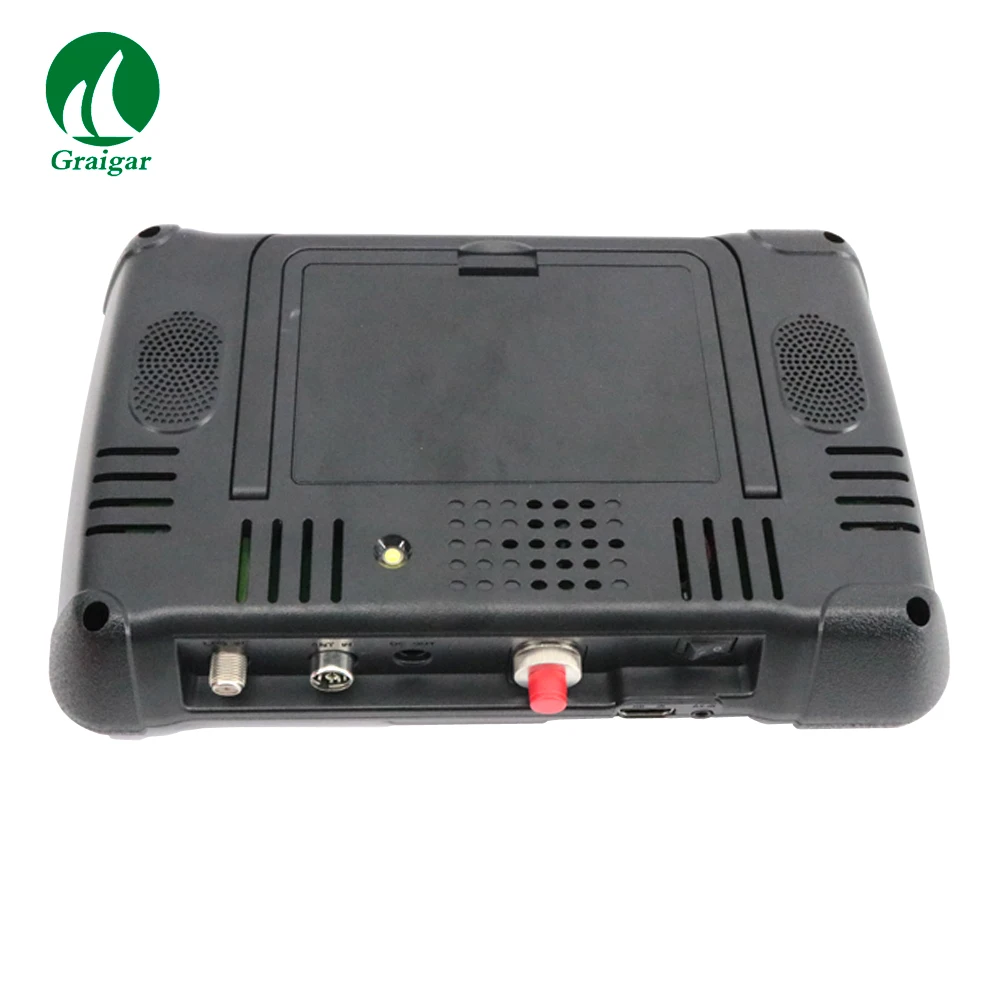

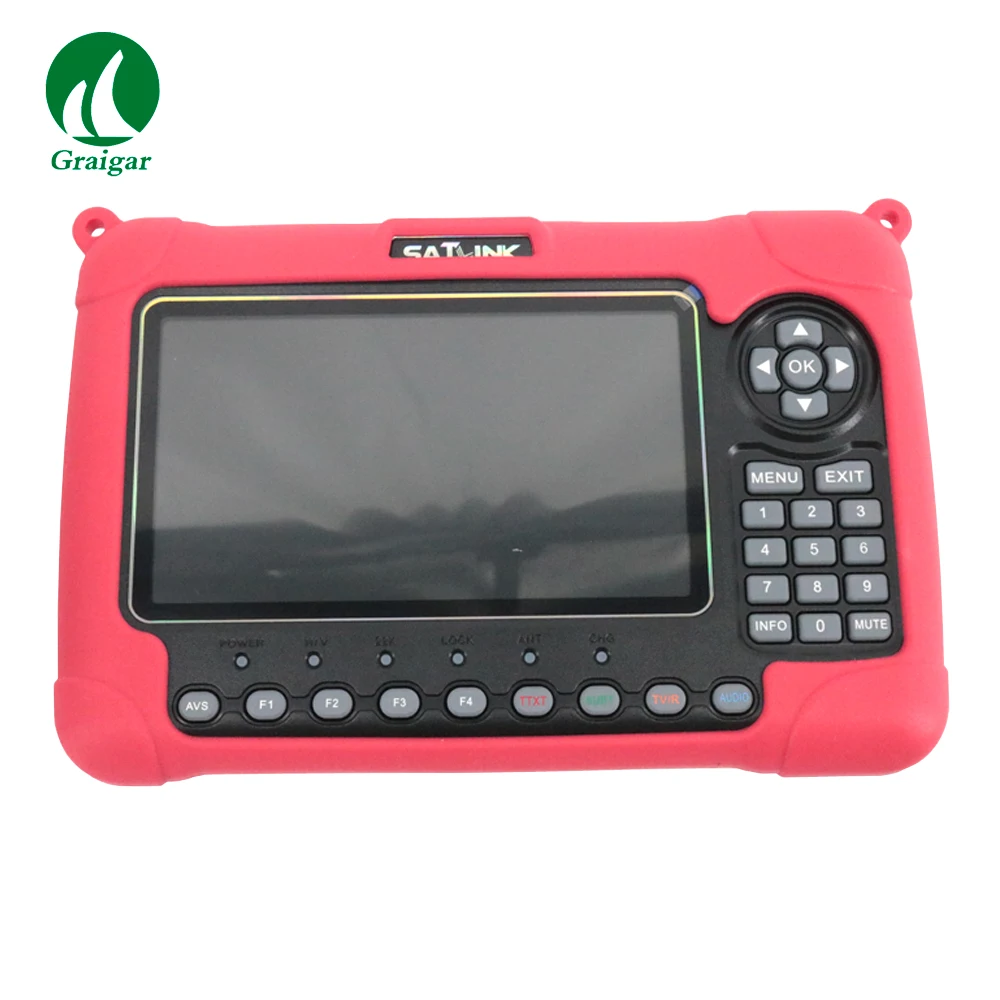

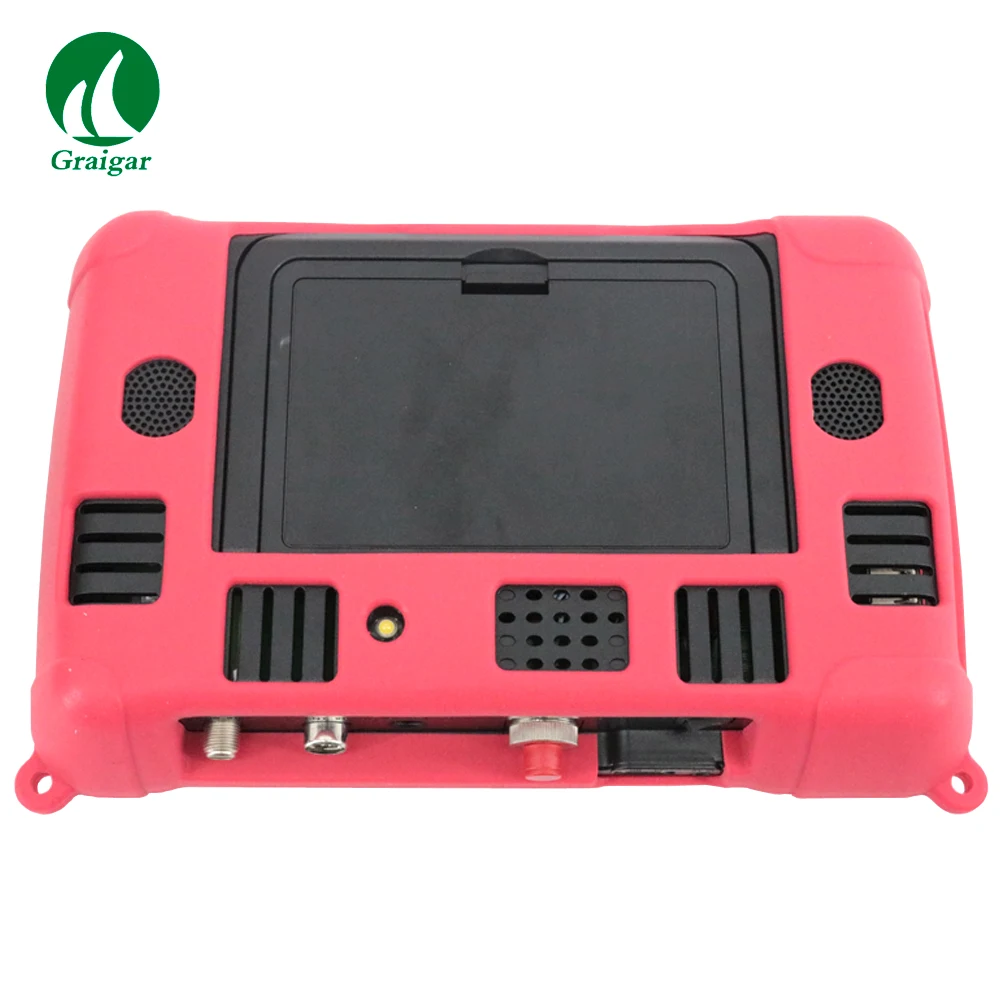

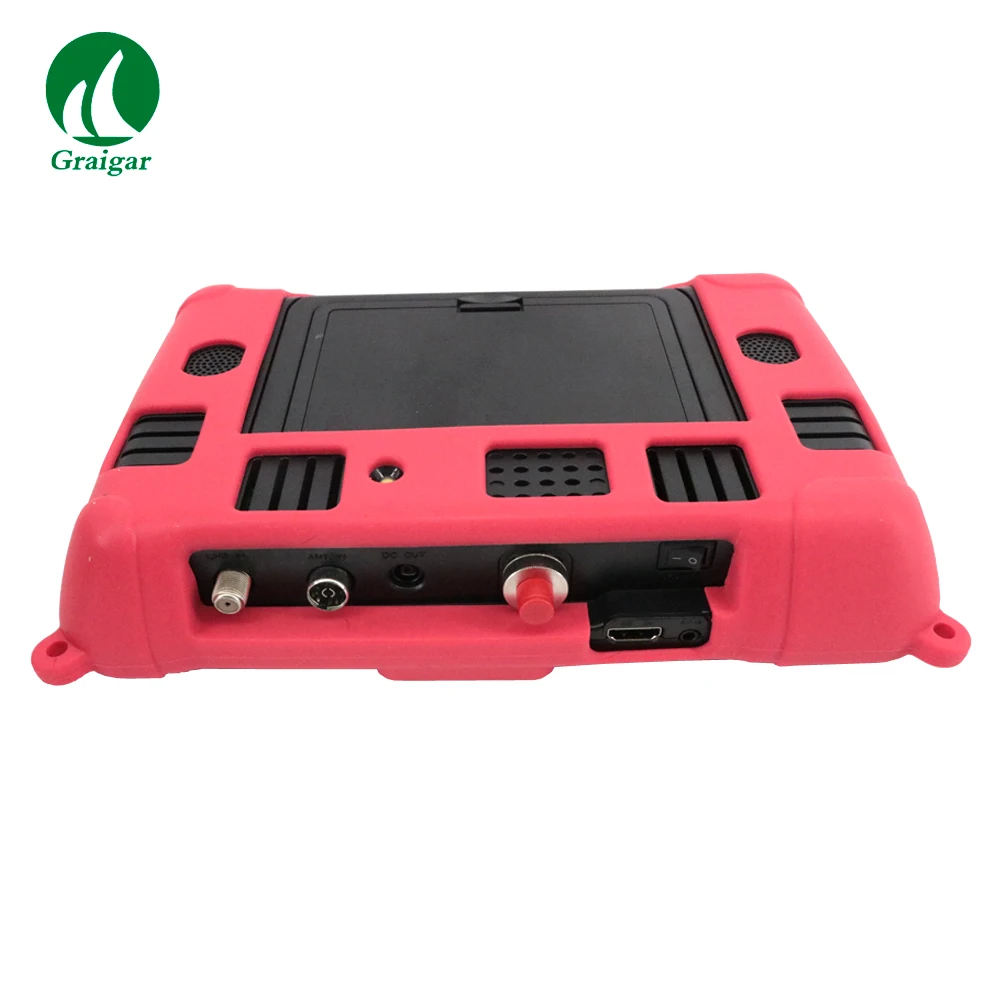

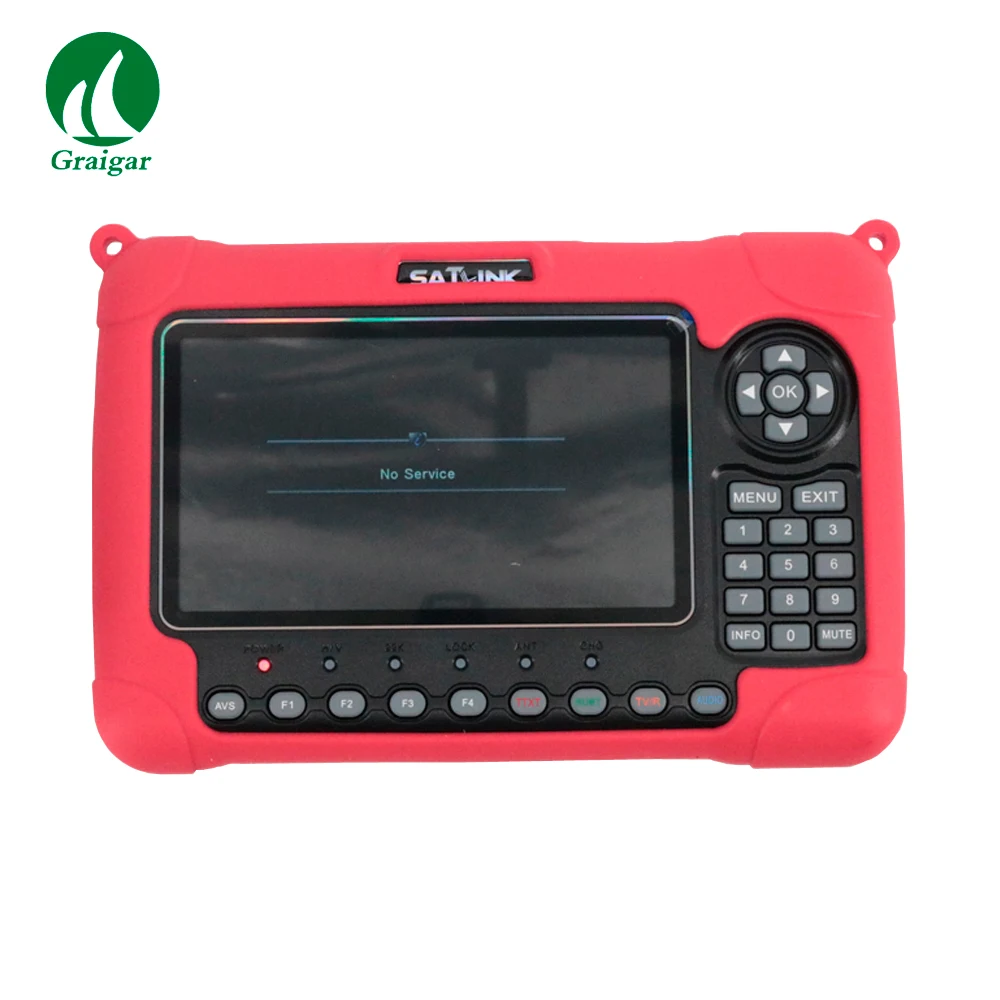

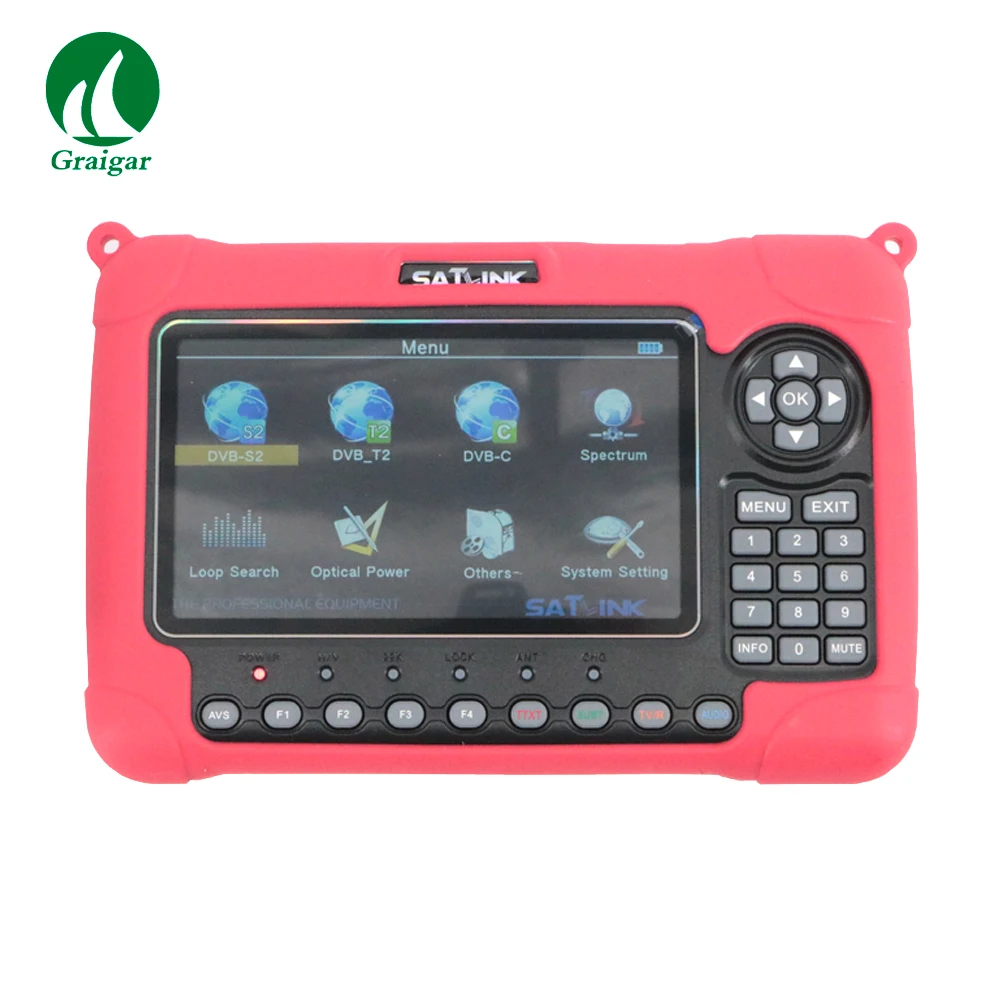

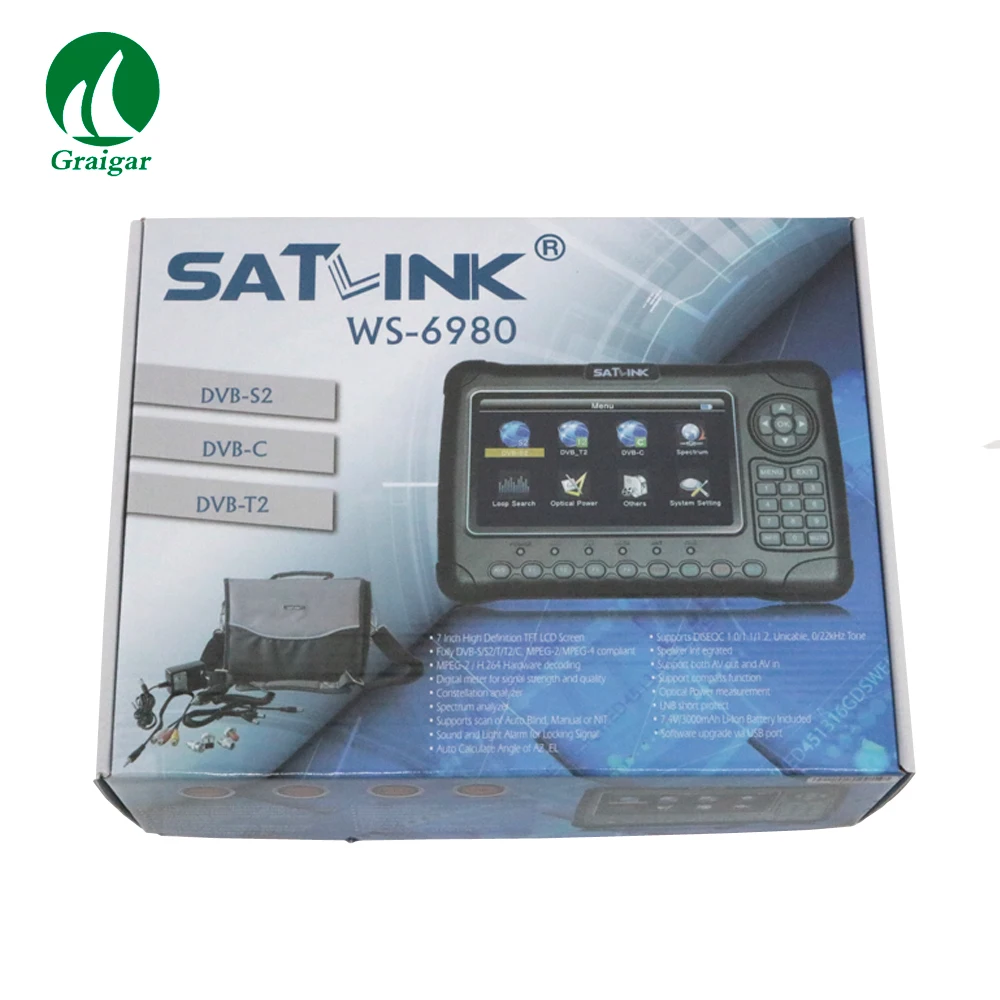

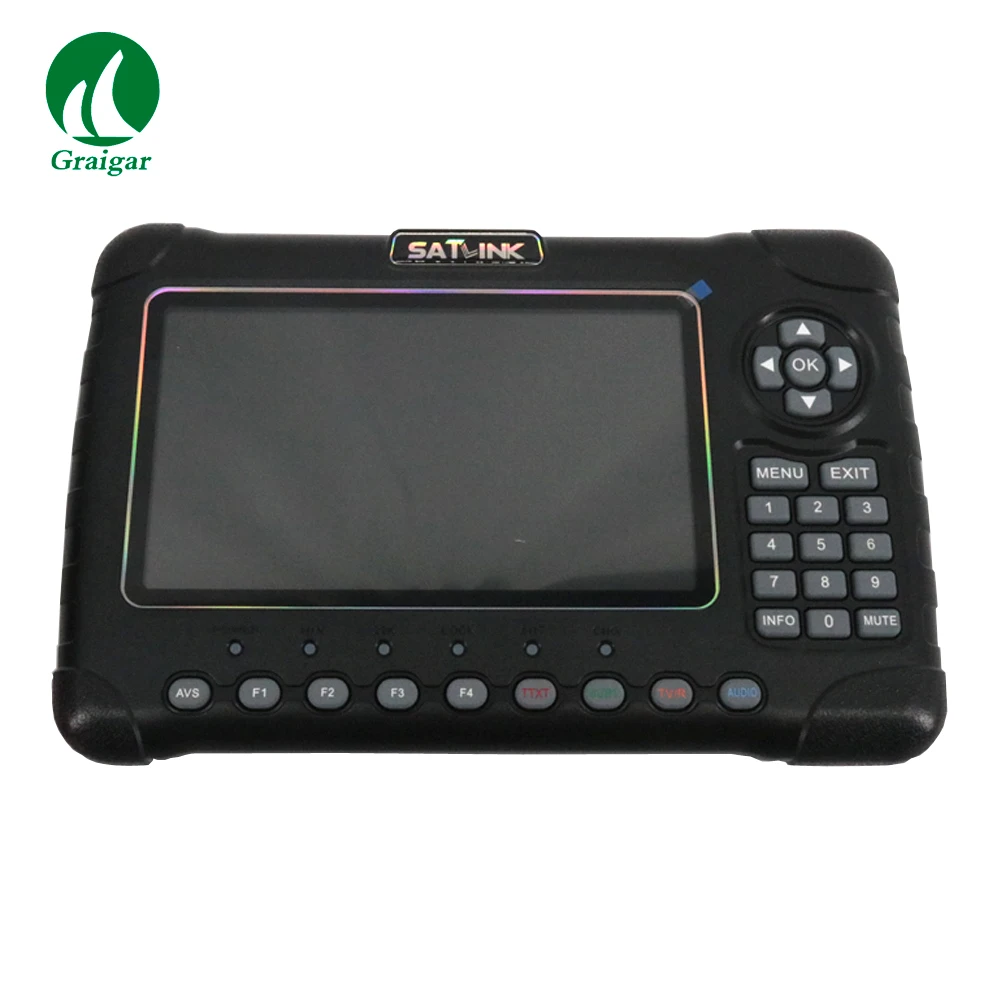

WS 6980 DVB S2/T2/C Digital Satellite Finder Meter Spectrum Analyzer
- Category: >>>
- Supplier: Shenzhen Graigar Technology Co. Ltd.
Share on (62162301682):
Product Overview
Description
WS-6980 DVB-S2/T2/C Digital Satellite Finder Meter Spectrum Analyzer
| Specification: |
7 Inch High Definition TFT LCD Screen(1024*600)
Fully DVB-S/S2,T/T2/C, MPEG-2/MPEG-4 compliant
MPEG-2 / MPEG-4 H.264 Hardware decoding
Supports scan of Auto, Manual ,NIT(DVB-S/S2)
Supports scan of blind (DVB-S/S2/C)
Supports Constellation analyzer
Supports Spectrum analyzer
Supports for multiple CH/TP detection
Supports Alarm for Locking Signal
Auto Calculate Angle of AZ ,EL
Supports DISEQC 1.0/1.1/1.2 ,0/22khz Tone
Stereo pairs of speakers
Supports both AV IN/OUT
Supports HDMI IN/OUT out and AV in
Supports the DC12V output
Electronic compass
LNB, ANT, DC12V short protect
The built-in flashlight
Optical power detection
7.4V/5000mAh Li-ion Battery
Independent battery charging power
Software upgrade via USB port
Transmission Standards | |
DVB-S2/S,DVBT/T2, DVB-C | |
Satellite Input/ Demodulation | |
Connector Type | F Type |
Input Frequency | 950 to 2150 MHz |
Signal Input Level | -65 to -25 dBm |
Band Switch Control | 22KHz |
LNB Supply | 13V/18V, Imax 400mA |
Demodulation Type | QPSK,8PSK,16APSK |
Symbol Rate | 2<Rs<45Mband(SCPC/MCPC) |
DVB-T/T2/C Input/Demodulation | |
Connector Type | Female Type |
Input Frequency | 48 to 862 MHz |
Signal Input Level | -79.5dBm (MAX) |
ANT Supply | 5V, 12V/24V Imax 100mA |
Demodulation Type | OPSK,16PAM,64QAM,256QAM |
LCD Features | |
LCD Type | TFT Transmissive |
Number of Dots | 800 x 3(RGB) x 480 |
Active area (WxH) | 154.08mm x 85.92 mm |
AV output interface | |
Connector Type | 3.5 mm jack |
Video Output | CVBS |
Audio Output | Stereo Audio L/R output |
HDMI output connecter | |
Format | HDMI 1.3a |
AV input interface | |
Connector Type | 3.5 mm jack |
Video Output | CVBS |
Audio Output | Stereo Audio L/R output |
Audio/ Video Processing | |
Video decompression | MPEG-2 MP @ HL, MPEG-1 |
Decoding,MPEG-4 ASP @ L5 HD | |
resolution,H.264 MP&HP @ L4,HW JPEG decoding | |
Resolving rate | PAL-25 frame @ 720*576,NTSC-30 |
frame @ 720*480 | |
Signal compatibility | Support conversion for different video formats |
Video Format | 4:3,16:9,By Pan & Scan and Letter Box conversion |
Audio Decomperssion | MPEG-1 Layer I/II, MPEG-2 Layer I/II |
AUDIO Output | Stereo, Mono, R/L |
Data Service Port | |
Connector | USB |
Data Protocol | USB2.0 interface |
File Management System | NTFS,FAT32,FAT16 |
File Format | wma,mp3,mp4,avi,jpp,bmp,,img |
MICROPROCESSOR | |
Microprocessor | NOVATEK |
Clock Frequency | 500MHz |
SDRAM Menory | IGbit DDR3 |
Power Supply | |
Li-lon Battery | 7.4V/5000mAh (The machine behind labeling shall prevail) |
Adapter | Output: DC12V/1.5A, Input:100-240VAC 50/60Hz (Will be subject to actual configuration) |
Power Consumption | Max, 10W |
Physical Characerstics | |
Size(W x D X H) | 250mm x 156mm x 40mm |
Net Weight | 1Kg |
