Factory Outdoor High gain 6dBi gain 3 bay Yagi fm Antennas
- Category: >>>
- Supplier: Shaanxi Vision Radio & Television Equipment Co. Ltd.
Share on (62162330959):
Product Overview
Description
Product Description

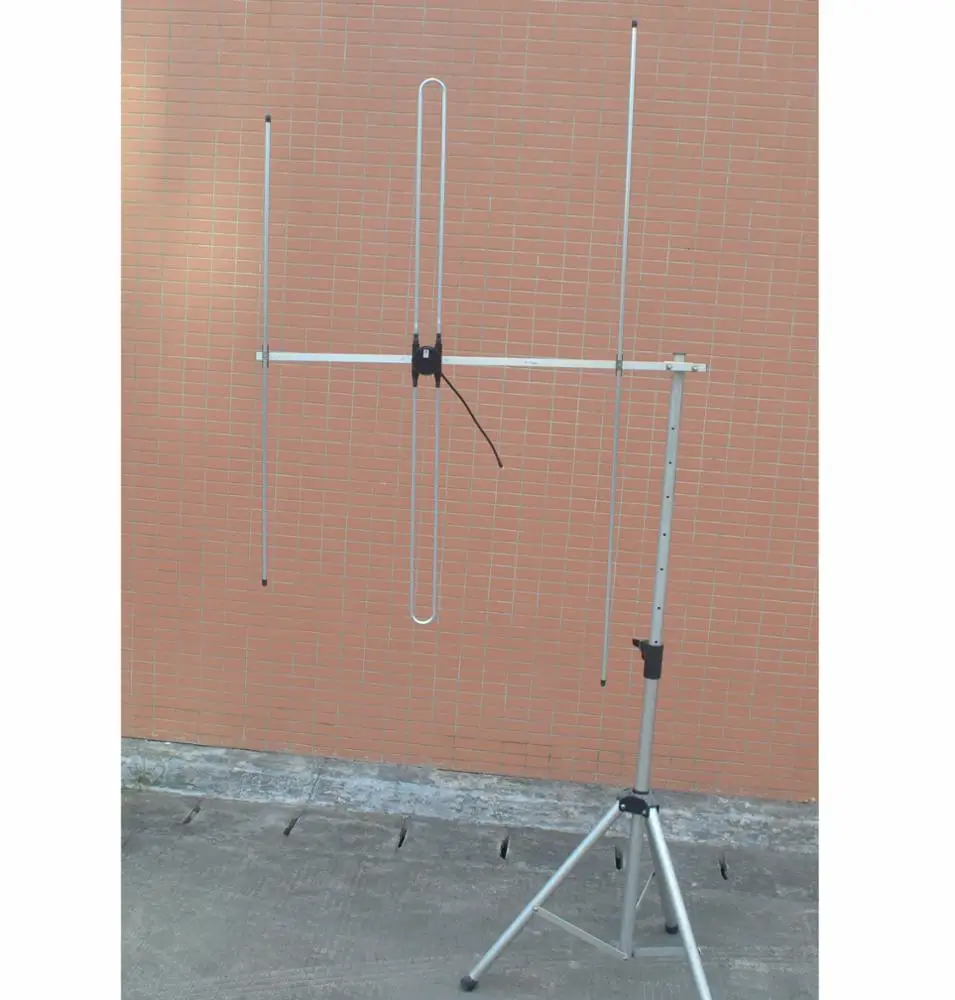

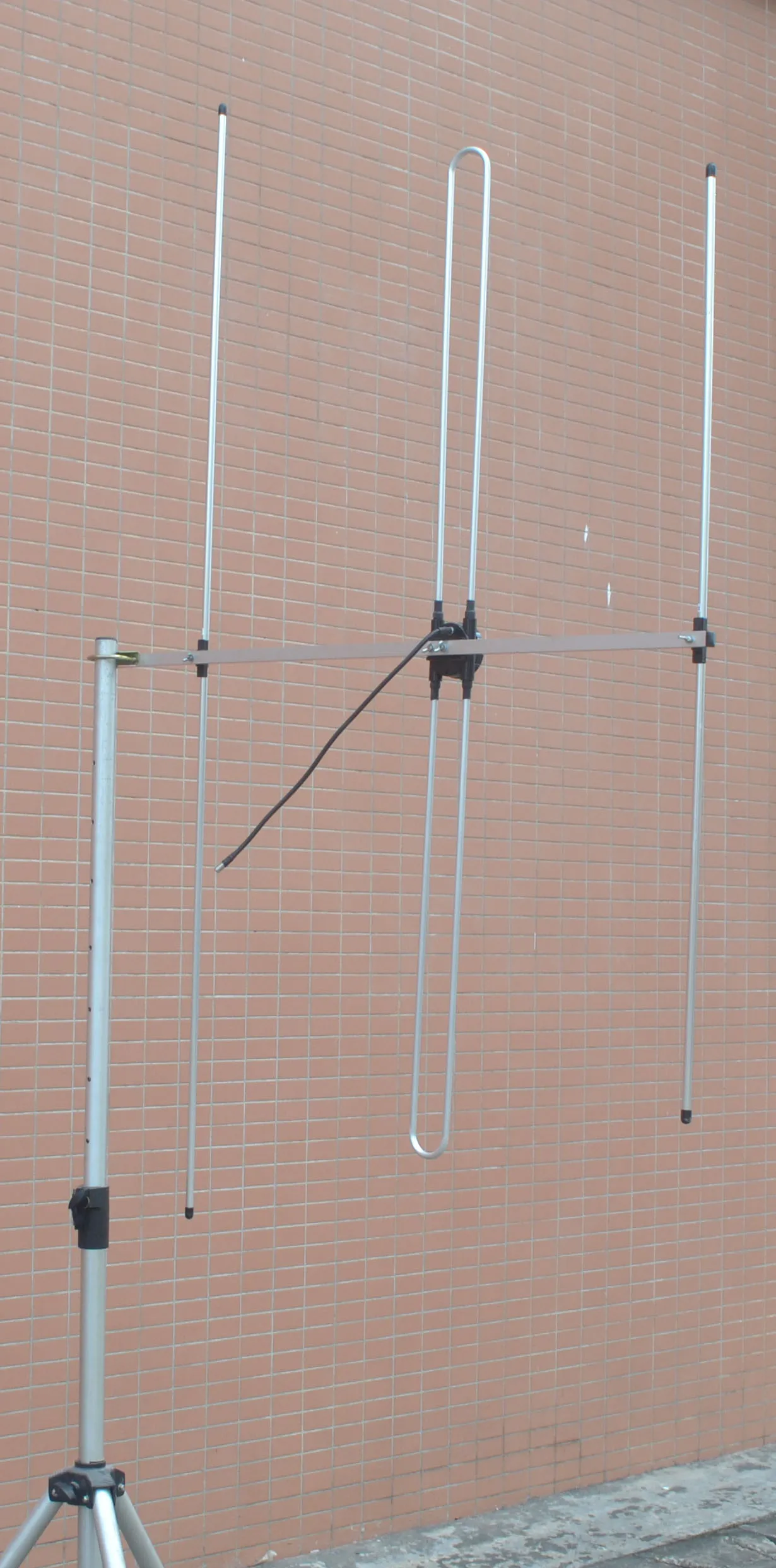

88-108MHz FM Yagi Directional Antennas
Omni-directional Antennas Omni-directional Antennas Omni-directional Antennas Omni-directional Antennas Omni-directional Antennas Omni-directional Antennas Omni-directional Antennas Omni-directional Antennas Omni-directional Antennas

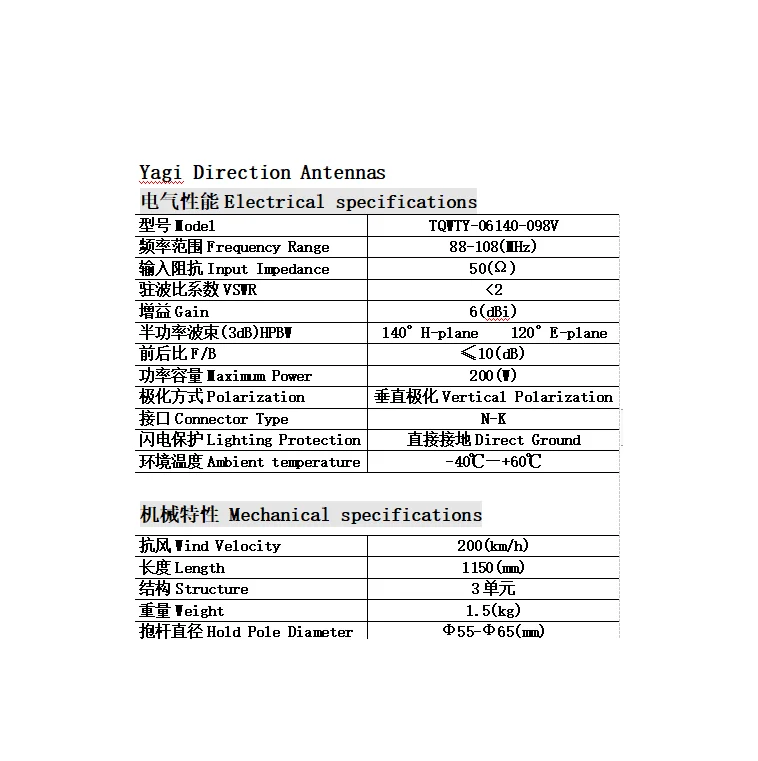

Technicial Index
Electrical specifications
Model | TQWTY-06140-098V |
Frequency Range | 88-108(MHz) |
Input Impedance | 50(Ω) |
VSWR | <2 |
Gain | 6(dBi) |
(3dB)HPBW | 140°H-plane 120°E-plane |
F/B | ≤10(dB) |
Maximum Power | 200(W) |
Polarization | Vertical Polarization |
Connector Type | N-K |
Lighting Protection | Direct Ground |
Ambient temperature | -40℃—+60℃ |
Mechanical specifications | |
Wind Velocity | 200(km/h) |
Package | 183cm*φ12 |
Structure | 3 Bay |
Weight | 3(kg) |

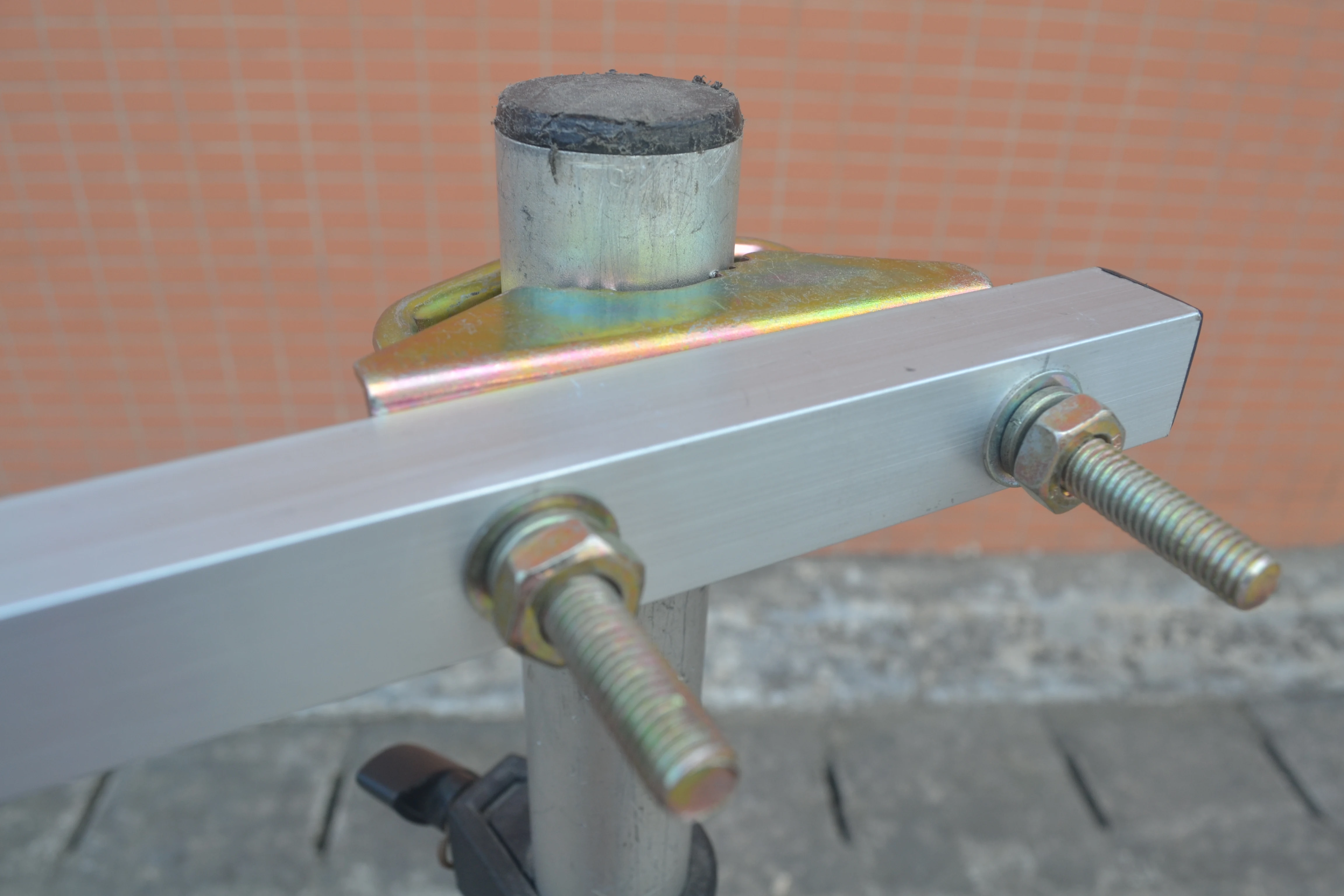

Hold Pole Diameter | 55-65(mm) |
FAQ
Common Problems:
For better understand of our products,we collect all possible problems for every order,hope it will help you.
Q1. Are you the manufacturer or trading company?
A1. We are manufacturer of Radio & TV Broadcasting equipments.
Q2.What these equipments used for?
A2. They are professional used for FM Radio & TV Broadcasting Station (Transmitting equipment.)
Q3. What equipment & solution your company can provide?
A3. We can do complete solution for FM Radio &tv station system, including the fm/tv transmitter, antennas and the feeder cables.
Q4. How do I choose suitable equipments for my station?
A4. The most import factors are Power and Frequency.We need to know the Power and Frequency you need exactly.How long the distances do you want to cover in Radius?How height your Antenna can be installed?
Q5. How to calculate Broadcasting equipment Cover Range?
A5. The Cover Range depends on 4 factors:1. Power of Transmitter 2. Height of Antenna 3. Gain of Antenna 4. Around Environment.Then we can know the cover range of your station.
Q6. Is the Frequency Adjustable?
A6. FM Frequency is 88~108MHz, TV Band Frequency includes UHF/VHF band.
Q7. How to do installation of these equipments?
A7. If need,we can send our engineer to your country to do the installation, but you should pay the cost.We also can provide the technical support or do training for your engineer here in our company.
Q8. How to operate these broadcasting equipments?
A8. We provide All-English user manual, we also can provide the technical support by wechat /whatsapp etc.
Our Services
1.We will provide the User Manual in English or operating videos for free.
2. We provide you with 24-hour technical support by mail or online.
3.Warranty: 1 year , more than 1 year, cost maintenance
4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
