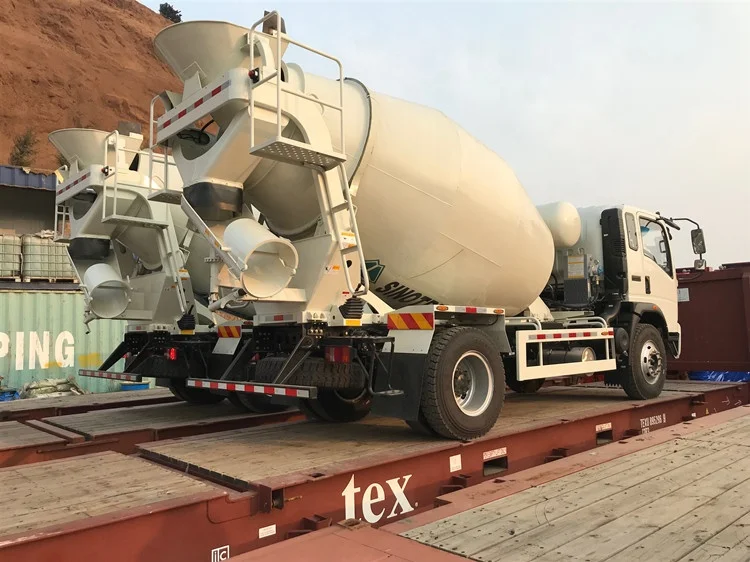

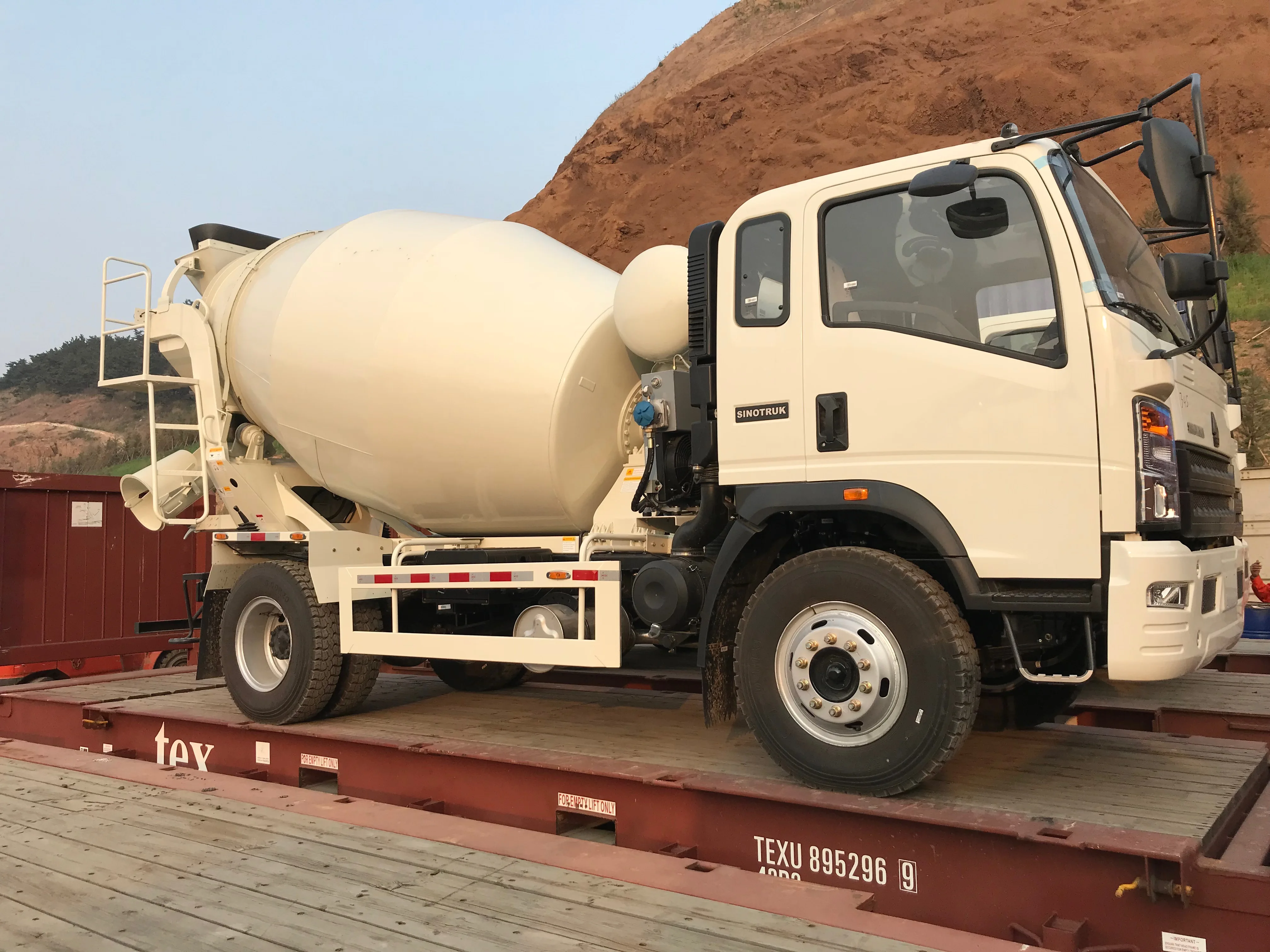

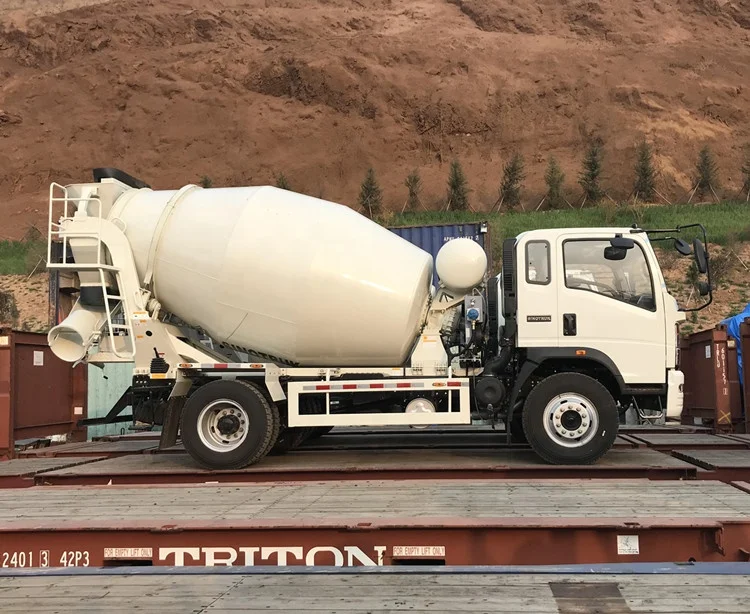

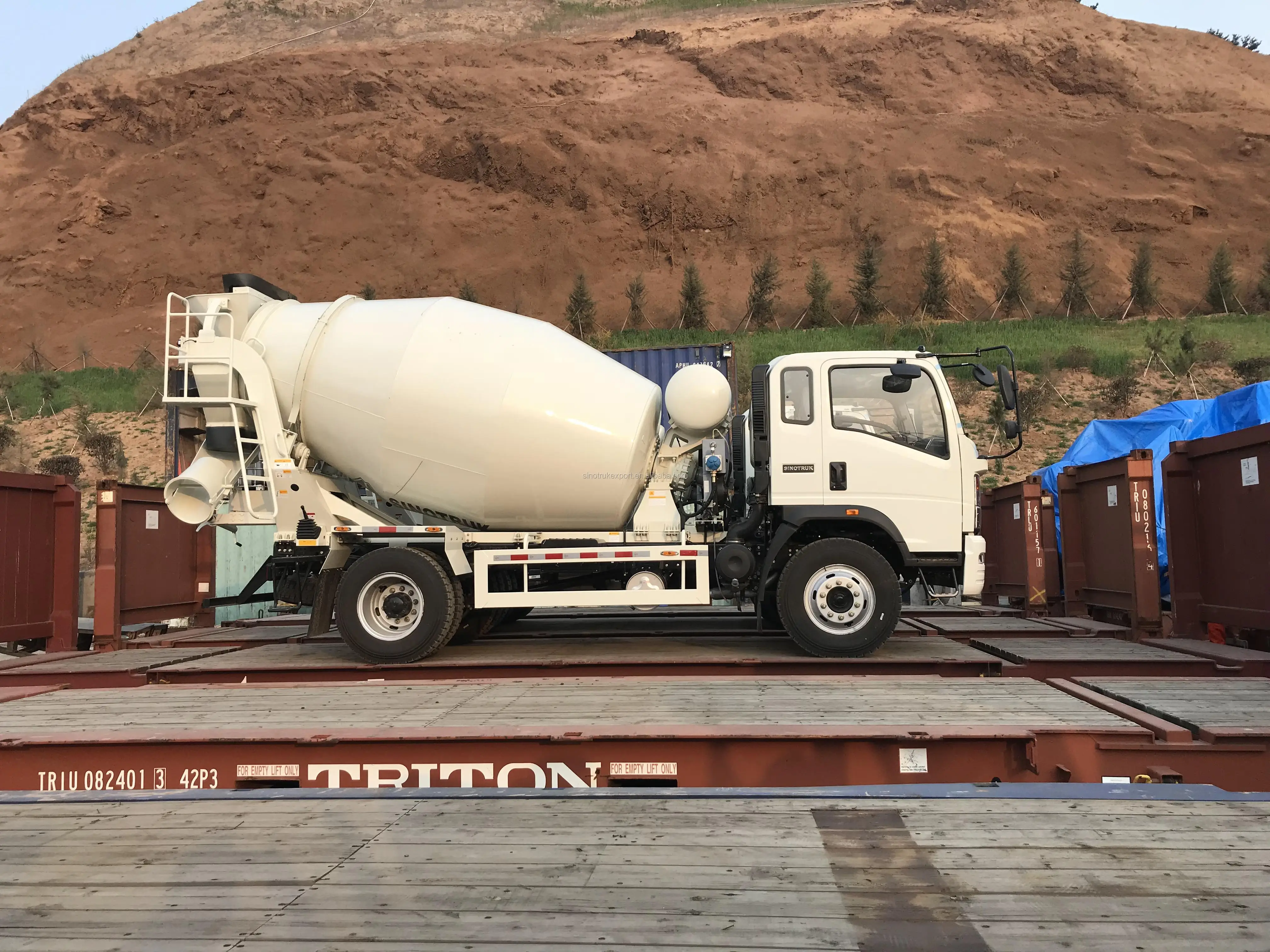

alibaba china sinotruk 8 cubic meters concrete mixer truck

MIXER TRUCK SPECIFICATION

Dimension(Lx W xH)(unloaded)(mm)

6995×2418×3050

Cubage (m³)

6

Approaching angle/Departure angle(°)

16/26

Overhang(front/rear) (mm)

1500/2240

Wheel base (mm)

3625+1350

Max speed(km/h)

90

Curb weight(kg)

13000

Rated Weight(kg)

11870

Engine

(Steyr technology, made in China)

Model

WD615.69

Fuel type

Diesel

Power, max(kw/rpm)

336HP

Emission

EUROII

Fuel tanker capacity (L)

400L

Transmission

Model

HW19710

Steering system

Model

ZF8118

Front axle

HF9

Rear axle

HC16

Tire

12.00R20

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO76 New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
