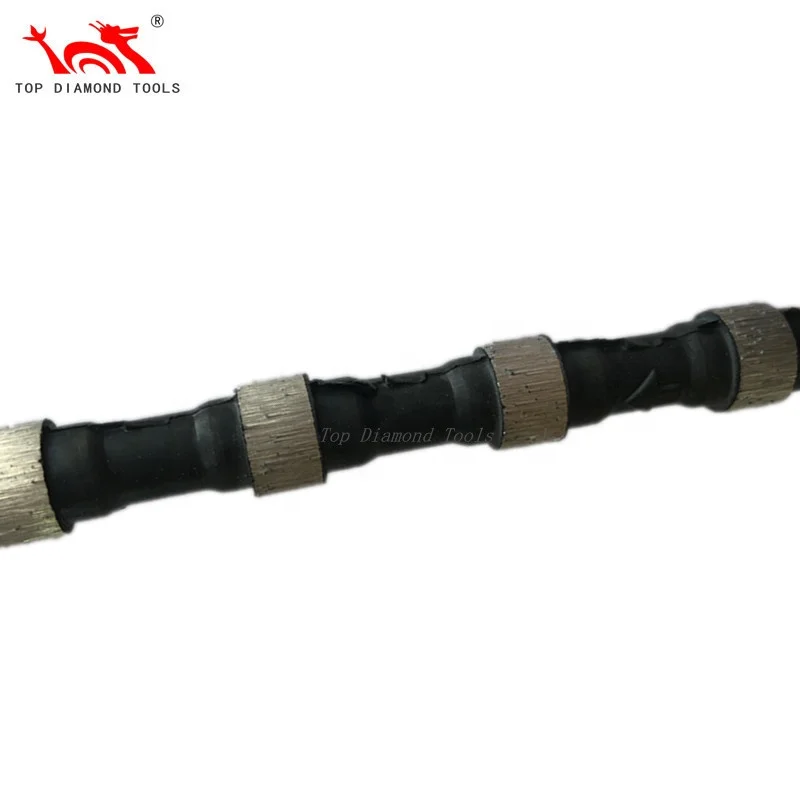

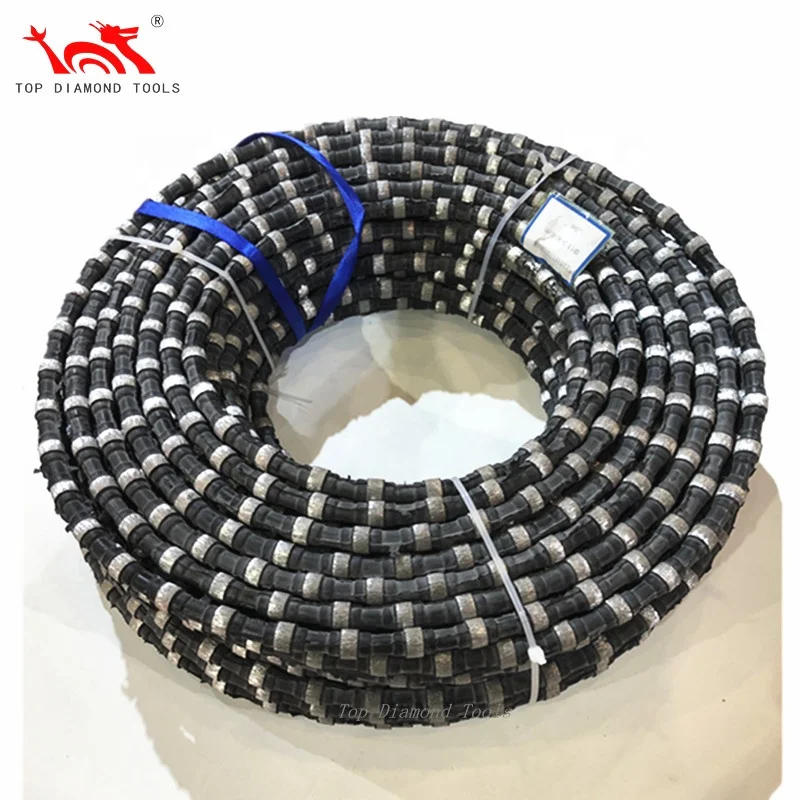

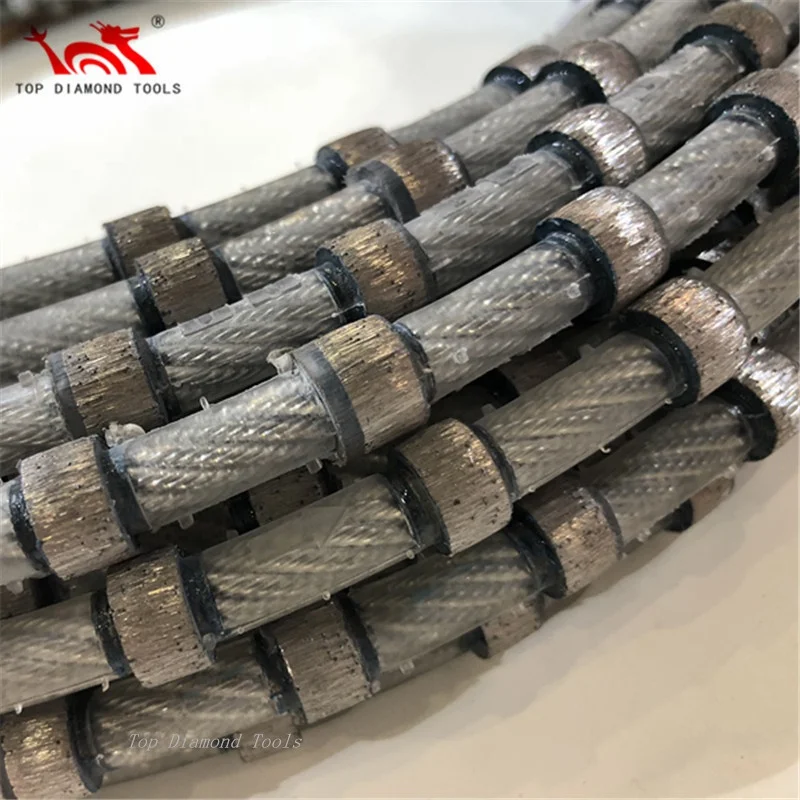

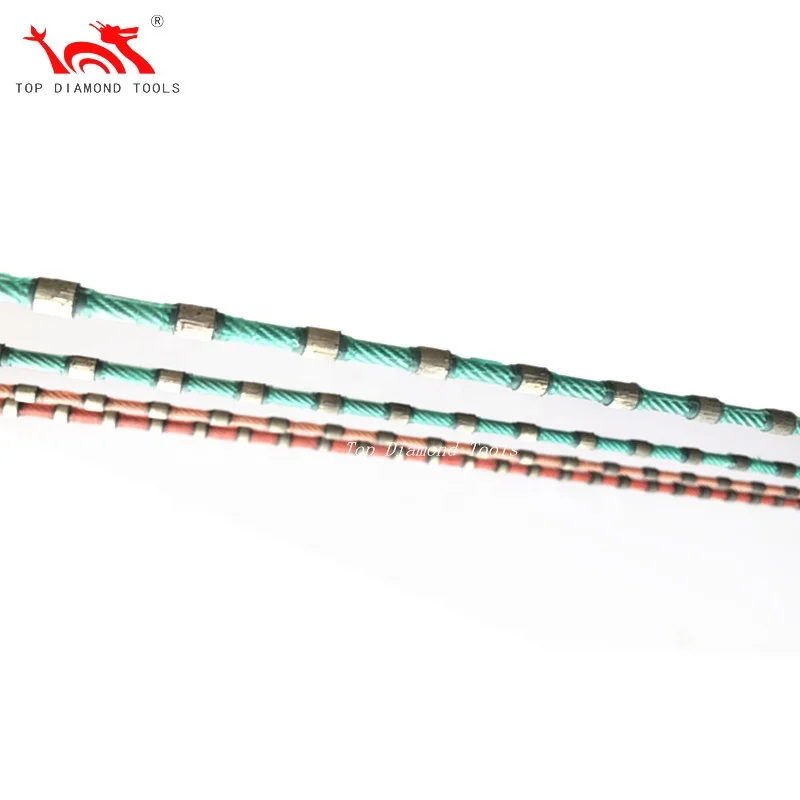

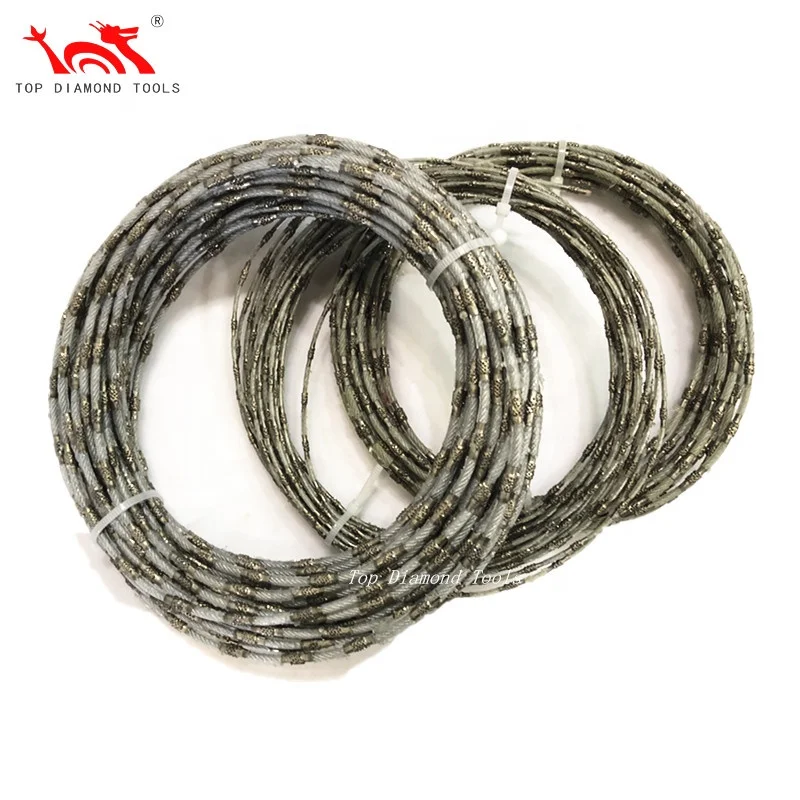

Diameter 8.8mm Diamond Wire Saw Rope For Granite Block Profiling Cutting

Note: Efficiency is measured by down-feed per min.

Attentions for the profiling diamond wire cutting on stationary machines:

1.  Regular inspections of diamond wire self rotation and make adjustment in time.
2.  Regular inspections of diamond wire abrasive to avoid cut-in-one-side problem happen. Once it happens, make the solution straight way.
3.  Regular inspections the joint, as well as the beads of two sides, if they are abrasive badly, replaces them in time.
4.  The cable tension of the stationary machines should be controlled within 250-300kg(φ 4-5mmcables).
5.  Linear speed is changed according to the different hardness of stones.
   Class 1-2 granite: 28-30m/s
   Class 3-4 granite: 26-28m/s
   Class 5 granite: 24-28m/s
   Marble: 30-40m/s
   Abrasive stone: 30-35m/s
6.  For the new wire, when start to cut, its linear speed should be slower 2-3/s than the standard mentioned above, it is good for sharpen.
7. Water supply is around 15-25L/min.
