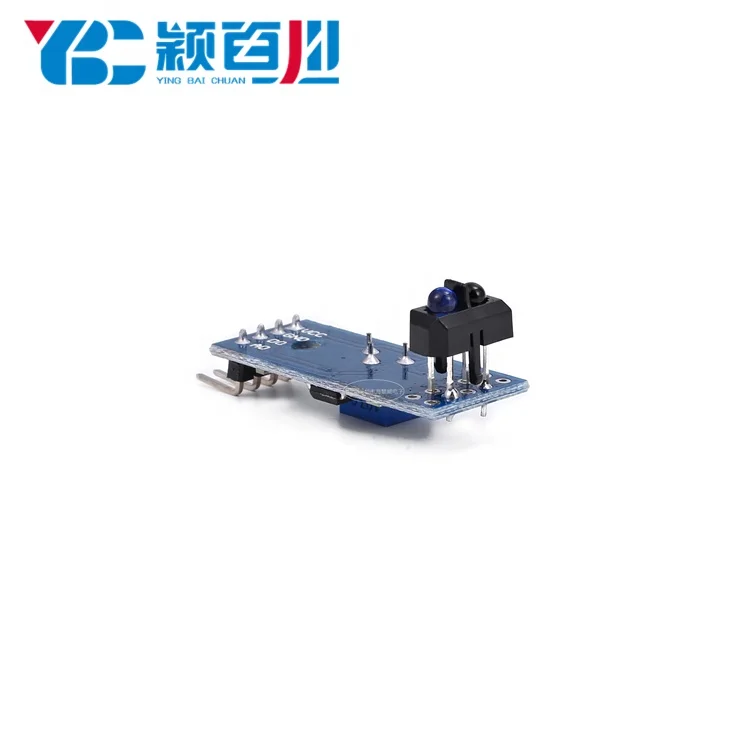

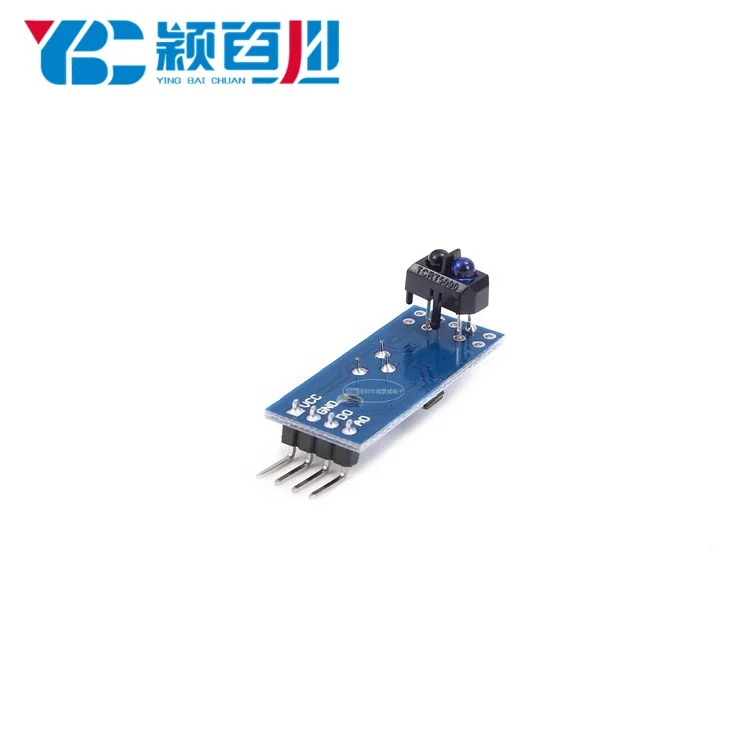

TCRT5000 Infrared Reflective Switch IR Track Sensor Module
- Category: >>>
- Supplier: Shenzhen Yingbaichuan Technology Co. Ltd.
Share on (62163333968):
Product Overview
Description
Product Description
module obstacle avoidance module tracking sensors infrared reflection sensor TCRT5000
Product Usage:
1, power meter pulse data sampling
2, fax paper shredder paper detection
3, obstacle detection
4, black and white line detection
product description:
1, using TCRT5000 infrared reflective sensor
2, detection reflection distance: 1mm~25mm apply
3, comparator output, the signal is clean, good waveform, strong driving ability, more than 15mA.

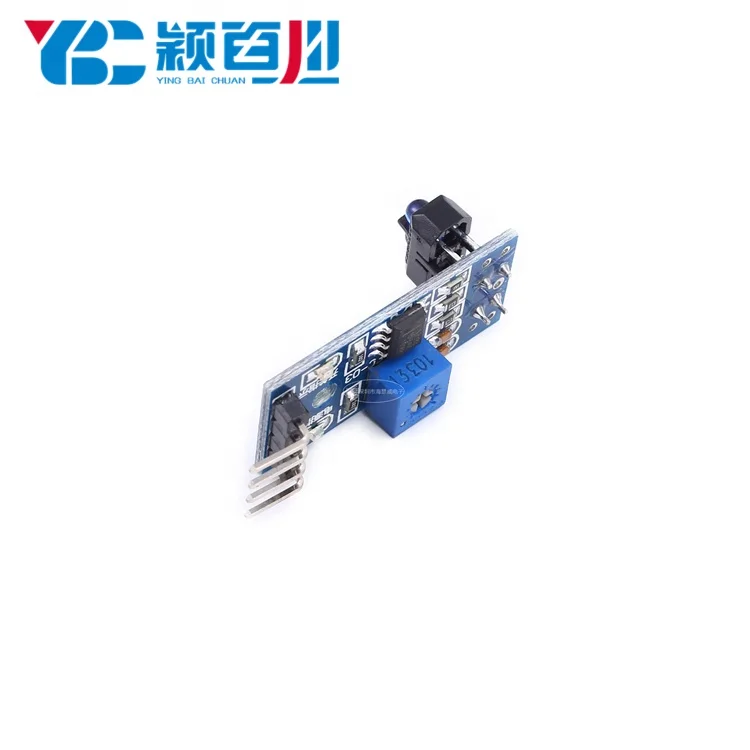

4, the power distribution device adjustment sensitivity
5, working voltage 3.3V-5V
6, the output form: digital switch output (0 and 1)
7, with a fixed bolt hole, easy to install
8, small PCB size: 3.2cm x 1.4cm

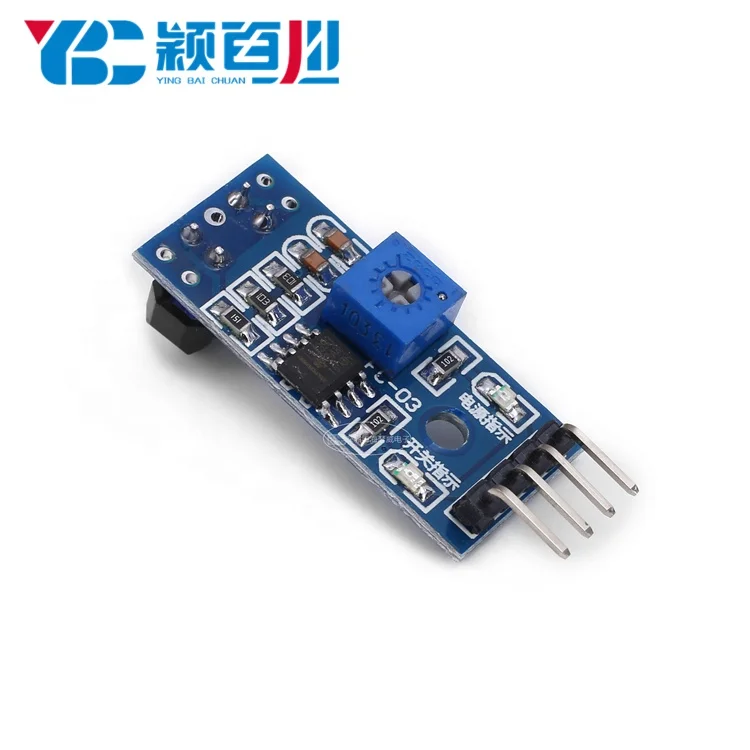

9, using a wide voltage LM393 comparator
Features:
The infrared emitting diode of the TCRT5000 sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or are reflected back but the intensity is not enough, the infrared receiving tube is always in the off state, and the output of the module is high at this time. The diode is always in the extinguished state; when the detected object is within the detection range, the infrared light is reflected back and the intensity is sufficiently large, and the infrared receiving tube is saturated. At this time, the output end of the module is low and the indicating diode is lit.

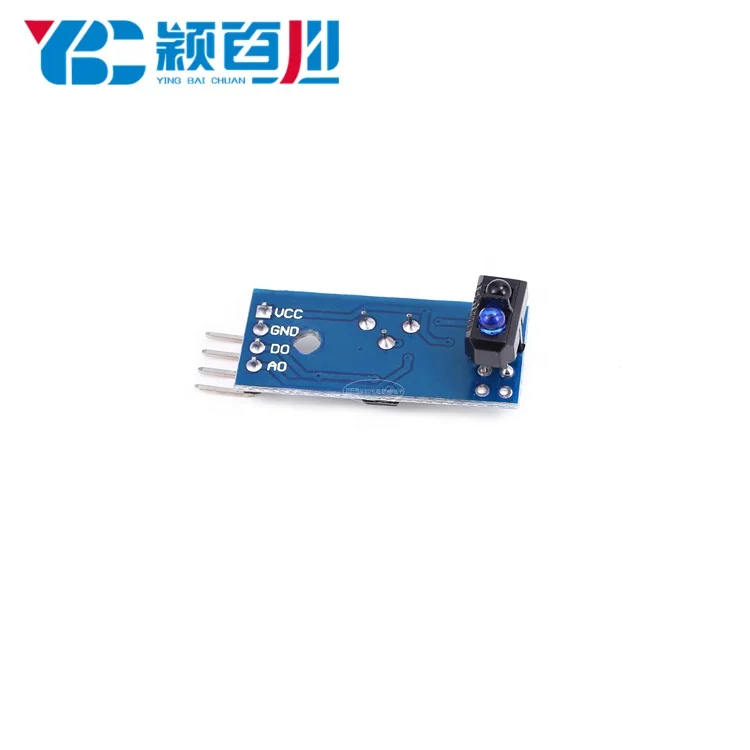

Wiring:
1, VCC: connect to the positive power supply (3-5V)
2, GND: connected to the negative power
3, DO: TTL switch signal output
4, AO: analog signal output (different voltage output at different distances, this foot can generally not receive)
Shipping list:
Tracking module 1
